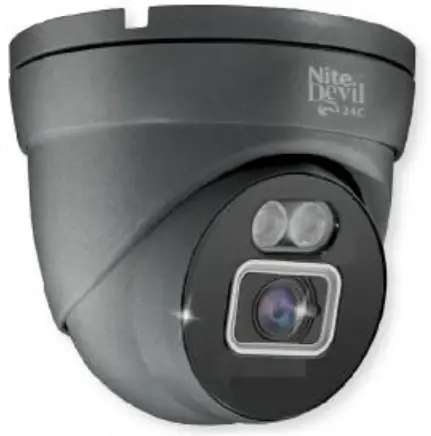

SystemQ SEE702 2MP NiteDevil Eyeball 2.8mm Built In Mic User Guide
The all new NiteDevil 24C can stay in full colour around the clock using the minimal amount of natural light to produce superb full colour images.
Up to 30m lR range (true day/night filter) and up to 20m white light range, 2MP resolution, built in Mic for Audio over COAX* and multi format output modes including; TVl, AHD, CVl and CVBS.
*Audio over COAX only Compatible with selected ZIP Recorders. See full manual for howto enable and compatible models

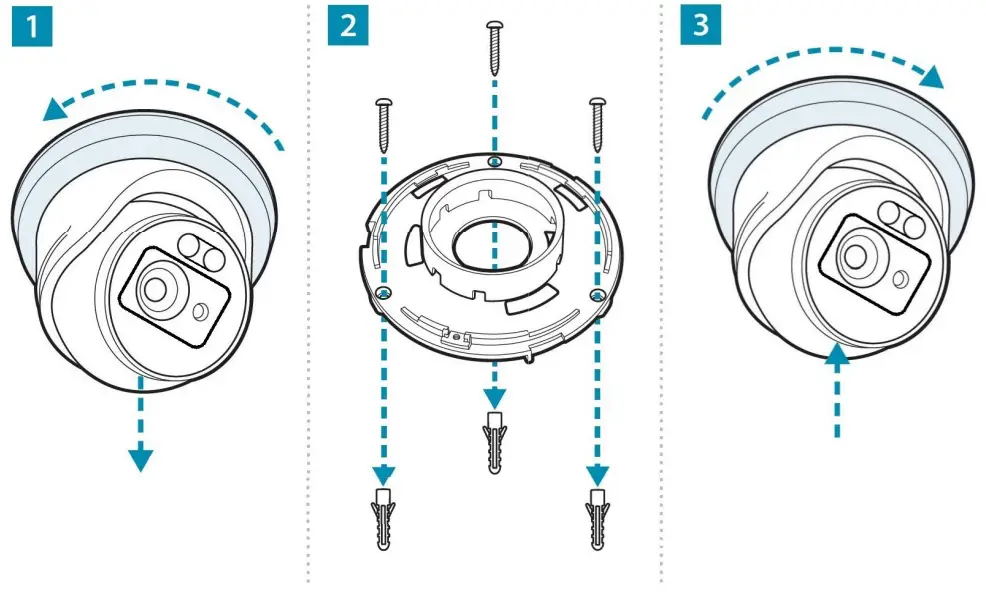

Powering the camera
The camera has a 2.1mm socket which requires 12V DC and the current consumption is 300mA, so use a regulated power supply rated at 500mA or above.
The camera is polarity sensitive so connections must be correctly made.
The camera has a standard BNC connector for the 4-in-1 video output. As default the output is set to HD-TVI 2MP which will work with the ZipLite, ZipSupa and ZipXtreme DVRs, however the output can be changed to AHD, CVI or CVBS if required.

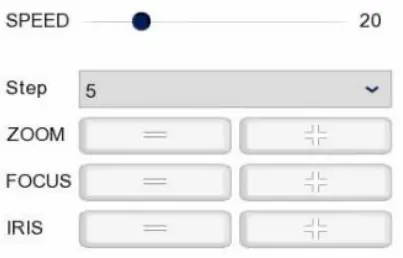

Via an DVR with a monitor & mouse direct to access the Cameras menu via coaxitron:-
- 1. Click on the image in Live view

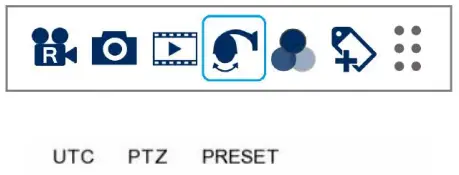

- 2. Click on the PTZ button at the bottom of the screen
- 1. Click on the IRIS + / centre button to display the menu
Use the directional arrows to move up and down through the menu.
Use the directional arrows left and right to change the option.
Use IRIS + to select and enter that menu option.
| Resolution | 2MP |
| Lens Type | 2.8mm Fixed Lens |
| lmage Output | 1 Volt Peak-Peak 75 ohm |
| Min.lllumination | 0 Lux lR On |
| Day/Night | 24C / Mechanical lR (True Day-Night) |
| LEDs | 2 White LEDs / 2 lR LEDs |
| lR Range | 20M |
| Audio | Built ln Mic (Audio over COAX – see full manual to enable) |
| lnput Voltage | 12V DC |
| Current Consumption | 300mA (lR On) |
| lP Rating | lP66 |
| Video Connection | BNC Socket |
| Power Connection | 2.1mm DC Socket |
| WDR | Yes |
| Finish | White/ Black |
| Build | Metal |
| Dimensions | 100mm (Diameter) x 90 mm (Height) |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non performance of the equipment refered to.
Document ref: qSEE702 © 2022 System Q Ltd
This symbol indicates that equipment must not be mixed with general household waste. For treatment, recovery and recycling please return to your local designated WEE/CG0783SS collection point as defined by your local council.
NiteDevil: CCTV Cameras That See In The Dark!
