Mipro Mu-55h Series Headworn Microphone User Guide

MU-55H Series Headworn Microphone
User Guide

MU-55H Series

MU-53H Series

MU-101 Series

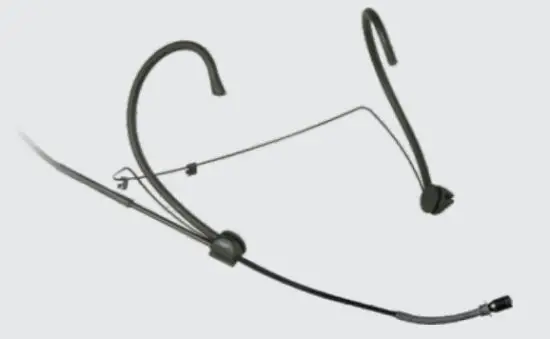

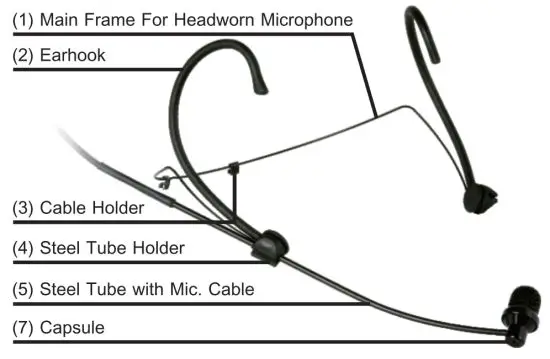

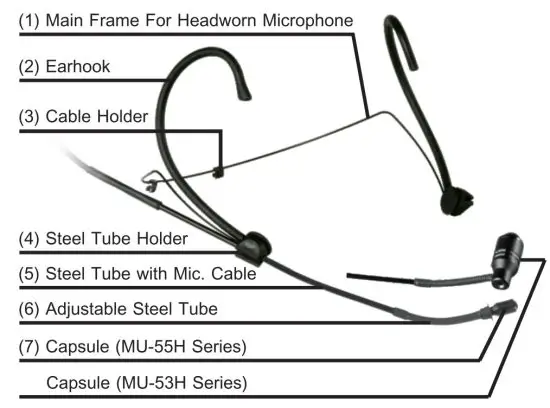

Part Names and Connector Types

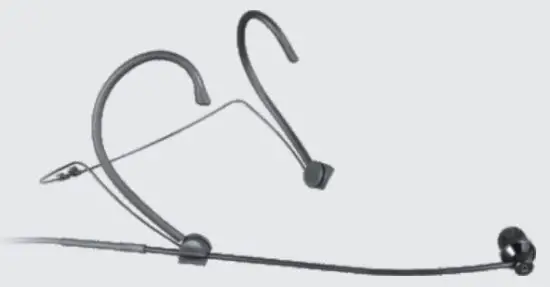

MU-55H Series/MU-53H Series

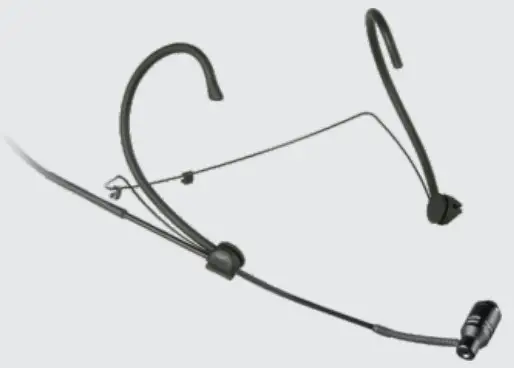

MU-101 Series

How to Assemble Your Headworn Microphone?

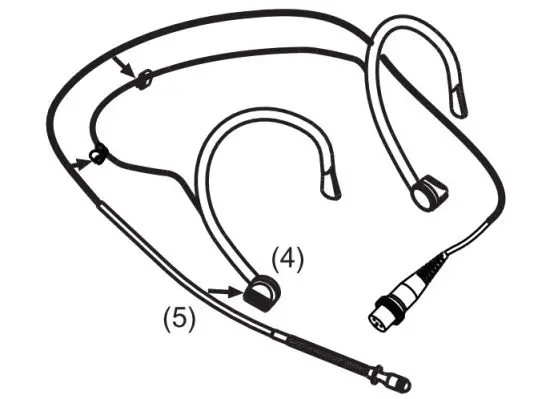

After installing the steel tube with microphone cable (5) onto the steel tube holder (4), fix the microphone wire in the cable holder (3) on the mainframe, as shown in Figure.

How to Adjust Your Headworn Microphone?

(MU-55H Series/MU-53H Series)

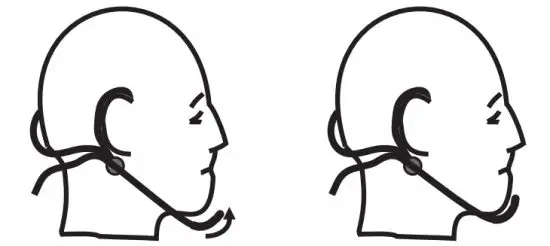

After putting on the head-worn microphone as shown below, the user can use an adjustable steel tube (6) to adjust the gap between the capsule and the user’s mouth if the gap is too large.

Specifications

MU-53H Series

• Transducer Type: Electret condenser microphone capsule
• Frequency Response: 50Hz to 18kHz
• Directional Characteristic: Cardioid
• Sensitivity: -46dB ±3dB at 1kHz ( 0dB = 1V/Pa)
• Operating Voltage: 1.1 ~ 9V
• Dimensions: (1026.5mm

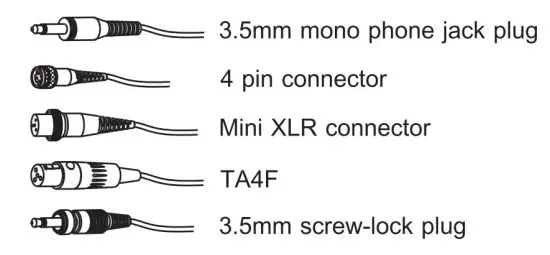

• Connector Options: 3.5mm mono phone jack plug / Mini XLR connector/ 4 pin connector/ T A4F / 3.5mm screw-lock plug

MU-55H Series

• Transducer Type: Electret condenser microphone capsule
• Frequency Response: 40Hz to 20kHz
• Directional Characteristic: Omnidirectional
• Sensitivity: -49dB ±3dB at 1kHz (0dB = 1V/Pa)
• Operating Voltage: 1.1 ~ 9V
• Dimensions: 04.5x13mm
• Connector Options: 3.5mm mono phone jack plug / Mini XLR connector I 4 pin connector I TA4F / 3.5mm screw-lock plug

MU-101 Series

• Transducer Type: Electret condenser
  microphone capsule
• Frequency Response: 50Hz to 18kHz
• Directional Characteristic: Cardioid
• Sensitivity: -49dB ±3dB at 1kHz ( 0dB = 1V/Pa)
• Operating Voltage: 1.1 ~ 9V
• Dimensions: (10×26.5mm
• Connector Options: 3.5mm mono phone jack plug/ Mini XLR connector/ 4 pin connector/ T A4F / 3.5mm screw-lock plug

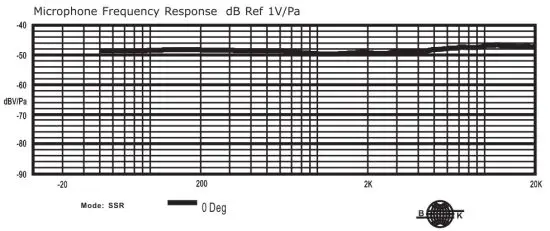

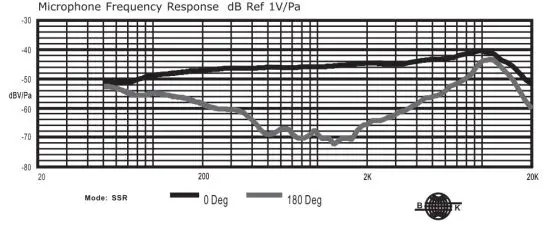

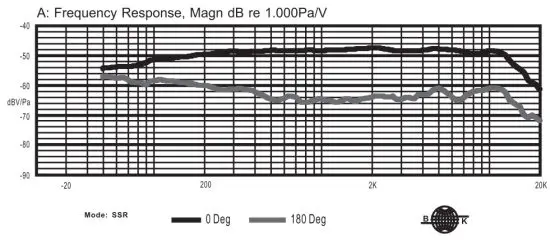

Frequency Response Diagram

MU-53H Series MU-55H Series MU-101 Series

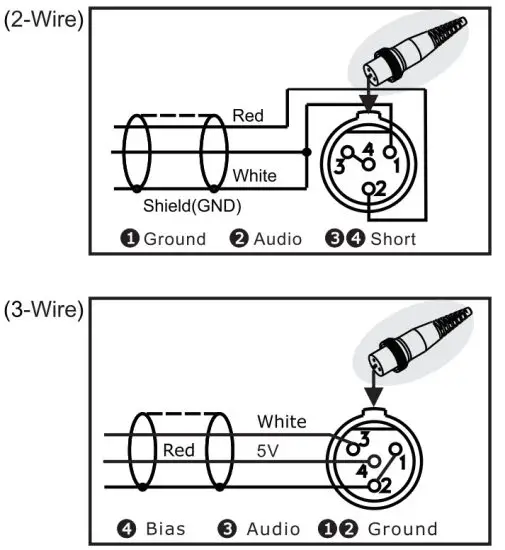

Wiring Illustrations

Notes: Refer to the actual product in the event of product description discrepancy.
