TUNE710BT
QUIC START GUIDE

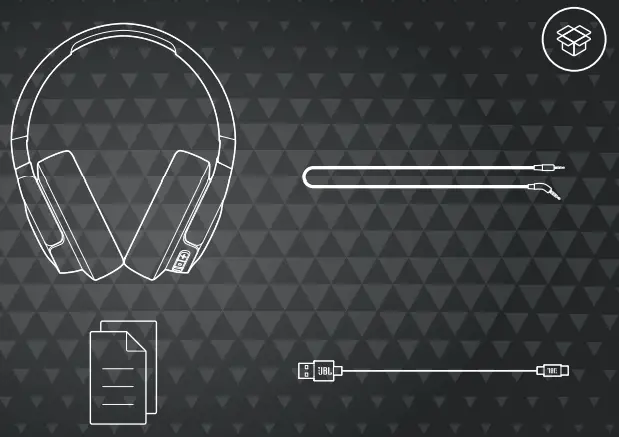

WHAT’S IN THE BOX

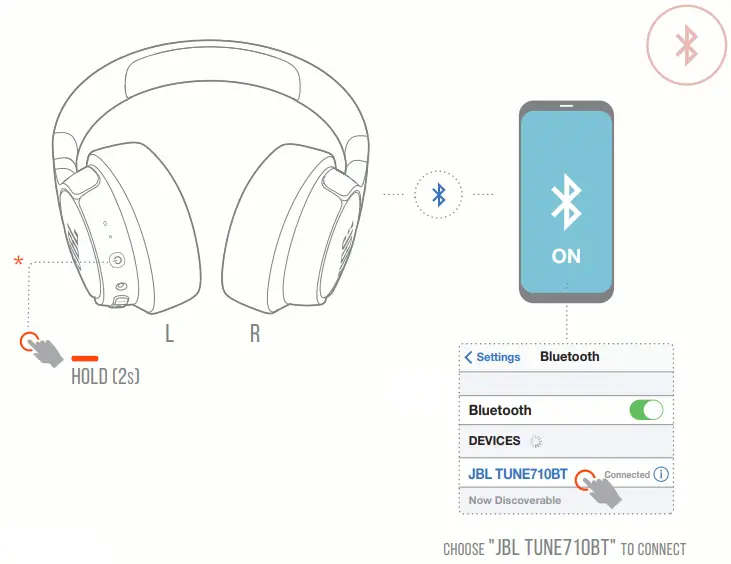

POWER ON & CONNECT
* To enter pairing mode again, power off and then hold for 5 seconds.

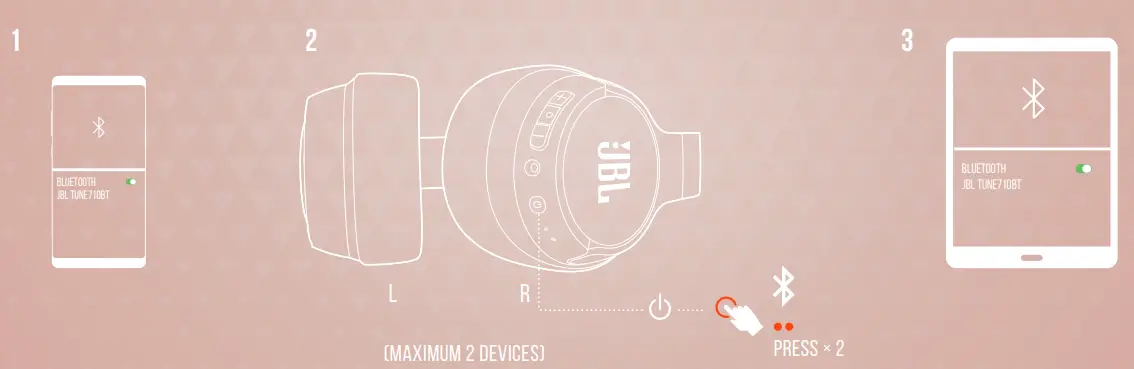

MULTI-POINT CONNECTION
MULTI-POINT CONNECTION

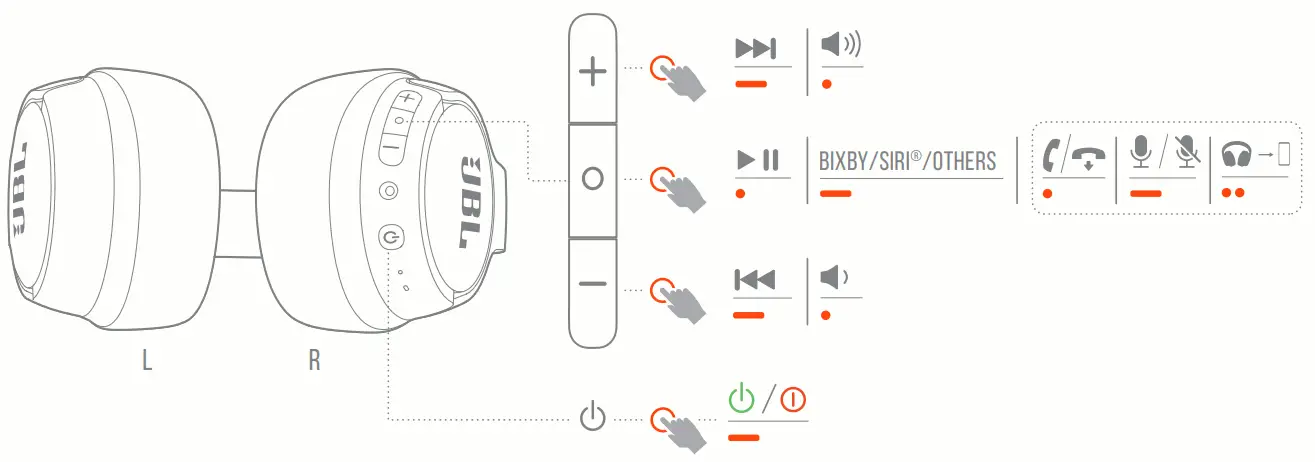

BUTTON COMMAND
BUTTON COMMAND

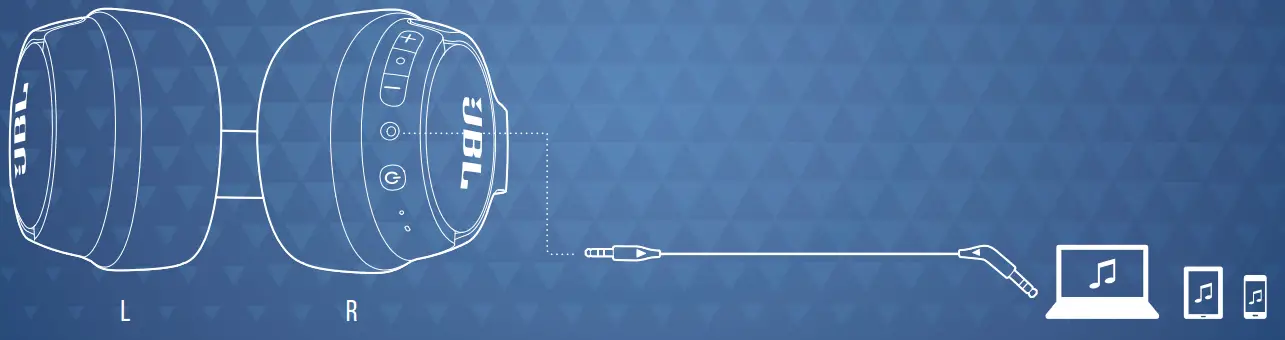

WIRED LISTENING MODE
WIRED LISTENING MODE

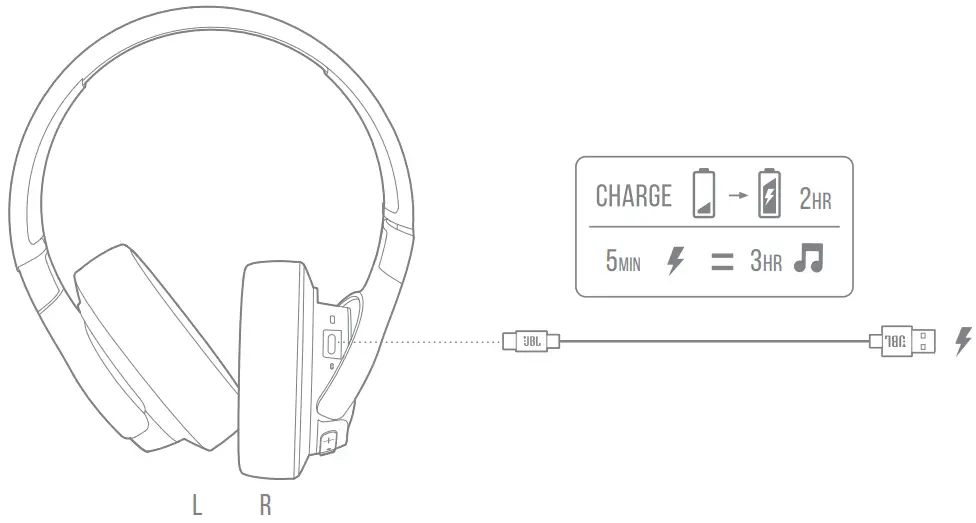

CHARGING
CHARGING

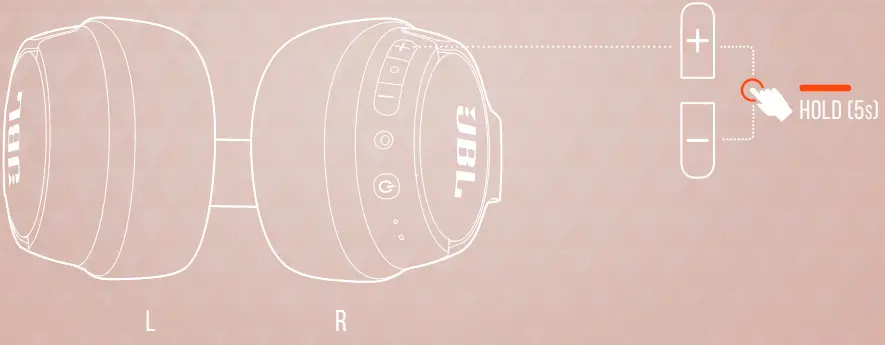

FACTORY RESET
FACTORY RESET

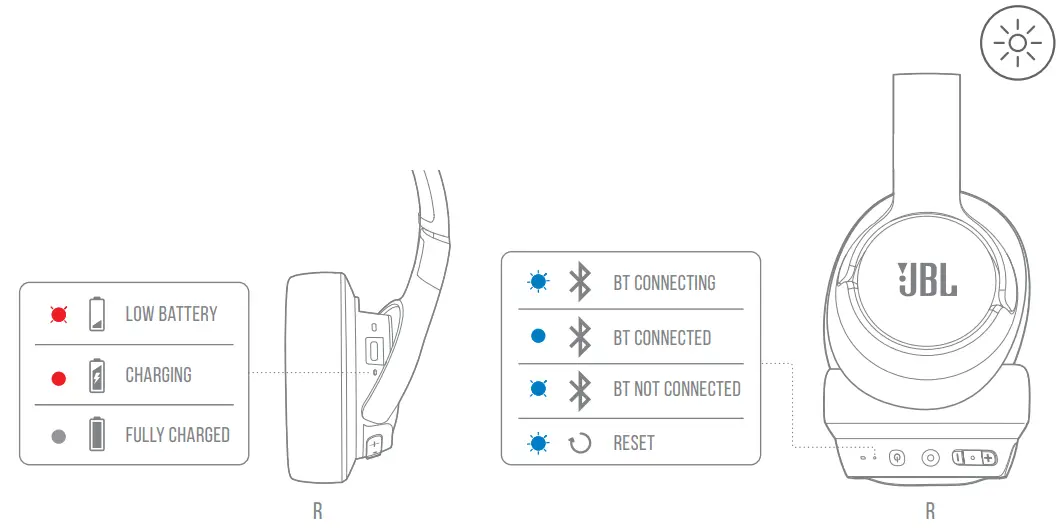

LED BEHAVIORS
TECH SPEC
TECH SPECModel: TUNE710BT
Driver size: 40 mm/ 1.6” Dynamic Driver
Power supply: 5 V 1 A
Weight: 220 g/ 0.485 lbs
Headset battery type: Polymer Li-ion battery (690 mAh/ 3.7 V)
Charging time: < 2 hrs from empty
Music play time with BT on: up to 50 hrs
Frequency response: 20 Hz – 20 kHz
Impedance: 32 ohm
Sensitivity passive mode: 104 dB SPL@1 kHz
Sensitivity active mode: 103 dB SPL@1 kHz
Maximum SPL: 93 dB
Microphone sensitivity: -40 dB/Pa @1 kHz
Bluetooth version: 5.0
Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7
Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
Bluetooth transmitter power: < 10 dBm
Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Maximum operation temperature: 45 °C
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-TUNE710BT) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.039 W / kg. The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user’s head and the back of the headset. The use of belt clips, holsters, and similar accessories shall not contain metal parts in its assembly. The use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and the product (including the antenna). Head exposure that does not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
IC: 6132A-TUNE710BT
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
HP_JBL_TUNE710BT_QSG_Global_SOP_V12
