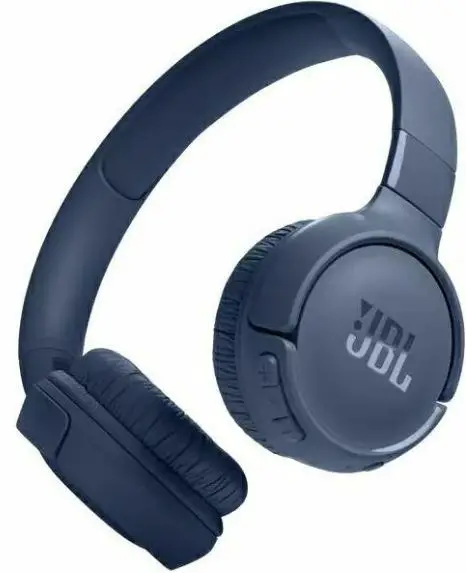

JBL TUNE520BT Wireless Headphones

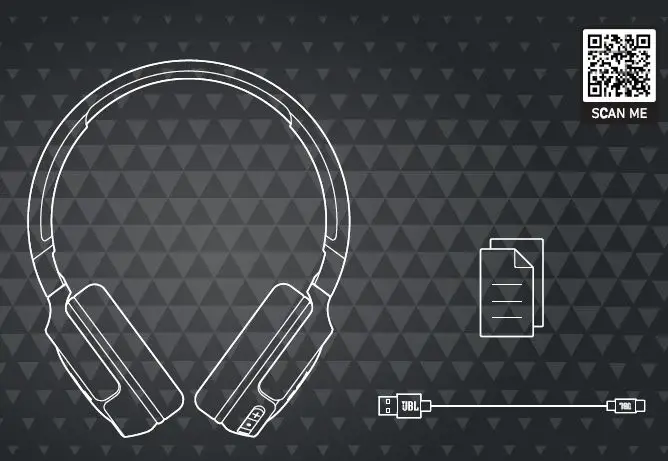

WHAT’S IN THE BOX
APP
JBL Headphones

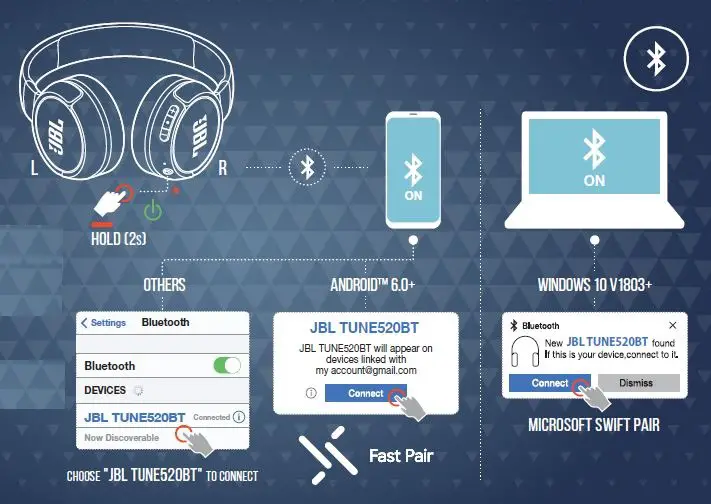

Power On & Connect

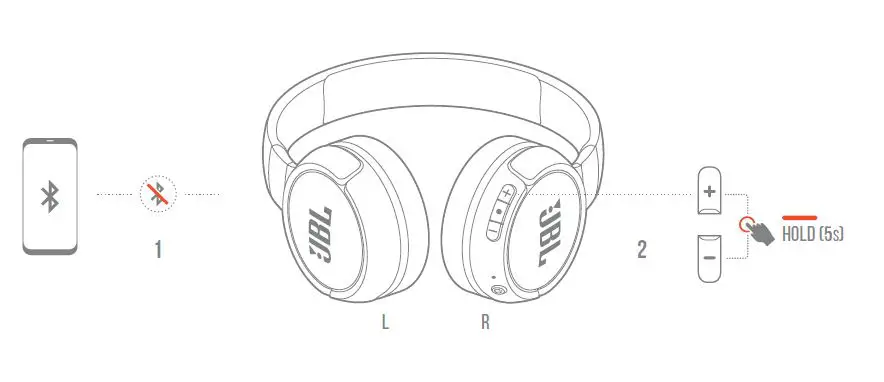

- To enter pairing mode again, power off and hold
for 5 seconds.

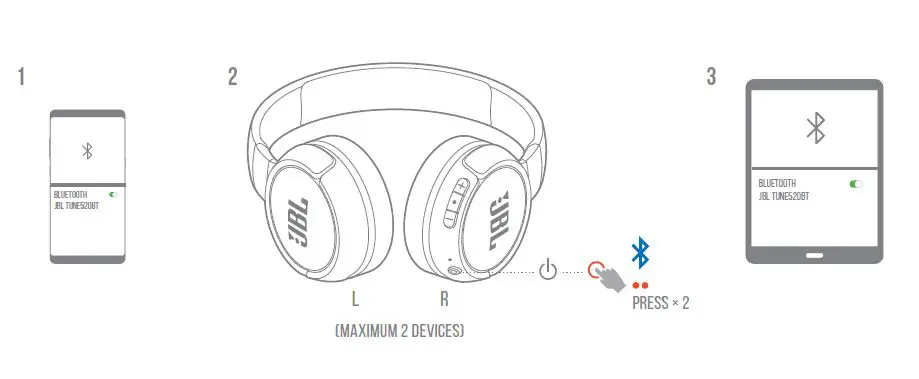

Multi-point connection

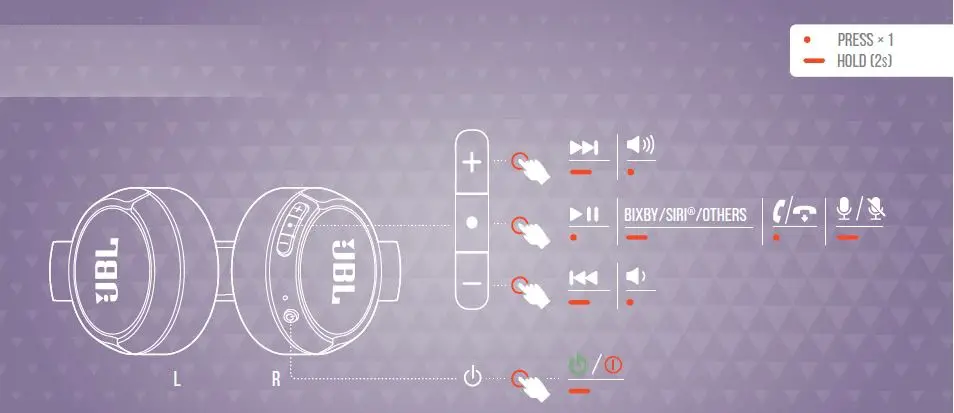

CONTROLS
- Enable advanced controls by connecting your JBL TUNE520BT to JBL Headphones App
.

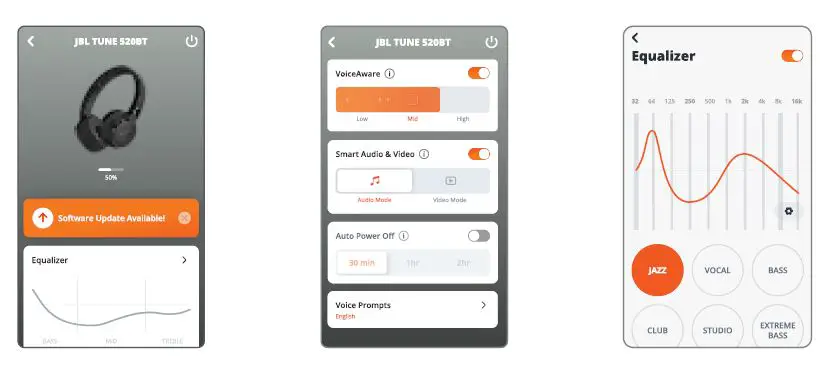

DO MORE WITH THE APP

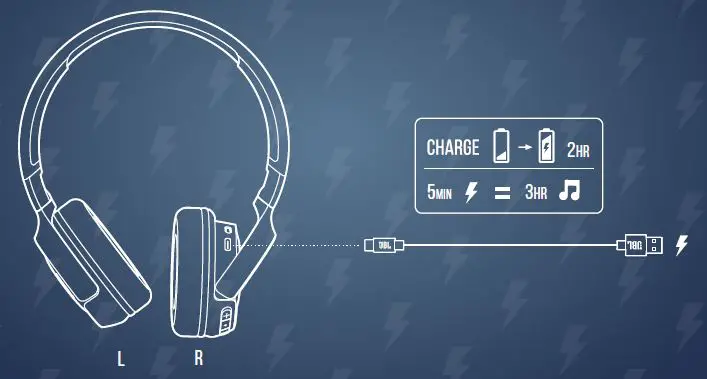

Charging
FACTORY RESET

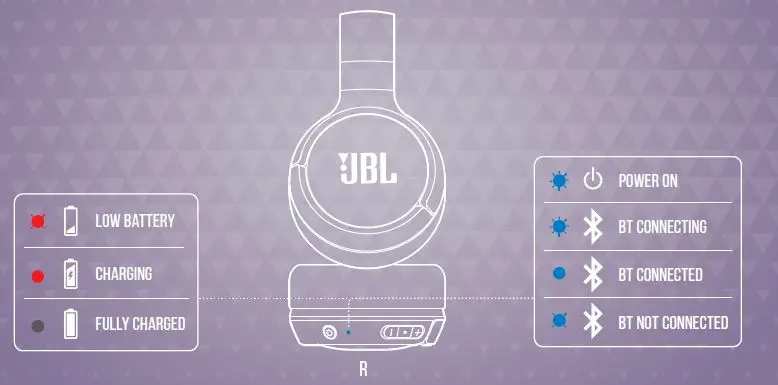

led behaviors
TECH SPEC
- Model: TUNE520BT
- Driver size: 33 mm/ 1.3” Dynamic Driver
- Power supply: 5 V
1 A - Weight: 157 g/ 0.35 lbs
- Battery type: Lithium-ion polymer (450 mAh/ 3.7V)
- Charging time: 2 hrs from empty
- Music playtime with BT on: Up to 57 hrs
- Talk time: Up to 35 hrs
- Frequency response: 20 Hz – 20 kHz
- Impedance: 30 ohm
- Sensitivity: 102 dB SPL@1 kHz
- Maximum SPL: 95 dB
- Microphone sensitivity: -40 DVB/Pa@1 kHz
- Bluetooth version: 5.3
- Bluetooth profile version: HFP 1.7.2, AVRCP 1.6.2, A2DP 1.3.2
- Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
- Bluetooth transmitter power: ≤ 6 dBm (E.I.R.P)
- Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK
- Maximum operation temperature: 45 °C
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaging over one gram of tissue. Device types: (IC: 6132A-TUNE520BT) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.023 W/Kg. The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the
user’s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF THE BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Product specifications and app screens are subject to change without notice.
