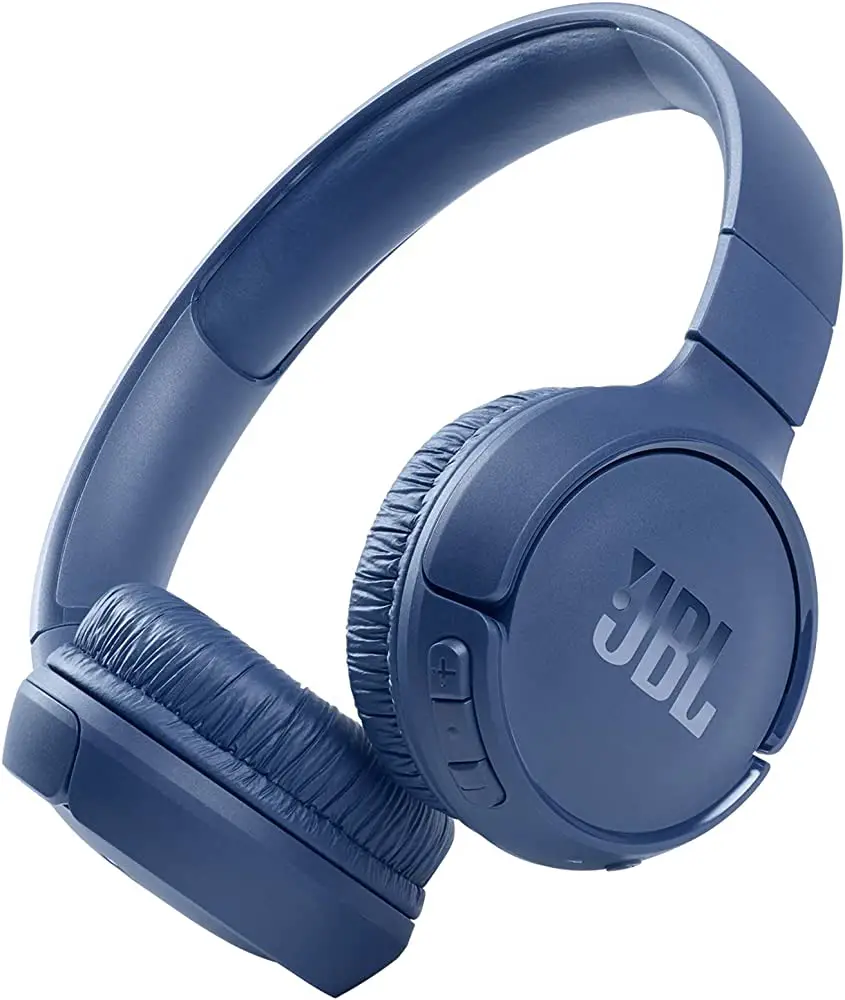

JBL Tune 520BT Wireless Headphone

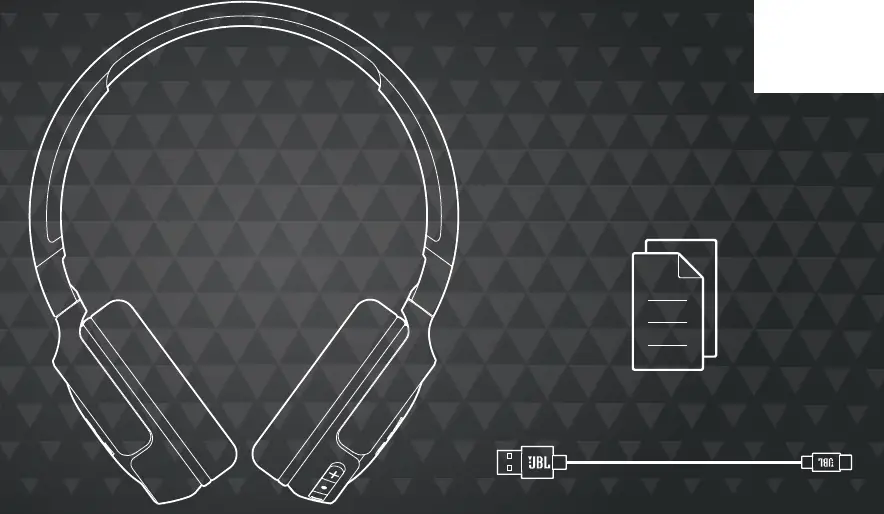

WHAT’S IN THE BOX
SCAN ME
JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP

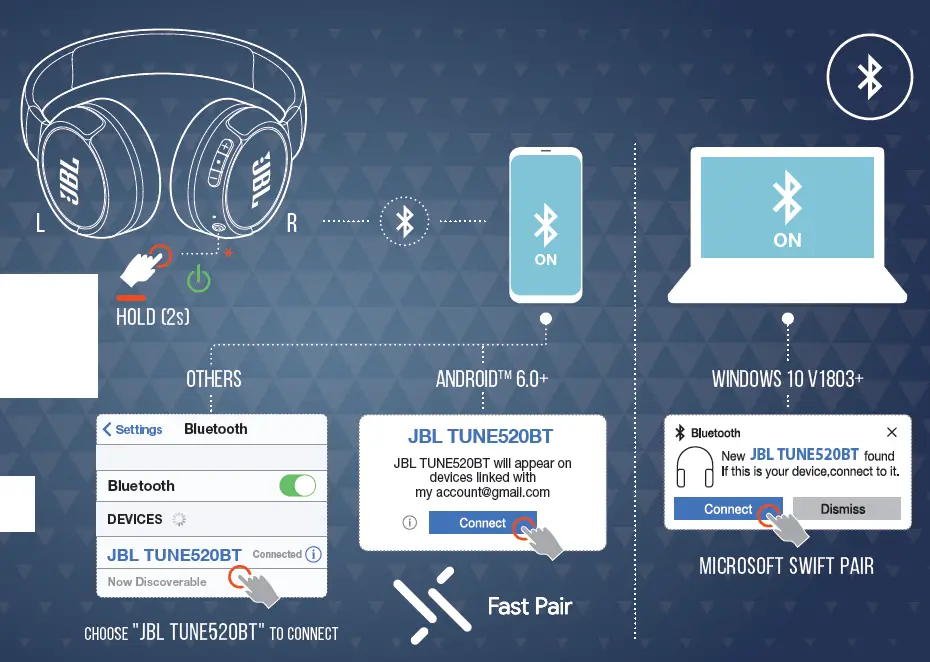

Power on & Connect
To enter pairing mode again, power off and hold for 5 seconds

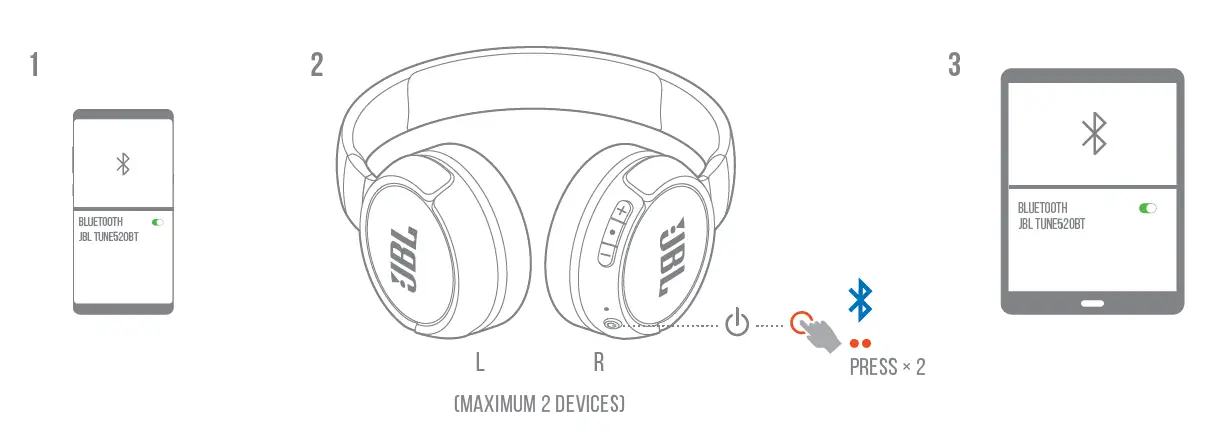

Multi-point connection

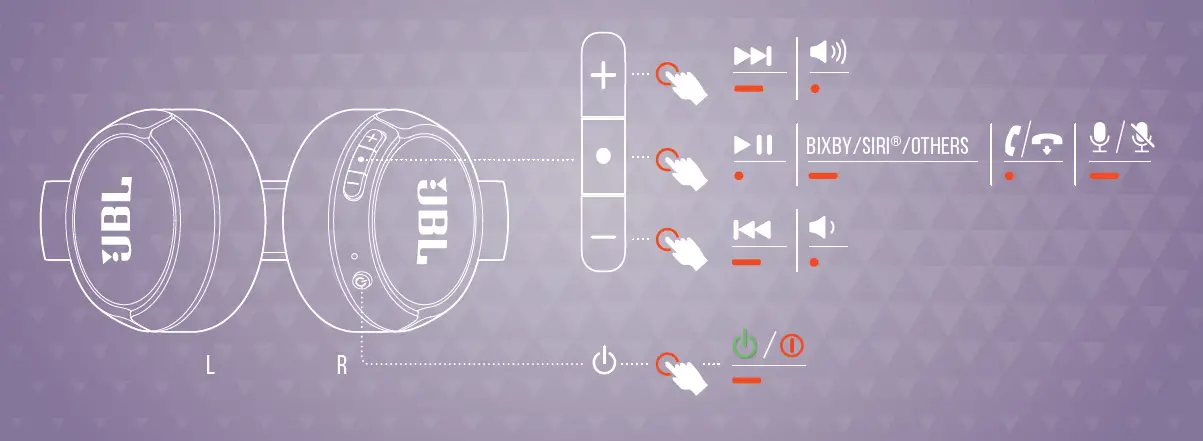

CONTROLS
Enable advance controls by connecting your JBL TUNE520BT to JBL Headphones App

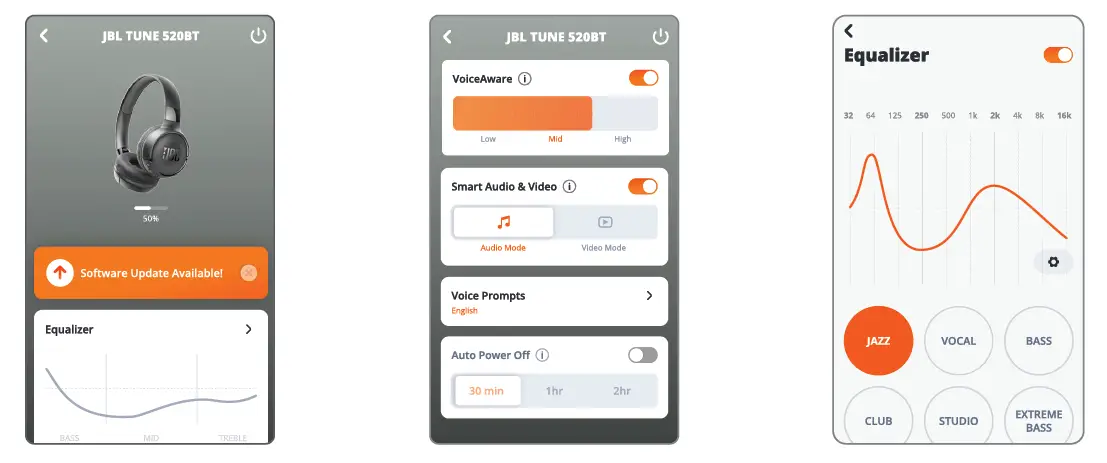

DO MORE WITH THE APP
Charging
FACTORY RESET

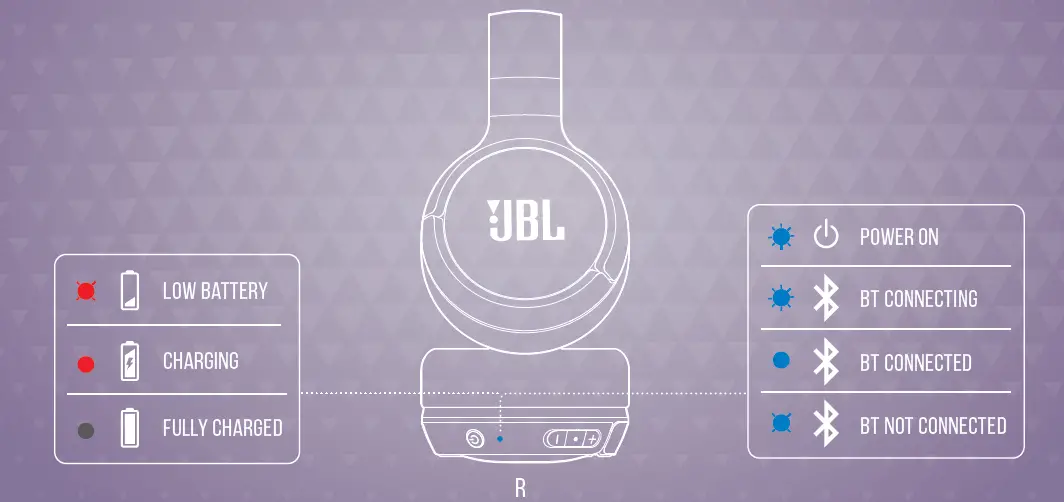

Led behaviors
TECH SPEC
- Model: TUNE520BT
- Driver size: 33 mm/ 1.3” Dynamic Driver
- Power supply: 5 V 1 A
- Weight: 157 g/ 0.35 lbs
- Battery type: Lithium-ion polymer (450 mAh/ 3.7V)
- Charging time: 2 hrs from empty
- Music playtime with BT on: Up to 57 hrs
- Talk time: Up to 35 hrs
- Frequency response: 20 Hz – 20 kHz
- Impedance: 30 ohm
- Sensitivity: 102 dB SPL@1 kHz
- Maximum SPL: 95 dB
- Microphone sensitivity: -40 dBV/Pa@1 kHz
- Bluetooth version: 5.3
- Bluetooth profile version: HFP 1.7.2, AVRCP 1.6.2, A2DP 1.3.2
- Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
- Bluetooth transmitter power: ≤ 6 dBm (E.I.R.P)
- Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK
- Maximum operation temperature: 45 °C
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-TUNE520BT) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.023 W/Kg.
The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user’s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE
USED BATTERIES ACCORDING TO THE INSTRUCTIONS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners
Product specifications and app screens are subject to change without notice.
Anatel — Agência Nacional de Telecomunicações
