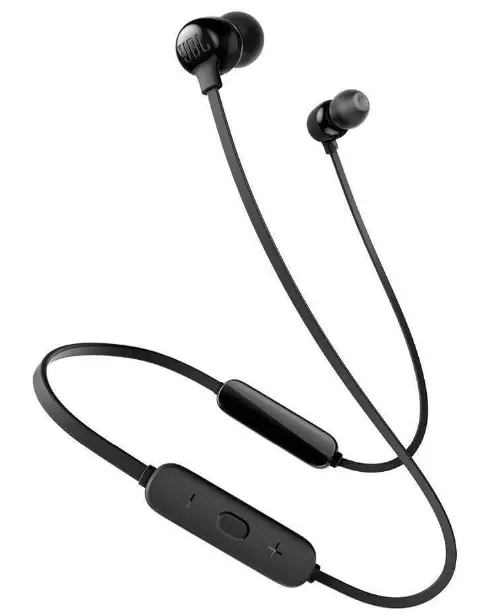

TUNE125BT In-Ear Headphones
User Guide
TUNE125BT In-Ear Headphones
quick startguide

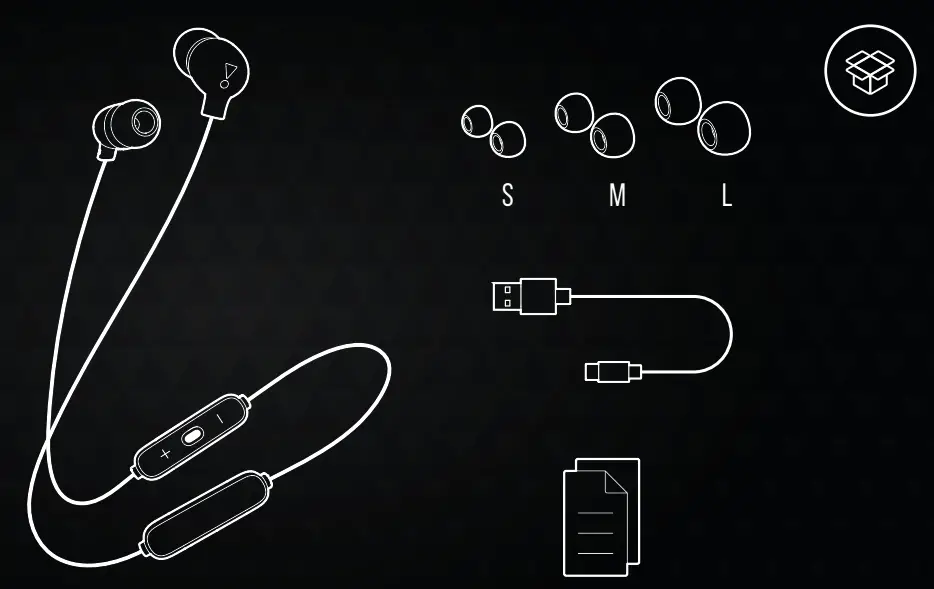

WHAT’S IN THE BOX

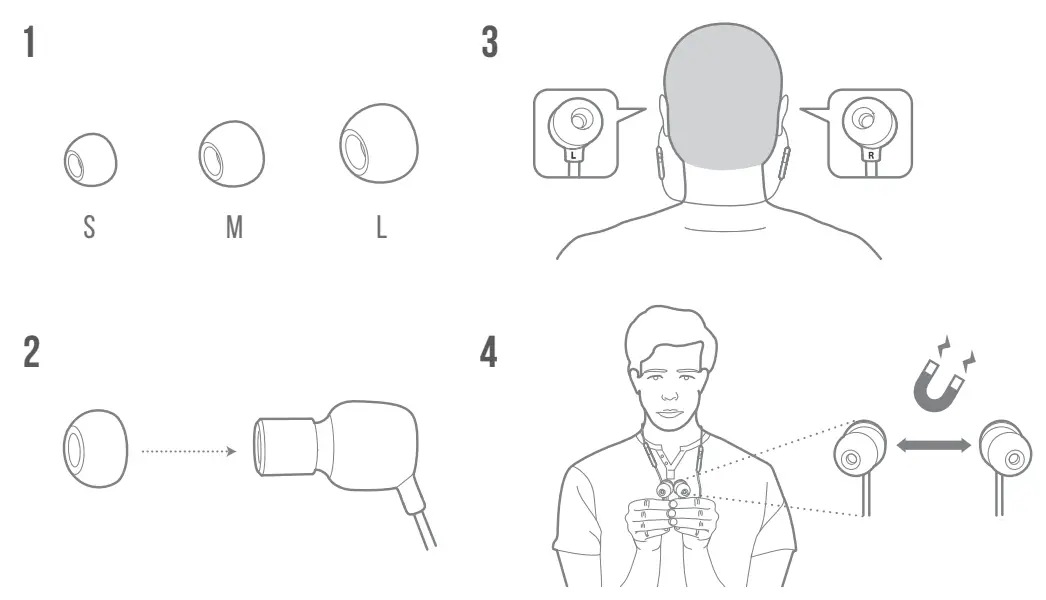

How to wear

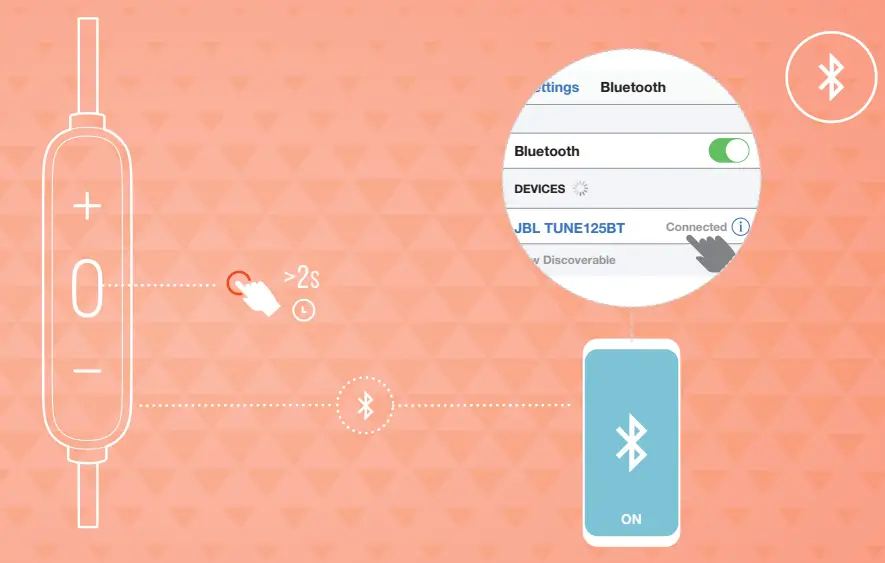

Power on & connect
POWER ON AND AUTOMATICALLY ENTER PAIRING MODE
Choose “JBL TUNE125BT” to connect

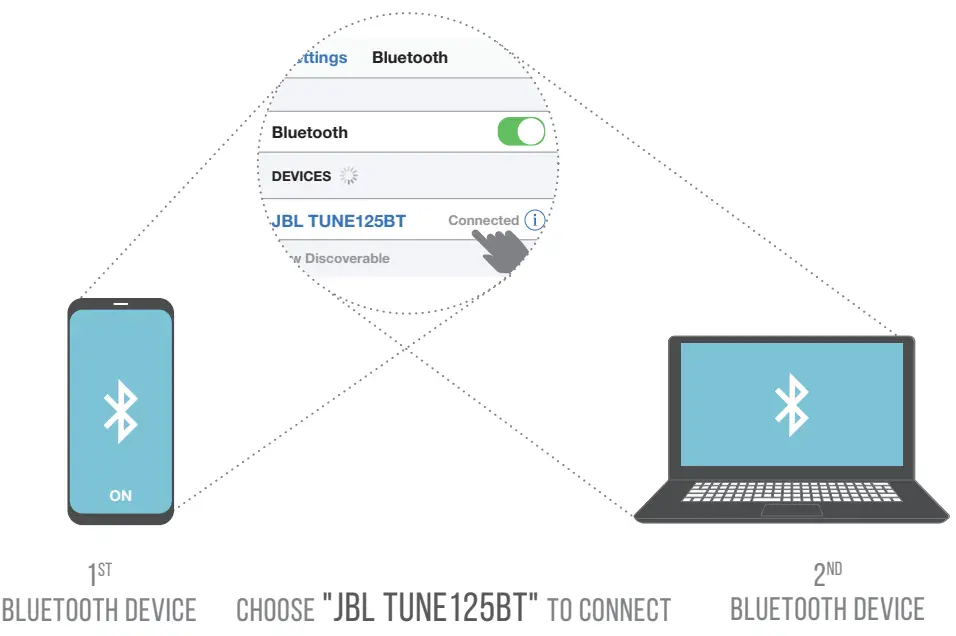

MULTI-POINT CONNECTION
(Maximum 2 devices)

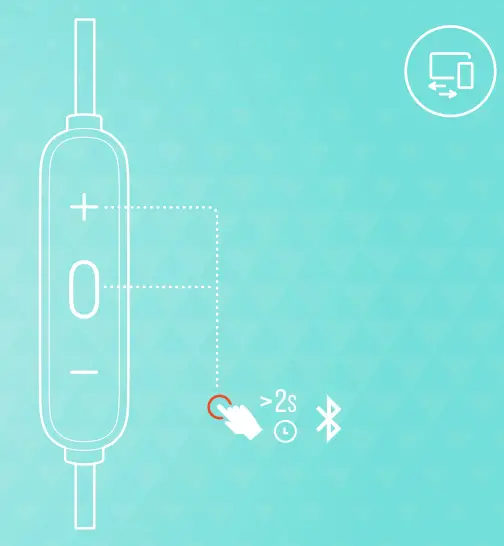

Enter pairing mode with the 2nd device
- To switch music source, pause the music on the current device and select play on the 2nd device.
- Phone call will always take priority.
- If one device goes out of bluetooth range or powers off, you may need to manually reconnect the remaining device.
- SELECT “forget this device” on your bluetooth devices to disconnect multi-point.

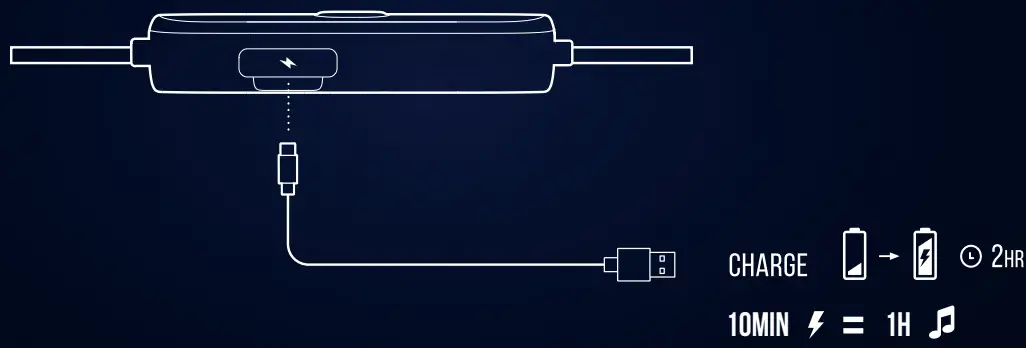

Charging

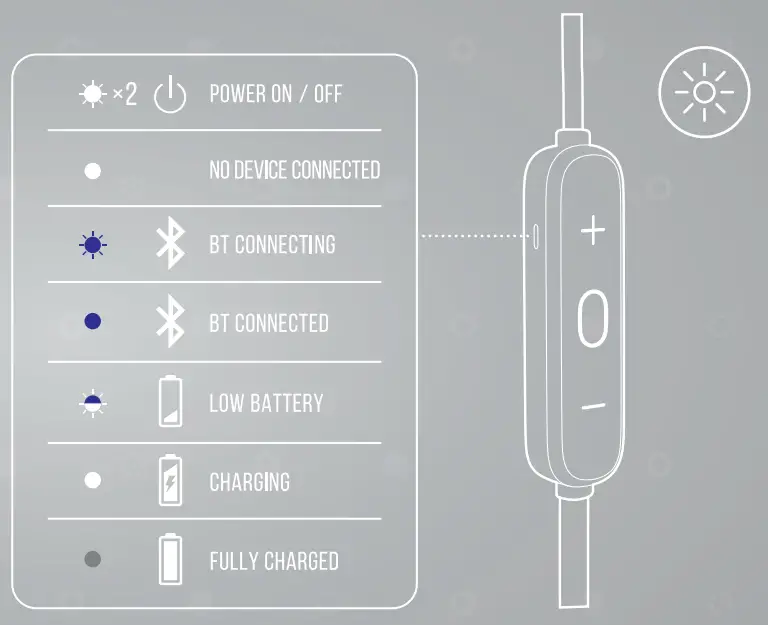

Led behaviors
TECH SPEC
| Model: | TUNE125BT |
| Driver Size: | 8.6 mm / 0.34” Dynamic driver |
| Power supply: | 5 V 1 A |
| Weight: 18.3 | 18.3g/0.04Ibs |
| Headset battery type: | Lithium-ion battery (3.7 V / 130 mAh) |
| Charging time: | < 2 hrs |
| Music playtime with BT on: | up to 16 hrs |
| Frequency response: | 20 Hz – 20 kHz |
| Impedance: 16 | 16ohm |
| Sensitivity: | 95 dB SPL @1kHz 1mw |
| Microphone sensitivity: | -29 dBV/Pa @1kHz |
| Bluetooth version: 5.0 | 5.0 |
| Bluetooth profile version: | HFP 1.7, A2DP 1.3, AVRCP 1.6 |
| Bluetooth transmitter frequency range: | 2.4 GHz- 2.4835 GHz |
| Bluetooth transmitted power: | < 6 dBm |
| Bluetooth transmitted modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
