JBL TUNE 760 Headphone User Guide

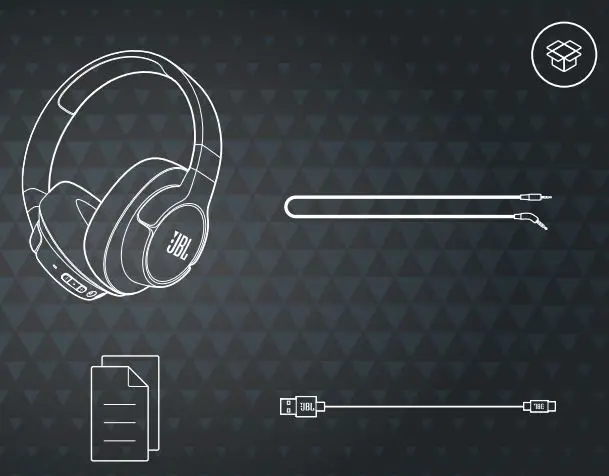

WHAT’S IN THE BOX

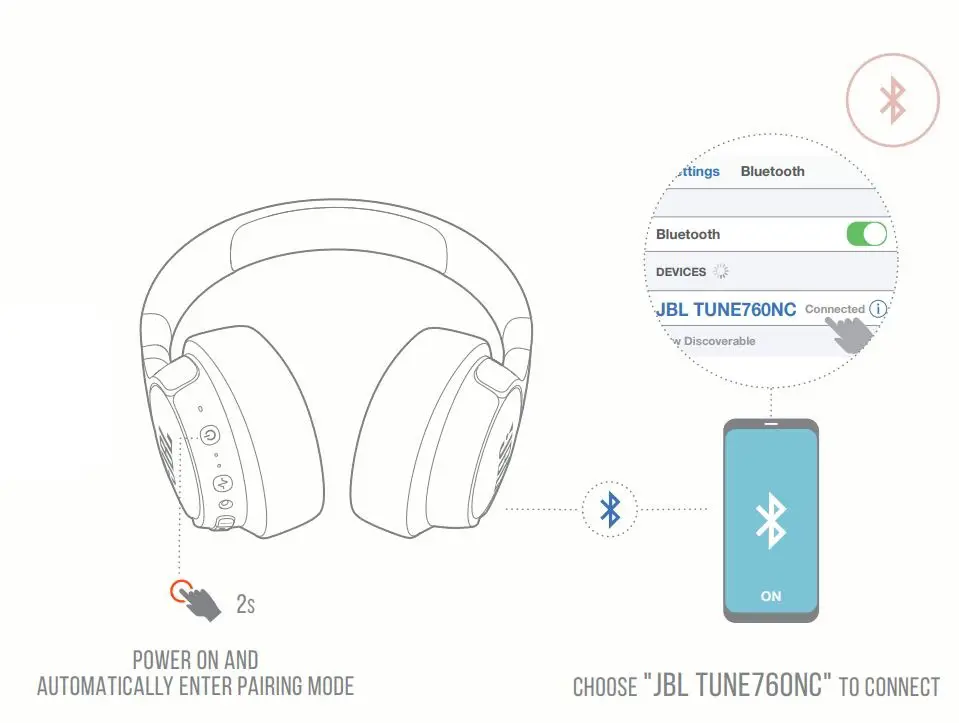

Power on & Connect

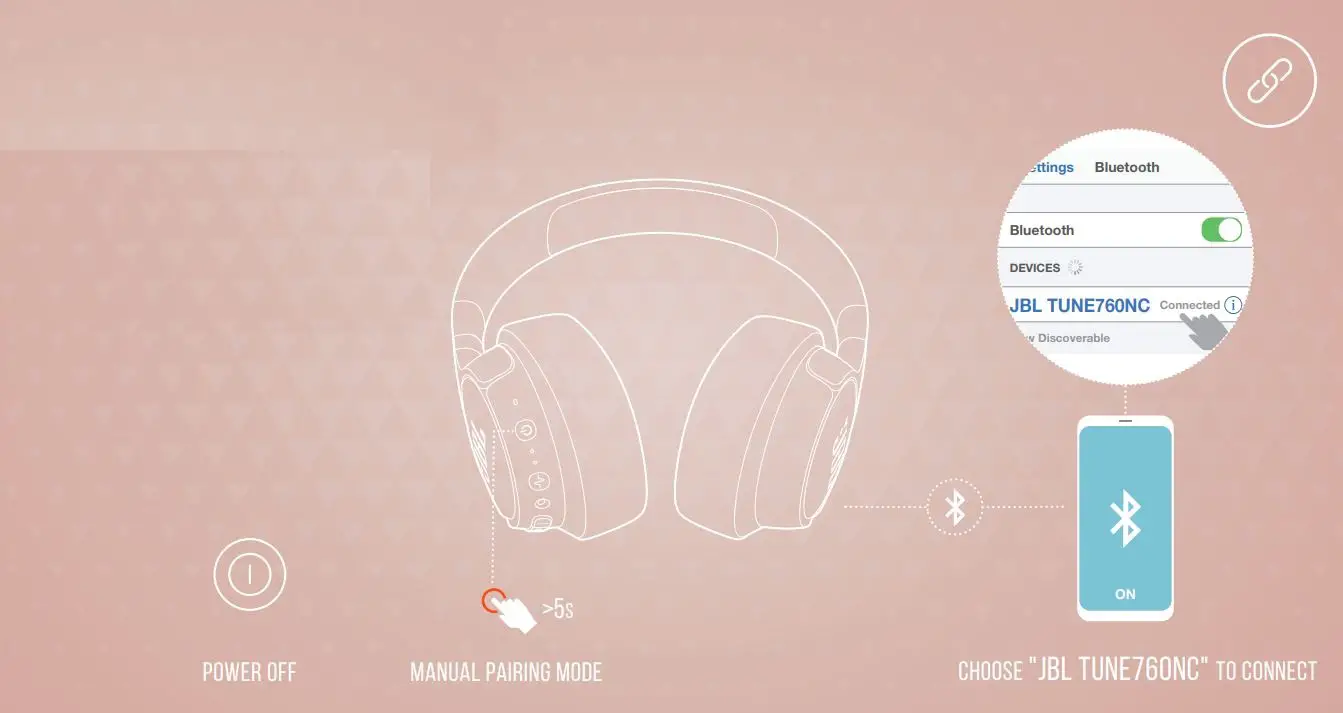

Manual Pairing
Wired listening

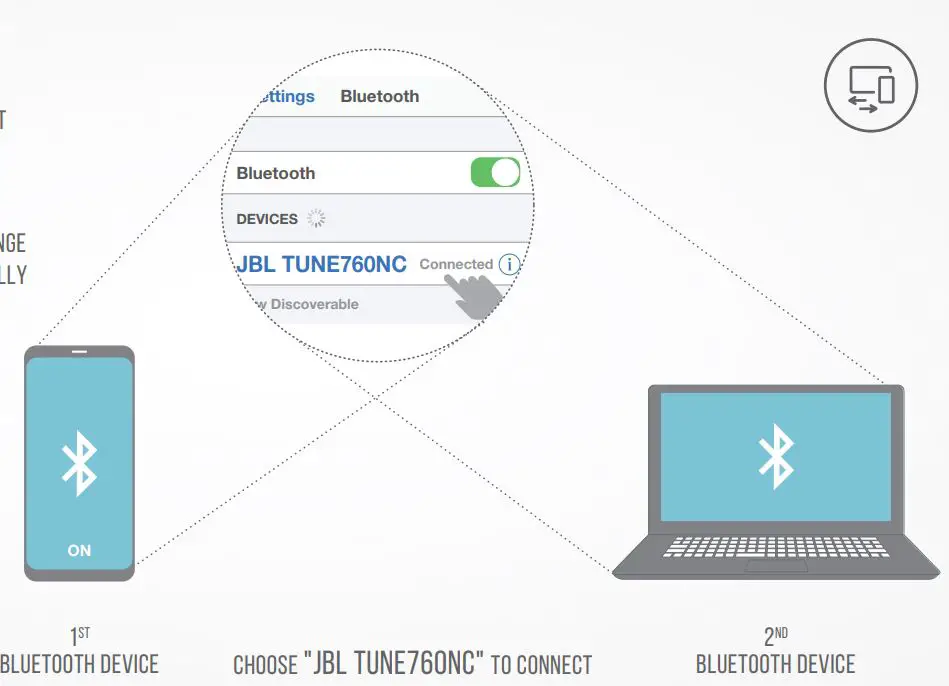

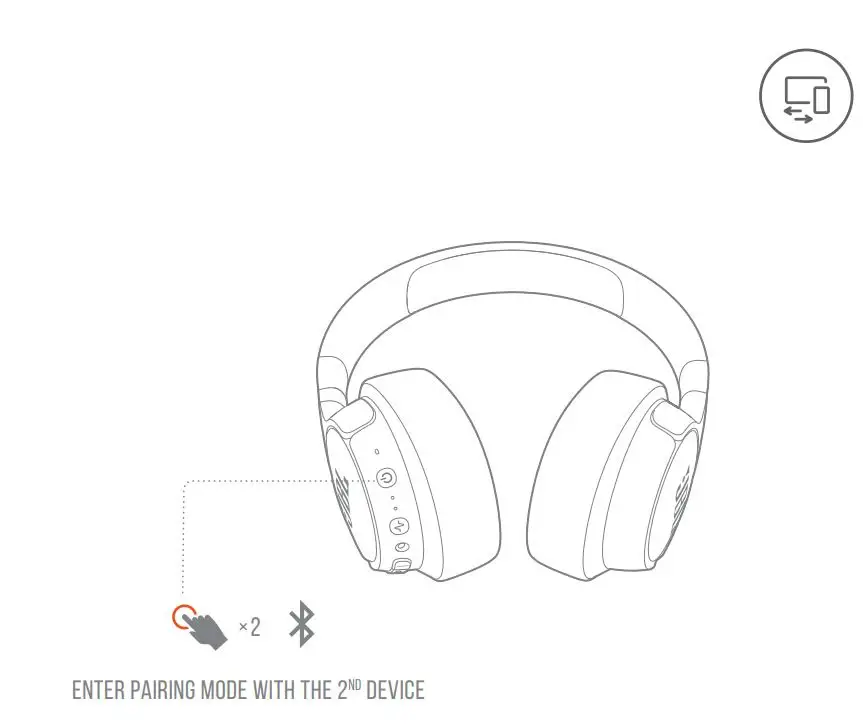

Multi-Point Connection
- To switch music source, pause the music on the current device and select play on the 2nd device.
- Phone call will always take priority.
- If one device goes out of Bluetooth range or powers off, you may need to manually reconnect the remaining device.
- SELECT “forget this device” on your Bluetooth devices to disconnect multi-point.

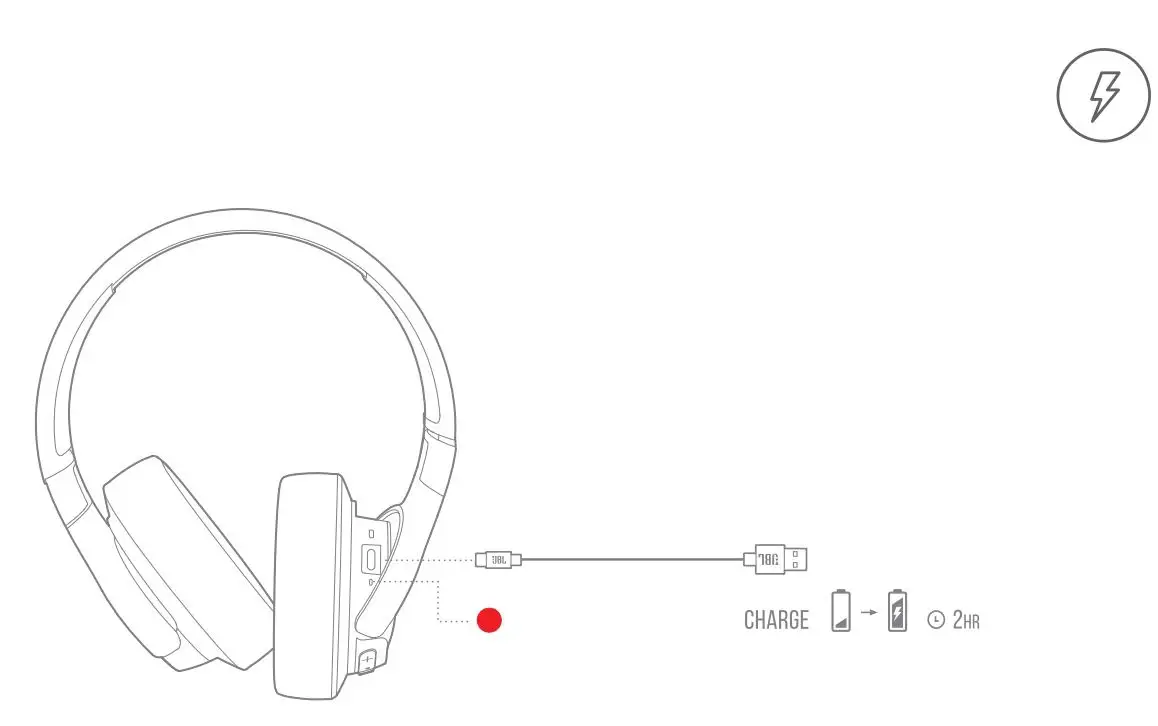

Charging

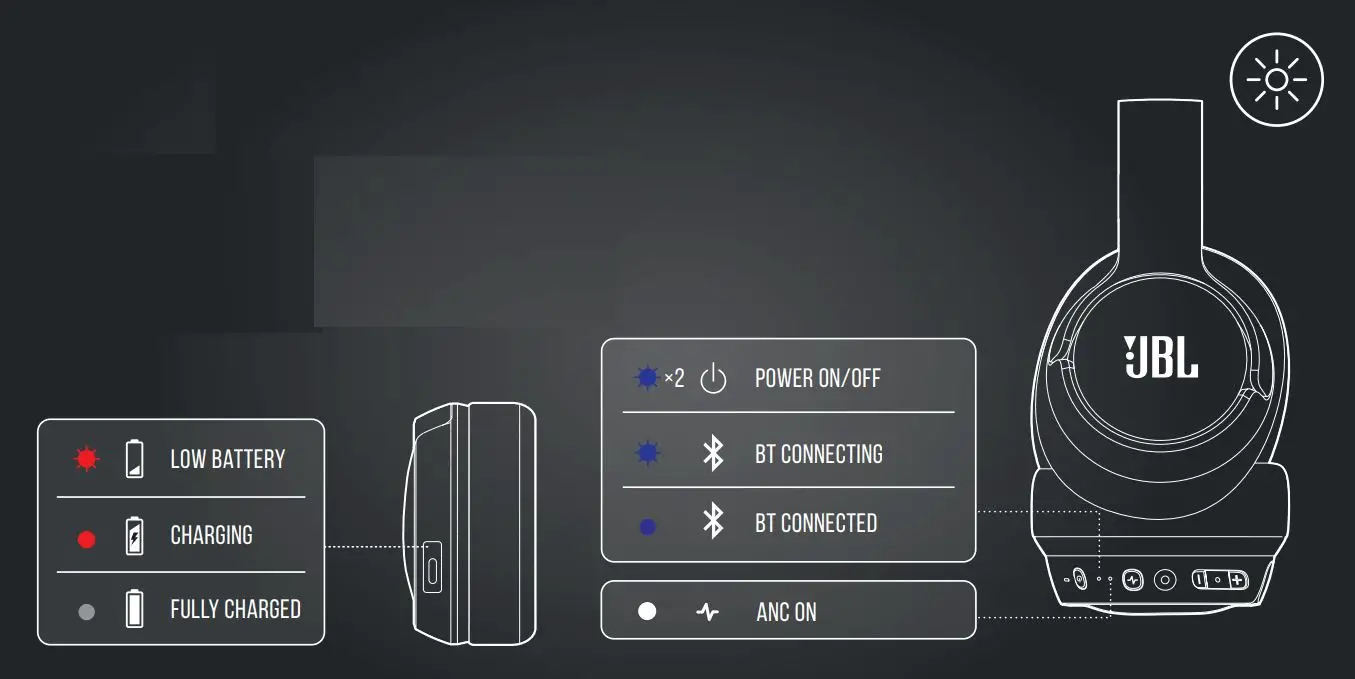

LED BEHAVIORS
TECH SPEC
Model: TUNE760NC
Driver size: 40 mm Dynamic Driver
Power supply: 5V =1A
Weight: 220 g / 0.485 lbs.
Headset battery type: Polymer Li-ion battery (610 mAh / 3.7 V)
Charging time: < 2 hrs. from empty
Music play time with BT on and ANC on: 35 hrs.
Music play time with BT on and ANC off: 50 hrs.
Frequency response: 20 Hz – 20 kHz
Impedance: 32 ohm
Sensitivity passive mode: 103 dB SPL/1 mW
Sensitivity active mode: 95 dB SPL/1 mW
Maximum SPL: 95 dB
Microphone sensitivity: -30 dBV/Pa
Bluetooth version: 5.0
Bluetooth profile version: A2DP 1.3, AVRCP 1.5, HFP 1.6
Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
Bluetooth transmitted power: < 10 dBm
Bluetooth transmitted modulation: GFSK, /4 DQPSK , 8DPSK
Maximum operation temperature: 45 °C
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-TUNE760NC) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.0534 W / kg. The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user’s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
IC: 6132A-TUNE760NC
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
HP_JBL_TUNE760NC_QSG_Global_SOP_V8
