Jbl Tune670nc Wireless Over-ear Headphones User Guide

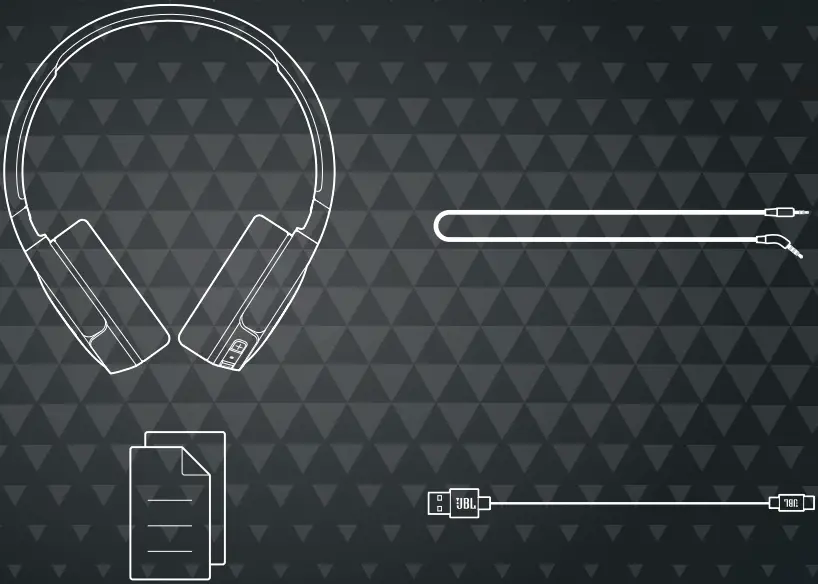

WHAT’S IN THE BOX

SCAN ME

APP

JBL HEADPHONES

GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

POWER ON & CONNECT

*TO ENTER PAIRING MODE AGAIN, POWER OFF AND HOLD FOR 5 SECONDS.

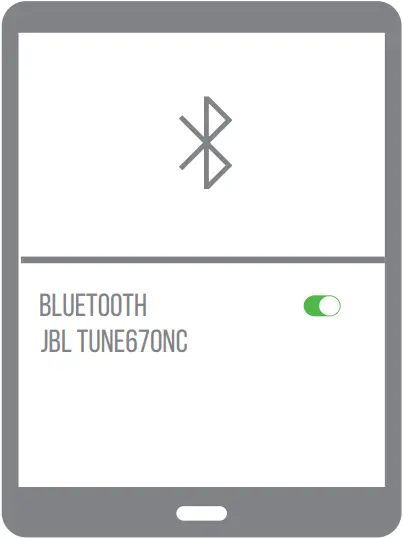

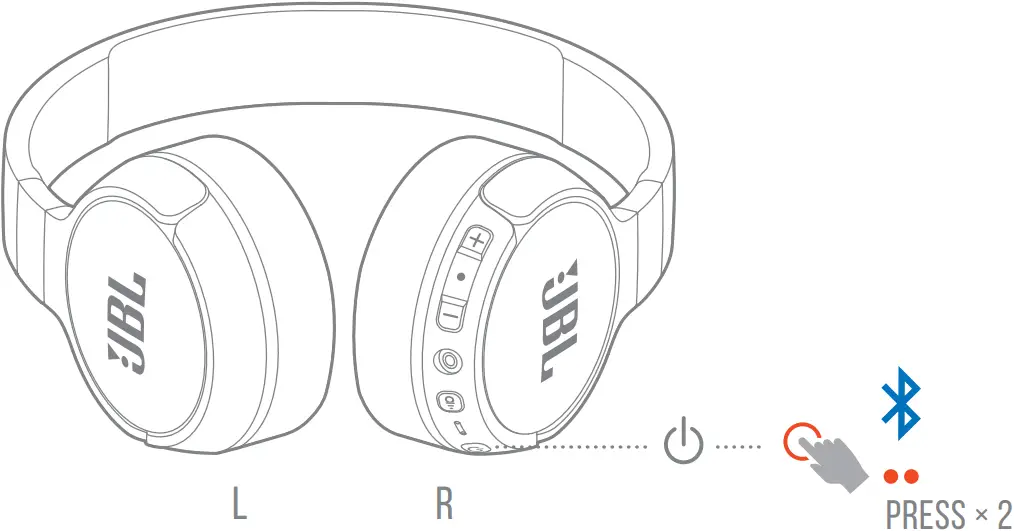

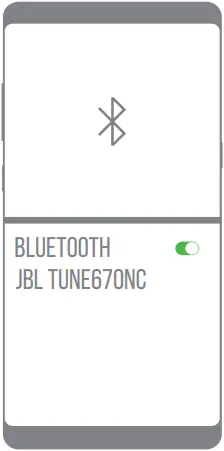

MULTI-POINT CONNECTION

1                                    2

(MAXIMUM 2 DEVICES)

3

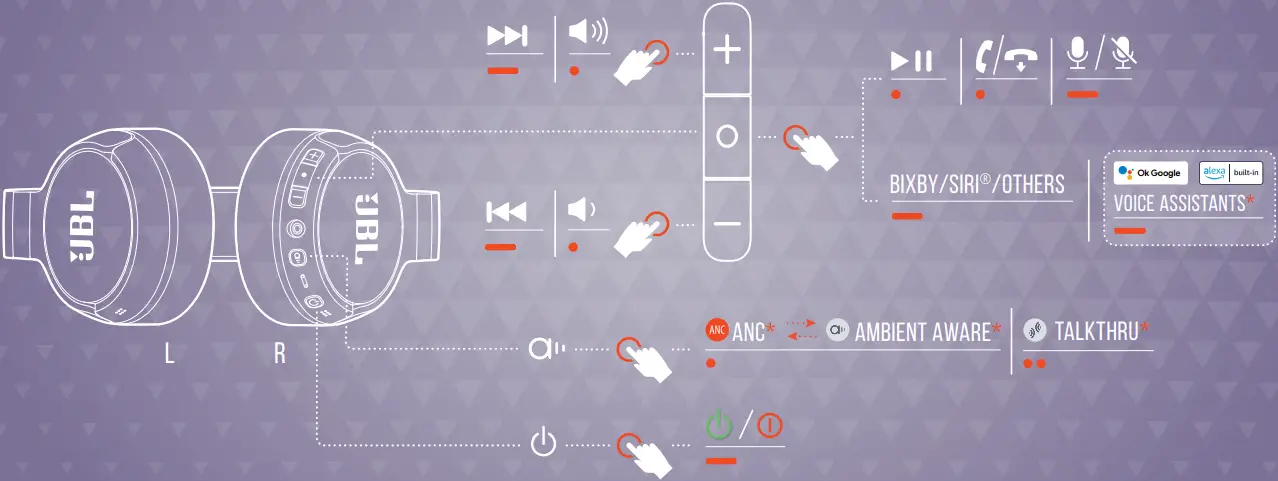

CONTROLS

PRESS × 1
HOLD (2S)

*ENABLE ADVANCE CONTROLS BY CONNECTING YOUR JBL TUNE670NC TO JBL HEADPHONES APP .

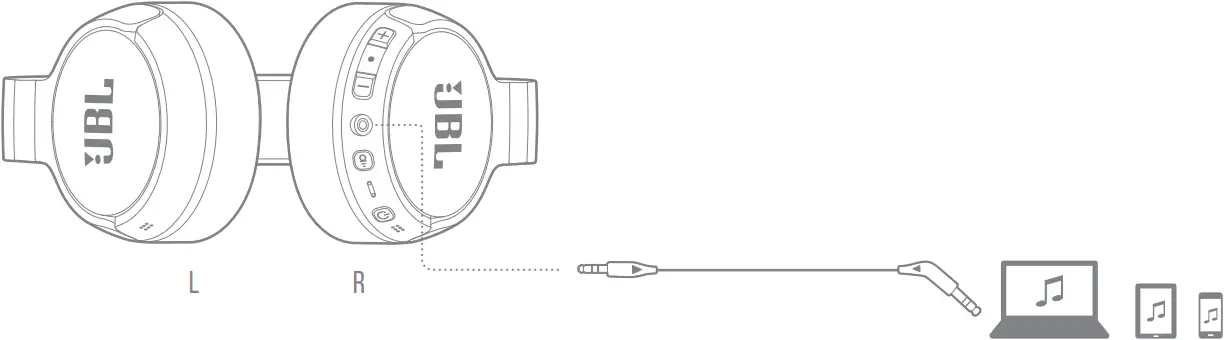

WIRED LISTENING MODE

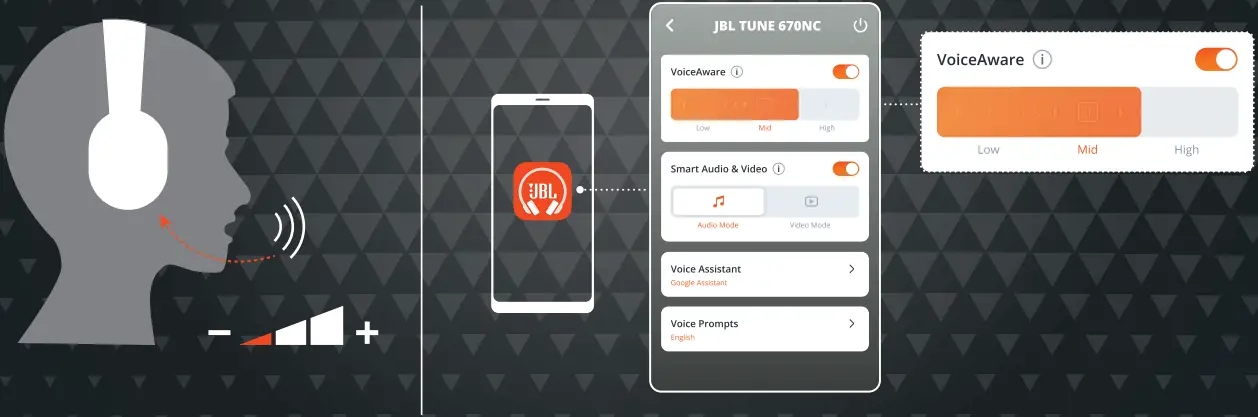

VOICEAWARE

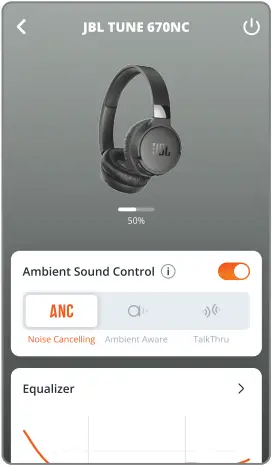

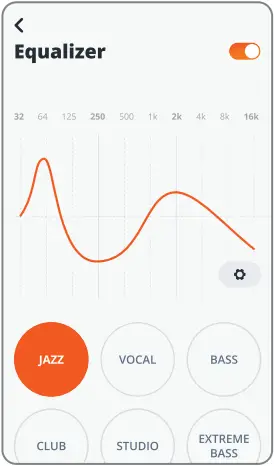

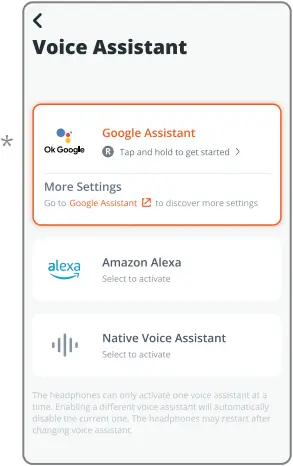

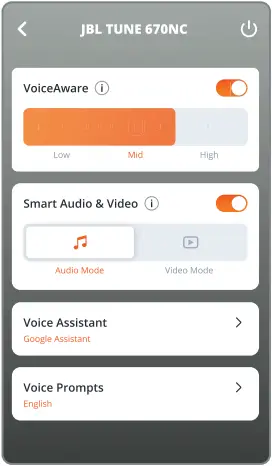

DO MORE WITH THE APP

*ONLY AVAILABLE ON ANDROID™

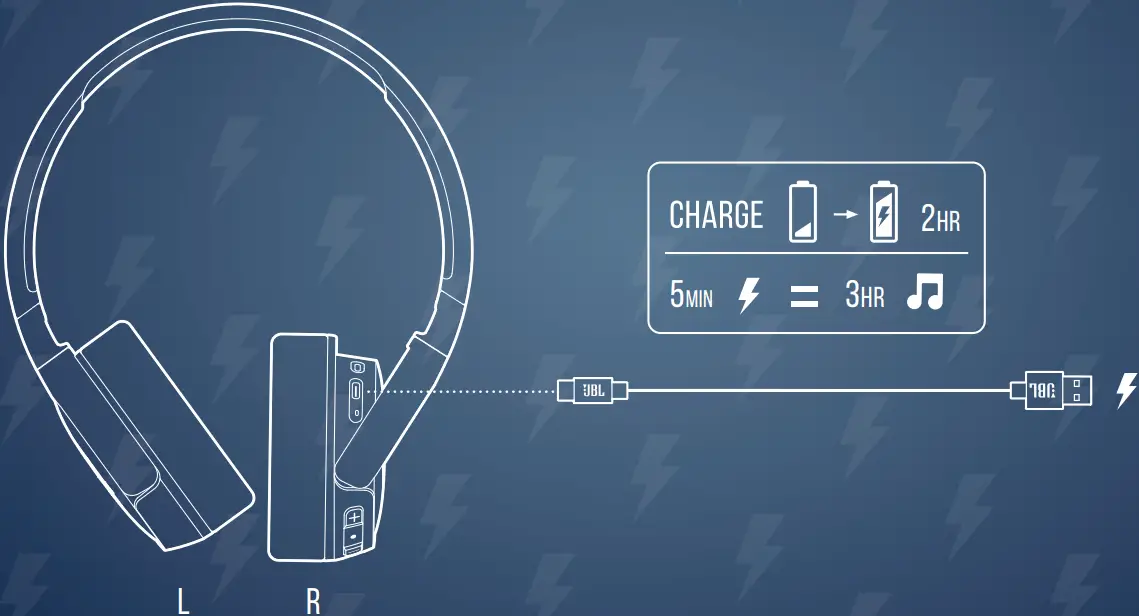

CHARGING

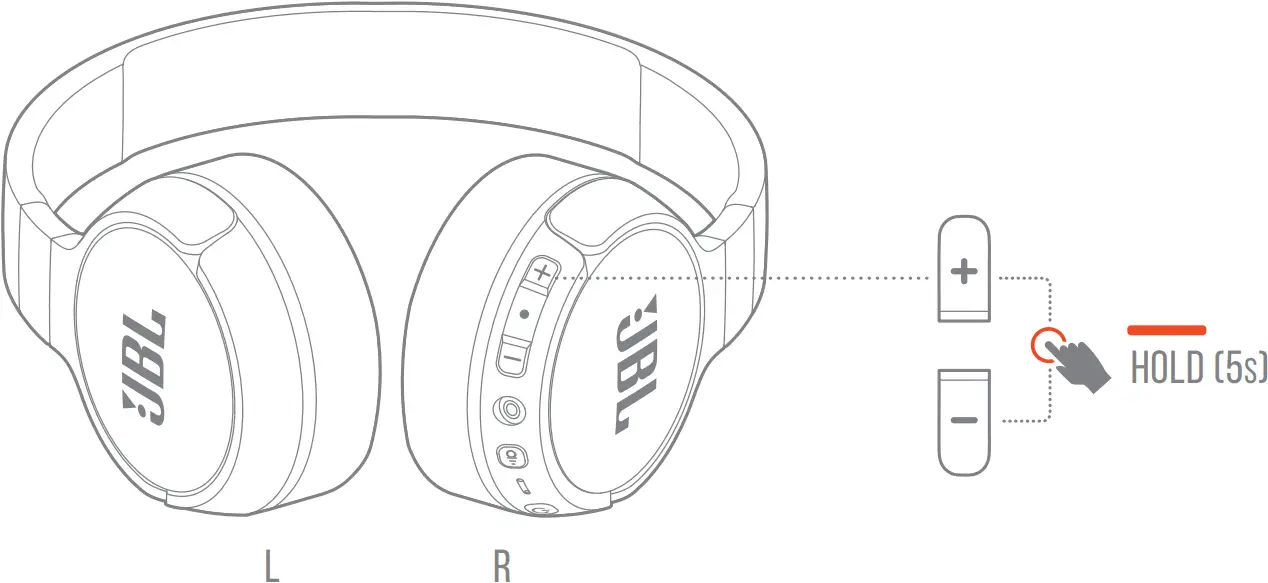

FACTORY RESET

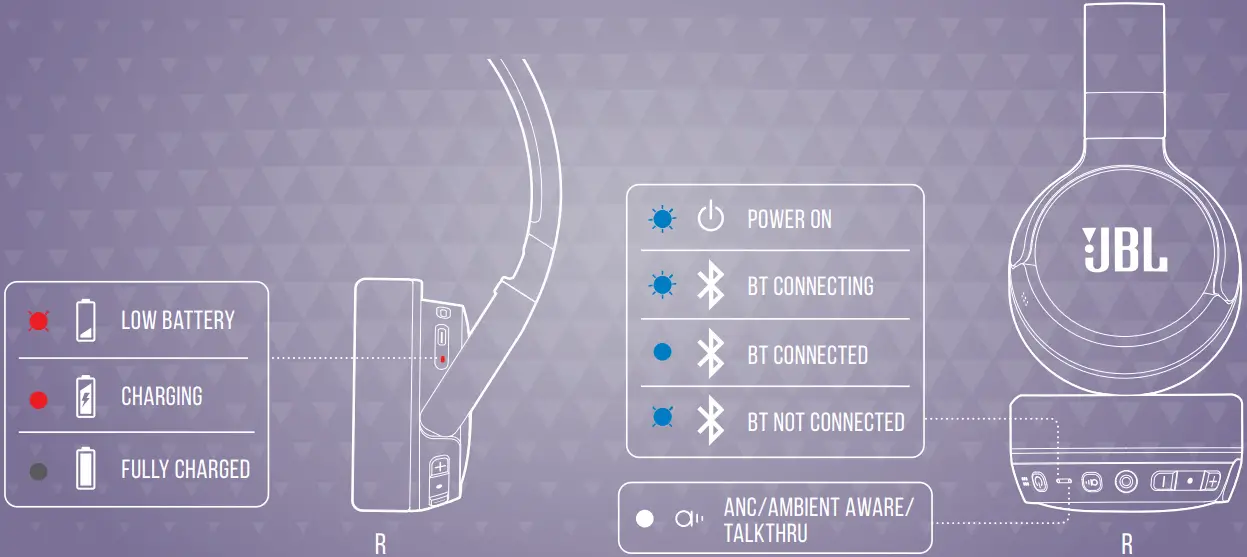

LED BEHAVIORS

TECH SPEC

Model: TUNE670NC
Driver size: 32 mm/ 1.25″ Dynamic Driver
Power supply: 5 V 1 A
Weight: 174 g/ 0.384 lbs
Battery type: Lithium-ion battery (690 mAh/ 3.7V)
Charging time: 2 hrs from empty
Music playtime with BT on and
ANC off: Up to 70 hrs
Music playtime with BT on and ANC on: Up to 44 hrs
Music playtime with AUX and ANC on: Up to 30 hrs
Talk time with ANC on: Up to 30 hrs
Talk time with ANC off: Up to 39 hrs
Frequency response: 20 Hz – 20 kHz
Impedance: 32 ohm
Sensitivity: 98 dB SPL@1 kHz
Maximum SPL: 95 dB
Microphone sensitivity: -40 dBV/Pa@1 kHz
Bluetooth version: 5.3
Bluetooth profile version: A2DP v1.4, AVRCP v1.6.2, HFP v1.8
Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
Bluetooth transmitter power: < 10 dBm (E.I.R.P)
Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK
Maximum operation temperature: 45 °C

TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.

IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-TUNE670NC) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.040 W/Kg.
The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user’s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
IC: 6132A-TUNE670NC

FCC ID:APITUNE670NC
IC:6132A-TUNE670NC

WARNING

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Google, Android and Google Play are trademarks of Google LLC.

Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.

Product specifications and app screens are subject to change without notice.
