CT241522B Ceiling Mount Turn
Instruction Manual

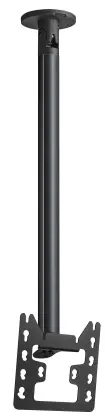

CT241522B Ceiling mount turn
Key Benefits
- Stylish high-end design
- Easy install
- Post-installation levelling
Ceiling mount kit CT241522
Display size: Fitment: 200x200Max. load: 30 kg – 66 lbs Kit
consists of:
- 1x PUC 1045 Ceiling plate turn and tilt
- 1x PUC 2415 Pole 150 cm
- 1x PFI 3045 Display interface
Specifications
| Article number (SKU) | 7955040 |
| Colour | Black |
| EAN single box | 8.71229E+12 |
| Length | 1803 |
| Width | 130 |
| Depth | 450 |
| TÜV certified | Yes |
| Turn | Up to 360° |
| Guarantee | 5 years |
| Max. weight load (kg) | 30 |
| Max. bolt size | M8 |
| Max. height of interface (mm) | 253 |
| Max. width of interface (mm) | 240 |
| Ceiling types | Flat / inclined ceiling |
| Height options | Fixed height |
| Levelling funion | Post-installation horizontal levelling |
| Max. distance to ceiling – center display (mm) | 1678 |
| Max. horizontal hole paern (mm) | 200 |
| Max. screen size (inch) | 43 |
| Max. vertical hole paern (mm) | 200 |
| Min. horizontal hole paern (mm) | 100 |
| Min. screen size (inch) | 19 |
| Min. vertical hole paern (mm) | 100 |
| Orientation | Landscape / Portrait |
| Universal or fixed hole paern | Fixed |
VOGEL’S HOLDING BV (c)
All rights reserved.
Subje to printing errors, technical and price amendments.
Date: 2021-10-27
