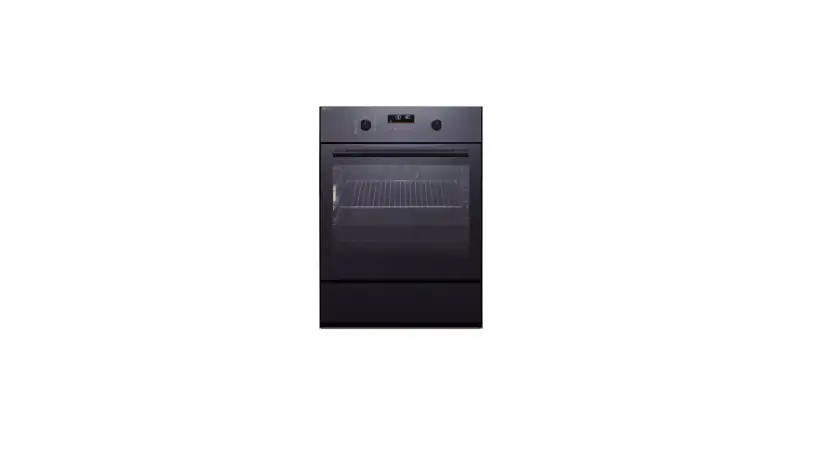

Electrolux Eb7l5xdsp Oven Black Mirror User Manual

Electrolux EB7L5XDSP Oven Black Mirror User Manual

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:
http://www.electrolux.com/support

Register your product for better service:
www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop

For more recipes, hints, troubleshooting download My Electrolux Kitchen app.

CUSTOMER CARE AND SERVICE

Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.

Warning / Caution-Safety information
General information and tips
Environmental information

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• Only a qualified person must install this appliance and replace the cable.
• Do not use the appliance before installing it in the built-in structure.
• Disconnect the appliance from the power supply before carrying out any maintenance.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• Always use oven gloves to remove or put in accessories or ovenware.
• Be careful when you touch the storage drawer. It can get hot.

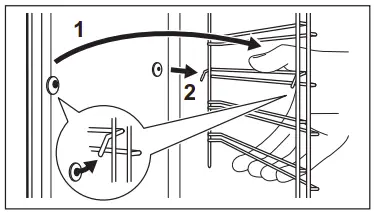

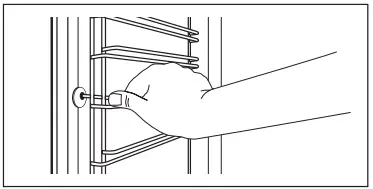

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

SAFETY INSTRUCTIONS

Installation

WARNING!
Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
• The built-in unit must meet the stability requirements of DIN 68930.

Electrical connection

WARNING!
Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• This appliance is supplied without a main plug and a main cable.

Use

WARNING!
Risk of injury, burns and electric shock or explosion

• This appliance is for household (indoors) use only.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
  Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance

WARNING!
Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
  • do not put ovenware or other objects in the appliance directly on the bottom.
  • do not put aluminium foil directly on the bottom of cavity of the appliance.
  • do not put water directly into the hot appliance.
  • do not keep moist dishes and food in the appliance after you finish the cooking.
  • be careful when you remove or install the accessories.
• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

Care and cleaning

WARNING!
Risk of injury, fire, or damage to the appliance

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.
• Do not clean the catalytic enamel with detergents.

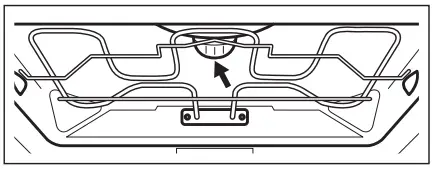

Internal lighting

WARNING!
Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

Service

• To repair the appliance contact the Authorised Service Centre.
• Use original spare parts only

Disposal

WARNING!
Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance

PRODUCT DESCRIPTION

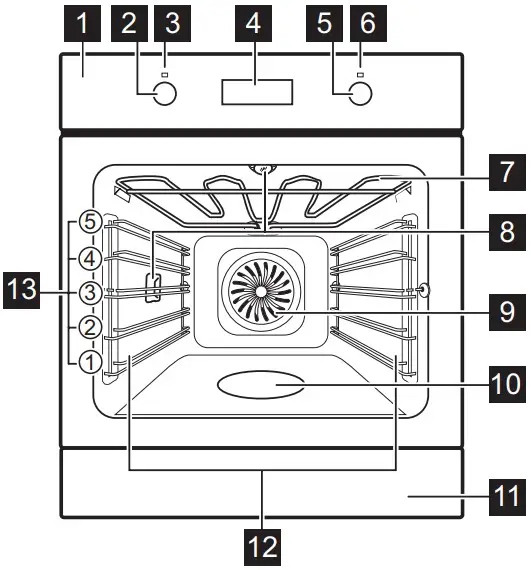

General overview

1. Control panel
2. Knob for the heating functions
3. Power lamp / symbol
4. Display
5. Control knob
6. Temperature indicator / symbol
7. Heating element
8. Lamp
9. Fan
10. Cavity embossment
11. Drawer
12. Shelf support, removable
13. Shelf positions

Accessories

Wire shelf
For cookware, cake tins, roasts.

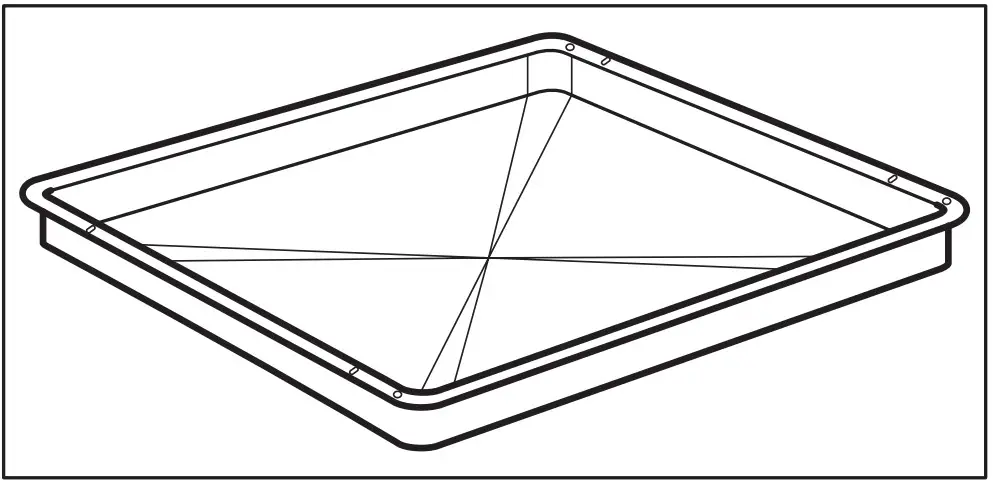

Baking tray
For cakes and biscuits.

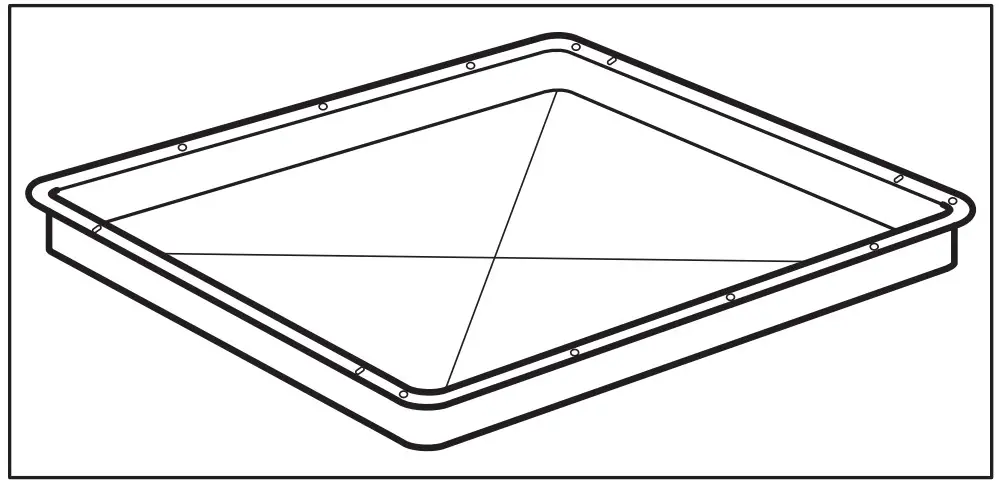

Grill- / Roasting pan
To bake and roast or as a pan to collect fat.

Storage drawer

The storage drawer is below the oven cavity.

WARNING!
The storage drawer can become hot when the oven operates. Do not store any flammable materials in the drawer

HOW TO TURN OVEN ON AND OFF

Retractable knobs

To use the appliance press the knob. The knob comes out.

Control panel

Control panel sensor fields					Press	Turn the knob
Timer	Fast Heat Up	Light	Lock	OK
Select a heating function to turn on the oven.
Turn the knob for the heating functions to the off position to turn the oven off.

	When the knob for the heating functions is in the off position, the display goes to standby.

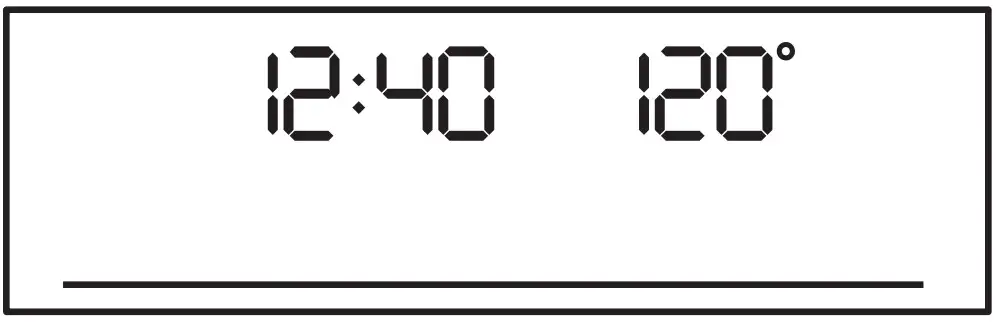

	When you cook, the display shows the set tem‐ premature, time of day and other available op‐ tins.
	The display with the maximum number of funk‐ tins set.

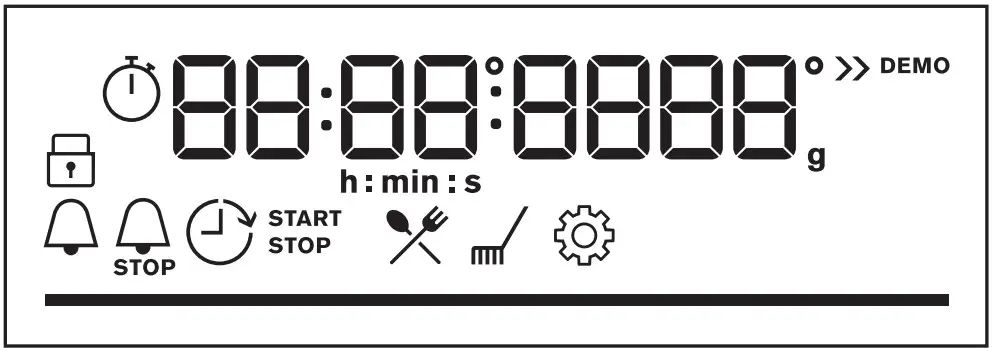

Display indicators
Lock	Assisted Cook‐ ing	Cleaning	Settings	Fast Heat Up
Timer indi‐ cators:

Progress bar – for temperature or time.

Steam cooking indicator

BEFORE FIRST USE

WARNING!
Refer to Safety chapters.

Initial cleaning

Before first use clean the empty oven and set the time:

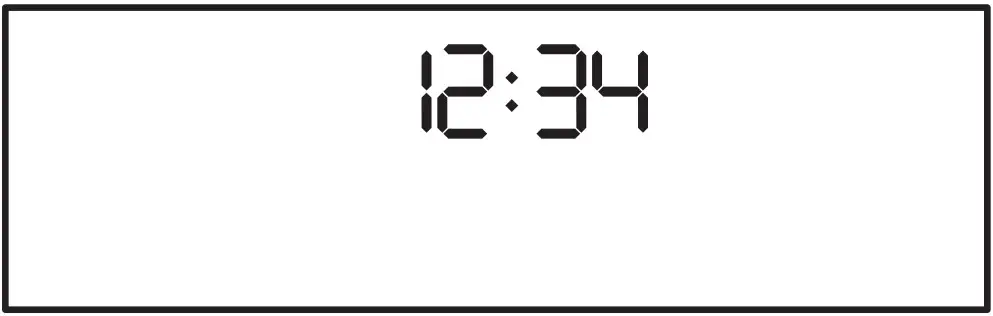

			00:00 Set the time. Press

Initial preheating

Preheat the empty oven before the first use.
Step 1	Remove all accessories and removable shelf supports from the oven.
Step 2	Set the maximum temperature for the function: Let the oven operate for 1 h.
Step 3	Set the maximum temperature for the function: . Let the oven operate for 15 min.
The oven can emit an odour and smoke during preheating. Make sure that the room is ventila‐ ted.

DAILY USE

WARNING!
Refer to Safety chapters.

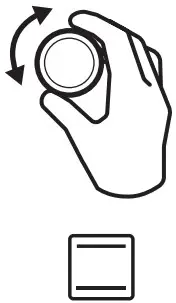

 How to set: Heating functions

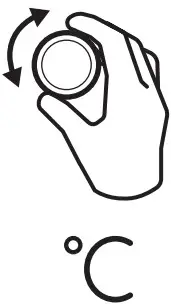

Step 1	Step 2
Select a heating function.	Set the temperature. Press OK .

– press and hold to turn on the function: Fast Heat Up. It is available for some oven functions.

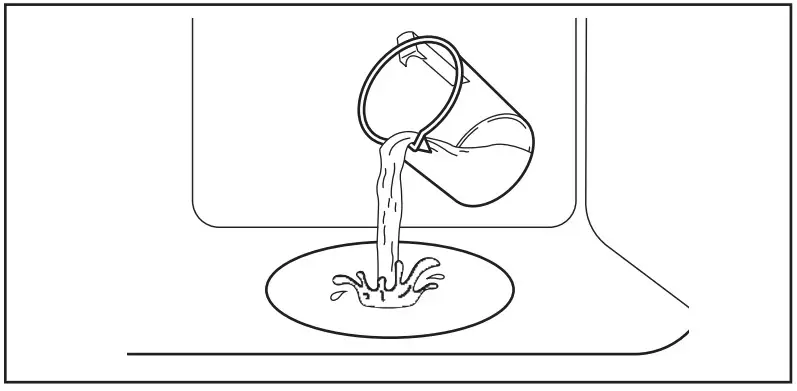

BakingPlus
Make sure that the oven is cold.
Step 1	Step 2	Step 3	Step 4
			Preheat the empty oven for 10 min to create humidity. Put food in the oven.
Fill the cavity embossment with tap water.	Select the heating func‐ tion.	Set the tem‐ perature. Press   .
The maximum capacity of the cavity embossment is 250 ml. Do not refill the cavity emboss‐ ment during cooking or when the oven is hot.

Heating functions

Standard heating functions

Heating function	Application
True Fan Cooking	To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 – 40 °C lower than for Conventional Cooking.
Conventional Cooking	To bake and roast food on one shelf position.
BakingPlus	To add humidity during the cooking. To get the right colour and crispy crust during baking. To give more juiciness during reheating. To preserve fruit or vegetables.
Pizza Function	To bake pizza. To make intensive browning and a crispy bottom.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
Frozen Foods	To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy.
Moist Fan Baking	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temper‐ ature. The residual heat is used. The heating power may be reduced. For more information refer to “Daily Use” chapter, Notes on: Moist Fan Bak‐ ing.
Grill	To grill thin pieces of food and to toast bread.
Turbo Grilling	To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.

Heating function	Application
Menu	To enter the Menu: Assisted Cooking, Cleaning, Settings.

Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements
(according to EU 65/2014 and EU 66/2014). Tests according to: IEC/EN 60350-1
The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.
When you use this function the lamp automatically turns off after 30 sec.
For the cooking instructions refer to “Hints and tips” chapter, Moist Fan Baking. For general energy saving recommendations refer to “Energy Efficiency” chapter, Energy Saving.

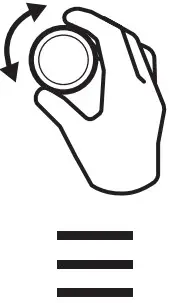

How to set: Assisted Cooking

Every dish in this submenu has a recommended function and temperature. You can adjust the time and the temperature during cooking.

Assisted Cooking – use it to prepare a dish quickly with default settings:
Step 1	Step 2	Step 3	Step 4
		P1 – P45	OK
Enter the menu.	Select Assisted Cooking. Press                               .	Select the dish. Press .	Insert the dish to the oven. Confirm setting.

Assisted Cooking

Legend
	Weight Automatic available.
	The amount of water for the function.

Legend
	Preheat the oven before you start cooking.
	Shelf level.

When the function ends check if the food is ready.

	Dish	Weight	Shelf level / Accessory	Duration time
Beef
P1	Roast Beef, rare	1 – 1,5 kg; 4 – 5 cm thick pieces	2; baking tray Fry the meat for a few minutes on a hot pan. Insert to the oven.	40 min
P2	Roast Beef, medium			50 min
P3	Roast Beef, well done			60 min
P4	Steak, medi‐ um	180 – 220 g per piece; 3 cm thick sli‐ ces	3; roasting dish on wire shelf Fry the meat for a few minutes on a hot pan. Insert to the oven.	15 min
P5	Beef roast / braised (prime rib, top round, thick flank)	1,5 – 2 kg	2; roasting dish on wire shelf Fry the meat for a few minutes on a hot pan. Add liquid. Insert to the oven.	120 min
P6	Roast Beef, rare (slow cooking)	1 – 1,5 kg; 4 – 5 cm thick pieces	2; baking tray Use your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the oven.	75 min
P7	Roast Beef, medium (slow cooking)			85 min
P8	Roast Beef, well done (slow cooking)			130 min

	Dish	Weight	Shelf level / Accessory	Duration time
P9	Fillet, rare (slow cooking)	0,5 – 1,5 kg; 5 – 6 cm thick pieces	2; baking tray Use your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the oven.	75 min
P10	Fillet, medium (slow cooking)			90 min
P11	Fillet, done (slow cooking)			120 min
Veal
P12	Veal roast (e.g. shoulder)	0,8 – 1,5 kg; 4 cm thick pieces	2; roasting dish on wire shelf Use your favourite spices. Add liquid. Roast covered.	80 min
Pork
P13	Pork roast neck or shoulder	1,5 – 2 kg	2; roasting dish on wire shelf Turn the meat after half of the cooking time.	120 min
P14	Pulled pork (slow cooking)	1,5 – 2 kg	2; baking tray Use your favourite spices. Turn the meat after half of the cooking time to get an even browning.	215 min
P15	Loin, fresh	1 – 1,5 kg; 5 – 6 cm thick pieces	2; roasting dish on wire shelf Use your favourite spices.	55 min
P16	Spare Ribs	2 – 3 kg; use raw, 2 – 3 cm thin spare ribs	3; deep pan Add liquid to cover the bottom of a dish. Turn the meat after half of the cooking time.	90 min
Lamb
P17	Lamb leg with bones	1,5 – 2 kg; 7 – 9 cm thick pieces	2; roasting dish on baking tray Add liquid. Turn the meat after half of the cooking time.	130 min

	Dish	Weight	Shelf level / Accessory	Duration time
Poultry
P18	Whole chick‐ en	1 – 1,5 kg; fresh	2;  200 ml; casserole dish on baking tray Use your favourite spices. Turn the chicken after half of the cooking time to get an even browning.	60 min
P19	Half chicken	0,5 – 0,8 kg	3; baking tray Use your favourite spices.	40 min
P20	Chicken breast	180 – 200 g per piece	2; casserole dish on wire shelf Use your favourite spices. Fry the meat for a few minutes on a hot pan.	25 min
P21	Chicken legs, fresh	–	3; baking tray If you marinated chicken legs first, set lower temperature and cook them longer.	30 min
P22	Duck, whole	2 – 3 kg	2; roasting dish on wire shelf Use your favourite spices. Put the meat on roasting dish. Turn the duck after half of the cooking time.	100 min
P23	Goose, whole	4 – 5 kg	2; deep pan Use your favourite spices. Put the meat on deep baking tray. Turn the goose af‐ ter half of the cooking time.	110 min
Other
P24	Meat loaf	1 kg	2; wire shelf Use your favourite spices.	60 min
Fish
P25	Whole fish, grilled	0,5 – 1 kg per fish	2; baking tray Fill the fish with butter and use your fa‐ vourite spices and herbs.	30 min

	Dish	Weight	Shelf level / Accessory	Duration time
P26	Fish fillet	–	3; casserole dish on wire shelf Use your favourite spices.	20 min
Sweet baking / desserts
P27	Cheesecake	–	2;     28 cm springform tin on wire shelf	90 min
P28	Apple cake	–	2;  100 – 150 ml; baking tray	60 min
P29	Apple tart	–	2; pie form on wire shelf	40 min
P30	Apple pie	–	2;  100 – 150 ml;     22 cm pie form on wire shelf	60 min
P31	Brownies	2 kg	3; deep pan	30 min
P32	Chocolate muffins	–	2;  100 – 150 ml; muffin tray on wire shelf	30 min
P33	Loaf cake	–	2; loaf pan on wire shelf	50 min
Vegetable / Side dishes
P34	Baked pota‐ toes	1 kg	2; baking tray Put the whole potatoes with skin on bak‐ ing tray.	50 min
P35	Wegdes	1 kg	3; baking tray lined with baking pa‐ per Use your favourite spices. Cut potatoes into pieces.	35 min
P36	Grilled mixed vegetables	1 – 1,5 kg	3; baking tray lined with baking pa‐ per Use your favourite spices. Cut the vege‐ tables into pieces.	30 min

	Dish	Weight	Shelf level / Accessory	Duration time
P37	Croquets, fro‐ zen	0,5 kg	3; baking tray	25 min
P38	Pommes, fro‐ zen	0,75 kg	3; baking tray	25 min
Gratins, bread and pizza
P39	Meat / vegeta‐ ble lasagna with dry noo‐ dle plates	1 – 1,5 kg	2; casserole dish on wire shelf	45 min
P40	Potato gratin (raw potatoes)	1 – 1,5 kg	1; casserole dish on wire shelf Rotate the dish after half of the cooking time.	50 min
P41	Pizza fresh, thin	–	2;  100 ml; baking tray lined with baking paper	15 min
P42	Pizza fresh, thick	–	2; baking tray lined with baking paper	25 min
P43	Quiche	–	2; baking tin on wire shelf	45 min
P44	Baguette / Ciabatta / White bread	0,8 kg	3;  150 ml; baking tray lined with baking paper More time needed for white bread.	30 min
P45	All grain / rye / dark bread all grain in loaf pan	1 kg	2;  150 ml; baking tray lined with baking paper / wire shelf	45 min

CLOCK FUNCTIONS

Clock functions

Clock Function	Application
	Minute minder. When the timer ends, the signal sounds.
	Cooking time. When the timer ends, the signal sounds and the heating function stops.
	Time Delay. To postpone the start and / or end of cooking.
	Uptimer. Maximum is 23 h 59 min. This function has no effect on the operation of the oven. To turn on and off the Uptimer select: Menu, Settings.

How to set: Clock functions

How to set: Time of day
Step 1	Step 2	Step 3
To change the time of day enter the menu and select Settings, Time of day.	Set the clock.	Press:      .

How to set: Minute minder
Step 1	The display shows: 0:00	Step 2	Step 3
Press: .		Set the Minute minder	Press:      .
Timer starts counting down immediately.

How to set: Cooking time
Step 1	Step 2	The display shows: 0:00	Step 3	Step 4
Choose a heating function and set the temperature.	Press repeated‐ ly: .		Set the cooking time.	Press:      .
Timer starts counting down immediately.

How to set: Time Delay
Step 1	Step 2		Step 3	Step 4		Step 5	Step 6
		The dis‐ play shows: the time of day START			The dis‐ play shows: –:– STOP
Select the heating func‐ tion.	Press re‐ peatedly: .		Set the start time.	Press: .		Set the end time.	Press: OK.
Timer starts counting down at a set start time.

HOW TO USE: ACCESSORIES

Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.

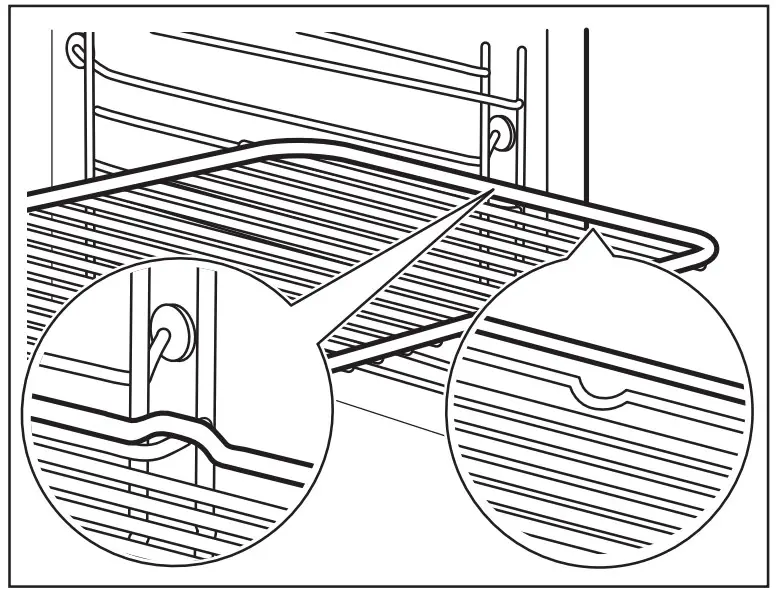

Wire shelf: Push the shelf between the guide bars of the shelf support.

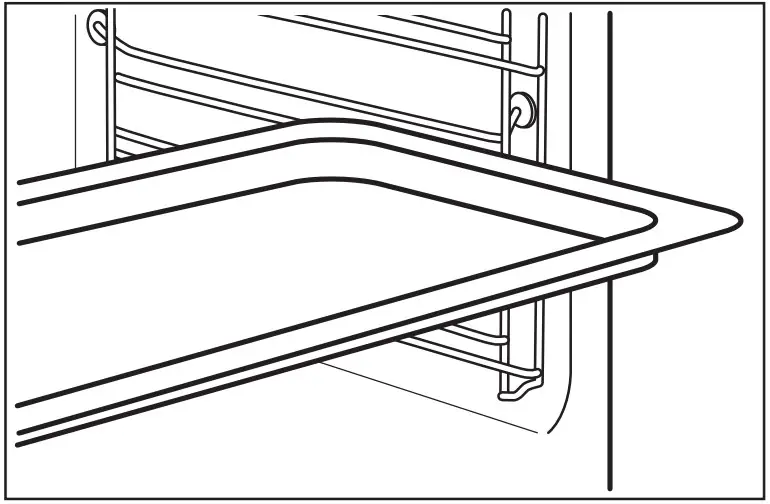

Baking tray / Deep pan: Push the tray between the guide bars of the shelf support.

ADDITIONAL FUNCTIONS

Lock

This function prevents an accidental change of the oven function.
Turn it on when the oven works – the set cooking continues, the control panel is locked. Turn it on when the oven is off – the oven cannot be turned on, the control panel is locked.
	– press and hold to turn on the function. A signal sounds.	– press and hold to turn it off.
3 x – flashes when the lock is turned on.

Automatic switch-off

For safety reasons the oven turns off after some time, if a heating function works and you do not change any settings.

(°C)	(h)
30 – 115	12.5
120 – 195	8.5
200 – 245	5.5
250 – maximum	3

The Automatic switch-off does not work with the functions: Light, Time Delay.

 Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

HINTS AND TIPS

Moist Fan Baking

For the best results follow suggestions listed in the table below.
Use the third shelf position.

	(°C)	(min)
Pasta gratin	200 – 220	45 – 55
Potato gratin	180 – 200	70 – 85
Moussaka	170 – 190	70 – 95
Lasagne	180 – 200	75 – 90
Cannelloni	180 – 200	70 – 85
Bread pudding	190 – 200	55 – 70
Rice pudding	170 – 190	45 – 60
Apple cake, made of sponge cake mixture (round cake tin)	160 – 170	70 – 80

	(°C)	(min)
White bread	190 – 200	55 – 70

Moist Fan Baking – recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

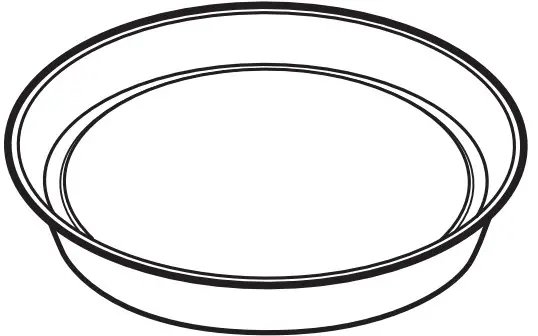

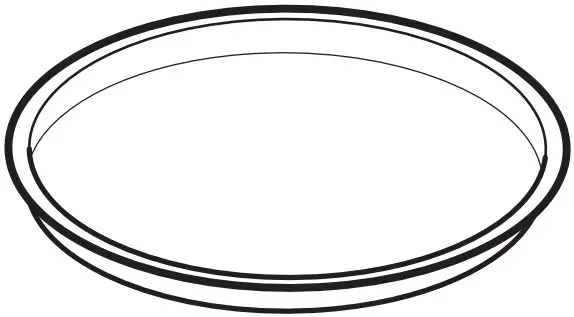

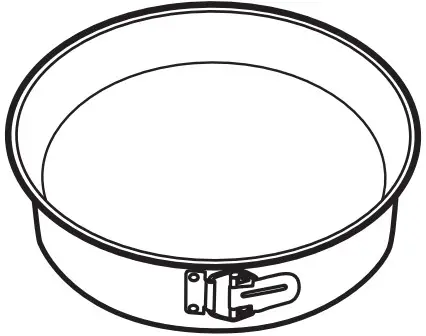

Pizza pan	Baking dish	Ramekins	Flan base tin
Dark, non-reflective 28 cm diameter	Dark, non-reflective 26 cm diameter	Ceramic 8 cm diameter, 5 cm height	Dark, non-reflective 28 cm diameter

Cooking tables for test institutes

Information for test institutes

Tests according to: EN 60350, IEC 60350.

BAKING ON ONE LEVEL. Baking in tins
		(°C)	(min)
Fatless sponge cake	True Fan Cooking	140 – 150	35 – 50	2
Fatless sponge cake	Conventional Cook‐ ing	160	35 – 50	2
Apple pie, 2 tins Ø20 cm	True Fan Cooking	160	60 – 90	2
Apple pie, 2 tins Ø20 cm	Conventional Cook‐ ing	180	70 – 90	1

BAKING ON ONE LEVEL. Biscuits
Use the third shelf position.
		(°C)	(min)
Short bread / Pastry strips	True Fan Cooking	140	25 – 40
Short bread / Pastry strips, preheat the empty oven	Conventional Cooking	160	20 – 30
Small cakes, 20 per tray, preheat the empty oven	True Fan Cooking	150	20 – 35
Small cakes, 20 per tray, preheat the empty oven	Conventional Cooking	170	20 – 30

MULTILEVEL BAKING. Biscuits
		(°C)	(min)
Short bread / Pastry strips	True Fan Cooking	140	25 – 45	1 / 4
Small cakes, 20 per tray, preheat the empty oven	True Fan Cooking	150	23 – 40	1 / 4
Fatless sponge cake	True Fan Cooking	160	35 – 50	1 / 4

	GRILL
	Preheat the empty oven for 5 minutes.
	Grill with the maximum temperature setting.
Toast	Grill	1 – 3	5
Beef steak, turn halfway through	Grill	24 – 30	4

CARE AND CLEANING

WARNING!
Refer to Safety chapters.

Notes on cleaning

Cleaning Agents	Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent.
	Use a cleaning solution to clean metal surfaces.
	Clean stains with a mild detergent. Do not apply it on the catalytic surfaces.

Everyday Use	Clean the cavity after each use. Fat accumulation or other residue may cause fire.
	Do not store the food in the appliance for longer than 20 minutes. Dry the cavity only with a microfibre cloth after each use.

Accessories	Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.
	Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

How to clean: Cavity embossment

Clean the cavity embossment to remove limestone residue after cooking with steam.

How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1	Turn off the oven and wait until it is cold.
Step 2	Pull the front of the shelf sup‐ port away from the side wall.
Step 3	Pull the rear end of the shelf support away from the side wall and remove it.
Step 4	Install the shelf supports in the opposite sequence.

How to use: Catalytic cleaning

The cavity is coated with catalytic enamel. It absorbs fat during catalysis.
Spots or discolouration of the catalytic coating have no effect on the cleaning.

Clean the oven with catalytic cleaning
Before the catalytic cleaning remove all accessories.
Step 1	Step 2	Step 3
Select Menu / Cleaning  and press       three times.	When the cleaning ends the signal sounds. The oven turns off.	When the oven is cold, clean the cavity with a wet soft cloth.
Duration: 1 h.The catalytic enamel is self cleaning, do not clean it with a cloth.

How to remove and install: Door

You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models.

WARNING!
The door is heavy.

CAUTION!
Carefully handle the glass, especially around the edges of the front panel. The glass can break.

Step 1	Fully open the door.

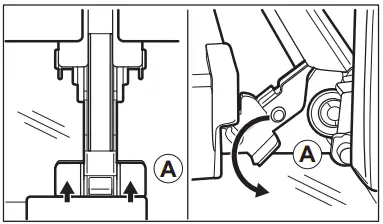

Step 2	Lift and press the clamping levers (A) on the two door hinges.
Step 3	Close the oven door to the first opening position (approximately 70° angle). Hold the door at both sides and pull it away from the oven at an upwards angle. Put the door with the outer side down on a soft cloth on a stable surface.

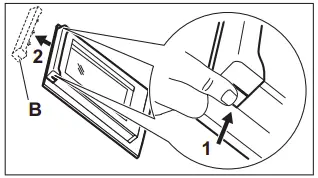

Step 4	Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.
Step 5	Pull the door trim to the front to remove it.

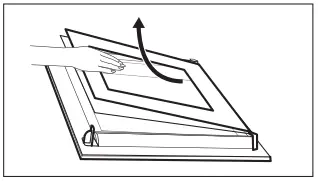

Step 6	Hold the door glass panels on their top edge one by one and pull them up out of the guide.
Step 7	Clean the glass panel with water and soap. Dry the glass panel carefully. Do not clean the glass panels in the dish‐ washer.
Step 8	After cleaning, do the above steps in the opposite se‐ quence.
Step 9	Install the smaller panel first, then the larger and the door. Make sure that the glasses are inserted in the correct position otherwise the surface of the door may overheat.

How to replace: Lamp

WARNING!
Risk of electric shock.
The lamp can be hot.

Top lamp

Step 1	Turn the glass cover to remove it.
Step 2	Clean the glass cover.
Step 3	Replace the lamp with a halogen, 230 V, 40 W, 300 °C heat-resistant lamp.
Step 4	Install the glass cover.

Side lamp

TROUBLESHOOTING

WARNING!
Refer to Safety chapters.

What to do if…

In any cases not included in this table please contact with an Authorised Service Centre.

The oven does not turn on or does not heat up
Problem	Check if…
You cannot activate or operate the oven.	The oven is correctly connected to an electrical supply.

The oven does not turn on or does not heat up
The oven does not heat up.	The automatic switch-off is deactivated.
The oven does not heat up.	The fuse is not blown.
The oven does not heat up.	The Lock is off.

Components
Problem	Check if…
The lamp is turned off.	Moist Fan Baking – is turned on.
The lamp does not work.	The lamp is burnt out.

Error codes
The display shows…	Check if…
00:00	There was a power cut. Set the time of day.
If the display shows an error code that is not in this table turn the house fuse off and on to restart the oven. If the error code recurs contact an Authorised Service Centre.

Cleaning
Problem	Check if…
The water leaks out of the cavity embossment.	There is too much water in the cavity emboss‐ ment.

Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

ENERGY EFFICIENCY

Product Information and Product Information Sheet

IEC/EN 60350-1 – Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens and grills – Methods for measuring performance.

Energy saving

The oven has features which help you save energy during everyday cooking.

Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.
Use metal cookware to improve energy saving.
When possible, do not preheat the oven before cooking.
Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan
When possible, use the cooking functions with fan to save energy.

Residual heat
The fan and lamp continue to operate. When you turn off the oven, the display shows the residual heat. You can use that heat to keep the food warm.
When the cooking duration is longer than 30 min, reduce the oven temperature to minimum 3 – 10 min before the end of cooking. The residual heat inside the oven will continue to cook.
Use the residual heat to warm up other dishes.

Keep food warm
Choose the lowest possible temperature setting to use residual heat and keep a meal warm.
The residual heat indicator or temperature appears on the display.

Cooking with the lamp off
Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking
Function designed to save energy during cooking.
When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

MENU STRUCTURE

Menu

– select to enter the Menu.

Menu structure
Assisted Cooking	Cleaning	Settings

Step 1	Step 2	Step 3	Step 4	Step 5
	OK	O1 – 10	OK
Select the Menu, Settings.	Confirm setting.	Select the set‐ ting.	Confirm setting.	Adjust the value and press             .

GUARANTEE

Customer Service Centres

Point of Service
Industriestrasse 10 5506 Mägenwil	Le Trési 6 1028 Préverenges	Via Violino 11 6928 Manno
Morgenstrasse 131 3018 Bern
Langgasse 10 9008 St. Gallen
Am Mattenhof 4a/b 6010 Kriens
Schlossstrasse 1 4133 Pratteln
Comercialstrasse 19 7000 Chur

Spare parts service Industriestrasse 10, 5506 Mägenwil, Tel. 0848 848 111
Specialist advice/Sale Badenerstrasse 587, 8048 Zürich, Tel. 044 405 81 11
Warranty For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).
The guarantee covers the costs of materials, labour and travel. The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it.
Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste.
Return the product to your local recycling facility or contact your municipal office.

For Switzerland:
Where should you take your old equipment?
Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms.
The list of official SENS collection points can be found at www.erecycling.ch

http://www.electrolux.com/shop

References

• Electrolux
• Electrolux
• SENS eRecycling – Stiftung für Recycling von Elektro- und Elektronikgeräten
• Register Your Appliance – Product Registration – Electrolux
