IMA12826 Interlock for Feet vehicles
 |  |
Keep transmitting electronic devices, e.g. mobile phones away from the system, in order to minimise interference.

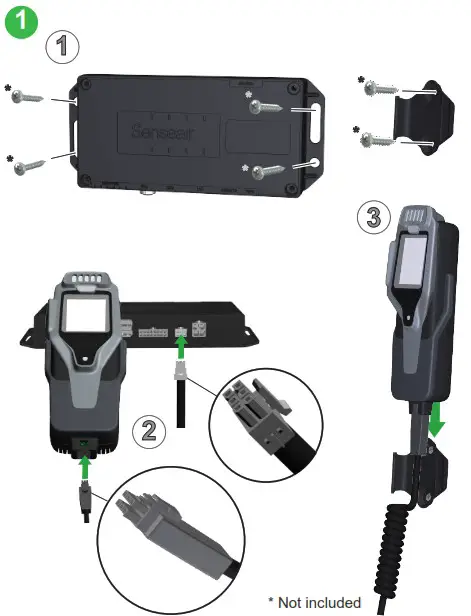

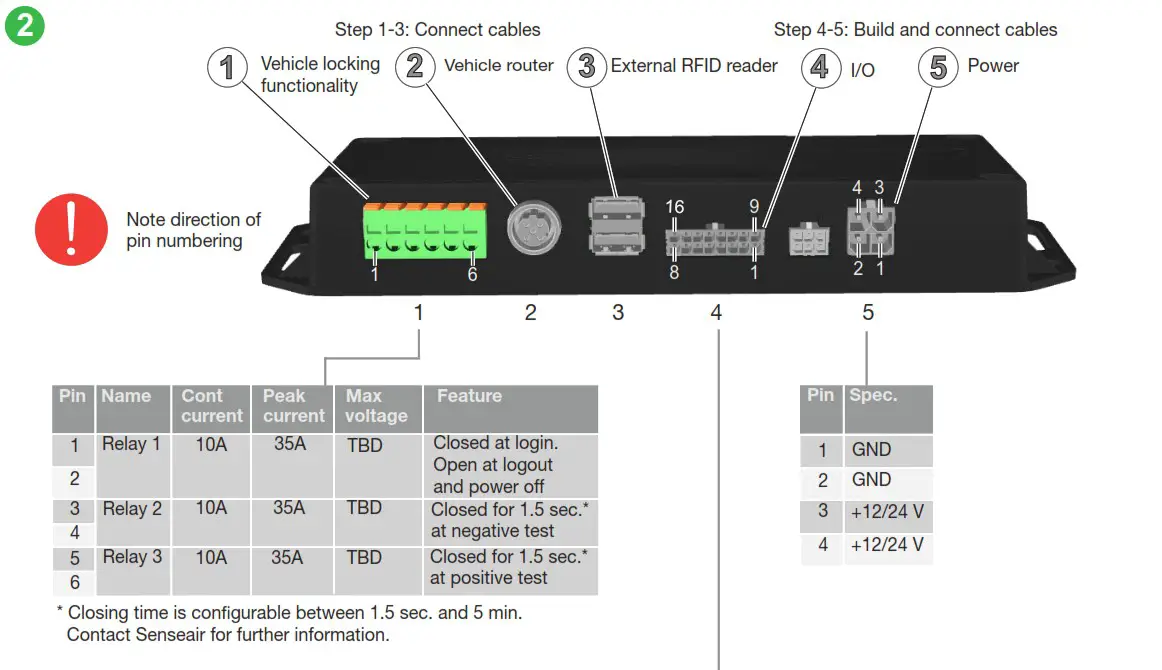

Cable components and build parts
| Contact | Connector | Terminal | Cable dimension | Crimp tool |
| 1 | – | – | AWG 16, 1.6 mm Automated rated wire | – |
| 2 | M12, 4-pin Ethernet | – | – | – |
| 3 ** | USB Type-A | – | – | – |

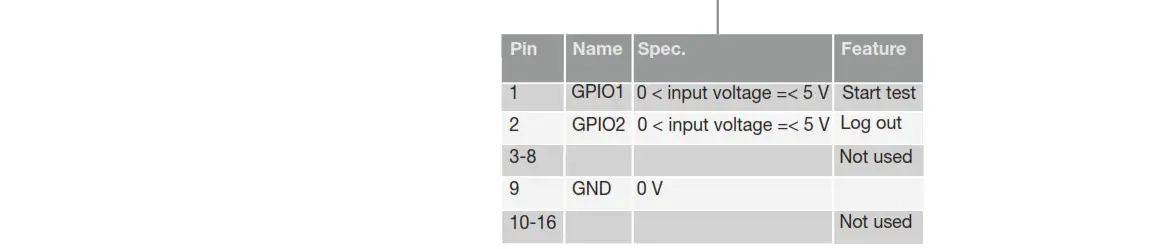

| 4 | Molex Micro- t, 16 circuits (43025-1600) | 43030-0002 | AWG 22-24, 0.5-0.64 mm Automated rated wire | Molex 06381- 90901 |
| 5 | Molex Mega- t, 4 circuits (1700010104) | 172063-0311 | AWG 14-16, 1.3-1.6 mm Automated rated wire | Molex 200218 – 7200 |
** External RFID reader for Electro Marine (EM 4102). Contact Senseair for order.
Senseair AB (headquarter)
Stationsgatan 12, Box 96, 824 08 Delsbo, Sweden
Phone: +46-(0)653 – 71 77 70
www.senseair.com
©2022 Senseair AB. All rights reserved.
