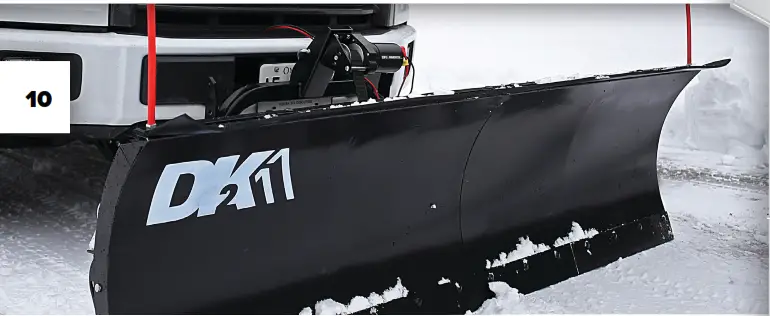

II 82 in. x 19 in. Snow Plow for Trucks
User Manual
DESCRIPTION
All DK2 Snow Plows allow you to quickly & effectively remove snow from your driveway or small parking lot. DK2’s range of personal plows each mount on to a vehicle specific custom mounting brackets.
Ships in a single carton complete with hardened steel cutting edge scraper, rubber snow deflector, polymer-wrapped wire rope plow markers, skid shoes, castor kit for easy storage, and a 3,000lb wireless electric winch.
SPECIFICATION
| ITEM NUMBER | RAMPAGE II • RAMP8219 |
| BLADE DIMENSIONS | 82″ (W) x 19″ (H) 208.3cm (W) x 48.3cm (H) |
| ASSEMBLED WEIGHT | 265Ib (120.2kg) |
| SHIPPING WEIGHT | 280Ib (127kg) |
| SHIPPING DIMENSIONS | 43″ (L) x 32″ (W) x 18″ (H) 109.2cm (L) x 81.3cm (W) x 45.7cm (H) |
| ITEM NUMBER | STORM II • STOR8422 |
| BLADE DIMENSIONS | 84″ (W) x 22″ (H) 213.4cm (W) x 55.9cm (H) |
| ASSEMBLED WEIGHT | 283Ib (128.4kg) |
| SHIPPING WEIGHT | 2871b (130.2kg) |
| SHIPPING DIMENSIONS | 43″ (L) x 32″ (W) x 18″ (H) 109.2cm (L) x 81.3cm (W) x 45.7cm (H) |
| ITEM NUMBER | SUMMIT II • SUMM8826 |
| BLADE DIMENSIONS | 88″ (W) x 26″ (H) 223.5cm (W) x 66cm (H) |
| ASSEMBLED WEIGHT | 296Ib (134.3kg) |
| SHIPPING WEIGHT | 301Ib (136.5kg) |
| SHIPPING DIMENSIONS | 46″ (L) x 35″ (W) x 17″ (H) 116.8cm (L) x 88.9cm (W) x 43.2cm (H) |
CUSTOM MOUNTED SNOW PLOW
ITEM NUMBER / UPC
RAMP8219 / 693495992167
STOR8422 / 693495992174
SUMM8826 / 693495992181
FEATURES
- Fits most light trucks and SUV’s

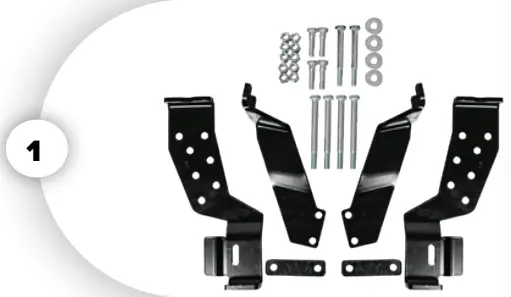

- Easy to mount – simply slides onto your custom vehicle specific mounting brackets in seconds 1
- Slide out and roll away for storage

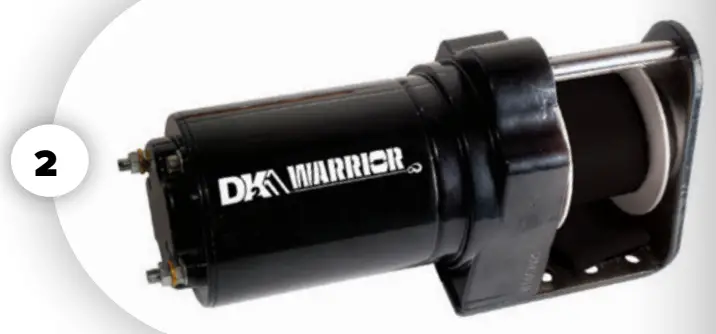

- A wireless winch lifts the blade, controlled from inside your warm vehicle for easy up and down snow control 2
- Blade angles set and lock manually with a single lever lifting a pin to 3 blade locking positions: straight on, angled to the right, and angled to the left

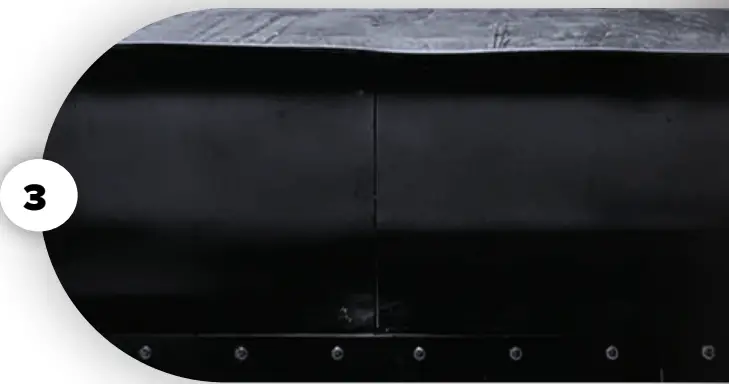

- Powder coated all-steel with UV protected paint 3

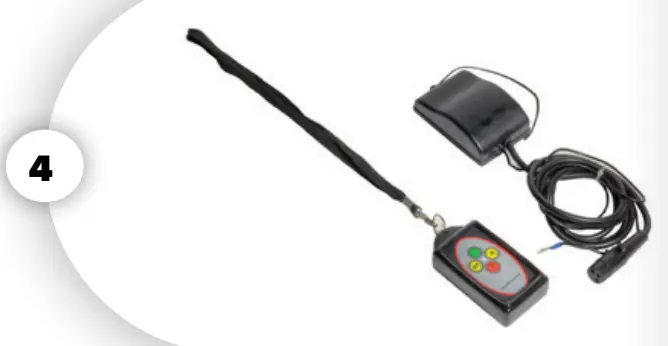

- Wireless remote control included with the kit 4
- Locking castors allow easy plow attachment, removal, and roll away storage – just lower the wheels and roll the unit to wherever you want it
- ISO 9001 certified manufacturer
- 1-year limited warranty
- Ships in a single carton on a standard size pallet
