Termination Box 4
User Manual
Description

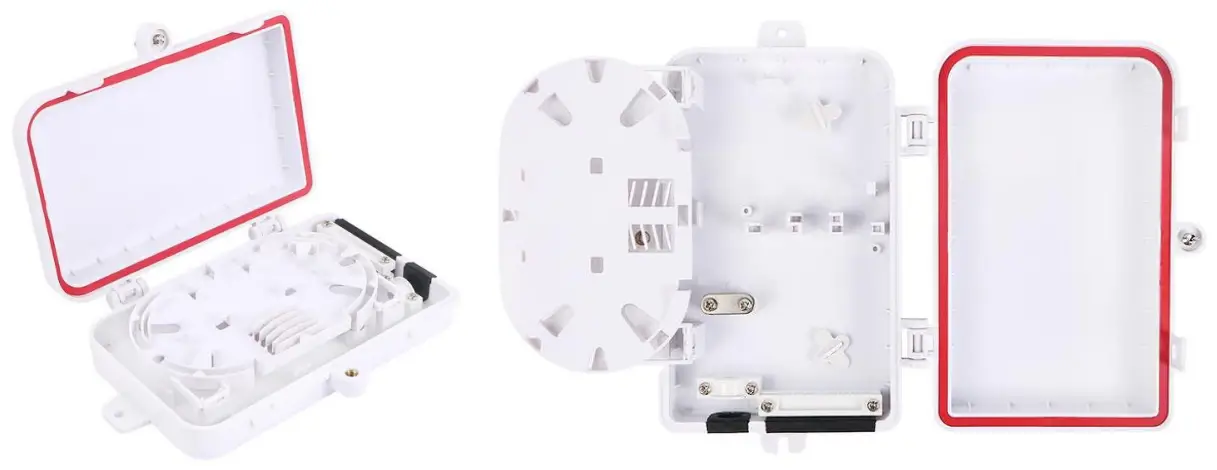

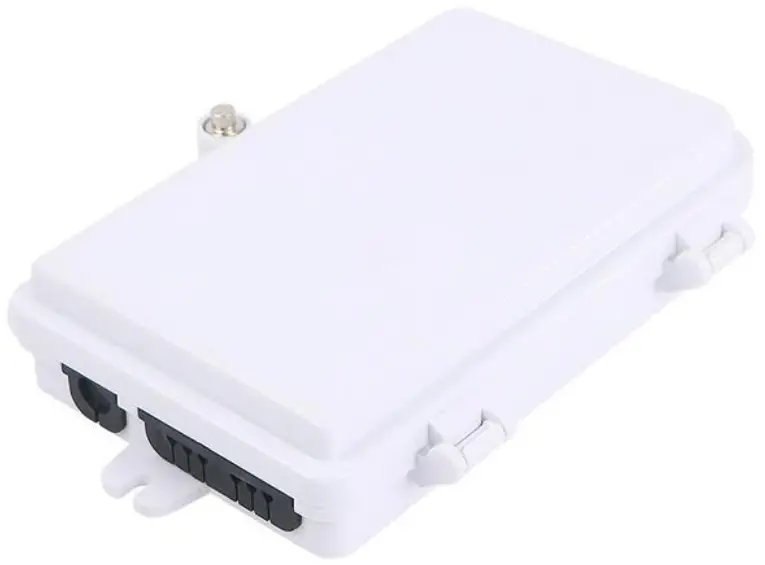

Termination Box 4 is a wall-mounted termination box for outdoor installations. It’s suitable for terminating and jointing different types of optical cables and micro ducts.
Features
| Function | Cable terminal or passive splitter |
| Dimensions | 210 x 140 x 40 mm |
| Material | ABS plastic |
| Cable diameter | Up to 10 mm |
| Cable port quantity | 1 + 6 pcs |
| Maximum splicing capacity | 4 single fibers |
| Adapter quantity and type | 6 pcs of SC-S or LC-D |
| Connector type | SC-UPC, SC-APC, LC-UPC or LC/APC |
| IP code | IP 65 |
| Package dimensions | 220 x 160 x 50 mm |
| Weight | 350 g |
© Nestor Cables Ltd. 2022.
The information contained within this document must not be copied, reprinted, or reproduced in any form, either wholly or in part, without the prior written consent of Nestor Cables Ltd. The information is believed to be correct at the time of issue. Nestor Cables Ltd. reserves the right to amend this specification without notice. This specification is not contractually valid unless specifically authorized by Nestor Cables Ltd.
Technical Specification
Termination Box 4
20220127/ML/01
27.1.2022
