QUICK REFERENCE GUIDE > SBE1-142-N
14″ Double Side Burner, Natural Gas Series 9
Stainless Steel | Natural gas
Date: 30.06.2021 > 1

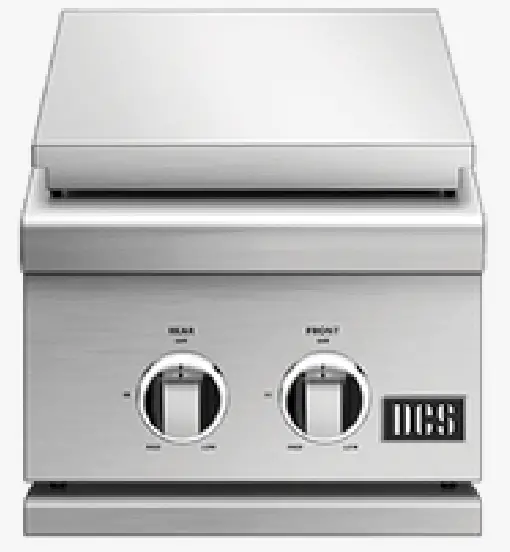

SBE1-142-N Natural Gas Double Side Burner
Bringing the precise control of your indoor cooktop to your outdoor cooking area, the dedicated Double Side Burner lets you simmer your famous BBQ sauce while the ribs are grilling.
DIMENSIONS
| Height | 10 5⁄8 “ |
| Width | 14 2⁄3 “ |
| Depth | 26 7⁄8 “ |
FEATURES & BENEFITS
Designed to match
With a matching look across all DCS Series 9 products*, you can create a stylish, cohesive design for your Outdoor kitchen. Seamless installation and interconnectivity between products allows for unified operation, from ignition to dial illumination.
Robust construction
Constructed from 304-grade stainless steel designed to withstand all types of weather conditions, with a quality weld and finish, DCS side burners are built to last.
SPECIFICATIONS
| Burners | |
| Number of side burners | 2 |
| Features | |
| Ignition system | Surface |
| Metal illuminated dials | • |
| Stainless steel cover included | • |
| Finish | |
| Material | 304-grade stainless steel |
| Weather resistant | • |
| Gas requirements | |
| 1/2″ NPT male with 3/8″ in flare | • |
| Gas type | NG |
| Operational pressure | 4″ W.C. |
| Supply Pressure | 6″ to 9″ W.C. |
| Installation dimensions | |
| Cutout depth (proud) | 22 3⁄4 “ |
| Cutout height (proud) | 10 1⁄8 “ |
| Cutout width (proud) | 12 1⁄8 “ |
| Performance | |
| Side burner power | 17000 BTU |
| Total Power | 34000 BTU |
| Power requirements | |
| Power and logic | • |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 26 7⁄8 “ |
| Height | 10 5⁄8 “ |
| Width | 14 2⁄3 “ |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 71471 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? DCS by Fisher & Paykel Appliances Limited 2020
Other product downloads available at dcsappliances.com
Service and Warranty User GuideInstallation Guide
