QUICK REFERENCE GUIDE > PBE1-24-N

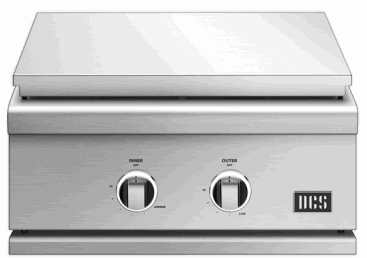

24″ Power Burner, Natural Gas
Series 9
Stainless Steel | Natural gas
Easily cook for a crowd on the impressive DCS Power Burner.
Designed to support different sized pots and woks, it combines powerful heat with precise temperature control from 70,000 to 1,300 BTU.
- Grates are specially designed to provide stability for pots and woks of all sizes
- Combines powerful heat with precise temperature control from 70,000 to 1,300 BTU giving you flexibility for everything from a rapid boil down to a gentle simmer
- Cast brass burners accentuate the high-end aesthetics as well as ensure the Power Burner will withstand the extremes of mother nature
- Interconnected illuminated dials to match the suite of DCS Series 9 products
DIMENSIONS
| Height | 10 1/2″ |
| Width | 24″ |
| Depth | 26 7/8″ |
FEATURES & BENEFITS
Power with control
Delivers powerful heat through a high-pressure burner, perfect for large steam pots. Precise temperature control from 70,000 to 1,300 BTU enables a rapid boil down to a gentle simmer.
Designed to match
With a matching look across all DCS Series 9 products, you can create a stylish, cohesive design for your Outdoor Kitchen. Seamless installation and interconnectivity between products* allows for unified operation, from ignition to dial illumination.
Cooking versatility
The grates are specially designed to provide stability for pots and works of all sizes, eliminating the need to adjust them. Grates can also be separated into two parts to make cleaning easy.
Heavy Duty Build
Made from durable, cast brass, the burner is designed to withstand high temperatures and all types of weather.
SPECIFICATIONS
Features
| Ignition system | Surface |
Finish
| Material | 304-grade stainless steel |
| Weather resistant | • |
Gas Requirements
| 1/2″ NPT male with 3/8″ in flare | • |
| Gas type | NG |
| Operational pressure | 4″ W.C. |
| Supply Pressure | 6″ to 9″ W.C. |
Installation Dimensions
| Cutout depth (proud) | 22 3/4″ |
| Cutout height (proud) | 10 1/8″ |
| Cutout width (proud) | 22 1/2″ |
Power requirements
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Product dimensions
| Depth | 26 7/8″ |
| Height | 10 1/2″ |
| Width | 24″ |
Warranty
| Parts and labor | 2 years |
| SKU | 71466 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? DCS by Fisher & Paykel Appliances Limited 2020
