Dyna-glo Dgb515sdp 5-burner Lp Gas Grill With Side Burner User Manual

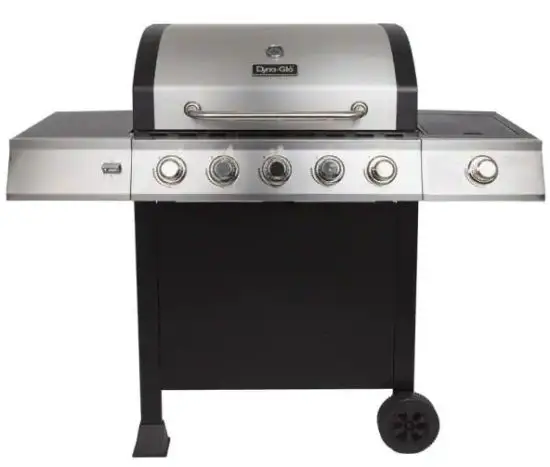

Dyna-Glo DGB515SDP 5-Burner LP Gas Grill with Side Burner User Manual

Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at:

1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday.

Do not use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

This product and the fuels used to operate this product (liquid propane or natural gas), and the products of combustion of such fuels, can expose you to chemicals including benzene, which is known to the State of California to cause cancer and reproductive harm.

For more information go to www.p65Warnings.ca.gov

• Never use charcoal or lighter fluid with the
• Do not use gasoline, kerosene or alcohol for
• The LP gas cylinder used with this appliance must be:
  • Constructed and marked in accordance with the Specifications for LP-Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commision, as applicable; and
  • Provided with a listed overfilling prevention
  • Provided with a cylinder connection device compatible with the connector for outdoor cooking appliances. This grill is not intended to be used in or installed on recreational vehicles and/or
• Never keep a filled container in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the relief valve and allow gas to escape.
• Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn you

• Do not place the grill under overhead combustible construction or awnings. Minimum clearance from sides and back of unit to combustible construction, 36 inches (914.4mm) from sides and

NOTE: The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2

• Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other
• An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
• This grill is for use with propane gas only (propane cylinder not included).
• Never attempt to attach this grill to the self-contained propane system of a boat, camper trailer, motor home or
• Do not attempt to move the grill while it is lit or when it is The casters should be locked when not moving the grill.
• Do not use the grill unless it is completely assembled and all parts are securely fastened and

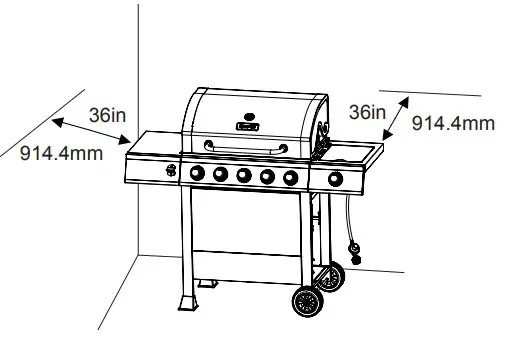

• Keep all combustible items and surfaces at least 36 inches (91.44 cm) away from the grill at all
• Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc…).
• Do not alter this grill in any
• Clean and inspect the hose before each If there is evidence of abrasion, wear, cuts, or leaks, the hose must be replaced prior to operating the appliance. The replacement hose assembly will be that which is specified by the manufacturer.
• Move gas hoses as far away as possible from hot surfaces and dripping hot
• Keep the grill’s valve compartment, burners and circulating air passages Inspect the grill before each use. Do not obstruct the flow of gas or ventilation air.
• The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to properly assemble or safely operate the grill.

•   Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.

• Do not place this grill on any type of tabletop The grill should be placed on a flat and level surface.
• Do not use the grill in high

PREPARATION

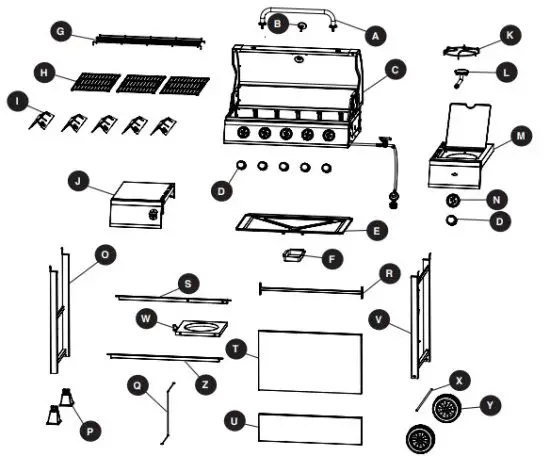

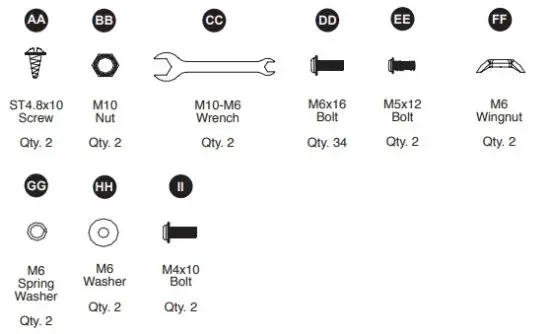

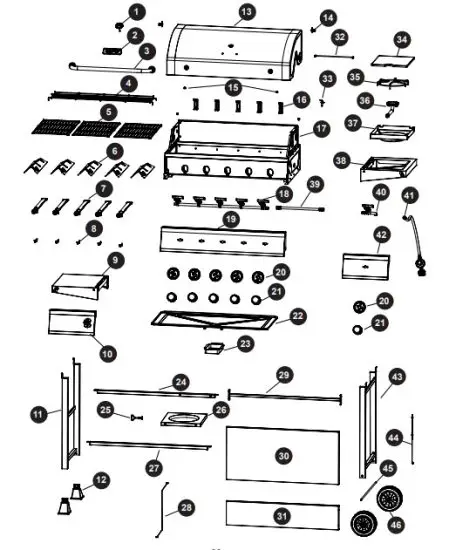

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list on previous page and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.

Estimated Assembly Time: 50 minutes with 2 people.

Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle, Plier, Adjustable Wrench

CAUTION

THIS UNIT IS HEAVY. Two people required for safe assembly.

Two people required for safe assembly. Some parts may contain sharp edges. Wear protective gloves if necessary. Read and follow all safety statements, warnings, assembly instructions and use and care instructions before attempting to assemble and use.

CHECKING FOR LEAKS

After all connections are made, check all connections and fittings on the LP gas tank valve, gas hose and regulator for leaks with a water and soap solution.

To prevent fire or explosion while testing for a leak:

• Always perform leak test prior to lighting the
• Do not smoke while testing for a
• Always perform leak tests outdoors in a well-ventilated
• Do not use any source of flame while testing for
• Do not use the grill until any and all leaks are
• If you are unable to correct a leak, disconnect the propane supply and call a gas appliance service

PERFORM LEAK TEST

• Prepare leak test solution by 50/50 ratio of liquid dish soap and Total solution required is approximately 2 – 3 ounces (70 – 90 ml).

Put leak test solution in a spray bottle.

• Ensure all control knobs are in the O OFF
• Connect the gas hose to the gas
• Open the LP gas tank
• Spray leak test solution on all gas carrying connections and Presence of bubbles at areas

of applied test solution indicates a gas leak. If leaks are detected or you smell or hear gas, shut off the gas supply valve immediately and repair or replace the defective part. Do not use the grill until

all leaks are corrected.

CAUTION

Only use the regulator and hose assembly provided! If a replacement is necessary, please call our customer service center. Do not use replacement parts that are not intended for this grill.

WARNING

ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT FIRE, DAMAGE AND/OR INJURY.

CONNECTING GAS CYLINDER

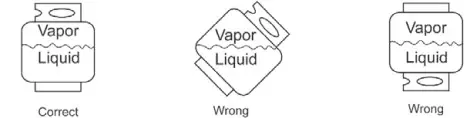

The propane gas supply cylinder to be used must be constructed and marked in accordance with the Specifications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as applicable; and provided with a listed overfilling prevention device.

Use only 20-pound cylinders (height: 18.11 inches, tank diameter: 9.84 inches, foot diameter: 8.03 inches) equipped with a cylinder connection device compatible with the connection for outdoor cooking appli- ances.

The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped or handled roughly!

If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must be stored outdoors out of the reach of children and must not be stored in a building, garage or any other enclosed area. Your cylinder must never be stored where temperatures can reach over 125°F.

Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, outlet of the regulator valve or in the outlet of the burner and burner ports. Connect regulator valve and

hand-tighten firmly. Keep the propane cylinder valve closed and disconnect the propane cylinder from the regulator valve when the grill is not in use.

DO NOT obstruct the flow of combustion air and ventilation air to the grill. The propane cylinder must be arranged for vapor withdrawal and equipped with a listed overfilling prevention device. Please use the proper cylinder orientation to provide vapor withdrawal. NOTE: The cylinder must be fully upright for the cylinder to have vapor withdrawal only.

CAUTION

1. Do not store a spare LP-gas cylinder under or near this
2. Never fill the cylinder beyond 80 percent
3. If the information in (a) and (b) is not followed exactly, a fire causing death or serious injury may

NOTE: Other cylinders may be acceptable for use with this appliance provided they are compatible with the appliance nesting hole and retention means. Refer to Step 20 of the Assembly Instructions for correct cylinder to cylinder holder connection.

WARNING

ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT FIRE, DAMAGE AND/OR INJURY.

CONNECTING THE LP TANK

1. The knob on the LP tank must be Make sure that the knob is turned clockwise to a full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned
3. Remove the protective cap from the LP tank valve and coupling
4. Hold the regulator in one hand and insert the nipple into the valve Be sure the nipple is centered in the valve outlet. The coupling nut connects to the large outside threads on the valve outlet. Use care – do not cross thread the connection.
5. Hand-tighten the coupling nut clockwise until it comes to a full Firmly tighten by hand only. Do not use tools.

To Disconnect: Fully close the tank valve by turning        clockwise.

Turn the coupling nut          counterclockwise until the regulator assembly detaches.

WARNING

In the connection process, make sure:

• the regulator inlet connector mates with the cylinder valve outlet properly, safely and firmly, and;

the LP gas hose does not come in contact or remain in contact with the firebox.

Lighting The Grill

Before first use:

Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important to clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed and the control knob in the highest position. This will clean the internal parts by burning off any residue and odor from the manufacturing process.

CAUTION

If the flame extinguishes accidentally during ignition or operation, immediately TURN OFF the cylinder valve and then TURN OFF the control knob.

WARNING

Do not lean over grill when lighting. Read instructions before lighting.

1. Check that the control knobs are in the OFF
2. Open the tank valve fully by turning it counter-clockwise.
3. Open the lid during the lighting
4. Depress and turn the control knob counter-clockwise from the   OFF position, past the  ignite position, to the  HIGH You may need to repeat this several times to ignite the burner.

If ignition does not occur in 5 seconds, turn the control knob(s) to the  OFF position, wait 5 minutes, and repeat the lighting procedure.

If the burner still does not light, check that there is gas in the cylinder and follow the match lighting instructions. Check the Troubleshooting Guide on page 25 for more information.

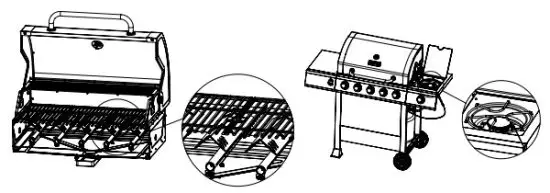

LIGHTING THE GRILL WITH A MATCH

1. Open the
2. Insert a match in the end of the match holder that is installed on the right leg
3. Light the
4. Immediately place the lit match through the spaces in the grill gates near the ports of the burner between the heat tents as Make sure the lit match is close to the burner ports.
5. Press in the control knob that operates the burner and rotate counter-clockwise to   High position and burner should light
6. Repeat 2~5 steps to lighting the remaining
7. Adjust burners to desired cooking

CAUTION

Make sure all burners controls are off except for the burner being lit and the burners that have been lit.

WARNING

If ignition does not occur in 5 seconds, turn the control knob(s) to “O” OFF position, wait 5 minutes, and repeat the lighting procedure.

SHUTDOWN INSTRUCTIONS

1. Turn control knobs clockwise to the O OFF
2. Close valve at tank fully by turning
3. Close

Turn off LP supply at cylinder when appliance is not in use.

Cooking Grates

The best time to ‘burn-off’ the cooking grates is after every use (approx. 15 minutes). The grill is already hot from cooking thus requiring less fuel to obtain necessary temperature for ‘burn-off’.

To ‘burn off’ or heat clean your grill, turn the burners to highest position and run for 15 minutes with the lid closed. Then turn off the burners and use a wire brush to clean excess food residue from the grates.

The porcelain grates have an enamel finish (similar to glass) and should be handled with care not to chip.

CAUTION

Ensure the grill is cool before cleaning and conducting maintenance and with the gas supply turned off at the LP-Gas Cylinder.

Recommended Cleaning Supplies

Mild liquid dish soap, warm water, nylon cleaning pad, wire brush

DO NOT use cleaners that contain acid, mineral spirits or any abrasive substance.

Outside Surfaces

It is recommended to use only mild dish soap and hot water to clean grill and grill parts. Rinse with warm water.

Inside Bottom Pan of Grill Body

To avoid flare-ups, the bottom pan of the cooking box should be kept clean on a regular basis. Remove residue using a brush, scraper and/or cleaning pad. Wash with mild dish soap and warm water. Rinse with warm water. Avoid water splashing into venturi tubes of burners.

Heat Tents

Clean residue with wire brush and wash with mild dish soap and warm water. Rinse with warm water.

Grease Cup

Empty the grease cup and clean with mild dish soap and warm water on a regular basis.

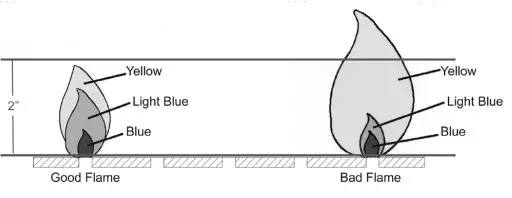

Checking The Flame

For maximum fuel efficiency and cooking performance, flame

should be a blue-yellow color and be between 1- 2 inches high. To check the flame, view the flame through the holes in both sides of the firebox.

Burner Assembly

Removing The Burner Assembly

1. Make sure all control knobs are in the OFF position, gas supply valve is closed, and the gas hose is disconnected from the gas

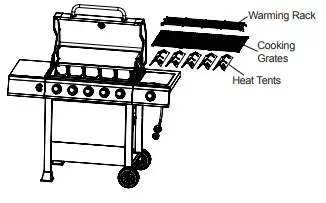

2. Open lid and remove warming rack, cooking grates, heat tents, clip for burner, ignition chain and main

Warming Rack

Cooking Grates

Heat Tents

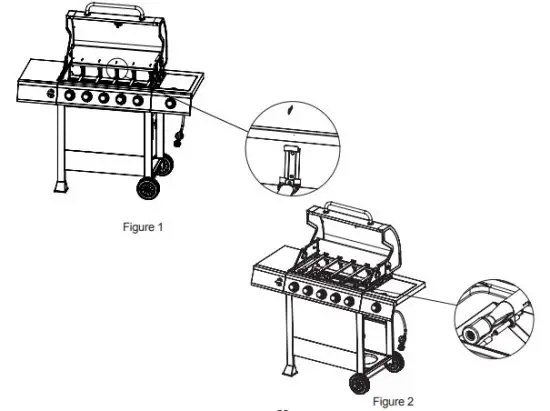

3. Remove hinge pin as illustrated in Figure
4. Slide main burners out of
5. Detach ignition wire from electrode in Figure

Cleaning the Burner Assembly

– Make sure the grill is cool

1.Turn gas off at the control knobs and LP gas cylinder. 2.Disconnect LP gas cylinder from regulator and hose. 3.Remove warming rack, cooking grates and heat tents.

4.Detach burner by removing the cotter pins at the back of the burners to detach them from the brackets. 5.Detach ignition wire from electrode by hand only. DO NOT use pliers or any other tool as it may damage

the electrode or wire.

6. Lift burner
7. Ensure all burner ports are clear of clogs. Use of a pin or paper clip works well. Ensure burner is free of any damage. If damage is found, replace with new burner.

9.Ensure the end of the burner and primary air screen are clear from insect nests, dirt or debris.

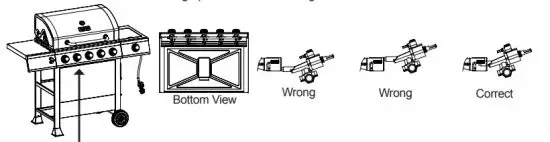

Re-installing the Burner

Ensure that gas valve orifices are correctly positioned inside burner inlet (venturi). The use of a flashlight may be necessary to ensure the correct position.

It is recommended to view the correct position through the firebox vent holes as illustrated below. Reattach each burner with the hinge pin and reattach the ignition wire to electrode.

WARNING

If the instructions above are not followed, a fire or explosion may result, possibly causing serious bodily injury or death.

Other Care and Maintenance

It is recommended that inspection and service on this appliance be conducted annually by a qualified service person.

It is recommended that you always check that the outdoor cooking appliance area is clear and free from combustible material, gasoline and other flammable vapors and liquids before lighting.

It is recommended that you regularly check that the flow of combustion and ventilation air is not obstructed.

It is recommended that you regularly check that the ventilation openings of the grill cabinet are free and clear from debris.

It is recommended that you regularly check and clean the burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill.

If you have any questions regarding the product, please call customer service at 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday.

1-Year Limited Warranty

This LP gas grill is warranted for 1 year (5 years on the Stainless Steel burners) against broken or damaged parts at the time of purchase. It is warranted to be free of defects. Paint is warranted to be free of defects except for rust, which may appear after repeated use.

This warranty does not cover damage or issues related to neglect, abuse, or modifications to the appliance. Repair labor is not covered.

All parts that meet the warranty requirements will be shipped at no charge via the discretion of the manufacturer (ground shipments, US Mail, or Parcel Post ONLY). Any special handling charges (i.e. Second Day, overnight, etc.) will be the responsibility of the consumer.

All warranty claims apply only to the original purchaser and require a proof of purchase verifying purchase date. Do not return parts without first obtaining a return authorization number from our customer service. This service is available by calling toll free 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday.

NOTICE: Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which may vary from state to state.

GHP Group Inc.

6440 W. Howard Street Niles, IL, USA

60714-3302

Item Name: 5-Burner LP Gas Grill With Side Burner Model #: DGB515SDP / DGB515SDP-D

Main Burner Total rated BTU: 60,000 BTU/Hr Side Burner rated BTU: 12,000 BTU/Hr

For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday
