NEMO ELLISSE MINOR, MAJOR, MEGA

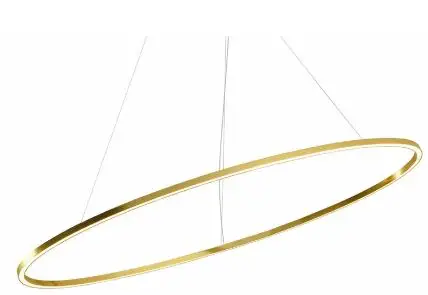

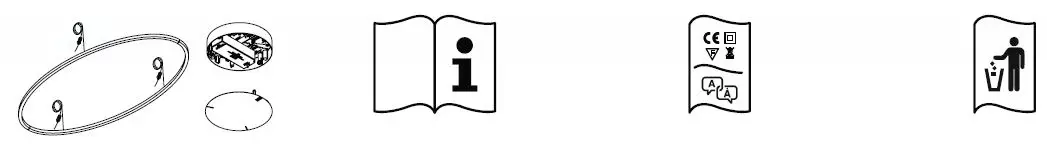

Box contents

NEMO-ELLISSE-MINOR-MAJOR-MEGA-FIG-1

Installation

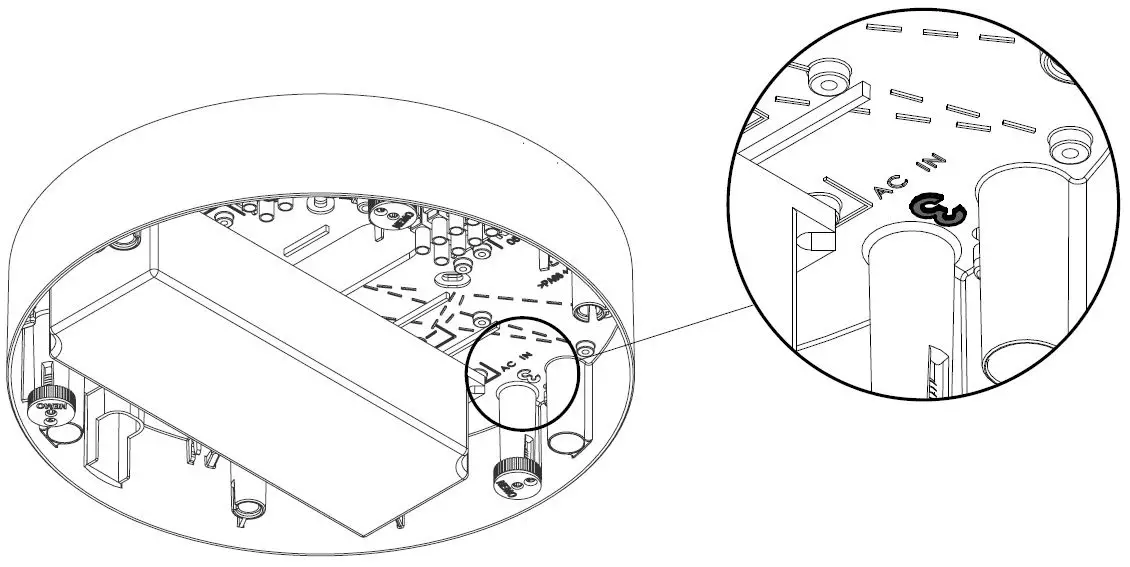

Check the position of the numbers (1,2 and 3) inside the canopy

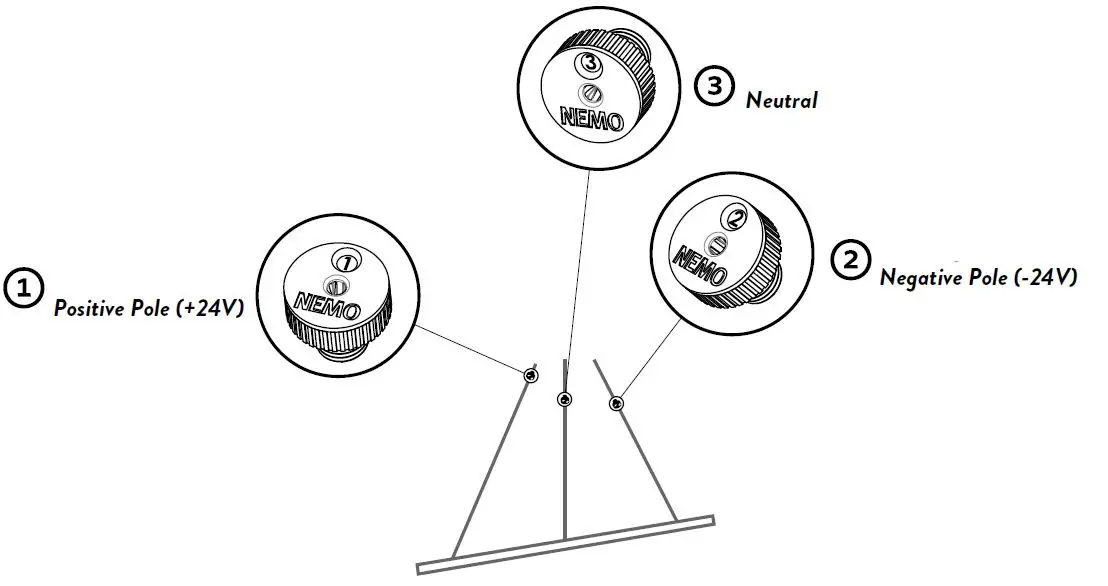

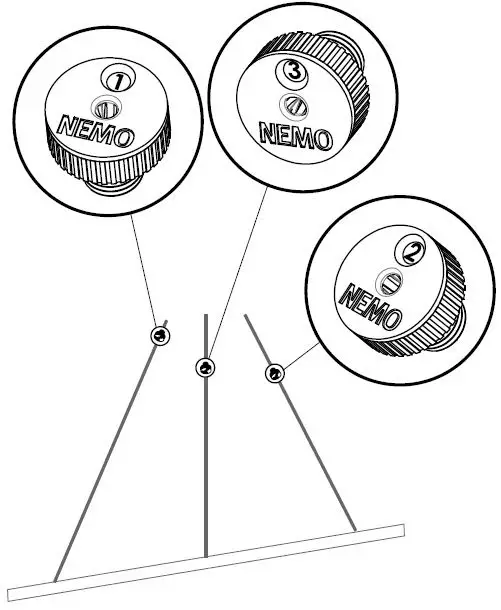

Check the number on the wire locks

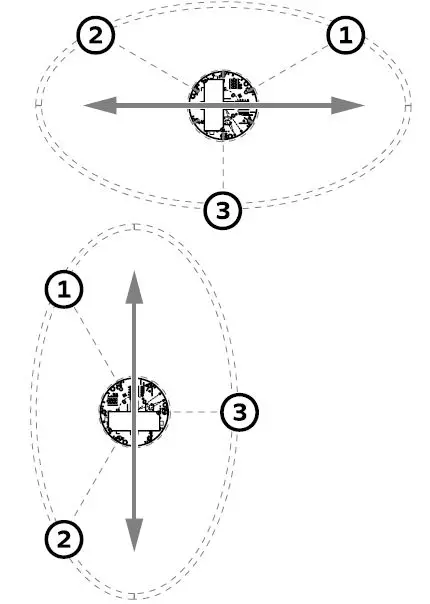

Adjust the orientation of Ellisse

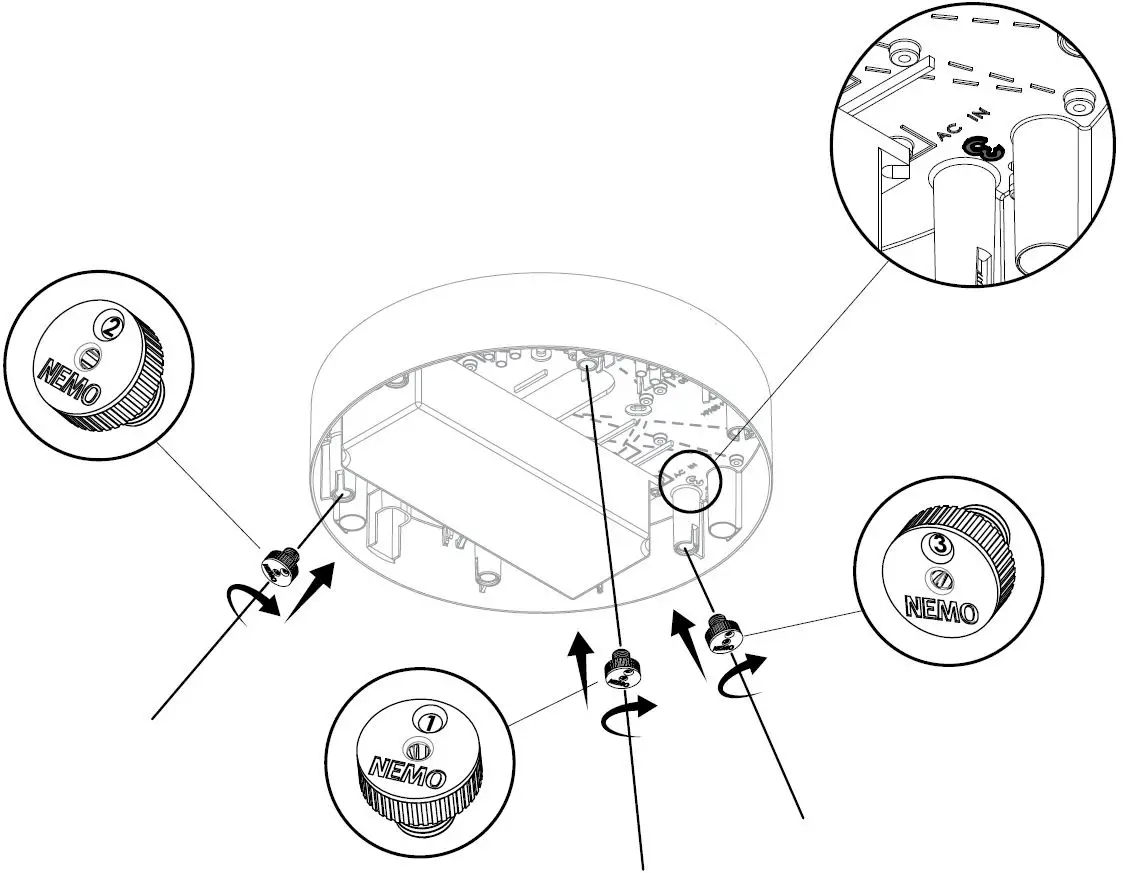

Connect the lock to the correspondent number inside the canopy

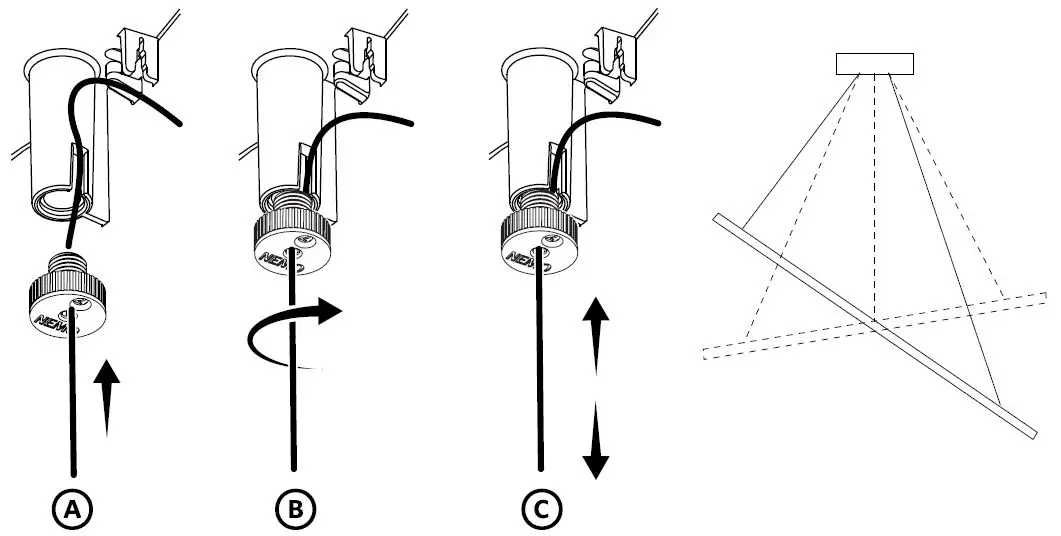

Cables length adjustment for orientation

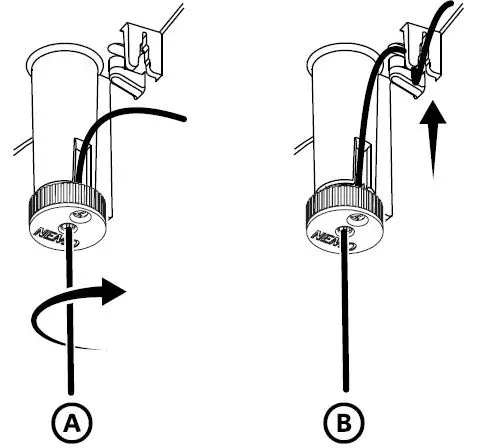

Lock the cable
1. Tighten completely
2. Lock the cable

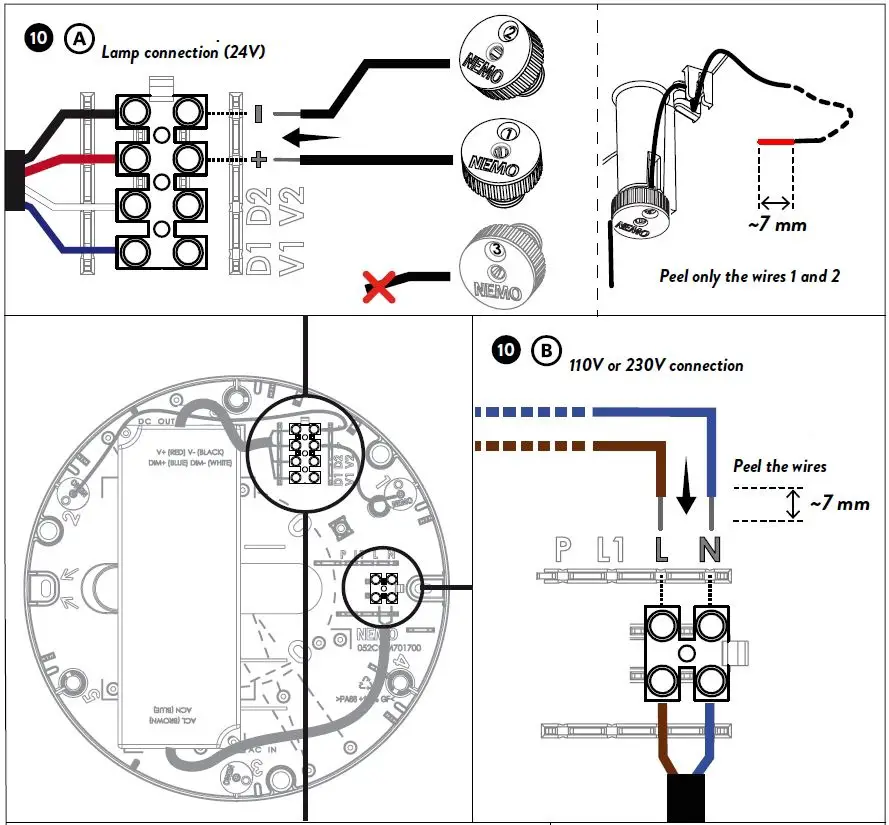

Electrical connections
Lamp connection (24V)
110V or 230V connection

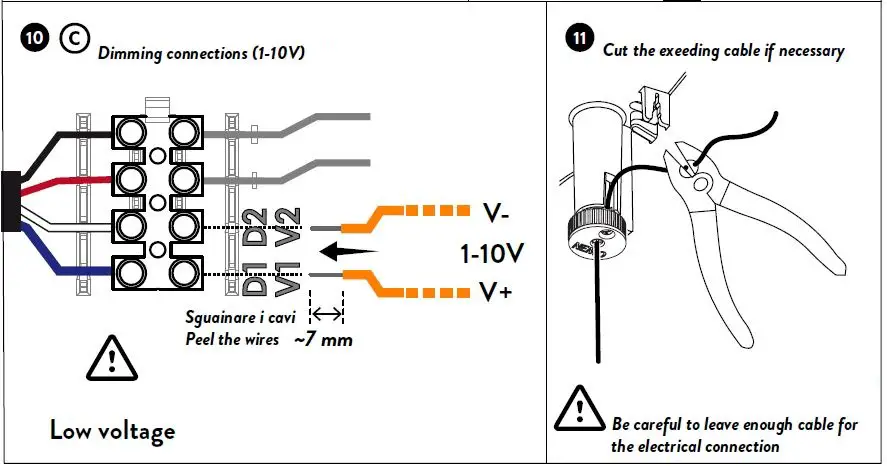

Dimming connections (1-10V)
Cut the exeeding cable if necessary
Be careful to leave enough cable for the electrical connection

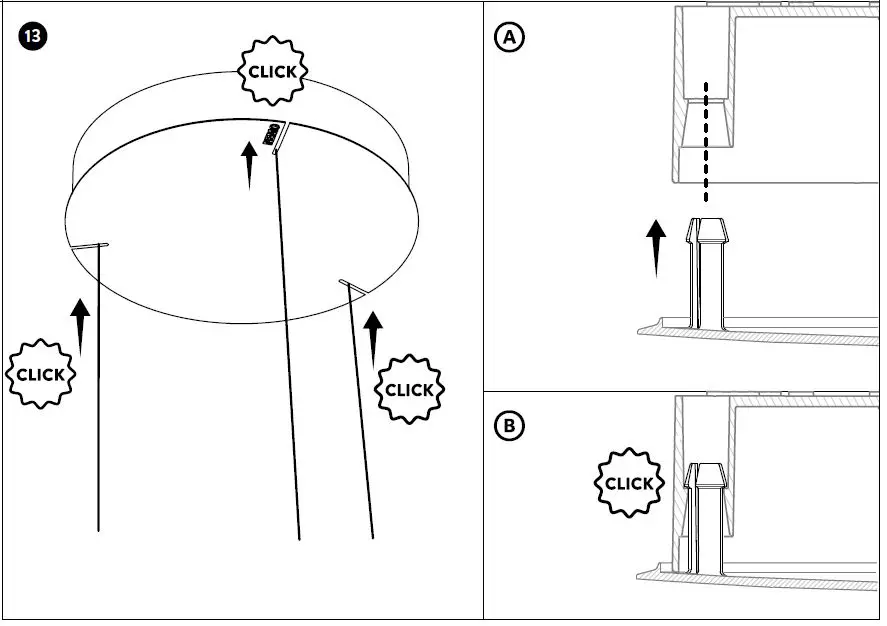

Canopy closureMatch the position of the numbers (1,2 and 3) inside the canopy and the ones on the cover

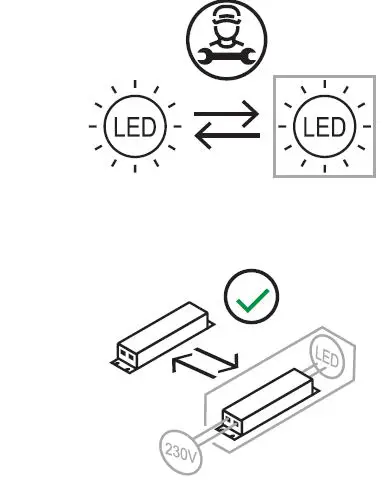

CAUTION
Symbols and guarantee of the enclosed sheet. / Disconnect power before proceeding with the the absence of the IP symbol, installation. / Use only bulbs of suitable type and power is guaranteed only if installation is carried out by a Products with anodized color shades due to the industrial galvanic process. Shades have to be considered as aesthetic elements of the product. / Polishing process is hand-made. Shades are therefore due to this manual process. / Dimensions of products made with deformations of extrusions could be subject to changes of ±1cm. / As blown glass is produced by traditional craft techniques, its thickness, variations,a feature that makes each piece unique. / ambiences with presence of chlorine, salt air or aggressive agents, if not expressly mentioned. / The color tempetature (CCT) of LED the declared nominal value between a range of ±5%. / NEMO reserves the right to make any technical or formal alterations to its products without giving prior notice,especially for LED sources. / We recommend you to keep instructions for further consultations. /

DISPOSAL

This lamp has been manufactured in conformity with EU Directive 2002/96/EC. The crossed-out wheelie bin symbol marked on the appliance means that it was put on the market after 13th August 2005 and that it must therefore be disposed of separately from household waste. Separate disposal of this product prevents any negative the environment deriving from unsuitable disposal and allows the materials it is made of to be recovered to achieve considerable savings of power and resources. The end user is responsible for delivering the appliance, at the end of its working life, to a suitable collection facility. Failure to do so will be punished according to the current national legislation. For detailed information on collection systems and methods, please contact town, the local waste disposal service or the shop where you purchased the product.
