Warmup Vlo Nexxa-12 Castellated System Installation Guide

VLo Nexxa-12 Castellated System
Installation manual

Over 2.5 million installations in more than 72 countries

Experience MyHeatingTM

SmartGeoTM
Unique smart.” automatically turns down the heating when you’re out.
Easy to use

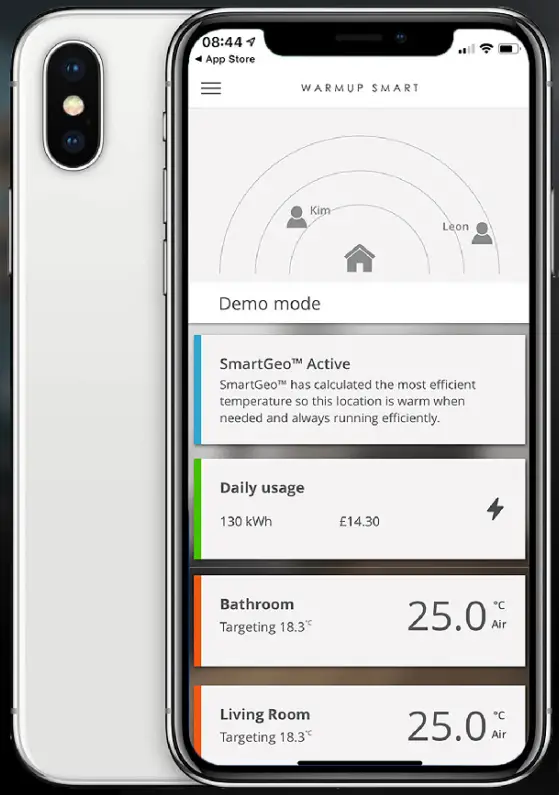

Simple and secure setup using WiFi, with 24/7 technical support.
AutoSwitchTM
Always on the best tariff, automatically. Reduce energy bills by over £400

Download now for iOS and Android

https://qrstud.io/dpga7ir	https://qrstud.io/ek5hu9u

Your Warmup® underfloor heating system has been designed so that installation is quick and straightforward, but it is important that the instructions in this manual are followed to ensure that your underfloor heating system performs correctly. Please ensure that you have the components and working drawings necessary for this system before you begin the installation.
Warmup plc accepts no liability, expressed or implied, for any loss or consequential damage suffered as a result of installations that in any way contravene the instructions that follow.
It is important that before, during, and after installation that all requirements are met and understood. If the instructions are followed, you should have no problems. If you require help at any stage, please contact our helpline.
You may also find a copy of this manual, wiring instructions, and other helpful information on our website www.warmup.co.uk

Quick install guide

Please also read the full instructions that follow this section.

• The subfloor must be pre-insulated unless it is an intermediate floor.
  Ensure the subfloor is prepared to an SR2 Surface Regularity.
• The subfloor must be smooth, dry, frost-free, solid, suitably weight-bearing, and dimensionally stable.
  Referring to its instructions, prime the subfloor and the bottom 30 mm of adjacent walls using Warmup Primer.

• Install a Warmup perimeter strip around the perimeter of the floor and any penetrations to allow for expansion and contraction of the floor.
• Cut membrane to size as required, peel back the release film, and tack it into place. Once correctly positioned, press down firmly.
  Lay additional sheets overlapping the outer row of smaller castellations to create a continuous layer.

• Lay the pipe in a spiral configuration, pressing it into the castellations of the membrane.
• Use Warmup Pipe Bend Supports where the pipe exits the floor at the manifold location.

Quick install guide

• Refer to the manifold manual for detailed information on mounting, calibration and pressure testing.
• Measure and cut the pipe so that it reaches both the flow and return ports on the manifold.

• Following the leveling compound instructions, apply a 22 mm layer of Warmup leveling compound over the membrane.
  The 22 mm layer is measured from the base of the membrane.
• The 30 mm tall perimeter strip should finish just proud of the leveling compound but can be trimmed back flush with a utility knife if required.

• The floor finish can be installed once the leveling compound has cured and dried.
• Install your Warmup thermostat referring to their installation instructions.

Components available from Warmup

Additional components that may be required as part of your Warmup heating installation:
Compatible leveling compound
Manifold, mixing unit, actuators, valves, and euroconus connectors
Wiring center

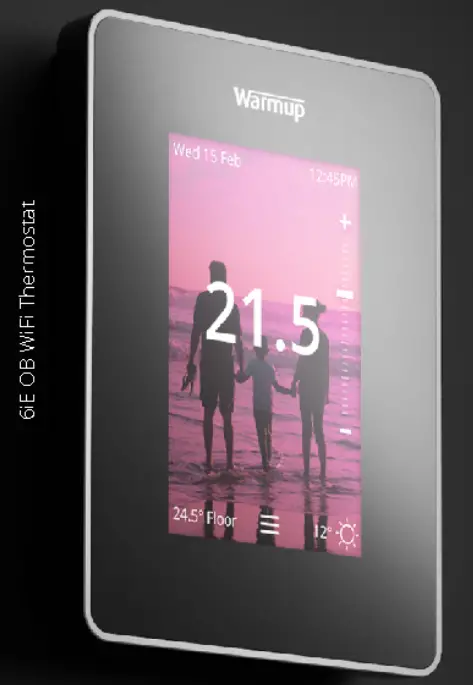

Warmup thermostats
Warmup Ultralight

Important installation information

Perform a site inspection. You will need to confirm that all measurements and other requirements on-site match your working drawings.
Inspect the site for possible hazards that could damage the Warmup pipe, such as nails, staples, materials or tools.
Ensure that all subfloors are at the depth needed to incorporate the underfloor heating.
The subfloor must be pre-insulated unless it is an intermediate floor. Ensure the subfloor is prepared to an SR2 Surface Regularity. The subfloor must be smooth, dry, frost-free, solid, suitably weight-bearing, and dimensionally stable.
Ensure leveling compound used is compatible with underfloor heating and suitable for application onto plastic underlayments such as the Nexxa-12 membrane. The leveling compound must be applied as a single layer.
Before installing the floor finish, its suitability for use with underfloor heating and its maximum operating temperature should be checked against required operating conditions.
Use a pipe cutter designed for plastic pipe ensuring that there are no burrs on the pipe ends. It is important to achieve a clean cut.
Do not pull pipe from the coil while it is sitting flat. It must be unwound from the coil, rotating the coil as the pipe is pulled from the inside.
Do not force the pipe into bends. It is easier to lay the pipe with a large radius and then gently pull the pipe to the required bend. The minimum bending radius is 5 times the diameter of the pipe.
Do not kink the pipe. Excessive bending of the pipe can cause it to kink, where this occurs flow may be obstructed or reduced. The kinked pipe must be repaired or replaced. To repair a kink, straighten the pipe and simply heat the area with a hot air gun until the kink disappears.
Underfloor heating performs the most efficiently with conductive, low-resistance floor finishes such as stone and tiles. Consideration should be given to the thermal resistance and temperature limits of the chosen floor covering and its impact on the system heat output.

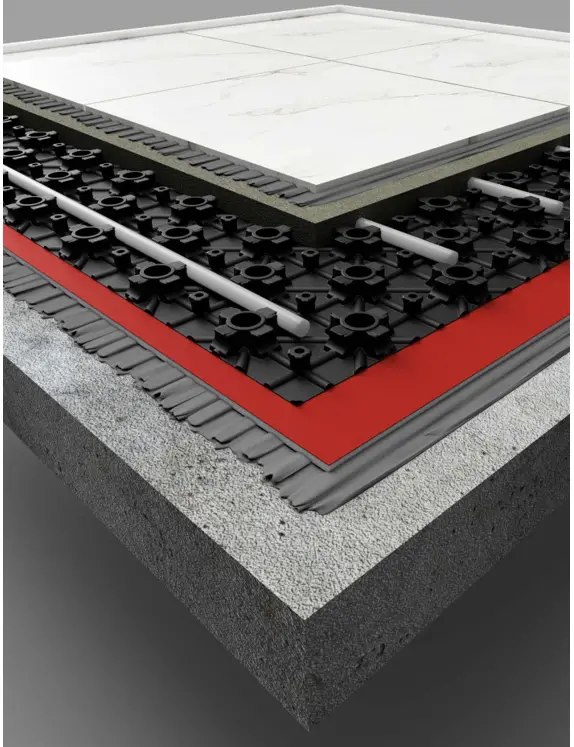

Typical floor build-up

All floor finishes

1. Warmup perimeter strip
2. Floor finish
3. 22 mm leveling compound The 22 mm layer is measured from the base of the membrane. Leveling compound used must be compatible with plastic underlayments such as Nexxa-12. The leveling compound must be applied as a single layer.
4. Floor sensor Tab tape the sensor to the membrane. Do not tape over the sensor tip!
5. Nexxt-12 membrane
6. Warmup Ultralight (Optional) Adding Warmup Ultralight below the membrane can help improve the response time of the system, particularly when installing over screed or concrete.
7. Flexible tile adhesive (Optional) Required if installing Warmup Ultralight
8. Warmup primer Refer to tile adhesive manufacturers’ instructions for priming requirements
9.  Subfloor with a surface regularity of SR2*
   * If installing the optional Warmup Ultralight, refer to its installation manual for its sub-floor requirements.

Step 1 – Subfloor considerations

To prevent excessive heat loss through the floor, Nexxa-12 may only be laid over insulated or intermediate subfloors.
The subfloor must be solid, structurally sound, and dimensionally stable. It must be suitably weight-bearing when accounting for the additional load of the system.
Ensure the subfloor is prepared to an SR2 Surface Regularity. If necessary an appropriate smoothing or leveling compound should be applied.

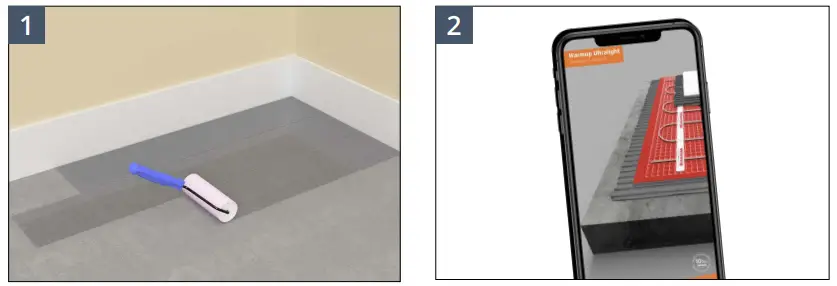

The surface Nexxa-12 is being applied to must be smooth and primed with Warmup Primer such that a clean and continuous bond can be made. Warmup Primer requires that the subfloor is dry, frost-free, solid, weight-bearing, and dimensionally stable. It must be free from contaminants that may impede adhesion such as dust, dirt, oil, grease, release agents, loose material, or surface laitance.

If installing Nexxa-12 over Warmup Ultralight, the surface of the Ultralight does not need priming if it is kept clean.
Where ceramic tiles are to be used, ensure that the subfloor meets the Tile Associations minimum specifications.

Do not commence installation of Nexxa-12 without ensuring that the resulting floor construction will meet the requirements of the floor’s intended use and its finish.

Step 2 – Installing VLo Nexxa-12

• The subfloor must be pre-insulated unless it is an intermediate floor.
  Ensure the subfloor is prepared to an SR2 Surface Regularity. The subfloor must be smooth, dry, frost-free, solid, suitably weight-bearing, and dimensionally stable.
  Referring to its instructions, prime the subfloor and the bottom 30 mm of adjacent walls using Warmup Primer.
• If installing Warmup® Ultralight over the subfloor please refer to its installation instructions. Ultralight will help reduce the heat-up times of your system for optimal performance. The surface of Ultralight does not require priming.

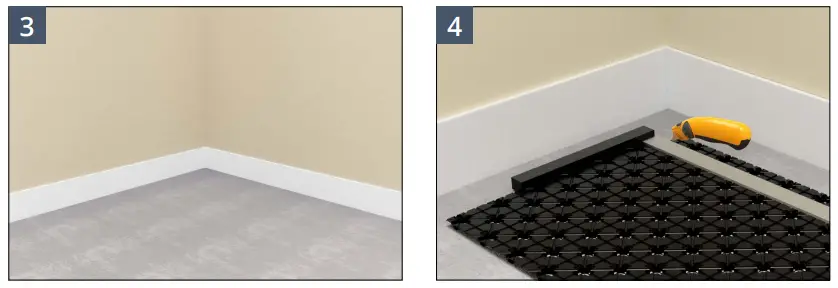

• Install Warmup Perimeter Strip around the perimeter of the floor and any penetrations to allow for expansion and contraction of the floor.
• Where cuts are required, turn the Nexxa-12 upside down and cut using a utility knife and a straight edge.

Step 2 – Installing VLo Nexxa-12

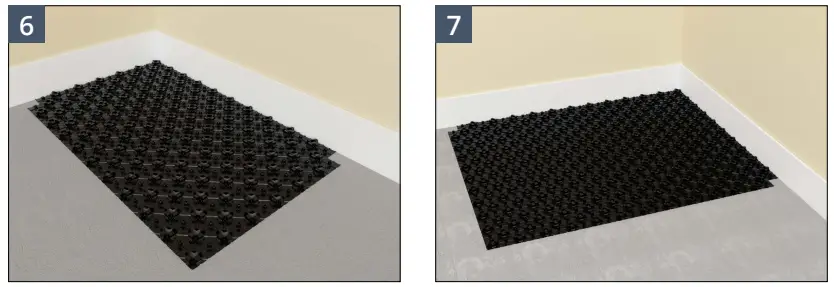

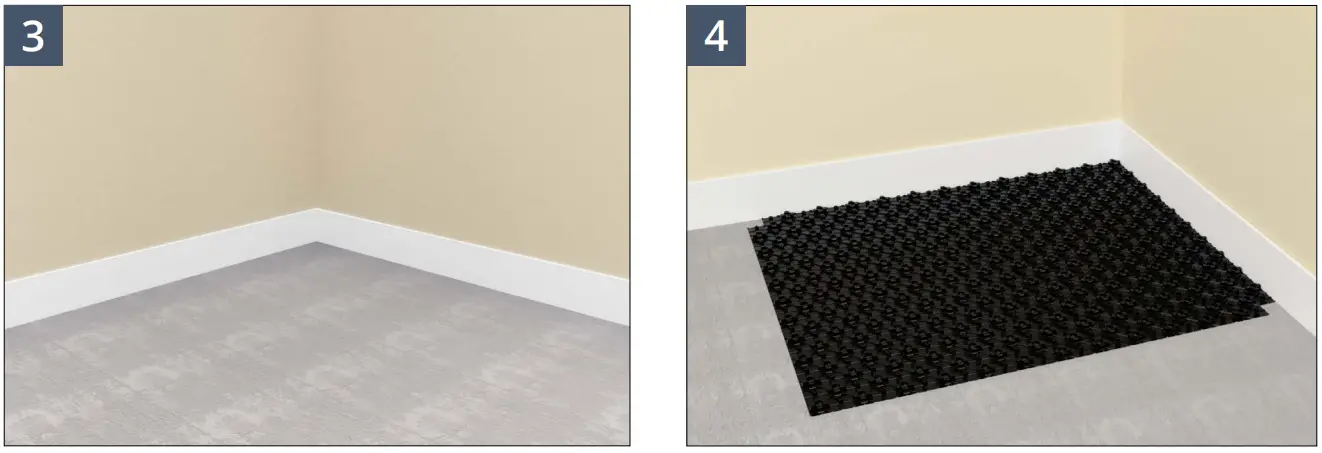

• When placing the first sheet of Nexxa-12 membrane, position its corner which has the large castellation, into the chosen corner of the room.
• The opposing corner has a slightly smaller castellation with no overhangs, this allows subsequent sheets to overlap and interlock with preceding sheets. This smaller castellation must not be positioned in the corner to start!

• Once cut to the correct size, peel back the release film from one corner and tack in place.
  Once correctly positioned remove the release film entirely and press down firmly to attain a secure bond.
• Maintain this orientation for all subsequent sheets within the room, laying them such that they overlap the outer row of smaller castellations and create a continuous layer.

Step 3 – Lay the pipe

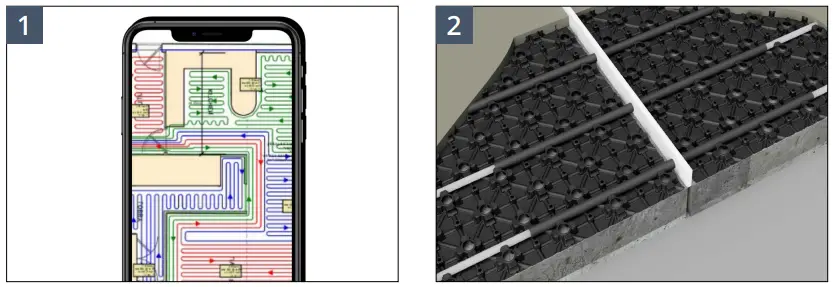

If the project has been supplied with a set of working drawings, follow the provided pipe layout. Ensure each circuit’s details are recorded in the commissioning log provided in the Warmup Manifolds installation manual.

• Plan the circuit layout ensuring that the flow and return pipes can connect from the manifold to their respective heated area without crossing each other and to minimize instances where the pipe passes through expansion joints.
• Any expansion joints present in the subfloor must be continued through the Nexxa-12 installation layer.
  Pipes that cross expansion joints must be straight and perpendicular to the joints. The straight section must have a length of conduit 600 mm long centered on the expansion joint to allow for movement.

Feed pipes normally go through doorways but to minimize congestion, pipes can be fed through walls. Ensure holes drilled in the wall are at floor level and the pipe is protected with a conduit.

• Begin installing the pipe from the manifold location. Leave excess pipe at the manifold location which can be cut later after the pipe has been laid.

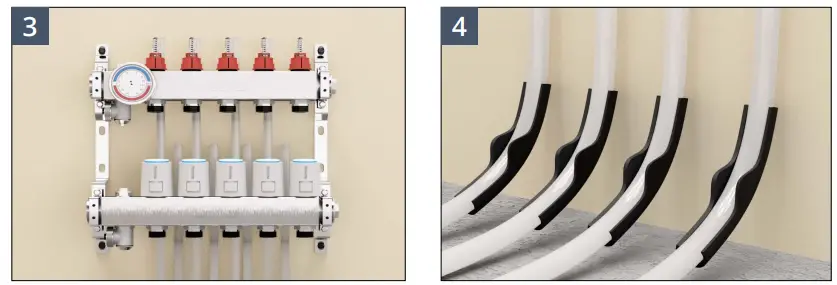

• Use Warmup Pipe Bend Supports where the pipe exits the floor at the manifold location.

Step 3 – Lay the pipe

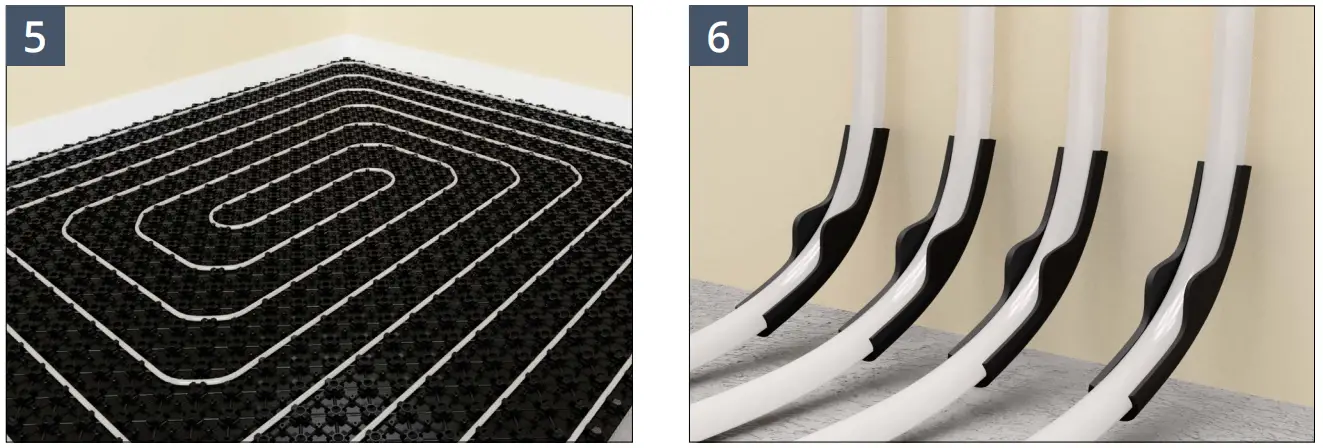

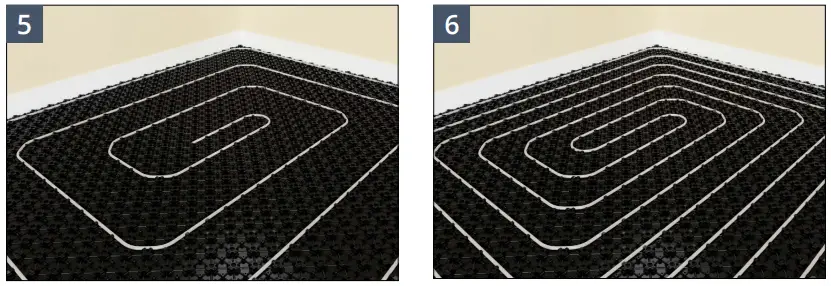

• The pipe should be laid in a spiral configuration. The first loop should be laid around the perimeter of the room, then working inwards towards the center at double the intended pipe spacings.
• Once you reach the center work back out, completing the spiral at the intended pipe spacing.

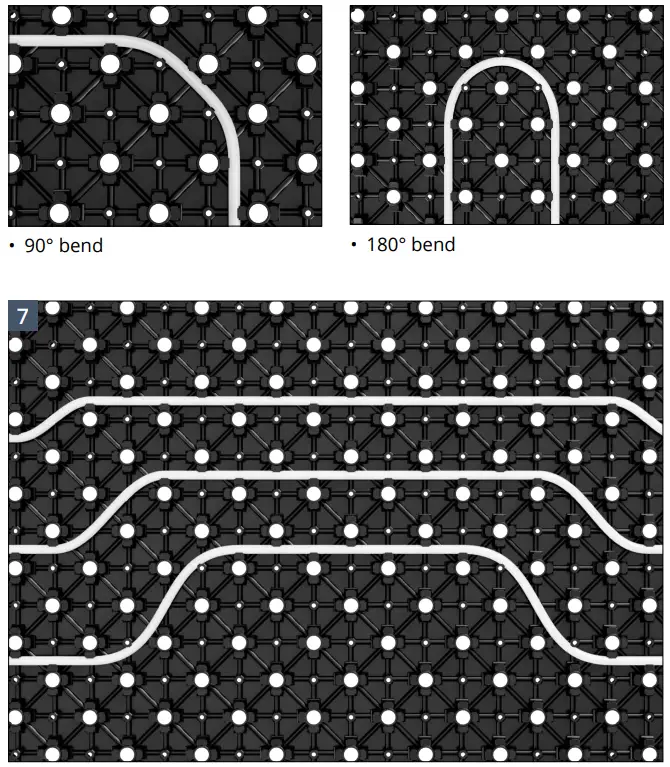

• When negotiating obstacles it may be necessary to temporarily tighten pipe spacings.
  To make staggering the pipe easier, crush or remove the small castellation obstructing the pipe path.

Step 4 – Lay leveling compound

Leveling compound used must be compatible with plastic underlayments such as Nexxa-12. The leveling compound must be applied as a single layer.

• Ensure the membrane is clear of debris before laying the leveling compound.

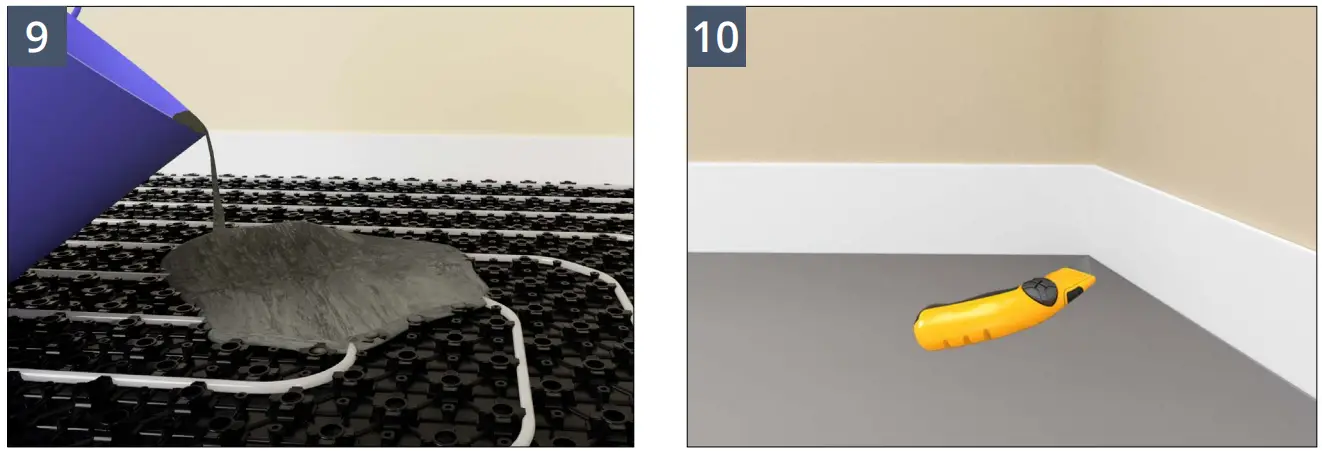

• Apply a 22 mm layer of Warmup leveling compound over the membrane. The 22 mm layer is measured from the base of the membrane.
  Refer to the leveling compound instructions for mixing, drying and curing information.

• The 30 mm tall perimeter strip should finish just proud of the leveling compound but can be trimmed back flush with a utility knife if required.

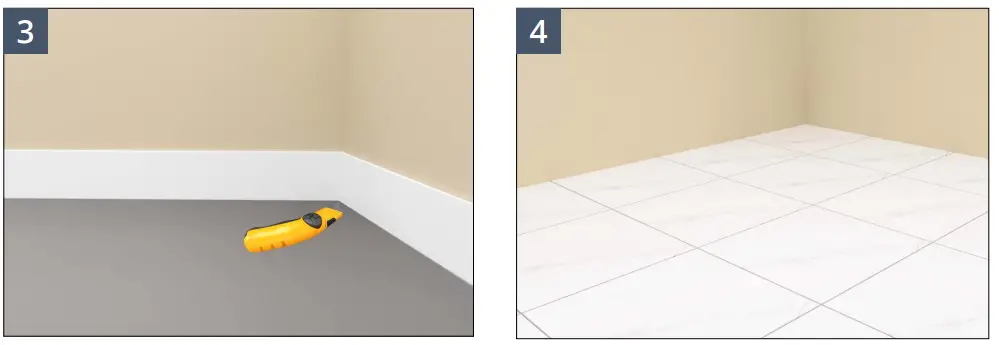

• Lay the floor covering adhering to the flooring manufacturer’s instructions.
  Ensure any floor coverings, underlays, and adhesives used are suitable for use with underfloor heating at the intended operational temperatures and conditions.

Troubleshooting

ISSUE 1 – Membrane not sticking to the subfloor

ISSUE 2 – Cracked tiles or leveler

Testing information

Each mat and sensor must be tested before they are installed, once they have been laid but before tiling or laying leveling compound, and again before they are connected to the thermostat. The resistance (ohms) should be measured and recorded in the control card at the end of the manual.
Due to the high resistance of the heating element, it may not be possible to get a continuity reading from the heating cable, and as such, continuity testers are not an acceptable substitution for testing. When checking resistance, make sure your hands do not touch the meter’s probes as the measurement will include your internal body resistance and render the measurement inaccurate. If you do not get the expected results or at any time you believe there may be a problem, please contact Warmup for guidance.

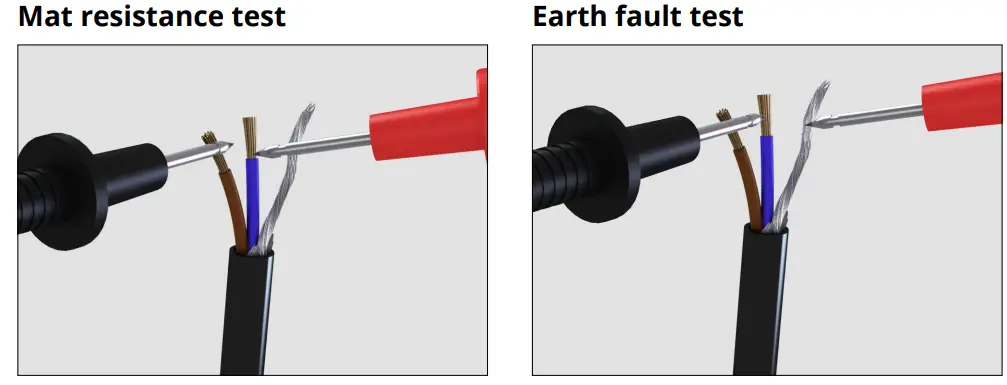

• Set a multimeter or ohmmeter to record resistance in the range of 0-500 Ω. Measure the resistance across the life (brown) and neutral (blue) wires. Ensure the measured resistance is within the Reference Resistance Band for the cable size being tested
• Set a multimeter or ohmmeter to record resistance in the range of 1 MΩ or greater if available. Measure the resistance across the live (brown) and neutral (blue) wires to the earth braid. Ensure the measured resistance is showing as greater than 500 MΩ or infinite if the meter cannot read this high.

Testing information

Sensor resistance test

• Ensure that the sensor is tested before the final finish has been fitted. Warmup thermostats typically use a 10 kΩ sensor. Please to refer to the thermostat manual for further details.
The expected resistance depending on temperature is listed below.

Sensor resistance by temperature – NTC10K

Warranty

Warmup plc limited warranty – Hydronic floor heating pipe
Registration can be completed online at www.warmup.co.uk. In the event of a claim, proof of purchase is required in the form of an invoice or receipt.
THIS WARRANTY DOES NOT EXTEND TO OTHER COMPONENTS WHICH ARE COVERED BY SEPARATE WARRANTIES. THIS WARRANTY DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Limited warranty:
Warmup® underfloor heating pipe is warrantied by Warmup plc (“Warmup”) to be free from defects in manufacturing under normal use and maintenance and is warranted to remain so subject to the limitations and conditions described below.
This warranty period begins on the date of purchase. The Lifetime warranty only applies if the product is registered with Warmup within 30 days after purchase and registered online at www.warmup.co.uk. Registration is confirmed only when confirmation of receipt is forwarded by Warmup plc

Warranty Duration

• The PE-RT underfloor heating pipe is warranted for the LIFETIME of the floor under which it is fitted, except as provided below; your attention is drawn to the exclusions listed and the end of this warranty.

Notification of a suspected failure must be received in writing by Warmup within thirty (30) days of the suspected failure. Products believed to be defective must be made available to Warmup for testing and determination of the cause.
Upon acceptance of any warranty claim, Warmup shall have ninety (90) business days in which to investigate and determine whether it recognizes responsibility for any believed defects in material or workmanship and determines the appropriate course of action to be taken.

It is expressly agreed that the sole remedies under this limited warranty shall be at the discretion of Warmup, plc to either: issue a refund, repair or replace any article which is proven to be defective. Any and all allowances made to customers for transportation, labor, repairs, or all other work, are at the exclusive discretion of Warmup and shall be authorized in writing, in advance, by Warmup. Such cost does not extend to any cost other than direct costs of repair or replacement by Warmup and does not extend to costs of relaying or repairing any floor covering or floor.

The lifetime warranty applies to the pipes(s) if they:

1. Are registered with Warmup within 30 days after purchase.
2. Have not operated at a pressure of greater than 8 Bar.
3. Have not operated at a temperature of greater than 60°C.
4. Are filled with treated water subtitle for use with PE pipes.
5. Are installed according to all applicable building code requirements.
6. Are selected, designed, and installed by a qualified contractor according to installation instructions provided by Warmup which are current as of the applicable installation date.
7. Remain in their original installed location, such that the floor covering or screed over the product is not damaged, lifted, replaced, repaired or covered with subsequent layers of flooring.
8. Do not show evidence of accidental damage, misuse, lack of care, tampering, or repair or modification without the prior written approval of Warmup plc.

SafetyNet™ Installation Guidelines: If you make a mistake and damage the pipe before covering the pipe with screed, leveling compound or floor covering, return the damaged pipe to Warmup within in 30 days along with your original dated sales receipt. WARMUP WILL REPLACE THE COIL OF PIPE (MAXIMUM 1 COIL OF PIPE PER ORDER) WITH ANOTHER COIL OF THE SAME MAKE AND MODEL-FREE.

Register your Warmup® warranty online at
www.warmup.co.uk

(i) Pipes repaired by Warmup carry a 5-year warranty only. Under no circumstances is Warmup responsible for the repair or replacement of any tiles/floor covering which may be removed or damaged in order to affect the repair.
(ii) The SafetyNet™ Installation Guarantee is null and void once the pipe is covered with a screed, leveling compound, adhesive or floor deck.
(iii) Damage to the pipe that occurs after covering, such as lifting a damaged tile once the adhesive has set, or subfloor movement causing floor damage is not covered by the SafetyNet™ Guarantee.

Technical specifications

Nexxa-12 membrane

kΗ Value – W/m²K

Using the system kH value to calculate the system heat output:
q = kH x ( Twater – Tair)
Example:
The heat output through an 18mm thick, ≈ 1.25 tog timber floor, over Nexxa-12 fitted with a pipe at 150mm centers, in a 21°C room heated with 40°C is;

q = 3.52 x ( 40 – 21 ) = 3.52 x 19 = 67 W/m²
Alternatively, using the system kH value to calculate the required water temperature, knowing the required heat output:

Twater = ( q / kH ) + Tair

Example:
The water temperature required to produce a heat output of 55W/m², through a 3mm thick ≈ 0.25 tog LVT floor finish, over Nexxa-12 fitted with pipe at 100mm centres, in a 22°C room is;
Twater = ( 55 / 6.95 ) + 22 = 7.9 + 22 ≈ 30°C

System Performance

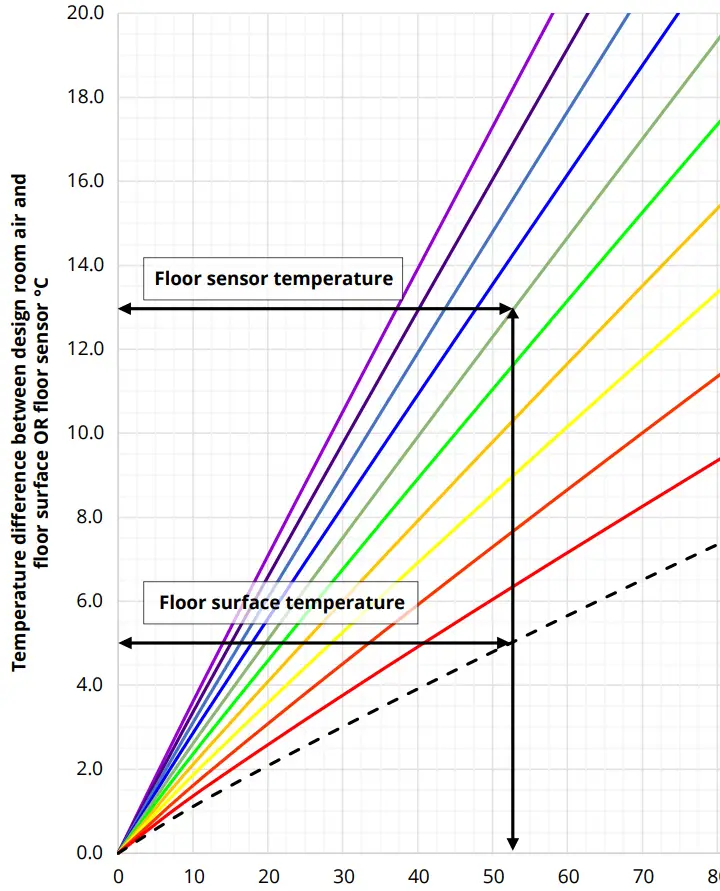

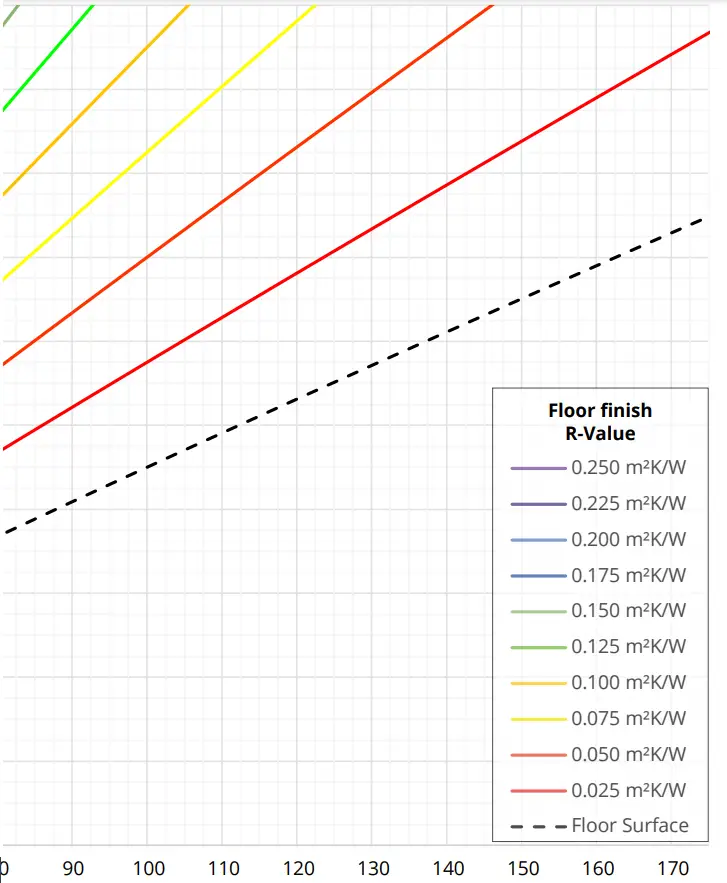

Floor sensor setting for target heat output

Specific Heat Output, W/m²

The room with the highest water temperature requirement sets the design water temperature for the whole system based on the calculations from the previous section.
Using the graph above it is possible to limit the specific heat output to the required value.
The example above shows a design room air temperature of 20°C and design heat output of 52.5W/m². Based on a 0.150 m²K/W (1.5 tog) floor finish the floor sensor should be set to 33°C (20°C room air + 13°C ΔT) to resulting in a floor surface temperature of 25°C (20°C room air + 5°C ΔT).

Specific Heat Output, W/m²

The design floor surface temperature difference should not be more than 9 °C in occupied areas, 15 °C in unoccupied areas.
Heat output is limited by the floor finish resistance combined with the maximum probe setting of 40 °C.
Temperature limits of the floor finish or its adhesive may adversely limit the design heat output.

Warmup plc
www.warmup.co.uk
[email protected]
Tel: 0345 345 2288
Fax: 0345 345 2299

https://forms.office.com/Pages/ResponsePage.aspx?id=HlKngEf5cU-ulDrmkPbsbCEi0-_xf0NNo1uXyEeJCdtUQjlPSkY3VUczQkdSWUhIUTdQRzhWWFlERi4u&qrcode=true

Please scan the QR code to provide
feedback on your installation

The WARMUP word and associated logos are trademarks.
© Warmup Plc. 2022 – Regd.™ Nos. 1257724, 4409934, 4409926, 5265707. E & OE.
Warmup plc 704 Tudor Estate Abbey Road London NW10 7UW UK
Warmup GmbH Ottostraße 3 27793 Wildeshausen DE
Warmup – IM – Nexxa-12 – V1.6 – 2022-07-07_EN
