INS-38-K YOSHIMURA RS-12 LOW
VOLUME INSERT KIT
INS-38-K RS-12 Low Volume Insert Kit

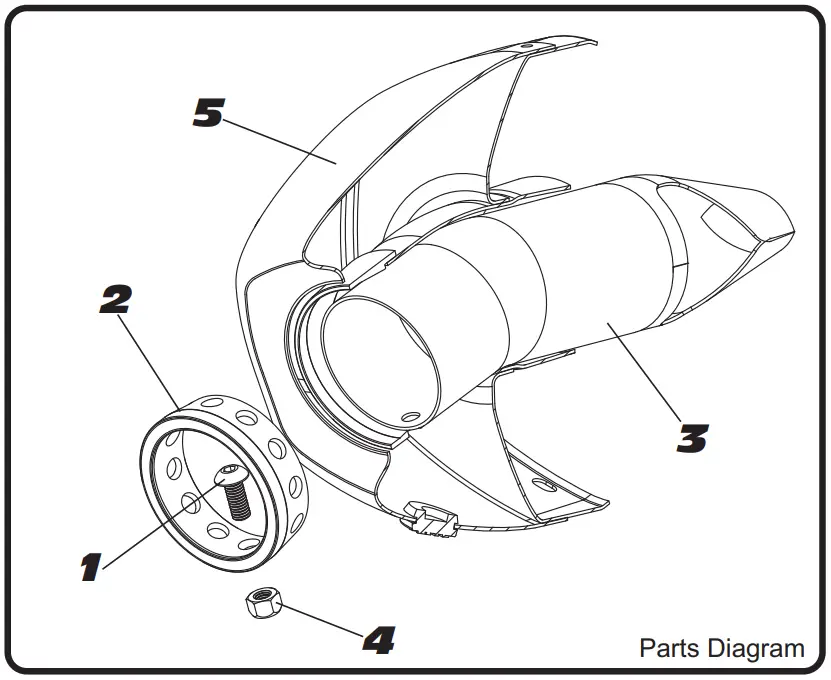

| NO. | DESCRIPTION | QTY | PART# |
| 1 | 5mm X 12mm Button Head Cap Screw | 1 | M5X12BHS |
| 2 | RS-12 Aluminum Insert Ring | 1 | YM1-RING-1625 |
| 3 | Low Volume Sound Insert | 1 | INS-YM1-1625-AJ |
| 4 | 5mm Lock Nut | 1 | 5MMLN-U |
| 5 | Yoshimura Exhaust | ** | ** |
- Remove the insert grommet on endcap and remove button head screw using the aluminum ring and sound insert to the muffler.
- Remove the sound insert from the muffler.
- Install sound insert and aluminum ring and secure using insert button head screw.
Note: It is recommended that a low strength “Loc-tite” is used on the small allen head bolt.
- Remove the insert grommet on endcap and remove button head screw using the aluminum ring and sound insert to the muffler.
- Remove the sound insert from the muffler.
- Install sound insert and aluminum ring and secure using insert button head screw.
Note: It is recommended that a low strength “Loc-tite” is used on the small allen head bolt
