Mounting Instructions
MINIFLUX OPAL (HP g.2)
Outdoor linear
CODE
BBOK09_0G26_ _ _
02/12/2021

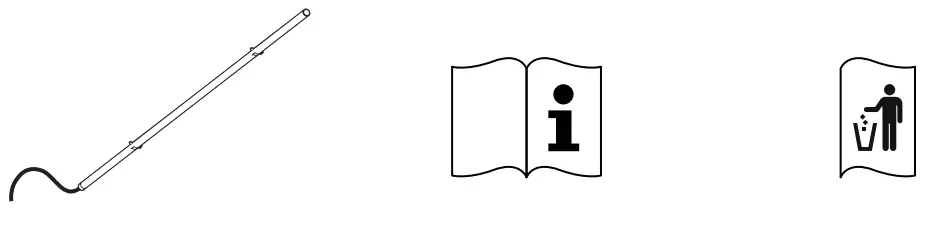

Box contents

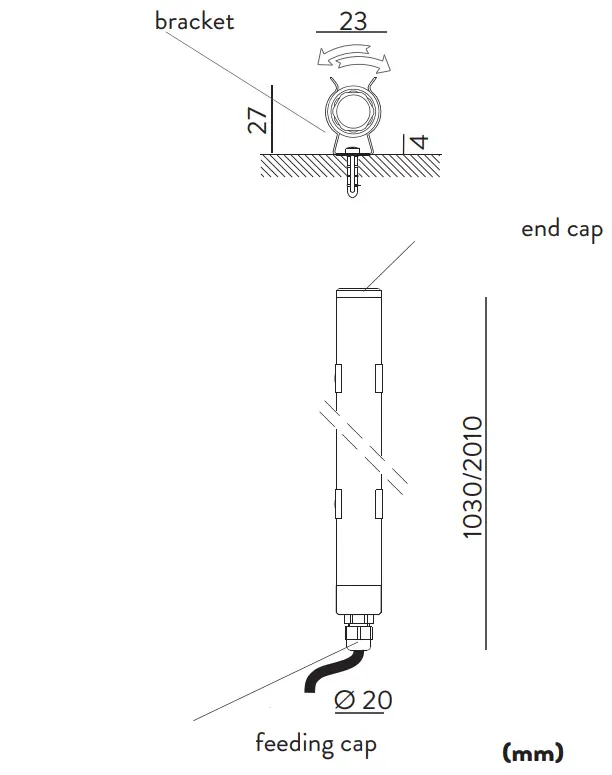

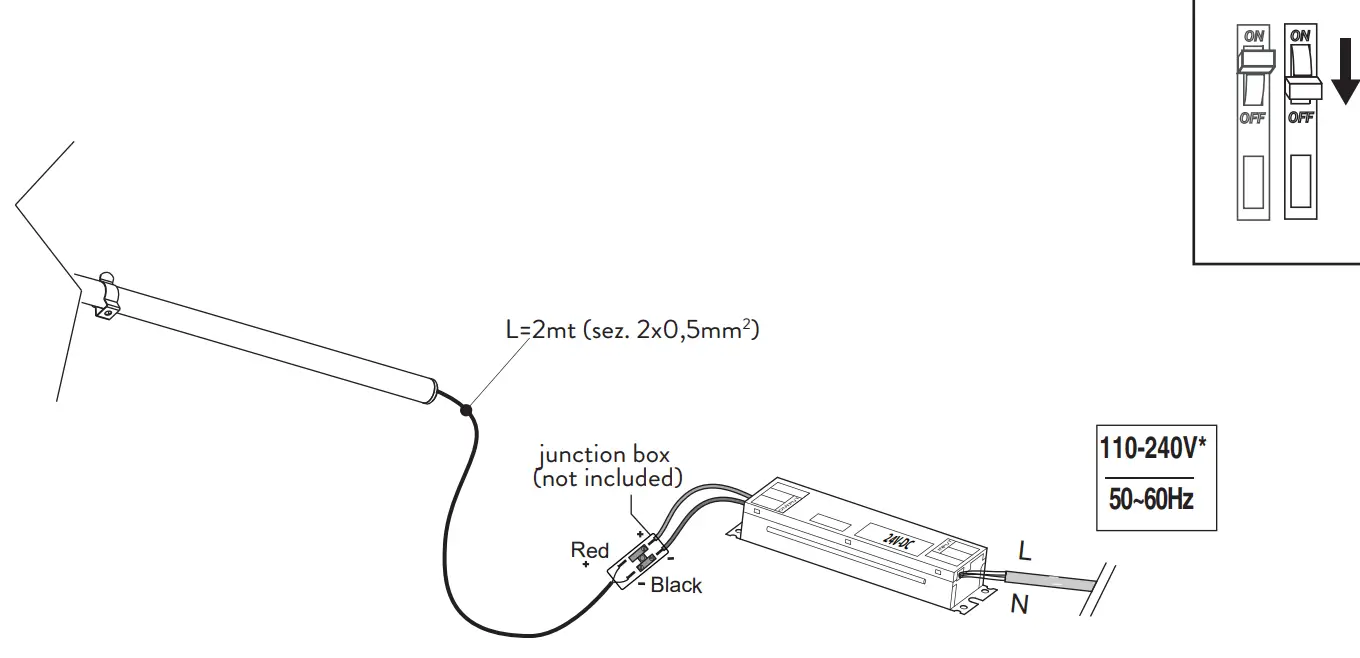

Installation
Connect the fitting to the power supply only after connecting all LEDs to the driverThe terminal block not includedInstallation should be carried out by a suitable quality installer.Make the wiring using a system that guarantees at least the IP grade of the lamp

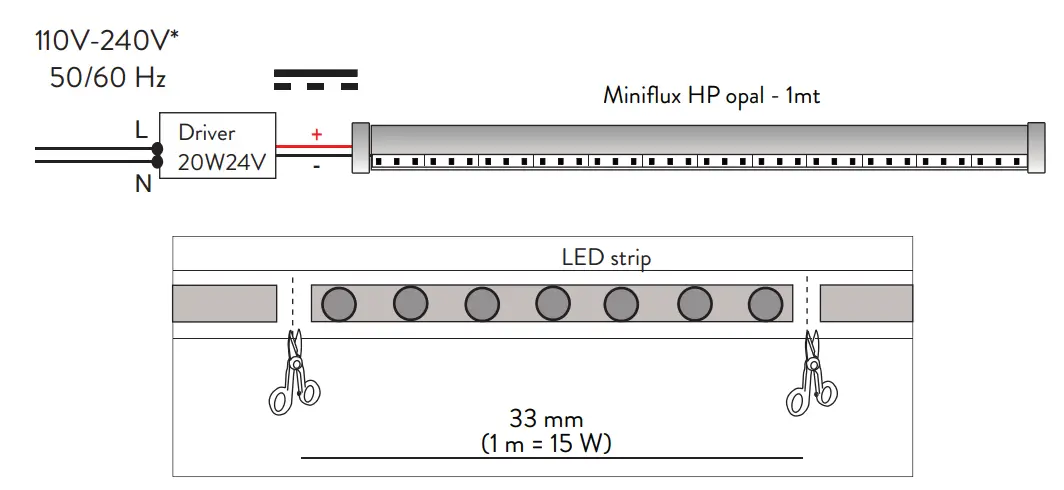

Example of connection (parallel connection)
Verify the input tension supported by drivers.
LED Drivers (SELV)
| LED Drivers not included | Specifications |
| DRIVER 24V | IN24VDC |
CAUTION
OUTDOOR LUMINAIRE
Installation should be carried out by a suitable quality installer. / Disconnect main voltage before maintenance operation / All wiring and maintenance must be performed with the main switch in the OFF position / Don’t open the luminaire.
Connect the fitting to the power supply only after connecting all LED to the driver (when expected) / In case of failure, upon a return authorization of NEMO Studio, the product will be not either open or dismounted and the cable must be cut leaving at least 10/15cm / Make the wiring using a system that guarantees at least the IP grade of the spot. /
Se previsto, use only bulbs of a suitable type and power specified in the label / Do not install fixture in an environment with the presence of chlorine, salt air or aggressive agents, if not expressly mentioned. / The color temperature (CCT) of LED sources can be different from the declared nominal value within a range of ±5%. / NEMO reserves the right to make any technical or formal alterations to its products without giving prior notice, especially for LED sources. / We recommend you to keep instructions for further consultations.

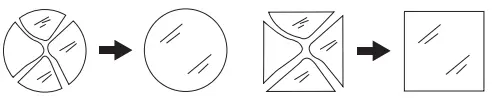

-For a proper operation, the fitting requires its protective undamaged glass.
EQUIPMENT DISPOSAL
This lamp has been manufactured according to Directive EU 2012/19/EU. In accordance with EU Directive WEEE (Waste Electrical and Electronic Equipment), luminaires ust not be disposed of with other household waste. At the end of their life, luminaires must be taken to the appropriate local facility available for the disposal or recycling of electronic products.
LIGHTING CLEANING SAFETY INSTRUCTIONS
It is essential to clean the luminaire periodically at regular intervals to remove the dust, dirt, limestone, or other contaminations. Before cleaning the luminaire, switch off the power supply and let it cool down. Not maintaining the luminaires may result in malfunctioning.
Clean the luminaires using a soft cloth damped in lukewarm water. Do not use cleaning products that contain acidic substances. Do not use cleaner machines. Luminaires must not be used in corrosive environments, and exposure to corrosive substances must always be avoided. Do not use grainy detergent and/or rough or abrasive sponges. Contact NEMO in case of doubts regarding lamp cleaning.
This luminaire contains built-in LED lamps.
The LED and the cables cannot be changed in the luminaire from the end-user. Please contact NEMO STUDIO (the only authorized center).
This product contains a light source of energy efficiency class <E>
NEMO Studio
Ilti Luce Srl – Strada Borgata Paradiso 20 – 10036 Settimo Torinese (TO) ITALY
Tel +39 011 7657301
[email protected] – nemolighting.com
