Nemo Studio Lux W- S Outdoor Spot Instruction Manual

NEMO STUDIO LUX W- S Outdoor Spot

Box contents

Installation

• Installation should be carried out by a suitable quality installer.
•  Make the wiring using a system that guarantees at least the IP grade of the spot.
• Connect the fitting to the power supply only after connecting all LEDs to the driver

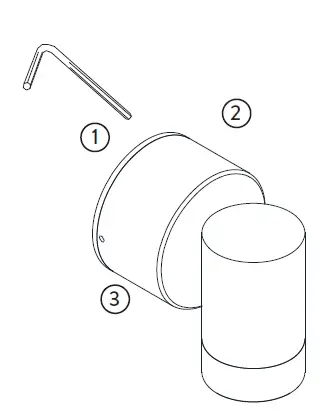

1. Remove the 3 fixing screws of the base.
2. Remove the base in order to fix it to the wall with wall dowels (not included).
3. After calculating the distance, make 2 holes in the wall and insert the 2 rawlplugs and appropriate screws. Connect the lamp to the primary circuit (230V) through the internal appropriate connection box Class II (included).

Example of connection ( parallel connection)

OUTDOOR LUMINAIRE

Installation should be carried out by a suitable qualified installer. / Disconnect main voltage before maintenace operation / All wiring and maintenance must be performed with the main switch in the OFF position / Don’t open the luminaire.
Connect the fitting to the power supply only after connecting all LED to the driver (when expected) / In case of failure, upon a return authorization of NEMO Studio, the product will be not neither open or dismounted and the cable must be cut leaving at least 10/15cm / Make the wiring using a system that guarantees at least the IP grade of the spot. /
Se previsto, use only bulbs of suitable type and power specified in the label / Do not install fixture in environment with presence of chlorine, salt air or aggressive agents, if not expressly mentioned. / The color temperature (CCT) of LED sources can be different from the declared nominal value within a range of ±5%. / NEMO reserves the right to make any technical or formal alterations to its products without giving prior notice, especially for LED sources. / We recommend you to keep instructions for further consultations.
-For a proper operation, the fitting requires its protective undamaged glass.

LIGHTING CLEANING SAFETY INSTRUCTIONS
