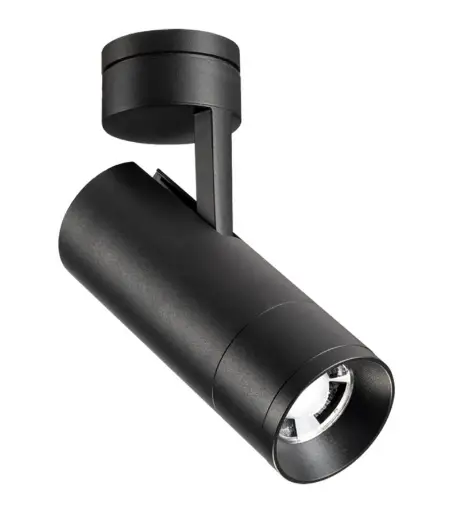

NEMO LIGHTING CAPRI Ceiling Zoom Spot

Box contents

Installation

1. Installation should be carried out by a suitable qualified installer.
   Connect the fitting to the power supply only after connecting all spot to the track.

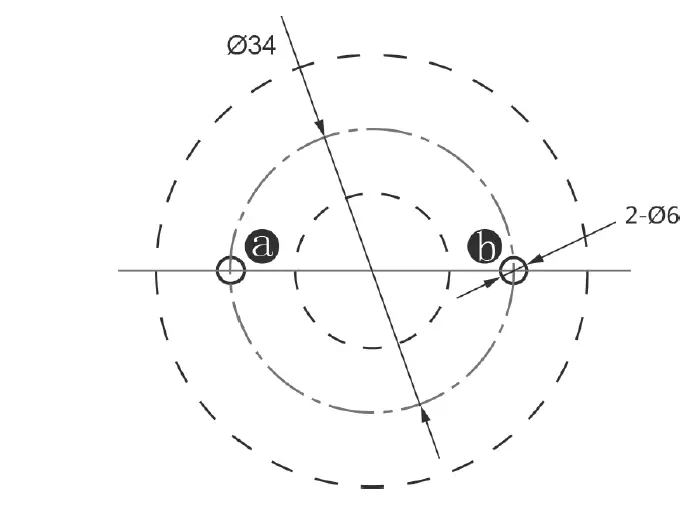

2. Drill two holes in the ceiling.

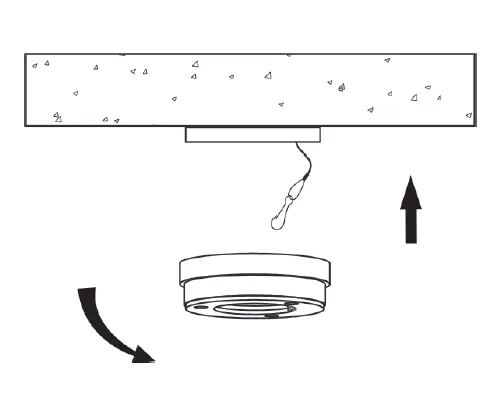

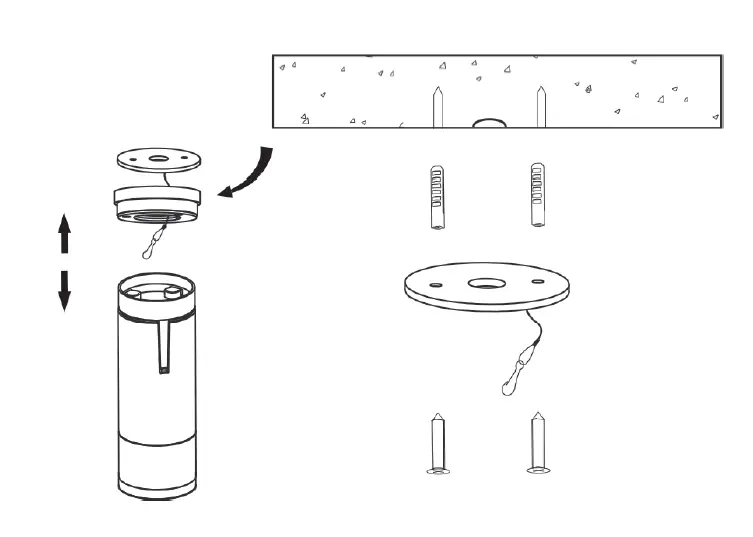

3. Twist off the bottom part and fix it onto the ceiling with dowels
4. Twist on the middle part onto the bottom part.

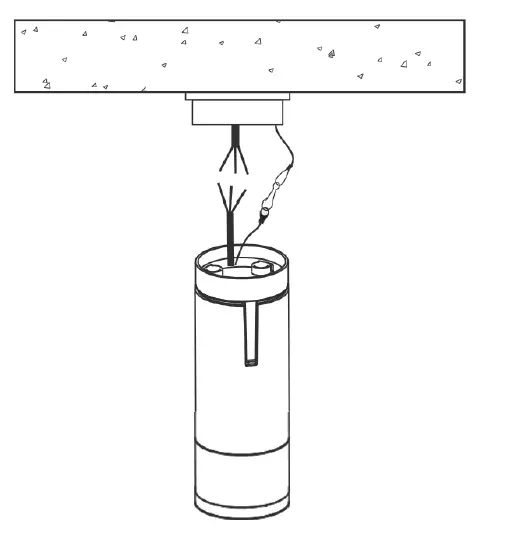

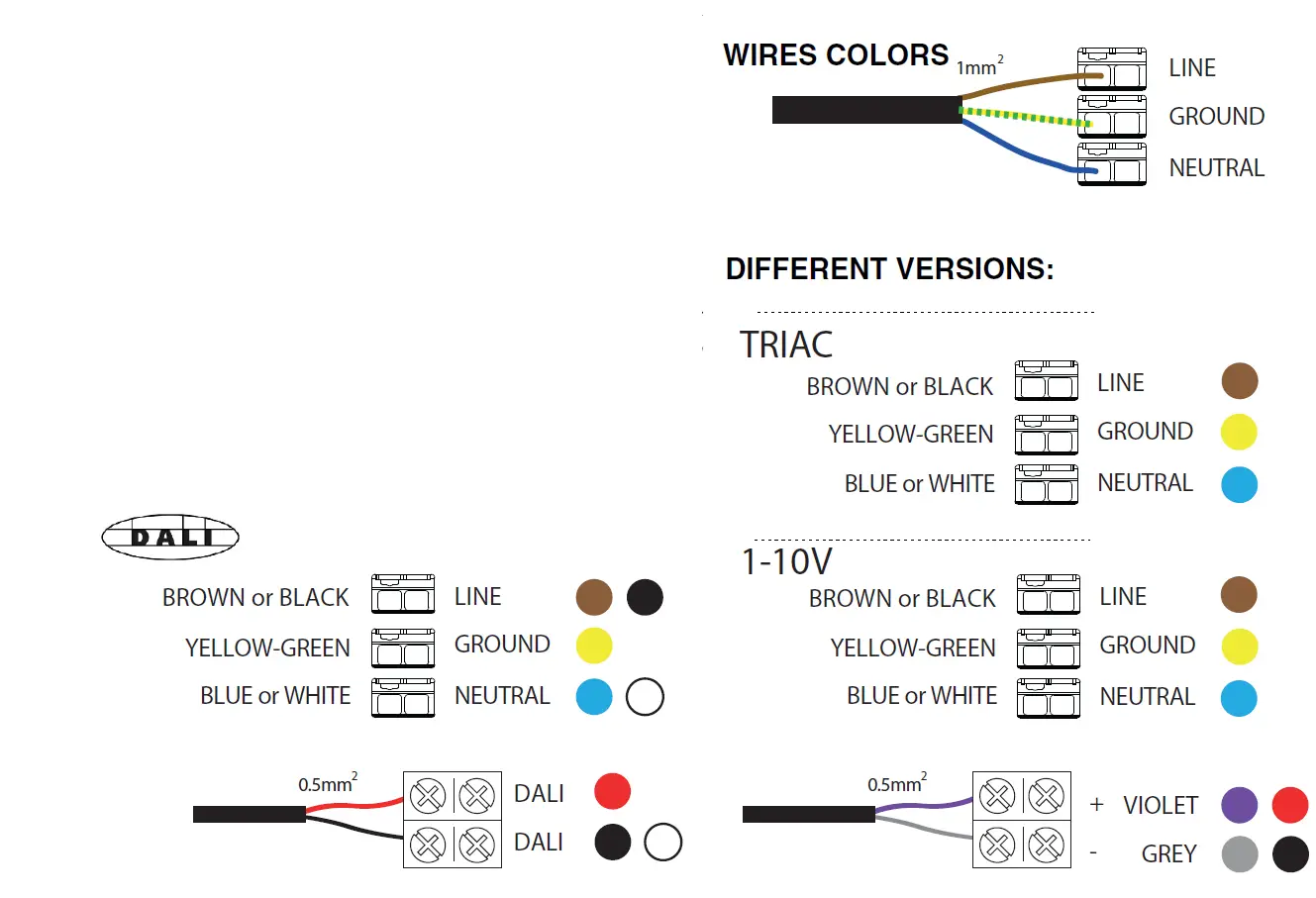

5. Lock up the safety fastener. Connect the wires and mount the body to the middle part magnetically.

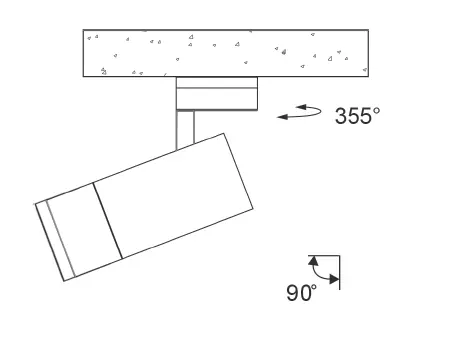

6. Adjust the beam angle.

CAUTION
INDOOR LUMINAIRE Installation should be carried out by a suitable quality installer. / Disconnect main voltage before maintenance operation / All wiring and maintenance must be performed with the main switch in the OFF position / Don’t open the luminaire.
Connect the fitting to the power supply only after connecting all LED to the driver (when expected) / In case of failure, upon a return authorization of NEMO Studio, the product will be not either open or dismounted / Make the wiring using a system that guarantees at least the IP grade of the spot. /
Se previsto, use only bulbs of suitable type and power specified in the label / Do not install fixture in an environment with the presence of chlorine, salt air or aggressive agents, if not expressly mentioned. / The color temperature (CCT) of LED sources can be different from the declared nominal value within a range of ±5%. / NEMO reserves the right to make any technical or formal alterations to its products without giving prior notice, especially for LED sources. / We recommend you to keep instructions for further consultations.

EQUIPMENT DISPOSAL

This lamp has been manufactured according to Directive EU 2012/19/EU.
In accordance with EU Directive WEEE (Waste Electrical and Electronic Equipment), luminaires must not be disposed of with other household waste. At the end of their life, luminaires must be taken to the appropriate local facility available for the disposal or recycling of electronic products.

SAFETY INSTRUCTIOS

Periodically clean the surface of the spot. Before starting, switch the light off.
For Plastic parts – Glass -Painted parts:

• Remove the dust surface layer with latex gloves and soft electrostatic lint-free cloth.
• Clean with a soft and moist cloth with circular movements.
• Avoid using aggressive detergents. Use only neutral products (PH 7).
• Note: for plastic parts use only antistatic alcohol-free soap. For aluminum parts, clean with a soft cloth.
• This luminaire contains built-in LED lamps.
• The LED cannot be changed in the luminaire from the end-user.Please contact NEMO STUDIO (only authorized center).
• This product contains a light source of energy efficiency class <F>
