Cetus 2 3d Printer Artist D Pro Idex Dual Extruder User Guide

On-the-fly Switching (OTFS)
Dual Extrusion 3D Printer
Quick Start Guide

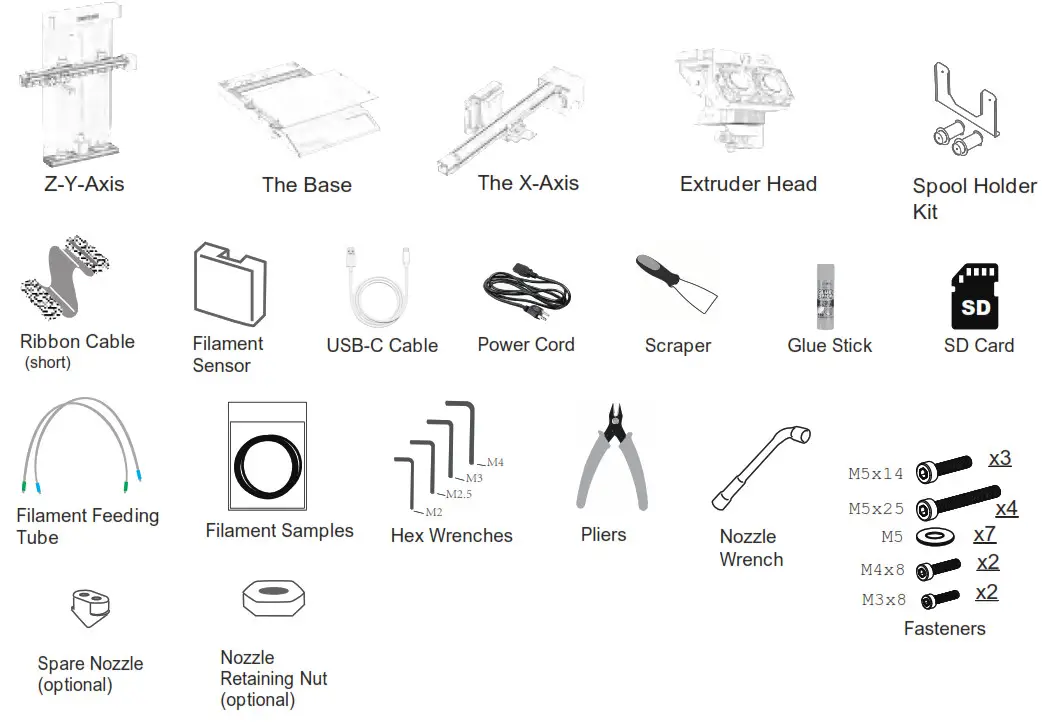

Packing List

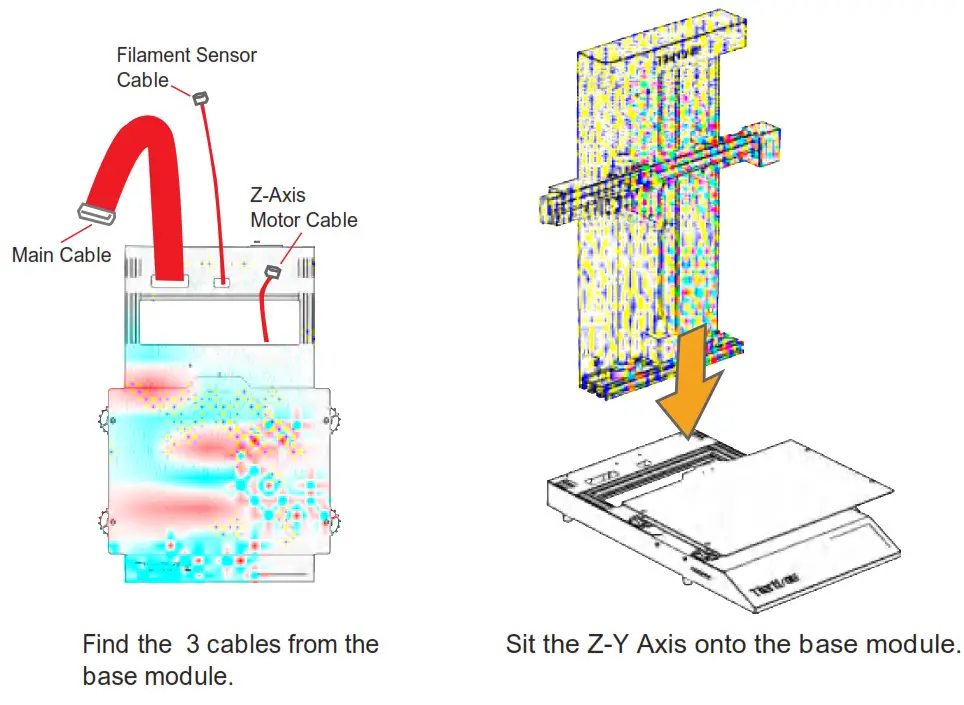

Unpacking

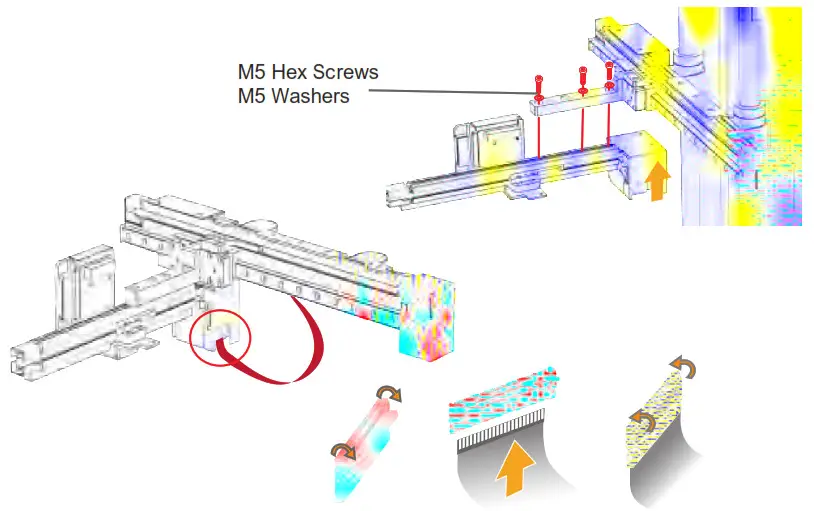

Assembling X-Axis

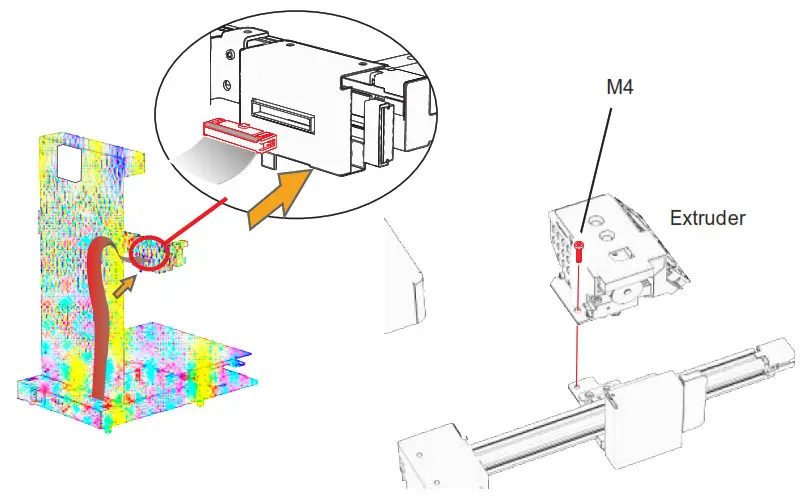

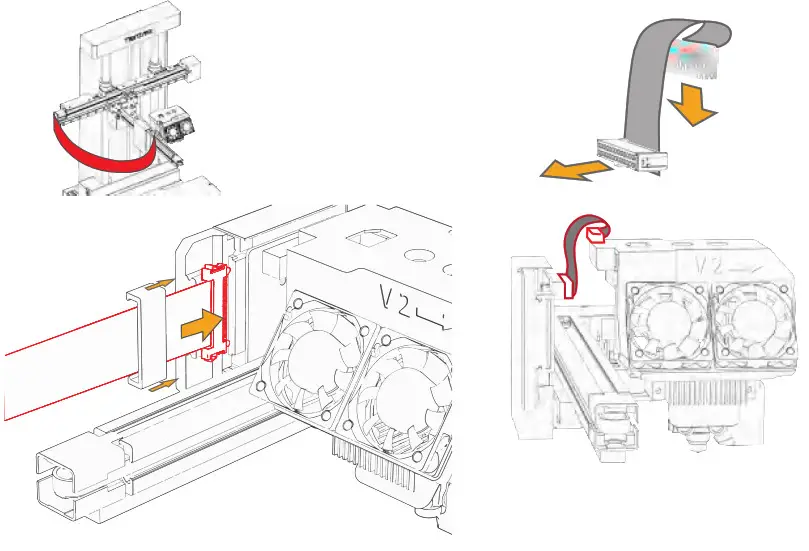

Install Extruder

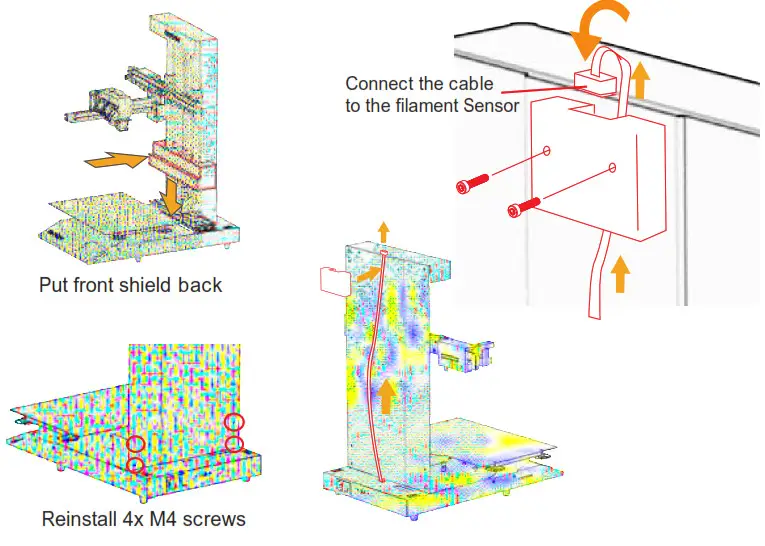

Install Filament Sensor

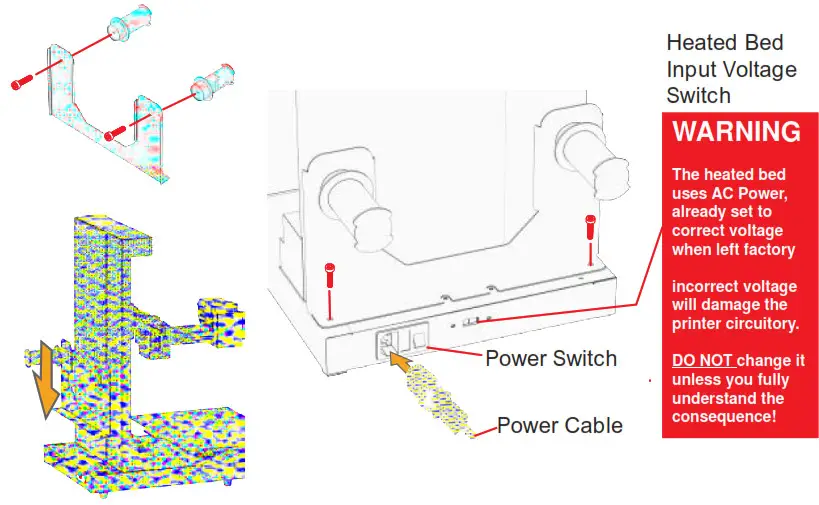

Install Spool Holder

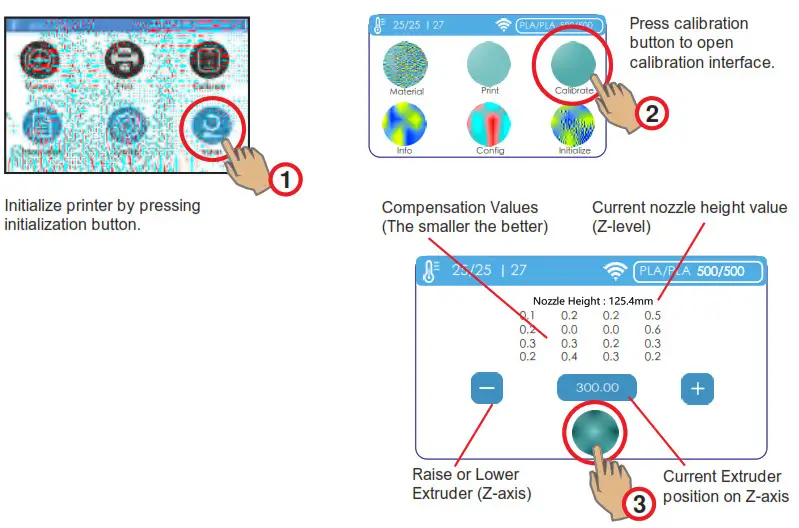

Printer Initialization and Calibration

Press “AUTO” button to initiate Auto Calibration process. The printer extruder will then lower to touch the platform surface on16 locations and probe the platform height values. The value will be calculated and compensations will be applied and the nozzle height value will be shown on the interface.

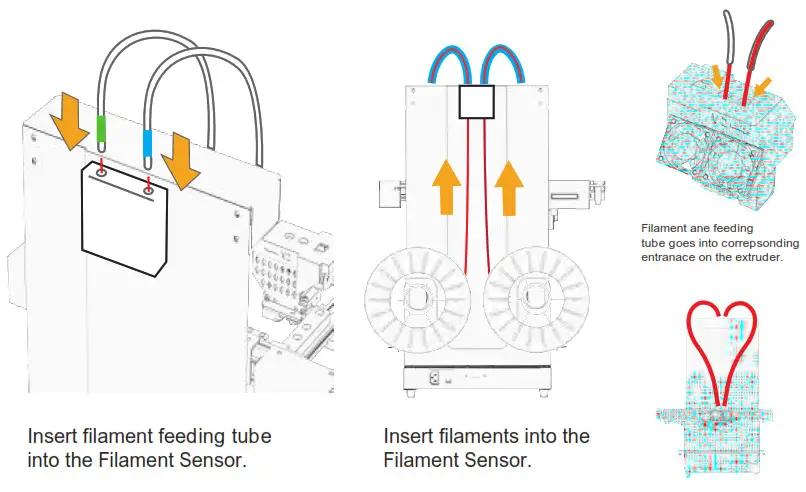

Filament Sensor and Feeding

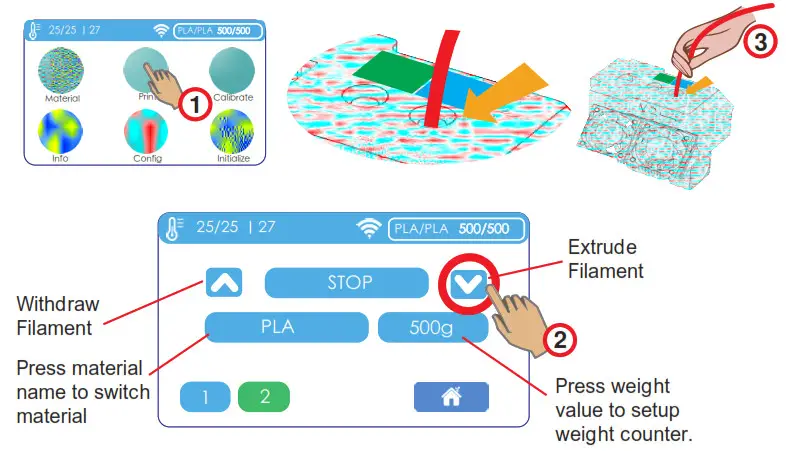

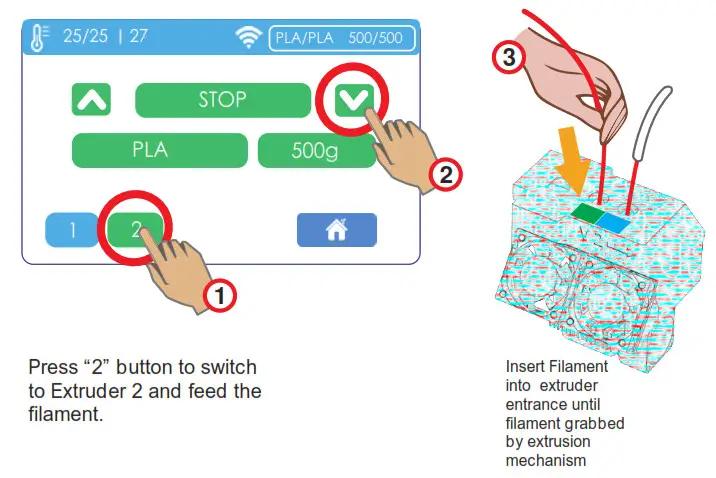

Loading Materials
Press “Material” => Extrude (down arrow) The extruder will heat up and extrude filament when target temperature reached.

Loading Materials

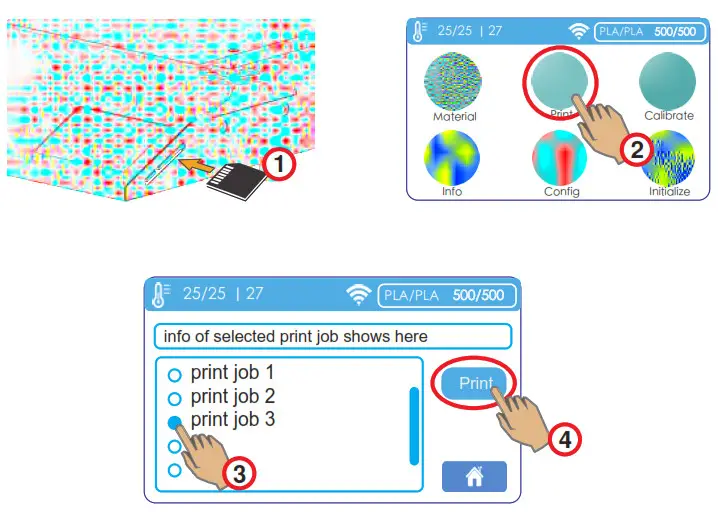

Start a Test Print

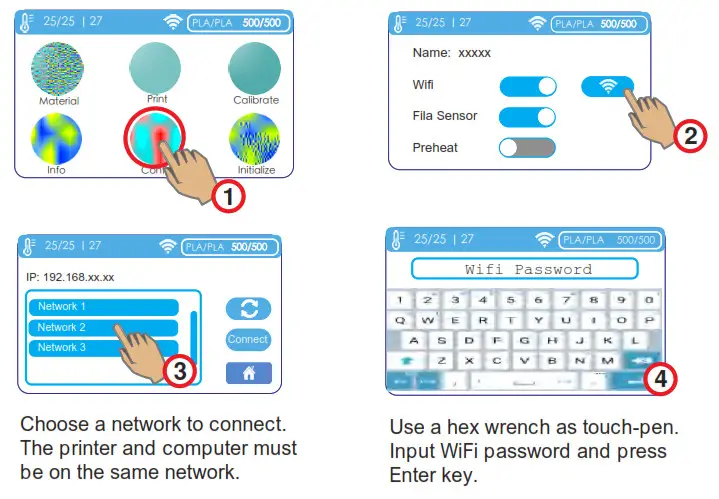

Setup WiFi

Software
Cetus2 use UP Studio 3.0 as default slicer. UP Studio 3.0 can be downloaded from:

1. https://www.cetus3d.com/software
2. https://www.tiertime.com/software

A printer hosting software Wand, is also provided, for connecting from computer to printer and essential printer operation functions. Wand is included in the installation package of Windows version of UP Studio 3. For Mac, Wand is a separate installer (.dmg).
Wand can also download from links above.

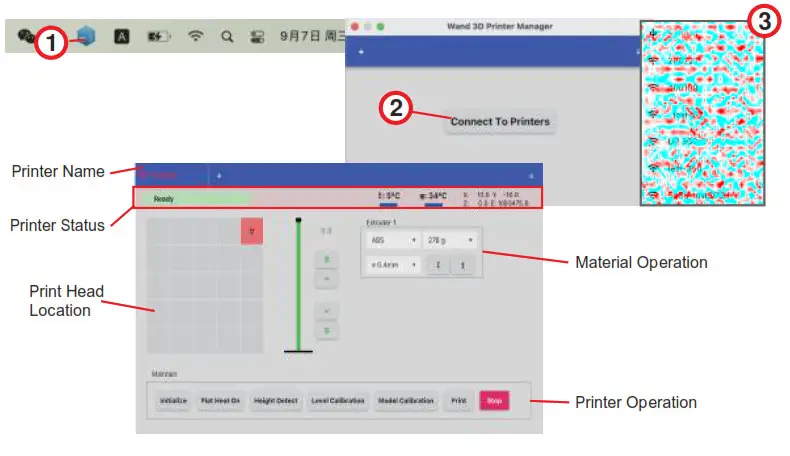

Connecting to Printer

1. Connecting from “Wand” printer manager. Wand is a separate software that will opened automatically when user open UP Studio 3. It will remain in the tool bar unless user close it.
2. Alternatively user can connect from UP Studio 3 directly. When click the arrow button on the right side of the printer name on the top bar UP Studio will communicate with Wand and get the list of available printers from Wand.
   The list may take a few seconds to load/refresh, the immediate list shown may not be the full list of printers.

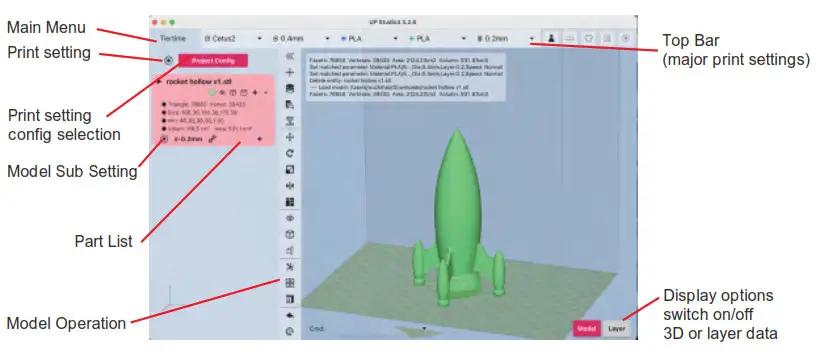

Basic and Advanced Mode

UP Studio 3 by default is in “Basic Mode”. In Base Mode, the options for print settings is limited and the software will provide “wizards”, to guide the user step by step, how to setup a print job.
Advanced users could switch to “Advanced Mode” where all wizards are disabled and all print setting option are opened to users.

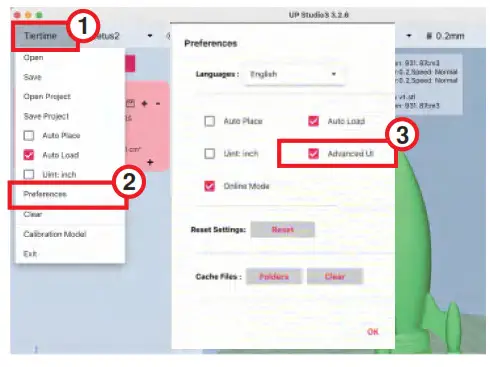

To switch to Advanced Mode, go to:
Main Menu (Tier time button on top left) => Preference => Advanced UI

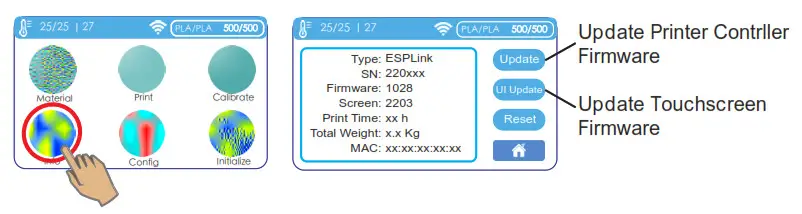

Firmware Update
Firmware update can be done by saving update files to SD card and then update from SD card on the touch screen. Update file can be download from following URL:
https://www.cetus3d.com/cetus2_update/
There are 2 types of update files, one for updating printer controller firmware, and the other is touchscreen firmware. Extract the update files and save to the root directory of a SD card. Insert the SD card into machine’s SD card slot. Then go to info => update.
After finishing the update, power cycle the printer to load the new firmware.

Specification

Get Supports

Scan Following QR-codes for customer support:

References

• Software Download – Cetus3D
