QUICK TOUR
Accurate Tracking | Power standby
Please carefully read the user guide before use in order to quickly get the right to operate. Product appearance, color, and accessories are subject to change
without prior notice in this manual!
Functions and Product parameters
◆ Real-time tracking ◆ Waterproof IPX6 ◆ Geo-fence
◆ Vibration/Displacement/Low battery/Power off/over speed alert
◆ Main power cut off alert ◆ LBS/GPS/Glonass or Beidou
◆ Cut and resume oil remotely ◆AGPS locating ◆ Encryption Algorithm
◆ Anti-Detection &Anti Cracking&Anti Pseudo base station
| Frequency | |
| GSM 850/900/1800/1900MHz | |
| Networks | GPRS |
| Operating voltage | 10-120V |
| Location time | Cold start 35s-80s |
| Hot start 1s | |
| Location accuracy | 5 meters |
| Operating temperature | -20°C∼+55°C |
| Dimension | 74*25*13mm |
| Weight | 30 g |
Note: against pseudo-base-station&detect function should under power save work mode! The device would wake up when moving and speed above 20km/h.
LED Indicator Definition
Green Indicator： GPRS
| Status of indicator | Meaning |
| Flash | GPRS conversation start |
| Continuously in bright status | No GPRS signal |
| Green Led off | Power off or in sleep mode |
Blue Indicator： GPS
| Status of indicator | Meaning |
| Flash | GPS location successful |
| Continuously in bright status | GPS signal searching |
| Blue led off | Power off or in sleep mode |
Red Indicator： Power charge
| Status of indicator | Meaning |
| Continuously in bright status | charging |
| Red led off | Power off or charge full |

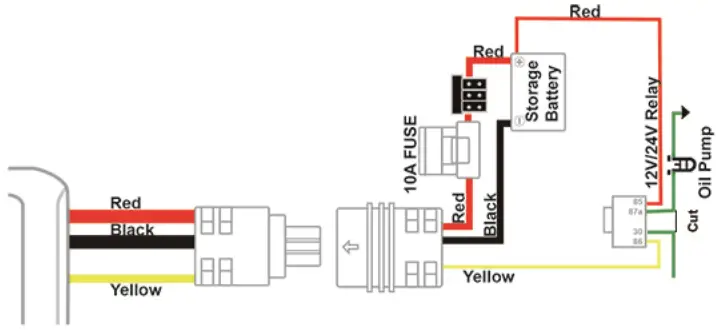

NOTE: Please connect the cable following the below pictures.
Startup
Startup

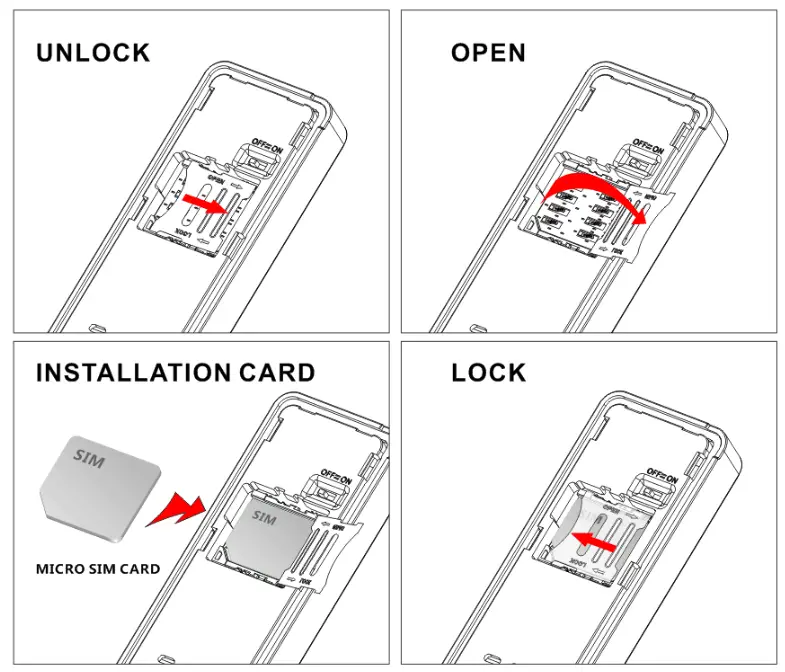

（Ⅰ） Open the top, Insert a micro SIM card support GPRS network into the slot and make sure the chip side is down.
（Ⅱ） Connect the power cable and turn on the power button.
（Ⅲ） Set admin number, by sending an SMS command to the micro-SIM card inside the device.
For example: admin123456 +86186******** (+86186********should be your phone number)
（Ⅳ） Set APN: APN123456 CMNET (please use your local APN instead of CMNET, if you do not know the APN content, you should contact your SIM card supplier)
More Commands
Function | Command Format | Reply | Delete | for example |
| APR admin number | apn+123456+space+content | apn ok | apn123456 cmnet | |
| apnuser+123456+space+content | apnuser ok | |||
| apnpasswd+123456+space+content | apnpass wd ok | |||
| admin123456+space+admin phone number | admin ok | noadmin 123456 | admin123456 186******** | |
| time zone | timezone+123456+space+GMT No. | timezone ok | timezone123456 +1 | |
| Power save(defauIt) | sleep123456 time | sleep time ok | ||
| shock sleep | sleep123456 shock | sleep shock ok | ||
| no sleep upload frequency | sleep123456 off | sleep off ok | ||
| upload frequency | upload123456+space+time | upload ok | upload123456 10 | |
| Cut and resume oilArm&Disarm | 555 | Cut oil OK | 666 | |
| 111 or SF | Arm delay in Os | 000 or CF | ||
| Position | G123456# or where | Google map | ||
| Restart | rst | restart ok | ||
| Back to factory | format | No reply |
Download phone APP
Method 1: Scan above QR to download;
Method 2: search “LKGPS2” in the app store or Google play store to download.
Log in by website and phone APP

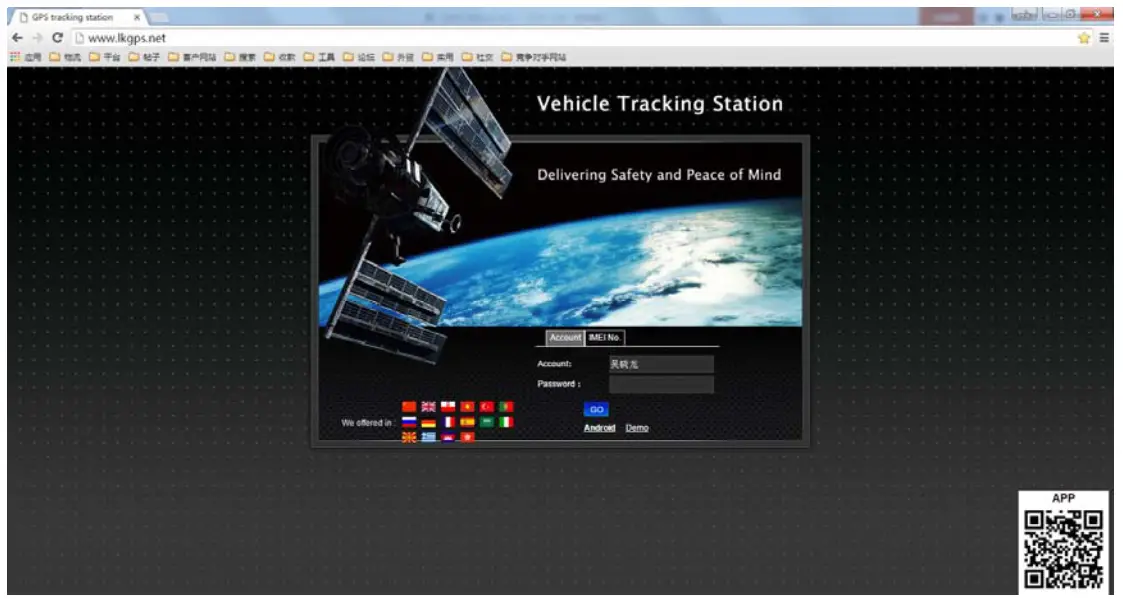

Log in by Website:
Open the website www.lkgps.net, choose IMEI, enter the 10-digit bar code of the device, the default password is 123456, click “GO” to log in to the
platform.
Log in by Phone APP:
Please see the following photo:
Faults & The solutions
Q： Startup Fail?
A： Check the cable connects right or not.
Q： The device can not obtain location information?
A： Place the unit in the open area to test.
Q： How to choose a Mini SIM card?
A: the Mini SIM card must support GPRS， and ensure that the card has enough currency and credit.
Q: How to use in foreign countries?
A： Please set the APN before use， please edit the text “APN123456 CMNET “ and send it to the SIM card of the device， CMNET is Chinese operator’s APN, Replace the corresponding APN when used in other countries, APN details, please consult your local SIM card carrier.
Cautions
Please comply with the instructions to extend the unit life:
- Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry.
- Don’t use & store the unit in dusty places.
- Don’t put the unit in overheated or over-cooled places.
- Handle carefully. Don’t vibrate or shake it violently.
- Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent.
- Don’t paint the unit, this may cause some foreign materials left in between the parts.
- Don’t disassemble or refit the unit.
- Please use the battery and charger provided by the manufacturer.
Using other batteries and chargers will cause unwanted situations.
Warning:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However. there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver
–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help
NOTE: This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter
RF Exposure Statement
To maintain compliance with FCC’s RF exposure guidelines. This equipment should be installed and operated with a minimum distance of 20cm the radiator of your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter
