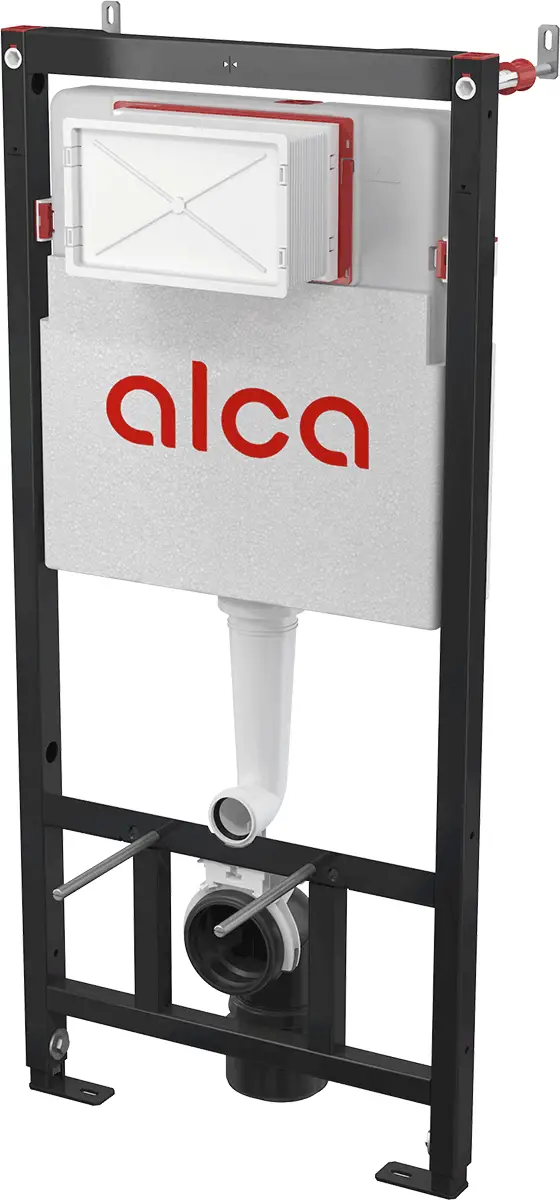

Alca PLAST A116-1200 Solomodul Hidden Installation System Instruction Manual

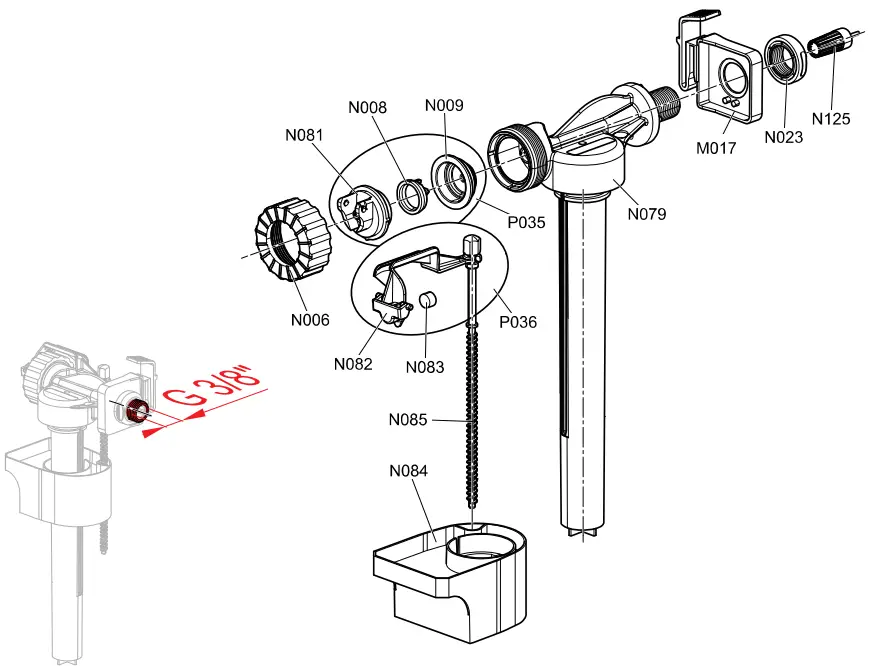

Spare Parts A16P:
ATTENTION!
In case of any difficulties while mounting the installation system, please address a professional service. It is necessary to use the noise isolation M91 for mounting the installation. If you don’t use it, the claim for replacement won’t be accepted.

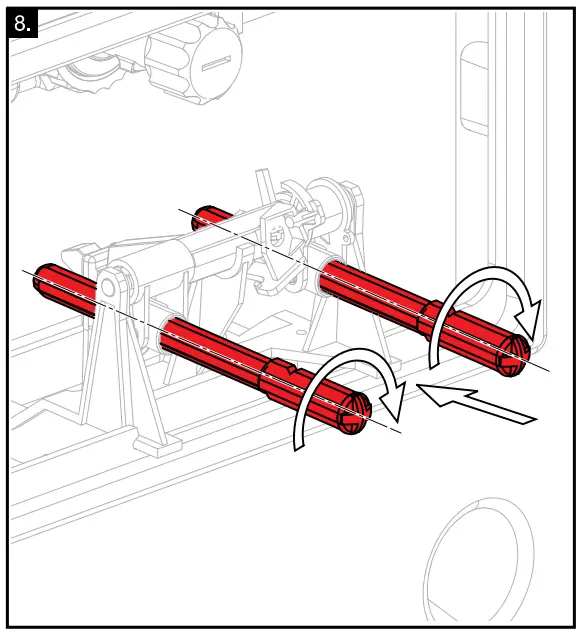

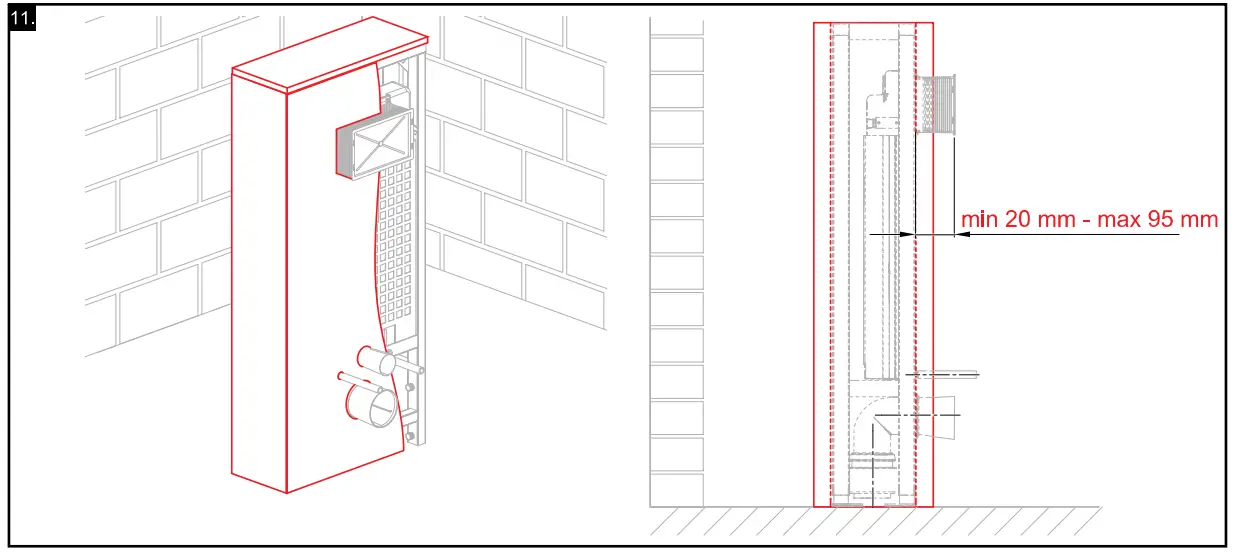

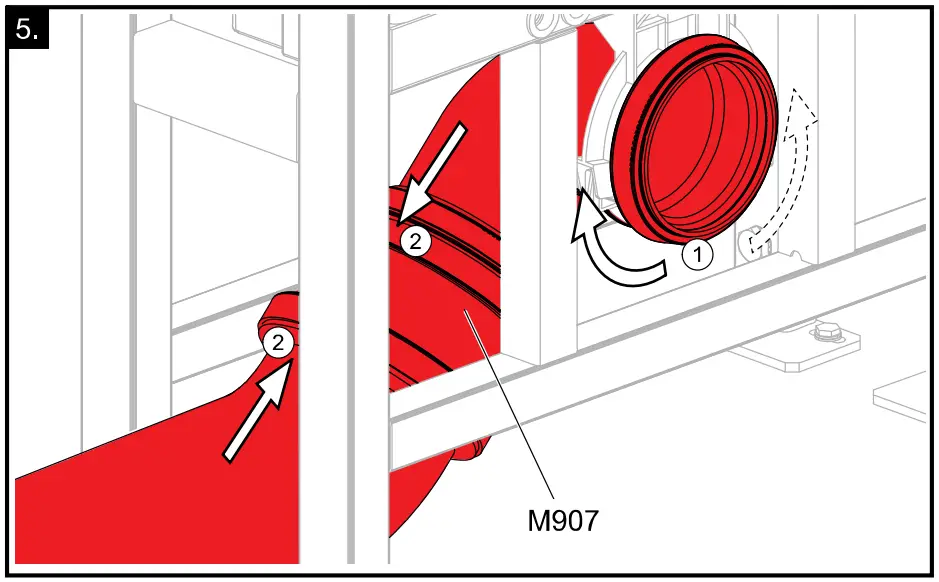

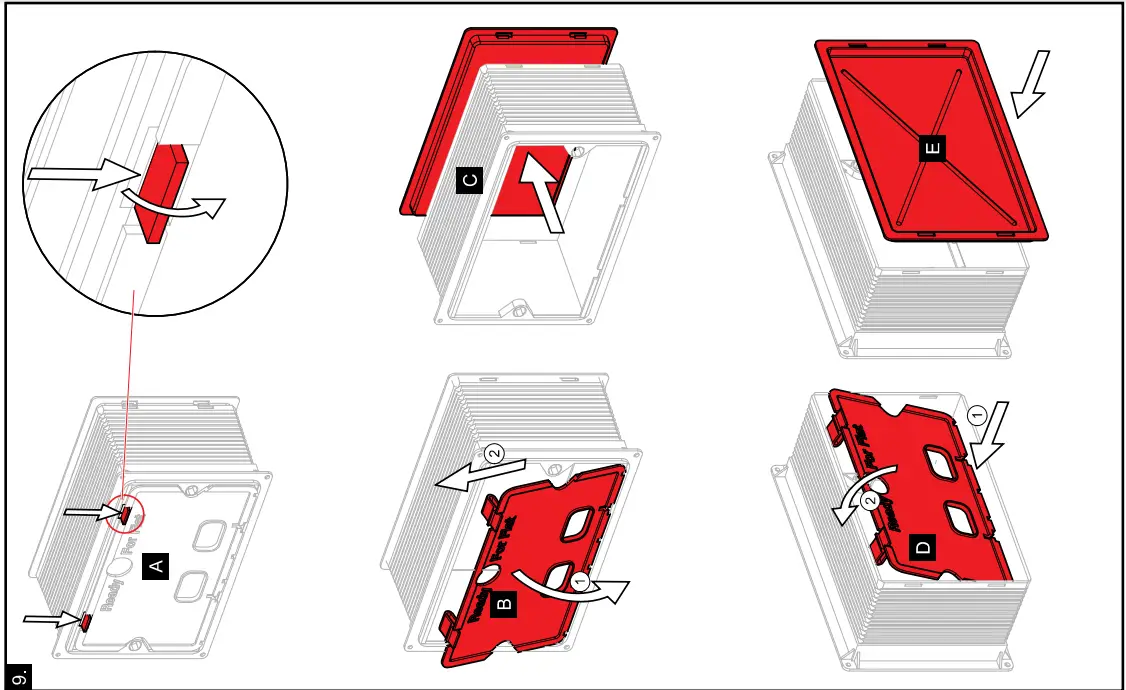

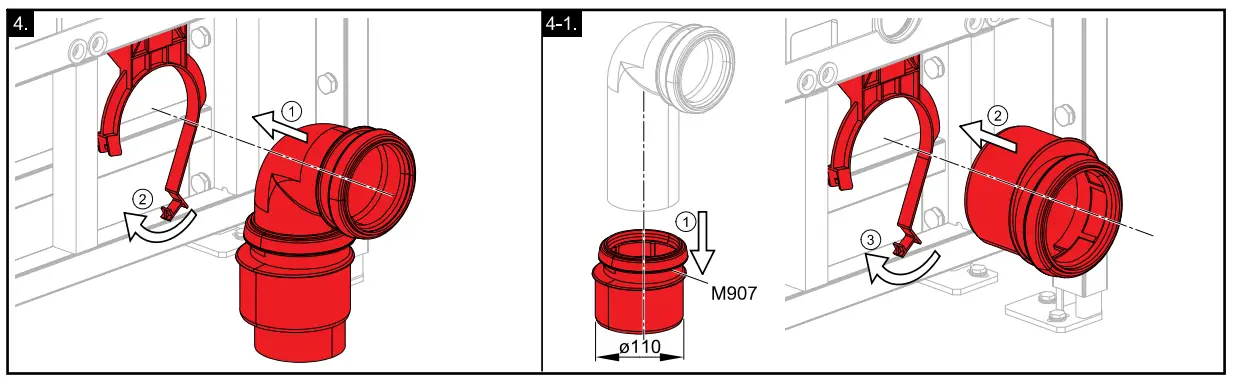

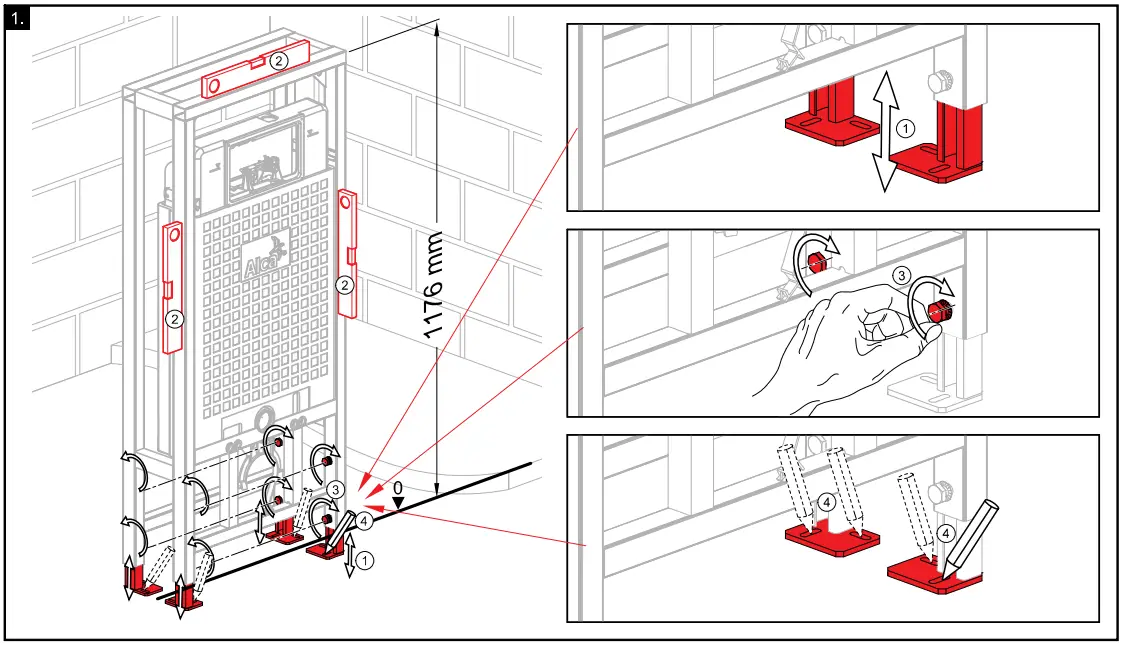

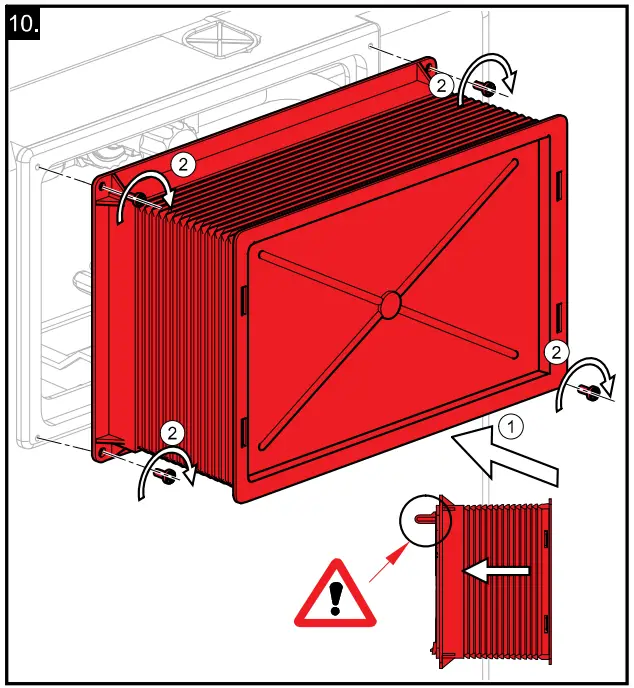

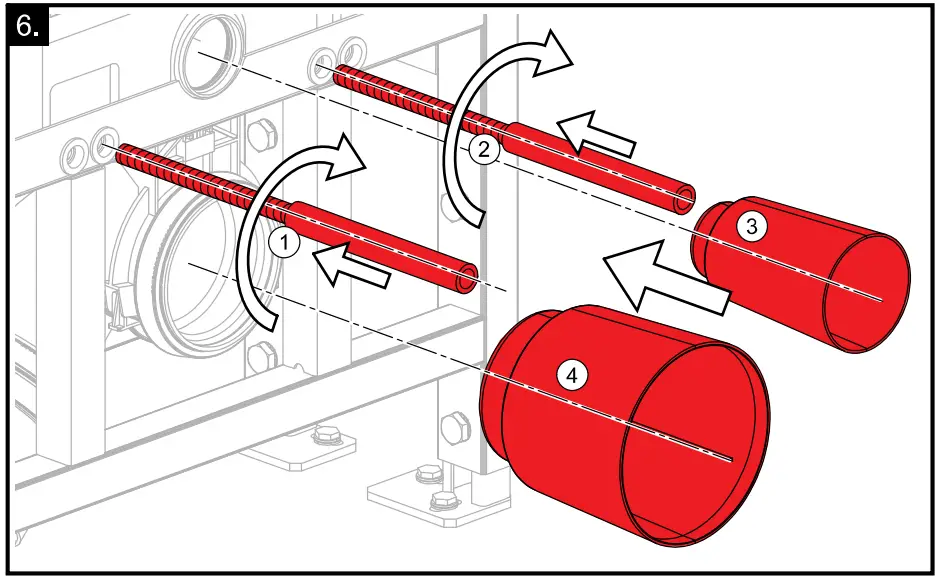

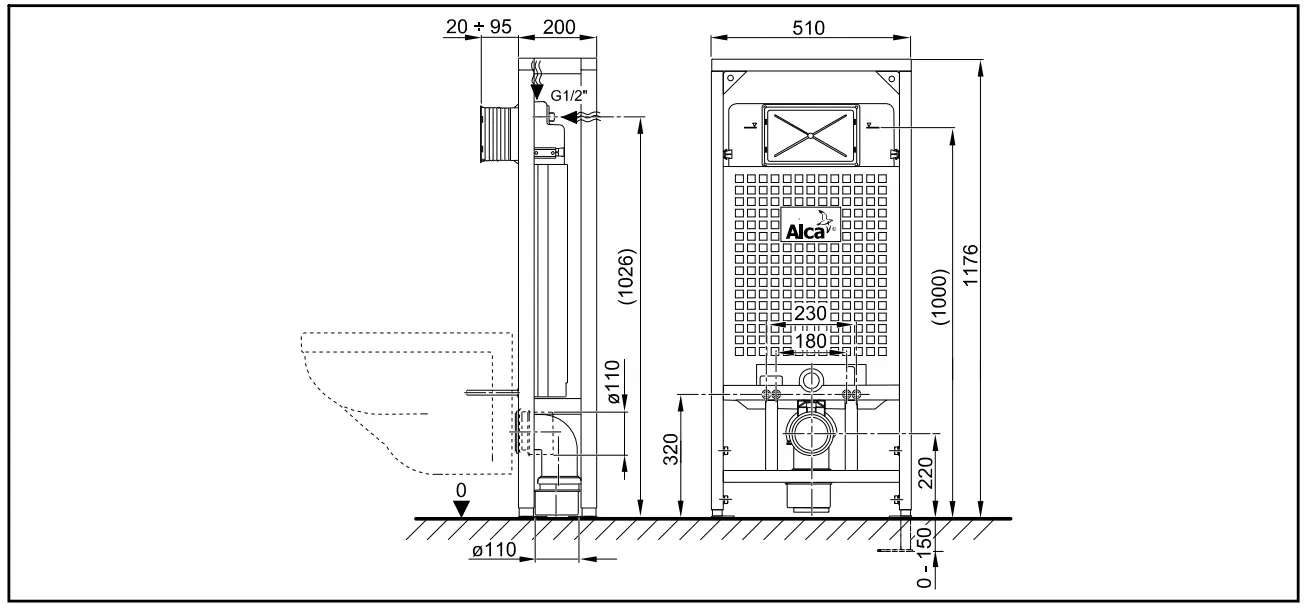

Pre-wall installation system – Mounting instructions

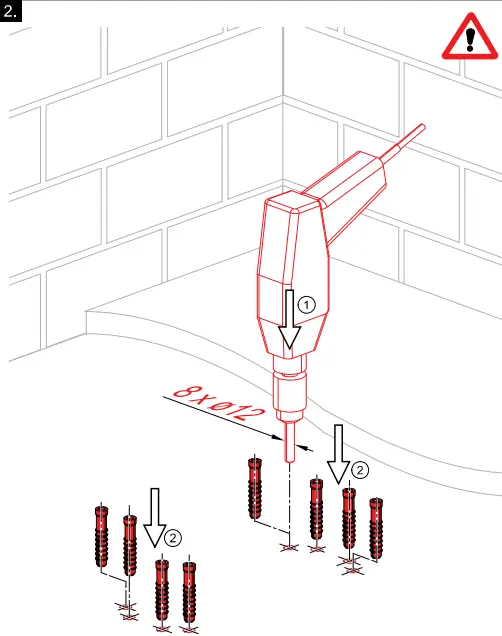

ATTENTION! Anchor type depending on floor material applied. Supplied anchors are suitable for solid concrete. It is necessary to use the anchors – 012 mm.

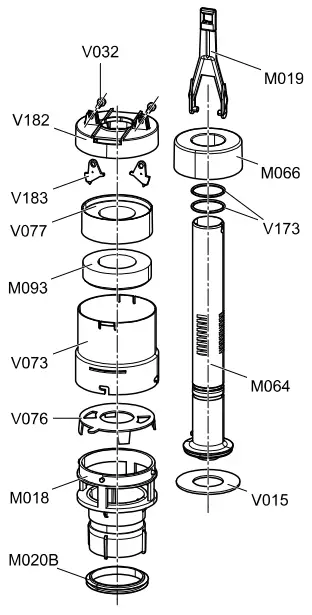

Spare parts A06

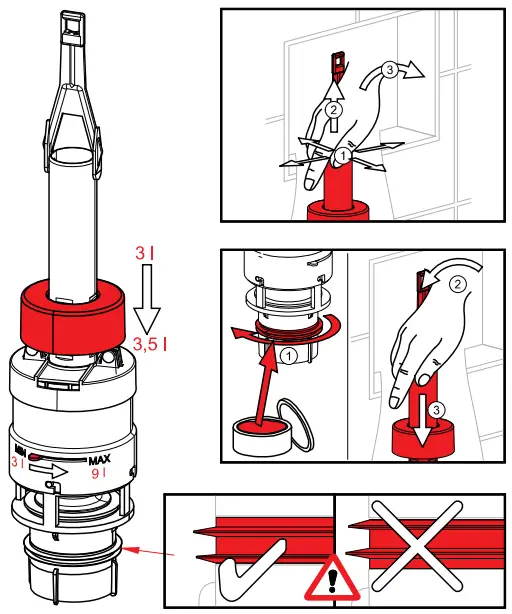

Small volume flushes adjustment.
Producer fixtures small flushing on 3 I. Adjusting on 3,5 I flushing is possible after regulation of float – see figure.
Large volume flushes adjustment.
Producer fixtures large flushing on 6 I. Adjusting on 9 I flushing is possible after regulation of control lever – see figure.

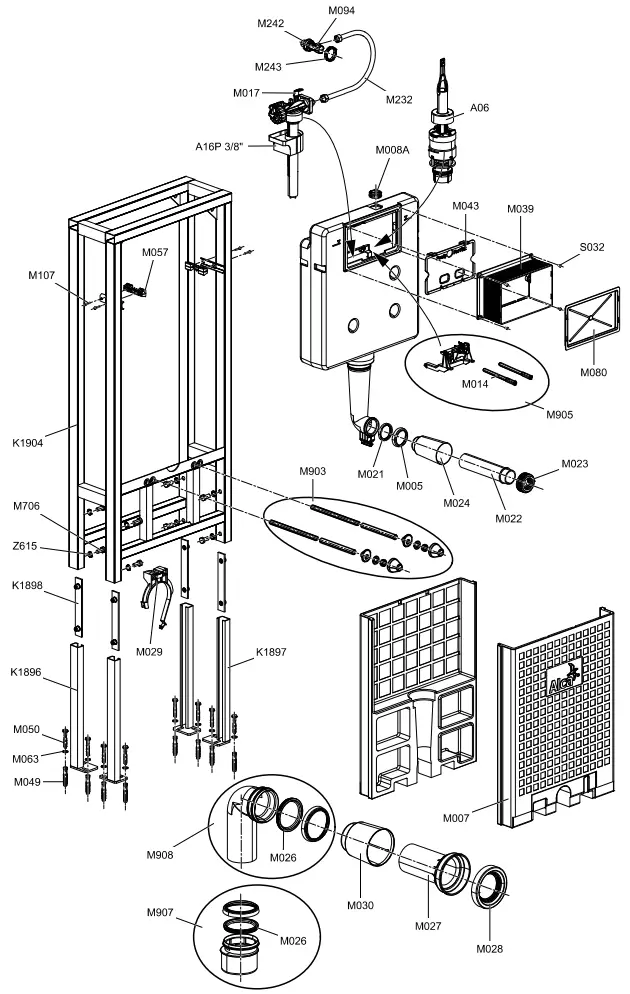

Spare parts
ATTENTION! Use Teflon band, sealing cord or sealing compound to seal the thread!

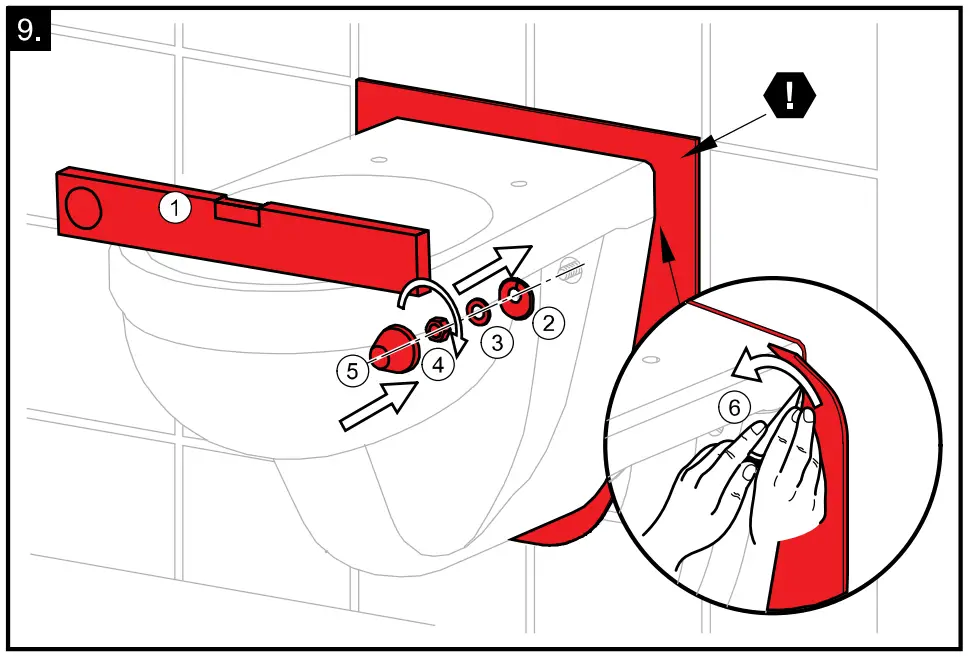

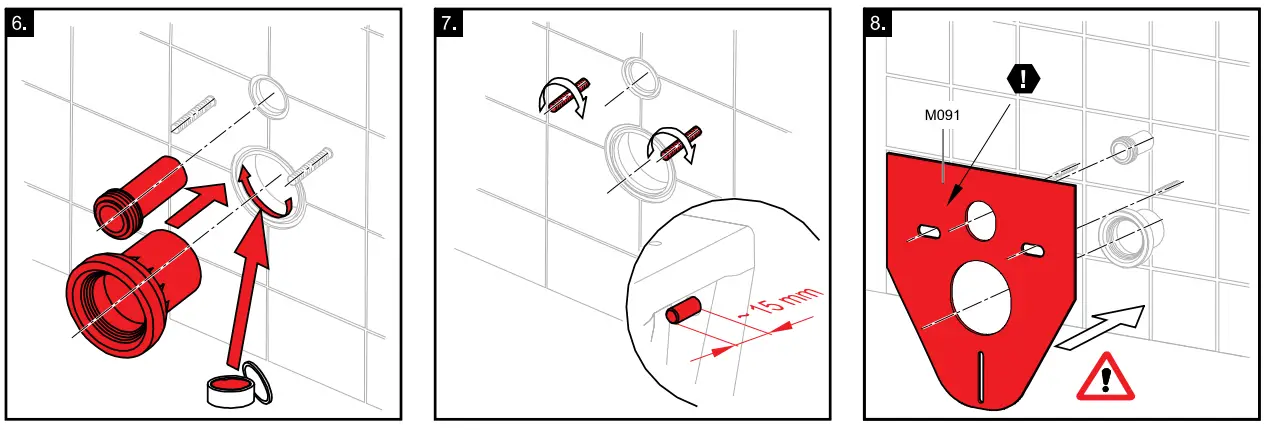

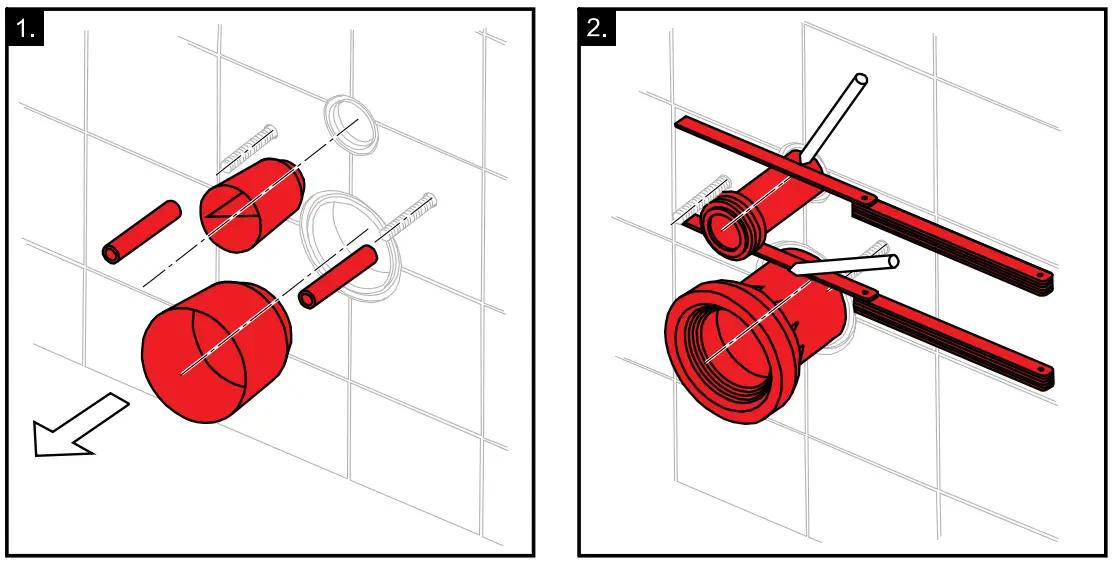

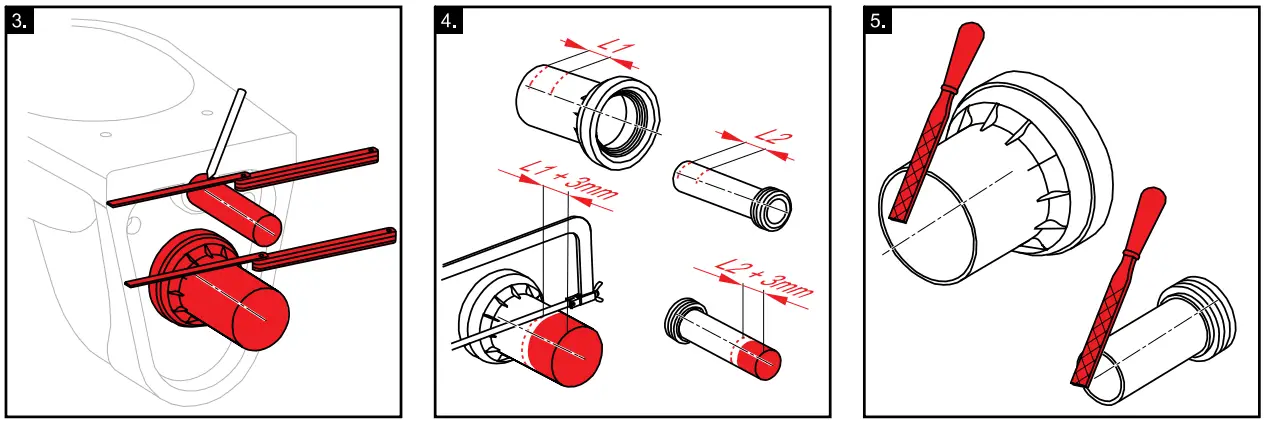

Suspended WC connection
Is not included in the package and should be bought separately.
