alula CP-WALLPLATE-5 Wall Mounting Plate
The Wall Mounting Plate is designed to cover paint and holes left by legacy panels and interfaces.
Features
- Designed for use with RE667 Slimline Touchpad and RE663 LED Keypad control units
- Sold in a convenient 5-pack
Installation

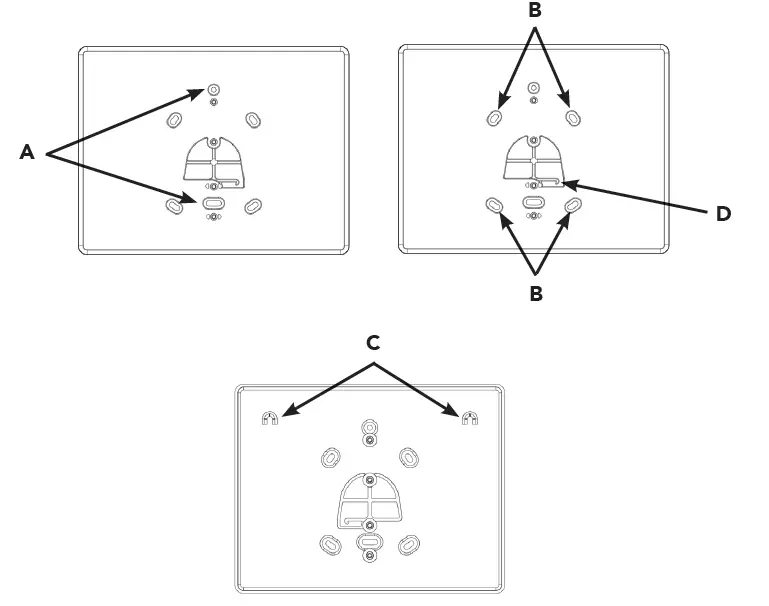

- There are three wall mounting configurations.
- A. If mounting on a stud or in a gang box, use the two centered holes labeled below [A]. Use the mounting hardware kit from the RE663 LED Keypad or RE667 Slimline Touchpad.
- B. If not mounting on a stud or in a gang box, use the four mounting holes below [B]. Use the mounting hardware kit from the RE663 LED Keypad or RE667 Slimline Touchpad. Insert the wall anchors prior to securing the screws in place.
- C. To cover a large hole, press the two blind screw mounting features [C] into the drywall to create pilot hole alignment marks. Use the additional two lower mounting holes from B to secure the plate. Use the mounting hardware kit from the RE663 LED Keypad or RE667 Slimline Touchpad.
Note: optional wire holder [D] can be used.

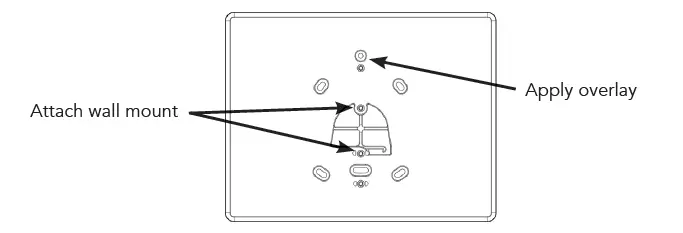

- Attach the RE667 Slimline Touchpad wall mount at the locations shown below using the included hardware. Cover the holes indicated by applying the included overlay.

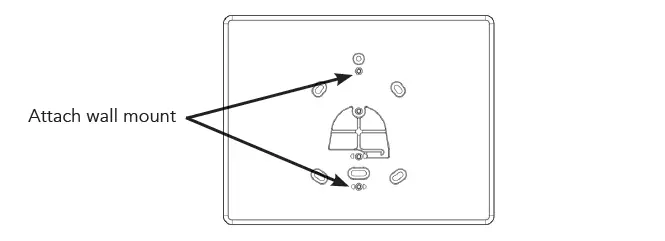

- Attach the RE663 LED Keypad wall mount at the locations shown below using the included hardware.
Specifications
| Physical Specifications | |
| Wall Dimensions Weight Mounting Fasteners System Control Securing Screw | 7.75 x 6.00 x 0.25 inches (19.7 x 15.2 x 6.4 cm) 2.45 ounces (69.4 grams) #6 screws and wall anchors (not included) #6 screws (included) |
Specifications subject to change without notice.
TRADEMARKS
Alula is a trademark owned by Alula Holdings, LLC.
47-00017 • Rev A • 2021-12-01
Tech Support Line • (888) 88-ALULA • (888) 882-5852
