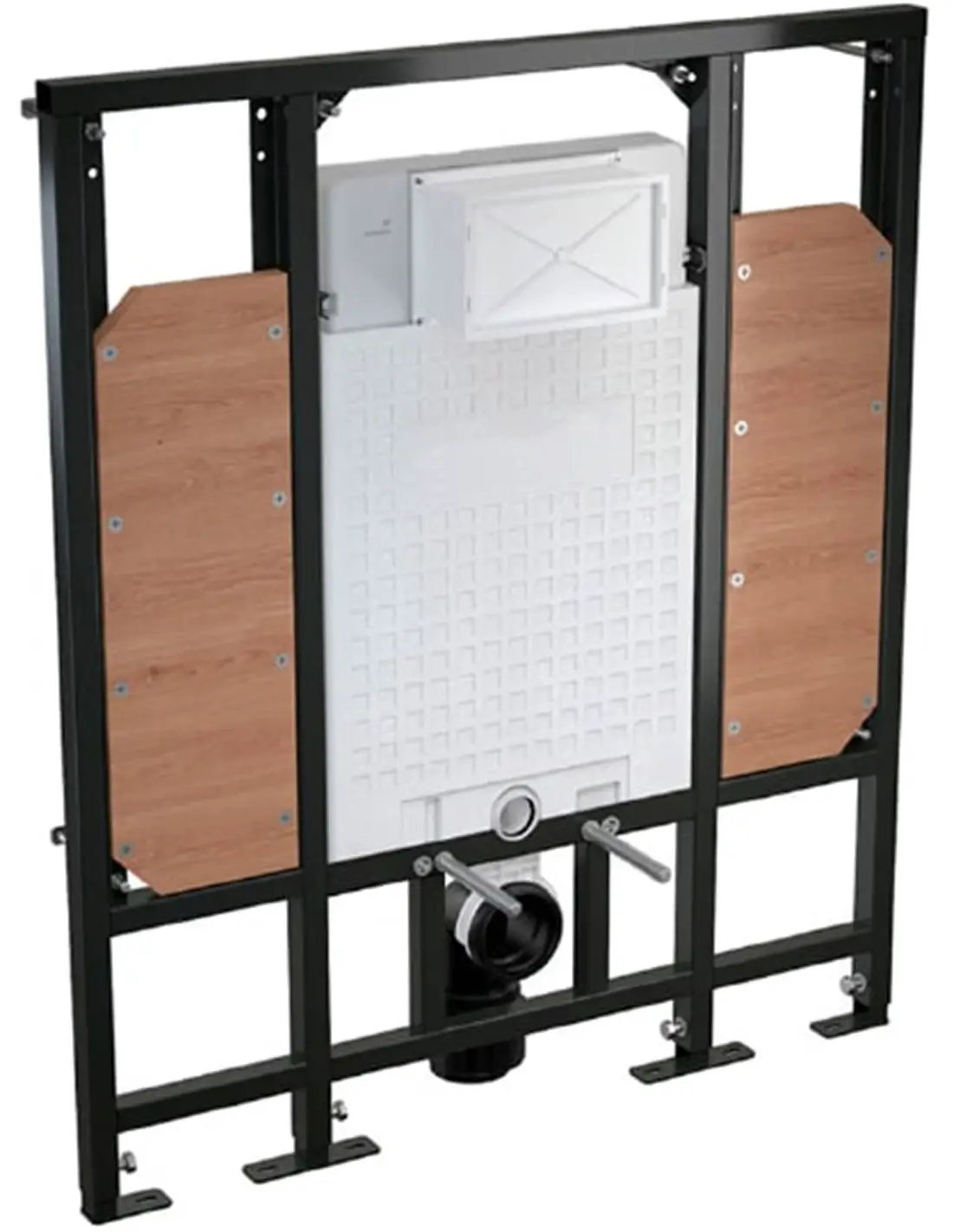

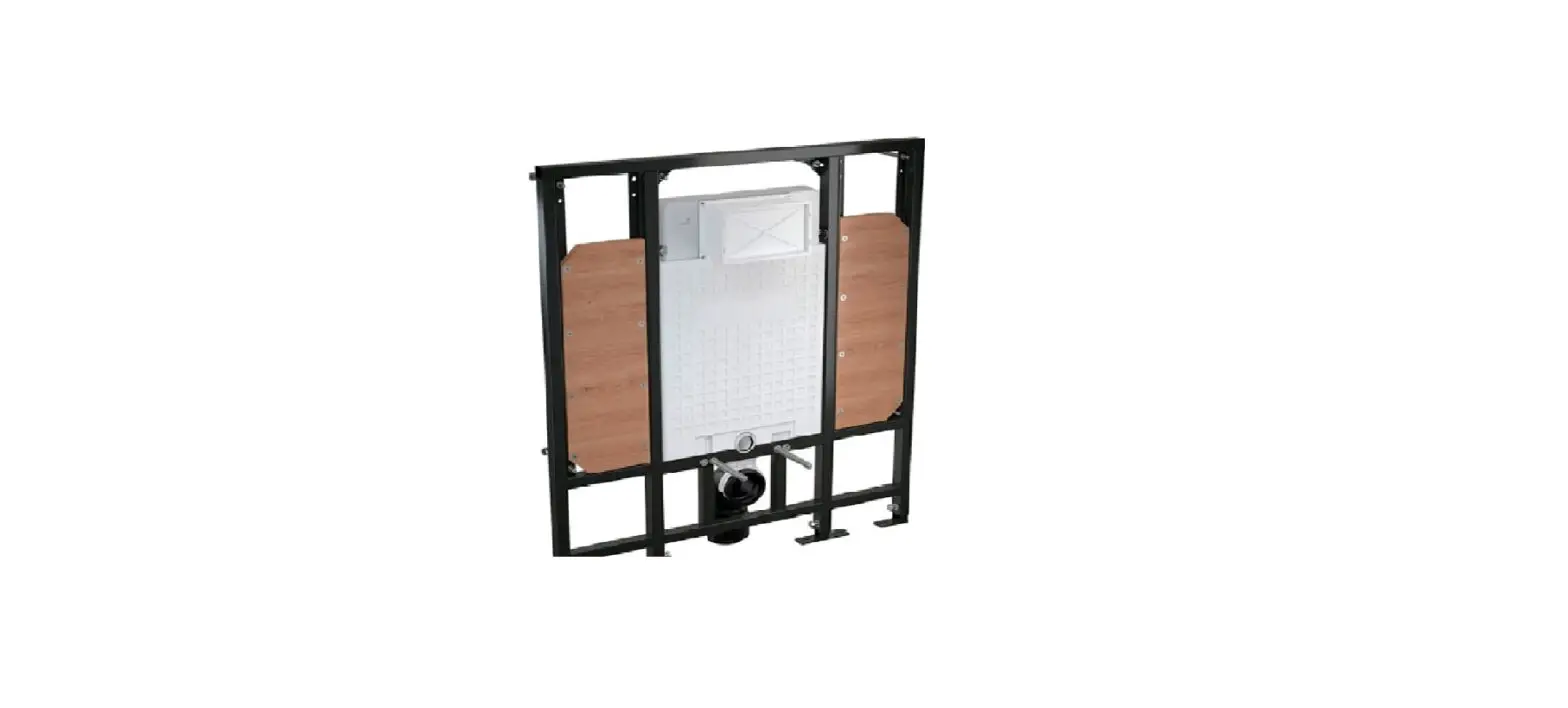

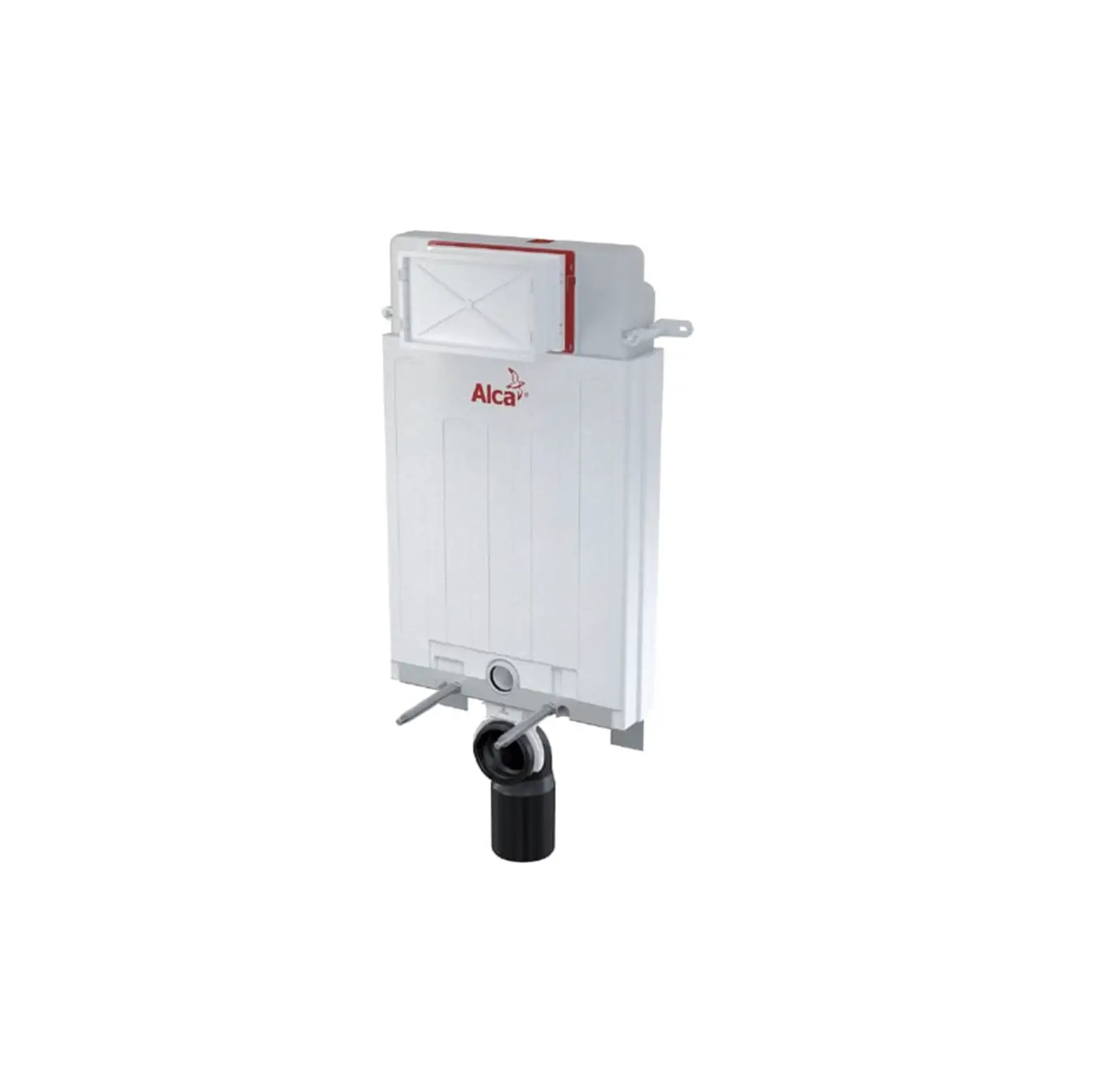

Alca PLAST A101-1300H Toilet Wall Mounting Frame

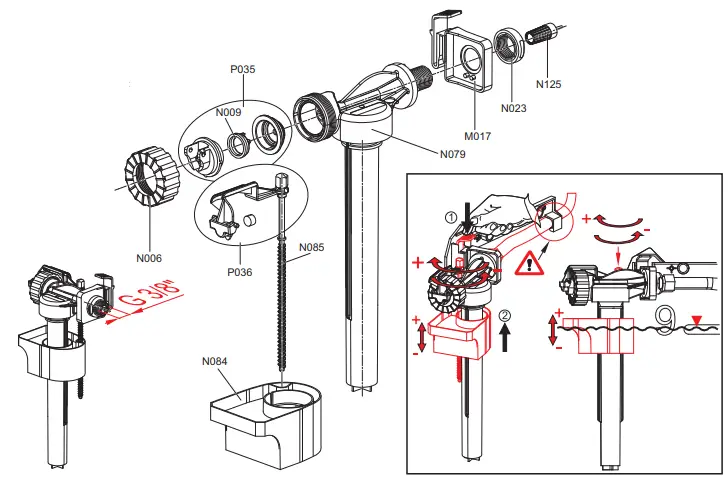

Spare parts A16P
ATTENTION!
In case of any difficulties while mounting the installation system, please address a professional service. It is necessary to use the sound-absorbing pad M91 for mounting the installation. If you don´t use it, the claim for a replacement won´t be accepted.

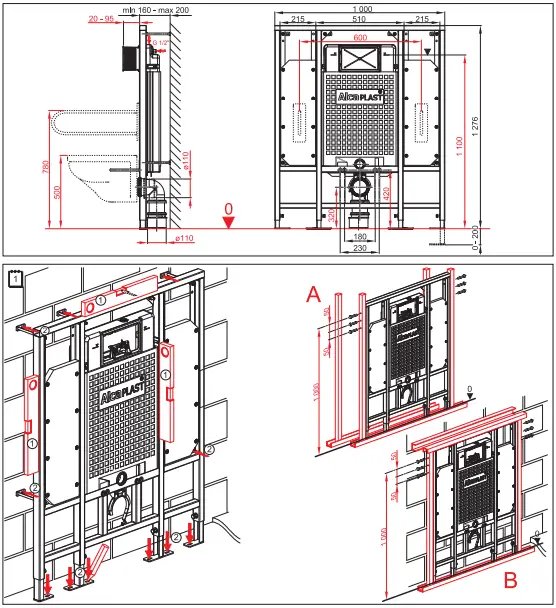

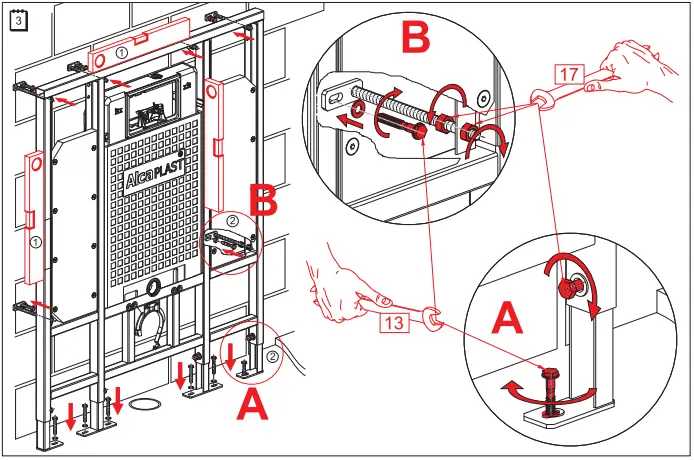

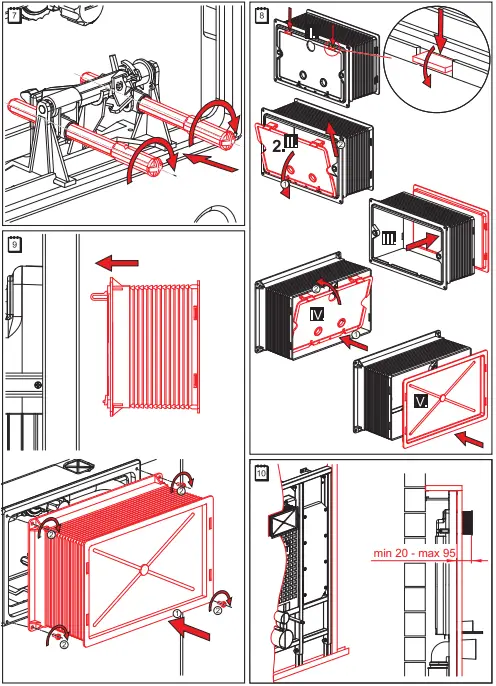

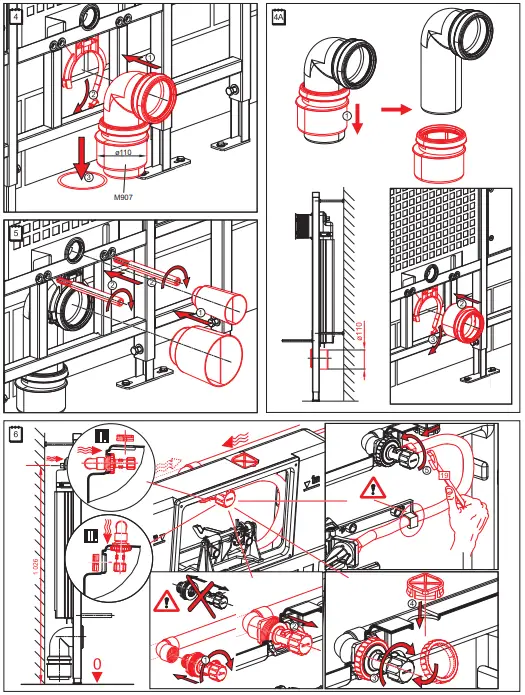

Pre-wall installation system – Mounting instructions

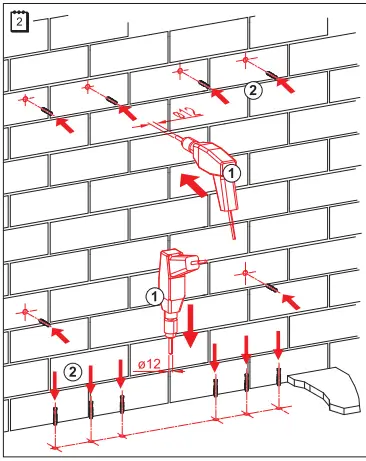

ATTENTION! The dowels you choose depend on the type of the wall. The enclosed dowels are for the brick-wall. It is necessary to use the dowels – ø12 mm.

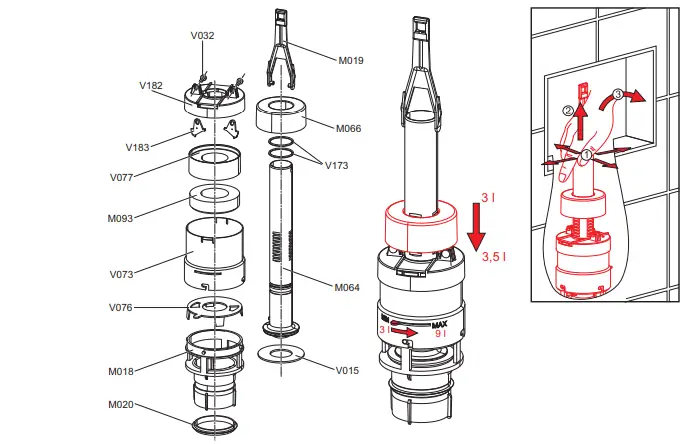

Spare parts A06
“Small” volume flushes adjustment
Producer fixtures small flushing on 3 l. Adjusting on 3,5 l flushing is possible after regulation of float – see figure.
“Large” volume flushes adjustment.
Producer fixtures large flushing on 6 l. Adjusting on 9 l flushing is possible after regulation of control lever – see figure

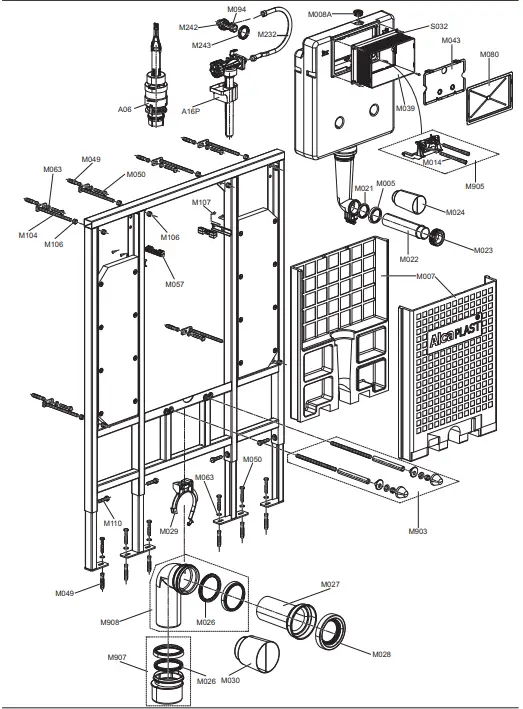

Spare parts A101-1300H

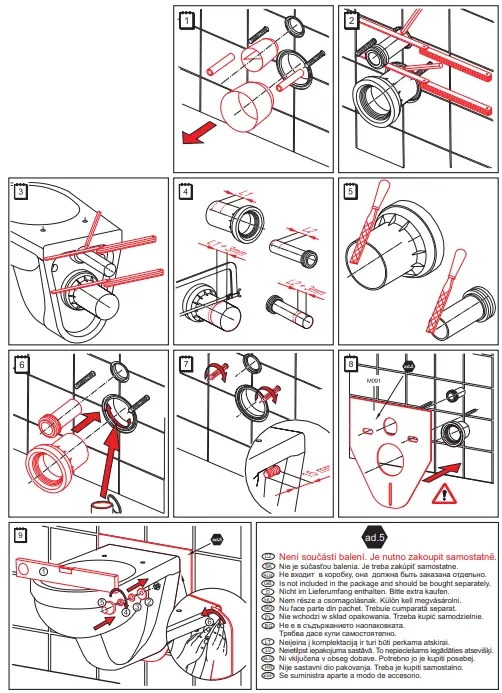

Suspended WC connection
Is not included in the package and should be bought separately.
