INSTRUCTION MANUAL

 JNAU

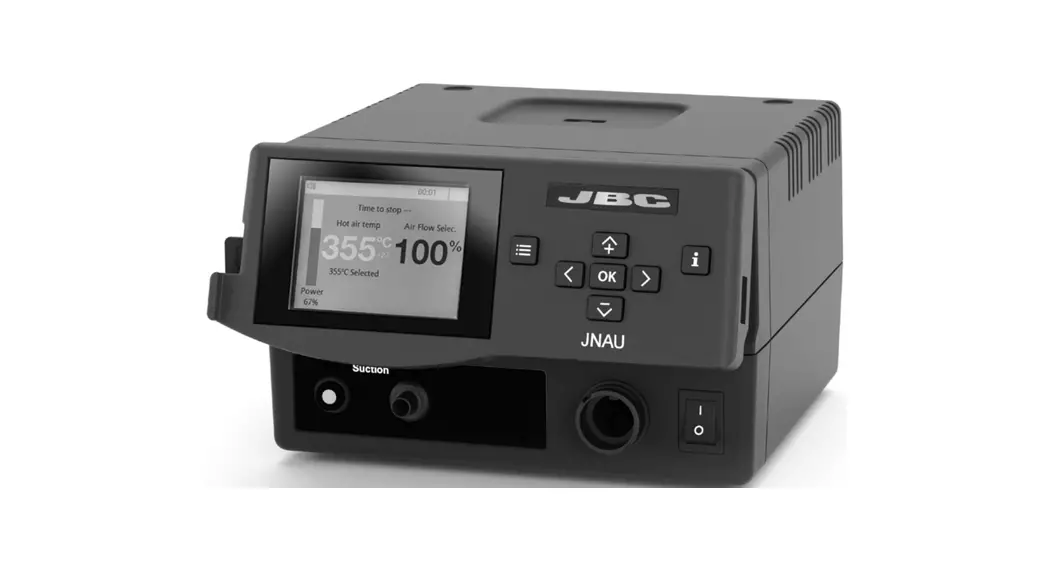

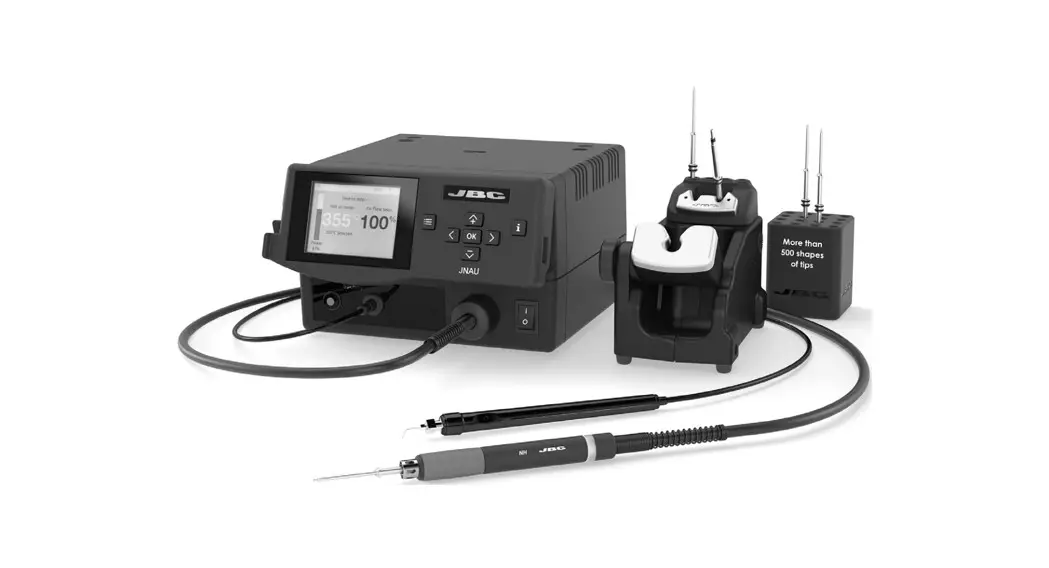

High-Precision Hot Air Control Unit
This manual corresponds to the following references:
JNAU-9A (100V)
JNAU-1A (120V )
JNAU-2A (230V)

Packing List

The following items are included:

Manual …………………………………………………..1 unit
Ref. 0027994

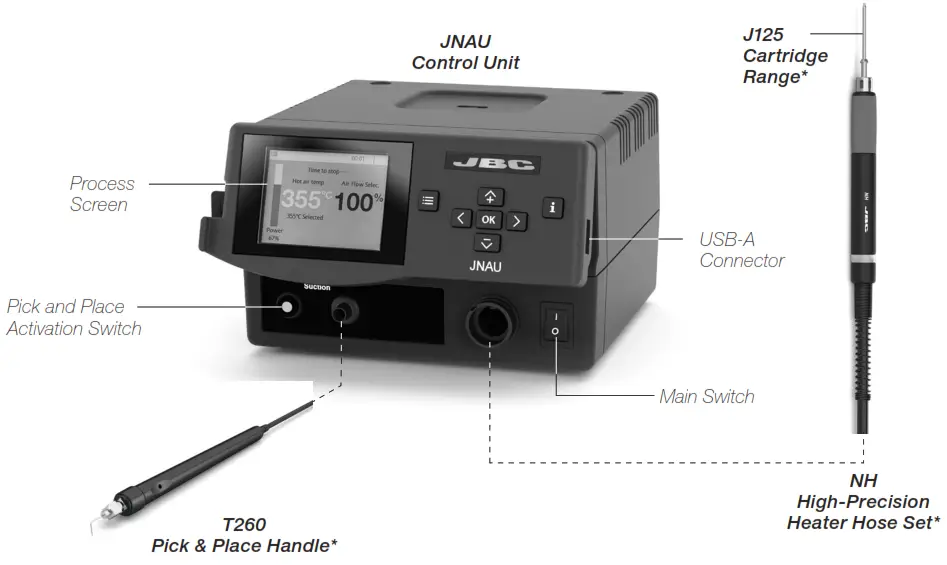

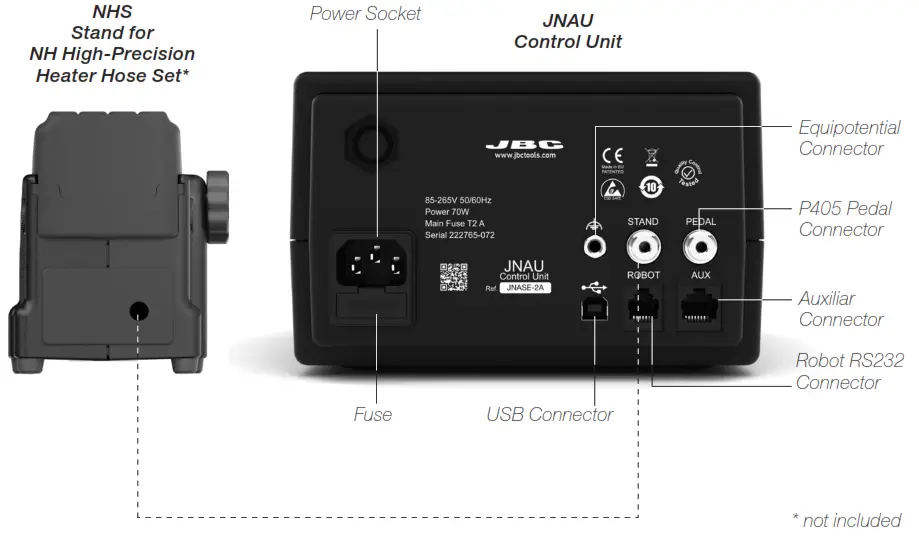

Features and Connections

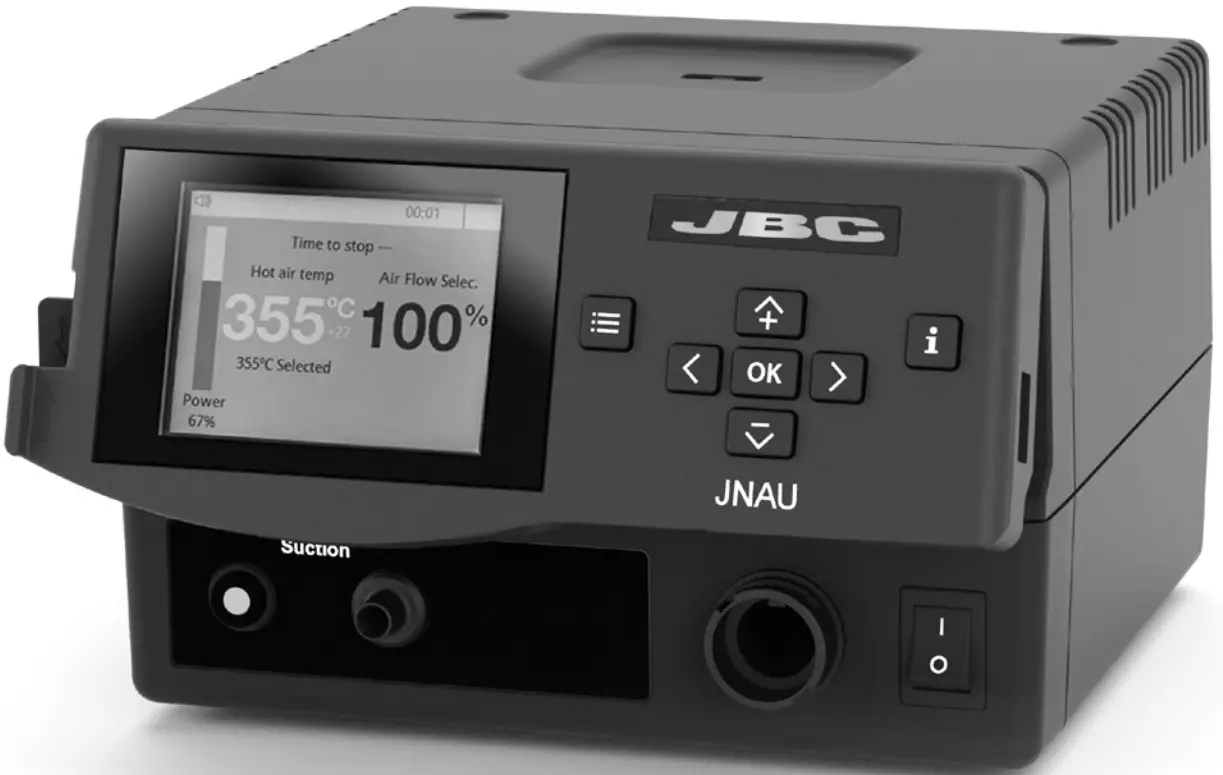

JNA Work Screen

JNA offers an intuitive user interface that provides quick access to station parameters. Default PIN: 0105

Troubleshooting

Station troubleshooting is available on the product page at www.jbctools.com

Station Update

Station Update

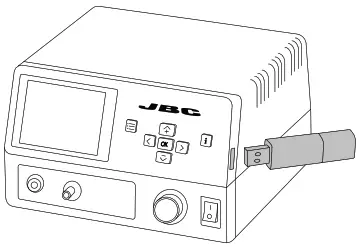

Download the JBC Update File from www.jbctools.com/software.html. Insert the USB flash drive with the downloaded file into the station. 100 mm

System Notifications

The following icons will be displayed on the screen’s status bar.

	USB flash drive is connected.		Station software update. Press INFO to start the process.
	The station is controlled by a PC		Warning. Press INFO for failure description.
	The station is controlled by a robot.		Error. Press INFO for failure description,the type of error, and how to proceed.

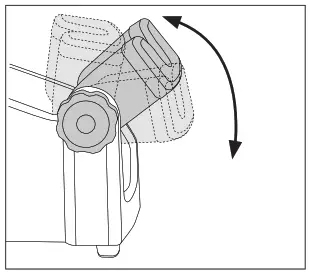

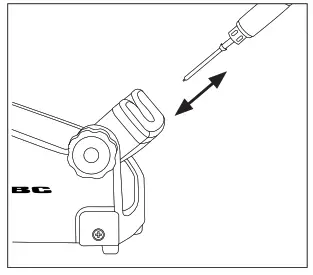

Adjustable Stand* (Ref. NA-SA)
Adjust the tool holder angle to suit your work position. NHS (NH)
Operation
The tool starts/stops blowing when lifted/ returned to the stand.

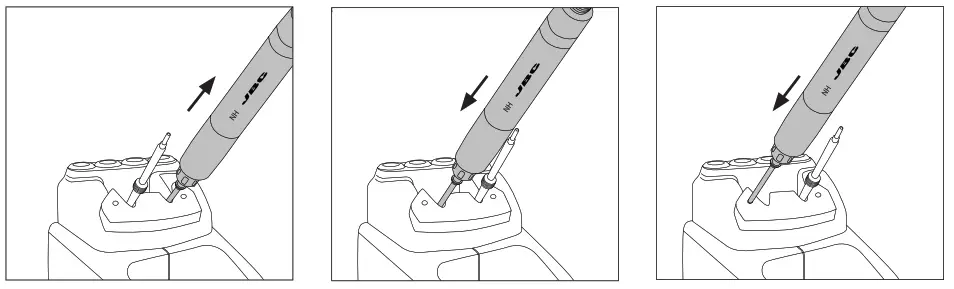

Changing Cartridge*
Save time and change the cartridge safely without switching the station off. Note: JBC offers J125 cartridges as a replacement.

1. Removing	2. Inserting	3. Fixing
Place the cartridge in the extractor and pull the handle to remove it.	Place the handpiece on top of the new cartridge and press down slightly.	Use the holes to fix the cartridge.

*Important
It is essential to insert the cartridge as far as the mark for a proper connection.
Compatible Accessories*

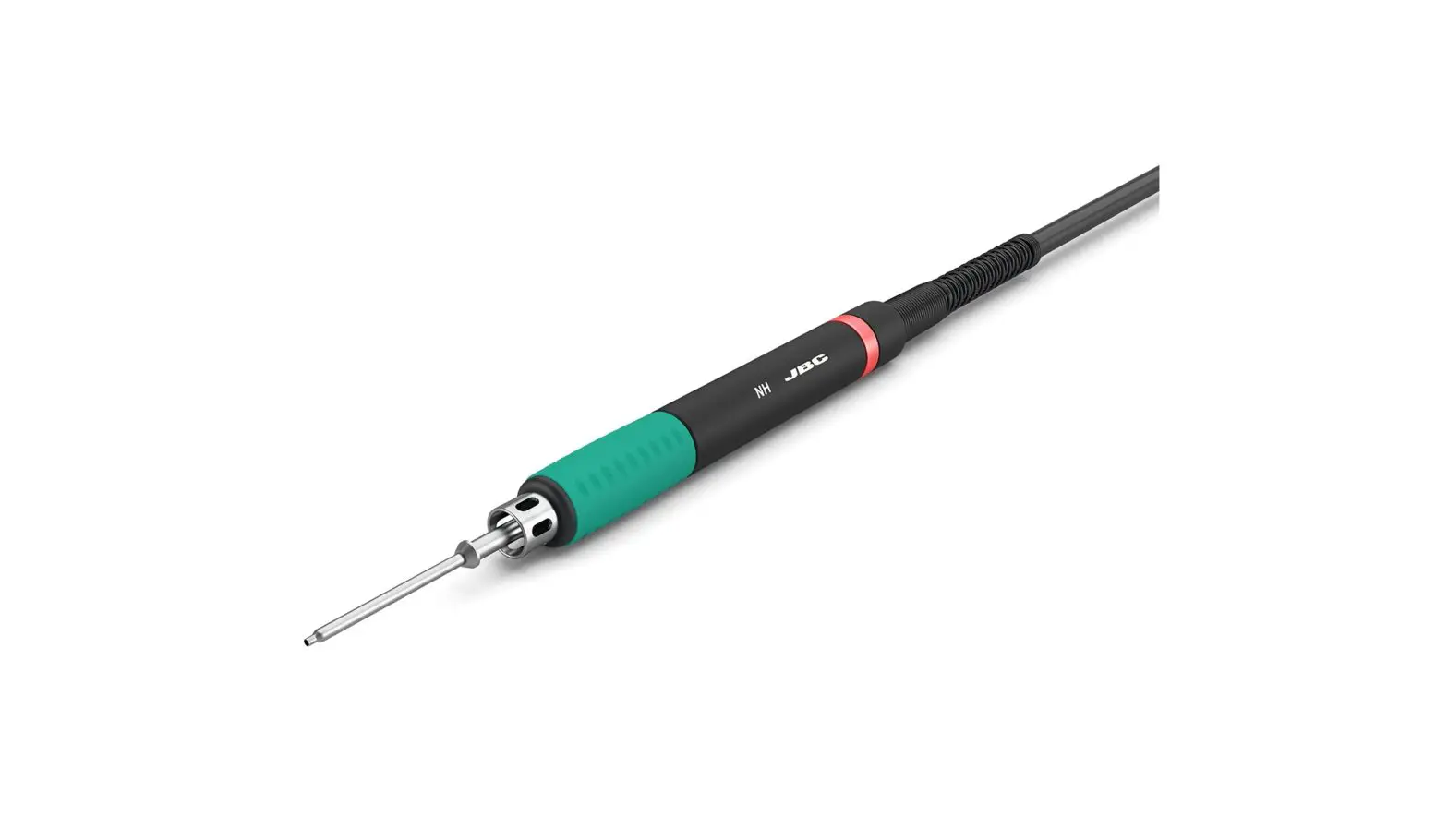

Grips for NH High Precision Heater Hose Set (Grip Ref. 0024473)
Soft foam grips ensure better manual control of the tool and greater comfort when working. Easily replace the grips for NH Heater Hose Set using the slip-on tabs.

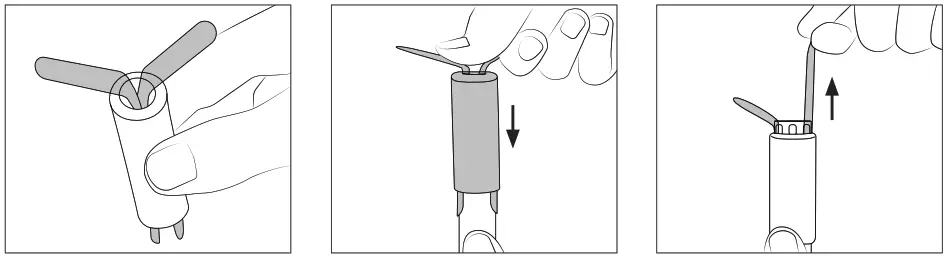

1. Inserting Tabs	2. Inserting Handle	3. Removing Tabs
Insert the slide-on tabs into the new grip.	Push the grip with the tabs onto the handle.	Hold the grip and pull them out. Use pliers if necessary.

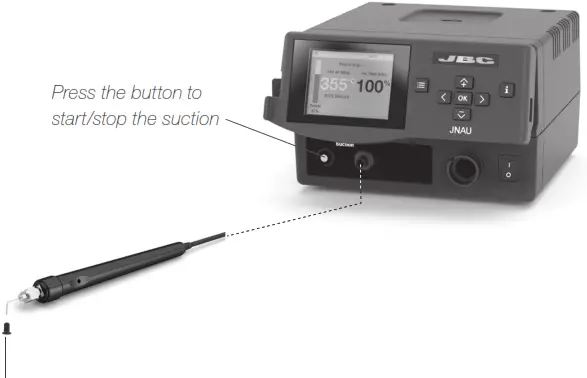

Pick & Place*
This tool helps you place and remove SMDs of any size easily thanks to the suction pump.

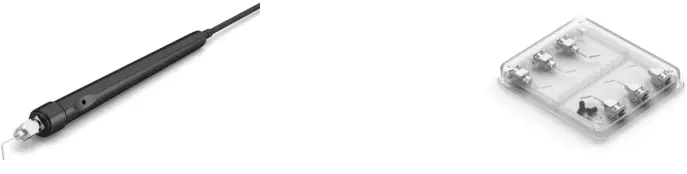

Pick & Place Ref. T260-A	Metallic Needles & Cup Set Ref. 0026490

Set includes the following needles and cups (2 units of each reference):
– Ref. 0026637: 20G, 60º, Ø0.60 mm/0,0236 in
– Ref. 0026639: 30G, 60º, Ø0.159 mm/0.00626 in
– Ref. 0026638: 25G, 60º, Ø0.26 mm/0.01023 in
– Cup Ref. 0940112, used with needle Ref. 0026637

Operation

Choose the needle that best fits the component and the suction cup if needed and starts as follows:

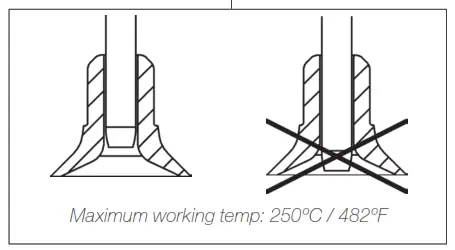

Insert the needle with the cup for a correct suction process.
Make sure the needle does not protrude from the cup.

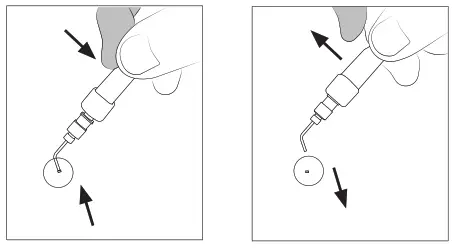

1. Suction	2. Release
Once the suction is activated, cover the pen hole with your finger and ift off the component.	Lift your finger to release the component.

Pedal P405*
By means of the pedal connection, NH High-Precision Heater Hose Set, and the T260 Pick & Place The tool can be activated and deactivated.
The pedal should be plugged in at the rear of the station into its connector, which is marked with “Pedal”, to use the Pedal functionality.

Pedal and Tool Settings

Start Mode
Select menu. Then by pressing select “and confirm with.
Select “PEDAL FUNCTION” and confirm with the OK button. Then choose between “HOT AIR” and “SUC- too”. Confirm again with the OK button.

Pedal Activation Mode
In both applications, HOT AIR and SUCTION, are 2 different pedal activation modes available.
One-Touch Mode
Press the pedal once to activate the function. Press again to stop the function.
Pressed Mode
Start the function by pressing the pedal continuously and stop the function by lifting the pedal. The function is active as long as the pedal is kept pressed.
Select “PEDAL” confirm with the OK button and choose between PRESS ONCE” and “PRESS CONT”. Confirm again with the OK button.

Recommended

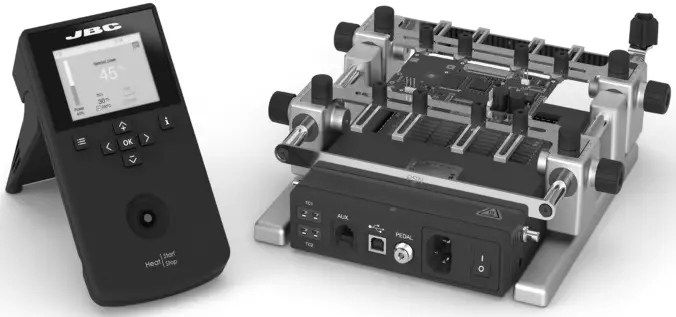

For rework jobs, the use of the preheaters* is highly recommended. Find the preheater that best suits your soldering needs at www.jbctools.com.

Applying high temperatures (350 ºC – 450 ºC / 660 ºF – 840º F) with a hot air tool for a long time can damage both, the printed circuit and the electronic components.
In addition, significant temperature differences between two points on a printed circuit board can damage the printed circuit and the electronic components due to the stresses generated by the different expansion of the material.
Preheating is a process that minimizes thermal stress and allows the soldering process to take no longer than it should.
For most rework processes JBC recommends a preheat temperature between 90 and 130 ºC / 195 and 265 ºF and not exceeding a heating rate of 4 ºC/s.
With the use of JBC preheaters, homogeneous and controlled heating is achieved within the recommended parameters.

Maintenance

Before carrying out maintenance, always switch the station off and disconnect it from the mains. Allow the equipment to cool down.
– Clean the station screen with a glass cleaner or a damp cloth.
– Use a damp cloth to clean the casing and the tool. Alcohol can only be used to clean the metal parts.

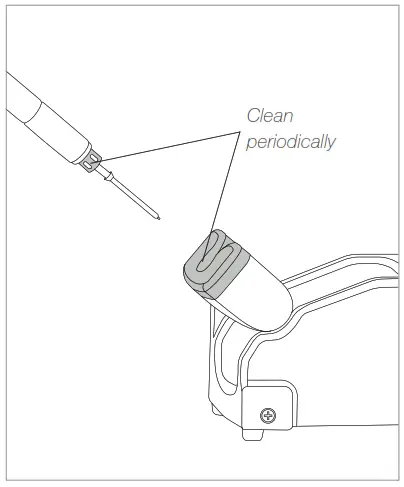

– Periodically check that the metal parts of the tool and stand are clean so that the station can detect the tool status.
– Periodically check all cables and tubes.

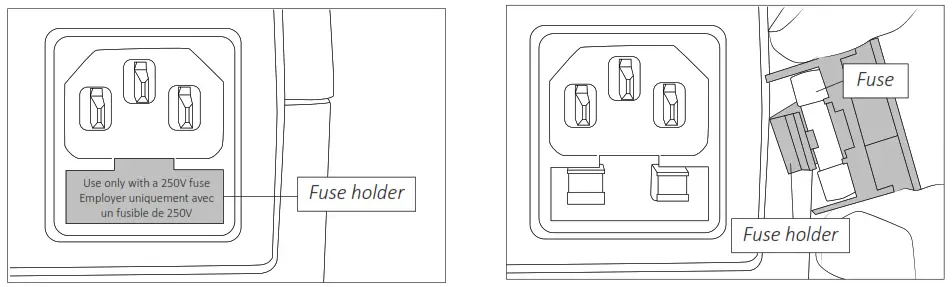

– Replace a blown fuse as follows:

1. Pull off the fuse holder and remove the fuse. If necessary use a tool to lever it off.	2. Insert the new fuse into the fuse holder and return it to the station.

– Replace any defective or damaged pieces. Use original JBC spare parts only.
– Repairs should only be performed by a JBC-authorized technical service.

Safety

It is imperative to follow safety guidelines to prevent electric shock, injury, fire, or explosion.
– Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire.
– The power cord must be plugged into approved bases. Make sure that it is properly grounded before use. When unplugging it, hold the plug, not the wire.
– Do not work on electrically live parts.
– The tool should be placed on the stand when not in use to turn off the hot air.
– The soldering tip, the metal part of the tool, and the stand may still be hot even when the station is turned off. Handle with care, including during the stand position adjustment.
– Do not leave the appliance unattended when it is on.
– Do not cover the ventilation grills. Heat can cause inflammable products to ignite.
– Avoid the contact of flux with skin or eyes to prevent irritation
– Be careful with the fumes produced when soldering.
– Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
– Utmost care must be taken with liquid tin waste which can cause burns.
– This appliance can be used by children over the age of eight and also persons with reduced physical, sensory or mental capabilities or lack of experience provided that they have been given adequate supervision or instruction concerning the use of the appliance and understand the hazards involved. Children must not play with the appliance.
– Maintenance must not be carried out by children unless supervised.
Notes ………………

Specifications

JANU
High-Precision Hot Air Control Unit
Ref.: JNAU-9A 100V 50/60Hz. Main fuse: T2A. Rated current 0.85A
Ref.: JNAU-1A 120V 50/60Hz. Main fuse: T2A. Rated current 0.85A
Ref.: JNAU-2A 230V 50/60Hz. Main fuse: T2A. Rated current 0.85A

Warranty
JBC’s 2-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor.
The warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year of JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase.
This product should not be thrown in the garbage. In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility. a manuales – color gris

 www.jbctools.com
0027994-0522
