INTRODUCTION

Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for theuser, we have complete range of DIN-mounted electricity Meters together with communication options. It is designed for highlevel performance and are safe and fast to install. The meters are available in several configurations to suite different applications, with the increasing energy cost, measuring of theelectricity consumption is getting more and more important, If you can identify where you have used you are one step closer toreducing your energy cost, Now start to make.

FUNCTIONS

• Meter case: ABS + PC anti flaming, environment friendly material
• Dimension: 75mm width, 100mm length, 75mm height
• Display: LCD display 6+1 digits
• Front panel four LEDs, ABC for voltage induction, and impulse
• Standard configuration pulse output passive ( polarity )
• Forward active energy and reverse active energy measurement
• Directly connect Maximum Current 100A
• Approved by international standard IEC62052-11, IEC62053-21

OPTIONAL FUNCTION

1. Communicate RS485 Modbus RTU protocol, baud rate: 1200~9600bps 2. Voltage (V); Current (A); Frequency ( Hz ); Power (KW); Power factor (COS)
2. Reactive power(kVar), Reactive Energy(KVarh)
3. LCD may select back light

TECHNICAL PARAMETERS

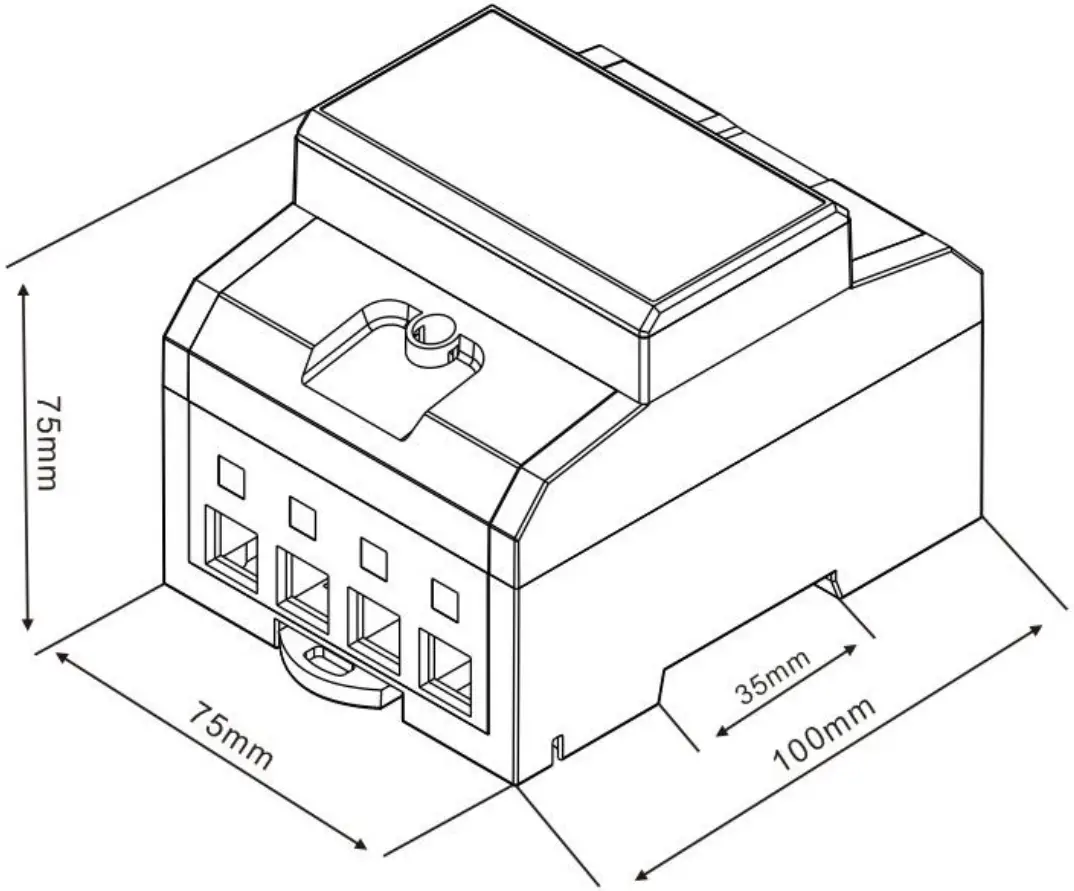

DIMENSION

WIRING DIAGRAM
