User manual

© 2021 GN Audio A/S. All rights reserved. Jabra® is a trademark of GN Audio A/S.
Made in China
MODEL: HSC140
Declaration of Conformity can be found on www.jabra.com/doc

1. Welcome…………………………………..4
2. Jabra Evolve2 30 overview………5 2.1 Included accessories
3. How to connect………………………..6
3.1 Connect to computer
3.2 Connect to mobile devices
4. How to wear……………………………..8
4.1 Wearing styles
4.2 Adjusting the headset
5. What the LEDs mean …………… 10
6. How to use …………………………… 11
6.1 Calls & music
6.2 Sidetone
6.3 Voice guidance
6.4 Multiple call handling
7. Software and firmware ………… 16
7.1 Jabra Direct
7.2 Update firmware
8. Support …………………………………. 17
8.1 FAQ
8.2 How to care for your headset

1. Welcome

Thank you for using the Jabra Evolve2 30. We hope you will enjoy it!

Jabra Evolve2 30 features

2-microphone call technology
Designed for all-day comfort
Built-in Busylight
28mm speaker for exceptional sound

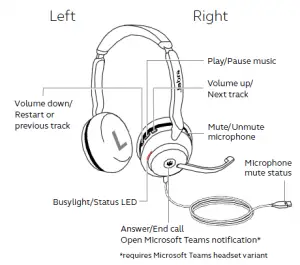

2. Jabra Evolve2 30 overview

2.1 Included accessories

Carry pouch

3. How to connect

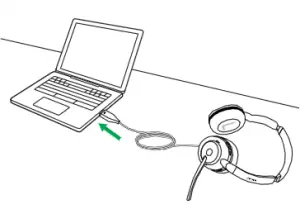

3.1 Connect to computer
Plug the Jabra Evolve2 30 into either a USB-A or USB-C port on your computer, depending on the USB variant of the headset.

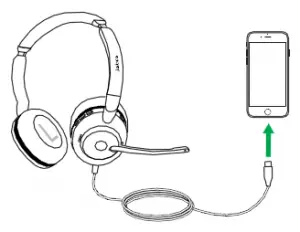

3.2 Connect to mobile devices
Plug the Jabra Evolve2 30 into a USB-C port on your mobile device. Not all USB-C devices or apps support an audio connection to the Jabra Evolve2 30.

4. How to wear

4.1 Wearing styles

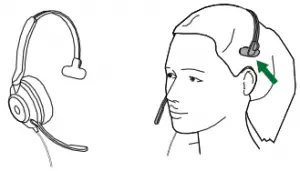

Mono variant

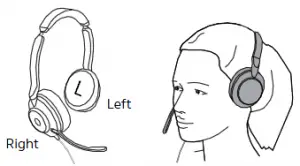

Stereo variant

4.2 Adjusting the headset

Stereo variant

Mono variant

While wearing the headset, adjust the headband so that it fits your head comfortably.
When using the microphone, it should be positioned close to your mouth.

5. What the LEDs mean

*requires Microsoft Teams headset variant
When the headset is being worn, the LEDs will turn off to avoid distracting other people. The Busylight and mute status LEDs will not turn off.

6. How to use

*requires Microsoft Teams headset variant

6.1 Calls & music

Right		Calls and music
	Answer call	Press the Multifunction button Alternatively, move the microphone boom-arm down to answer an incoming call
	End call	Press the Multifunction button
	Reject call	Double-press the Multi-function button
	Bring Microsoft Teams to foreground on computer	Press the Microsoft Teams button* (when signed into Microsoft Teams)
	Join active Microsoft Teams meeting	Press the Microsoft Teams button* (when signed into Microsoft Teams)
	View Microsoft Teams missed calls and voicemails	Press the Microsoft Teams button* (when signed into Microsoft Teams)
	Play/pause music	Press the Play/pause music button
	Raise volume	Press the Volume up button
	Next track	Press and hold (1 sec) the Volume up button
	Lower volume	Press the Volume down button
	Restart track	the Volume down button to restart the current track. Press and hold twice to play the previous track.
	Busylight on/off	Press the Volume up and Volume down buttons at the same time
	Mute/unmute microphone	Press the Mute button, when on a call. Alternatively, move the microphone boom-arm up to mute, or down to unmute.

6.2 Sidetone
Sidetone enables you to better hear your own voice when you are on a call.
Sidetone settings can be configured using Jabra Direct.

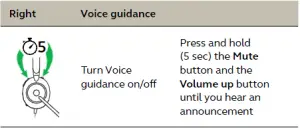

6.3 Voice guidance

Voice guidance are announcements that will guide you through set up, or will give you headset status updates (e.g. mute status).

Alternatively, use Jabra Direct to turn Voice guidance on or off.

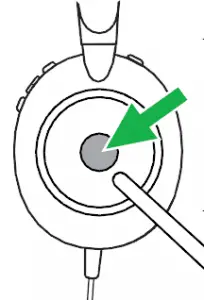

6.4 Multiple call handling
The headset can accept and handle multiple calls at the same time.

Right		Multiple call handling
	End current call and answer incoming call	Press the Multifunction button
	Put current call on hold and answer incoming call	Hold (2 secs) the Multi-function button
	Switch between held call and active call	Hold (2 secs) the Multi-function button
	Activate Cortana	Hold (2 secs) the Microsoft Teams button*
	Reject incoming call, when on a call	Double-press the Multi-function button

*requires Microsoft Teams headset variant

7. Software and firmware

7.1 Jabra Direct
Jabra Direct is computer software designed to support, manage and enable optimal functionality for Jabra devices.
Download the latest free version from jabra.com/direct
7.2 Update firmware
Firmware updates improve performance or add new functionality to Jabra devices. 1. Connect the Jabra Evolve2 30 to a computer. 2. Use Jabra Direct to check for the latest firmware updates.
