EVOLVE2 40
User manual
GN Making Life Sound Better
© 2020 GN Audio A/S. All rights reserved. Jabra® is a trademark of GN Audio A/S.
Made in China
MODEL: HSC130
Declaration of Conformity can be found on www.jabra.com/doc
Welcome
Thank you for using the Jabra Evolve2 40. We hope you will enjoy it!
Jabra Evolve2 40 features
- 3-microphone call technology
- Designed for all-day comfort
- Built-in Busylight
- 40mm speaker for exceptional sound

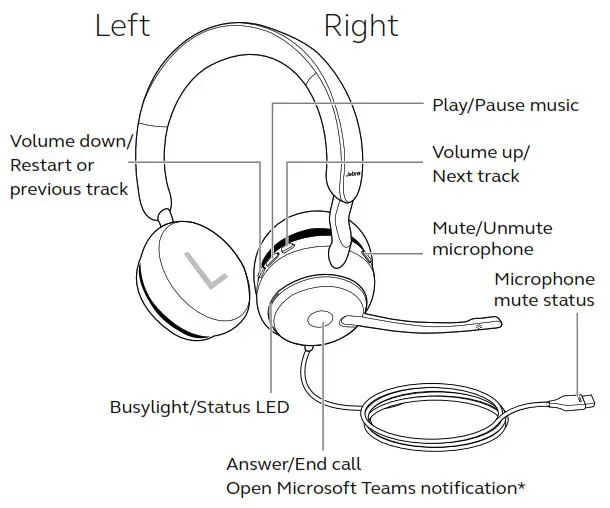

Jabra Evolve2 40 overview
2.1 Included accessories
How to connect

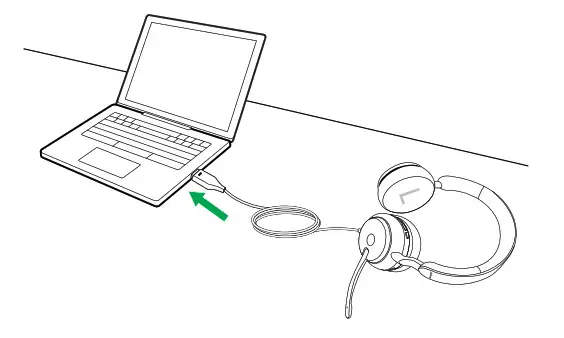

3.1 Connect to computer
Plug the Jabra Evolve2 40 into either a USB-A or USB-C port on your computer, depending on the USB variant of the headset.

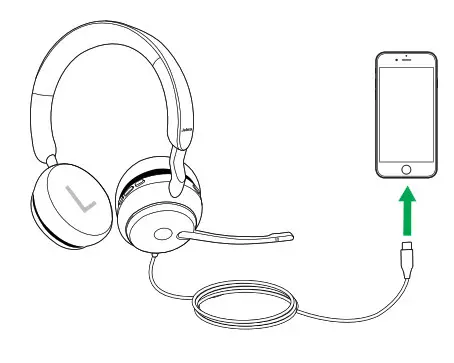

3.2 Connect to mobile devices
Plug the Jabra Evolve2 40 into a USB-C port on your mobile device. Not all USB-C devices or apps support an audio connection to the Jabra Evolve2 40.
How to wear
4.1 Wearing styles

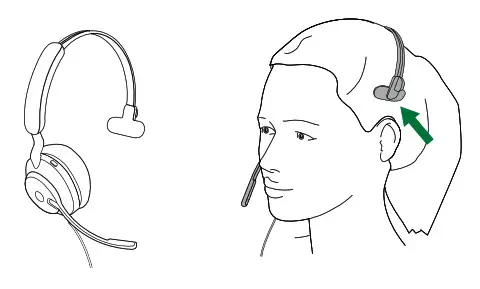

Mono variant

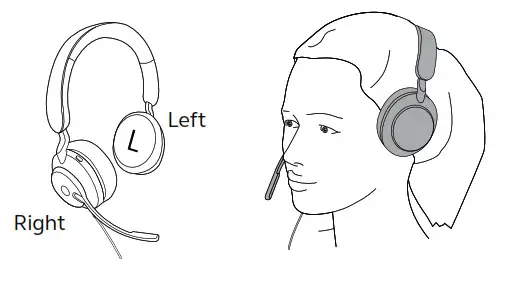

Stereo variant

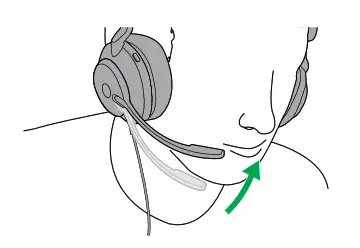

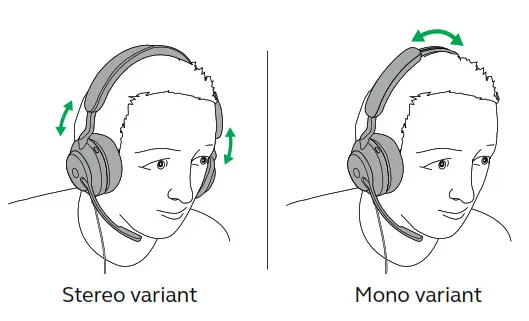

4.2 Adjusting the headset
While wearing the headset, adjust the headband so that it fits your head comfortably.
When using the microphone, it should be positioned close to your mouth.

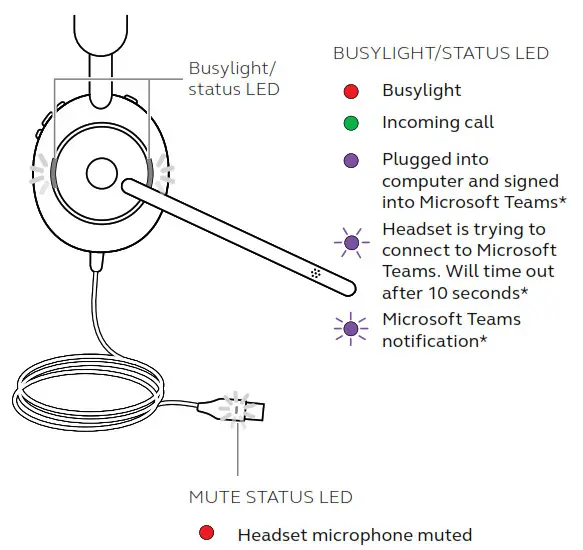

What the LEDs mean
*requires Microsoft Teams headset variant
When the headset is being worn, the LEDs will turn off to avoid distracting other people. The Busylight and mute status LEDs will not turn off.

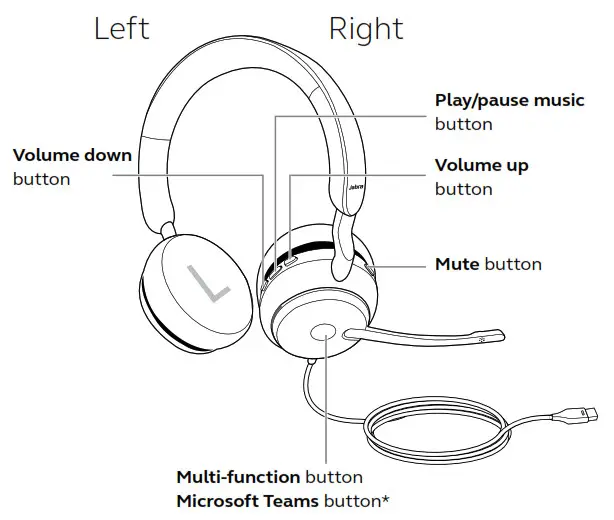

How to use
6.1 Calls & music
| Right | Calls and music | |
 | Answer call | Press the Multifunction button |
| Alternatively, move the microphone boom-arm down to answer an incoming call | ||
| End call | Press the Multifunction button | |
| Reject call | Double-press the Multi-function button | |
 | Bring Microsoft Teams to foreground on computer | Press the Microsoft Teams button* (when signed into Microsoft Teams) |
| Join active Microsoft Teams meeting | Press the Microsoft Teams button* (when signed into Microsoft Teams) | |
| View Microsoft Teams missed calls and oicemails | Press the Microsoft Teams button* (when signed into Microsoft Teams) | |
 | Play/pause music | Press the Play/pause music button |
 | Raise volume | Press the Volume up button |
| Next track | Press and hold (1 sec) the Volume up button | |
| Lower volume | Press the Volume down button |
| Restart track | Press and hold (1 sec) the Volume down button to restart the current track. Press and hold twice to play the previous track. | |
 | Busylight on/off | Press the Volume up and Volume down buttons at the same time |
 | Mute/unmute microphone | Press the Mute button, when on a call. Alternatively, move the microphone boom-arm up to mute, or down to unmute. |

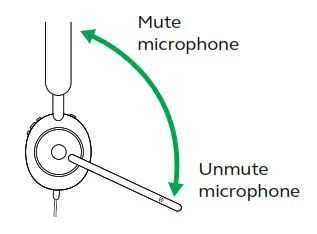

6.2 Mute/unmute using the microphone boom-arm
The headset microphone can be muted by moving the microphone boom-arm up, or unmuted by moving it down. This feature is on by default, and can be disabled using Jabra Direct.

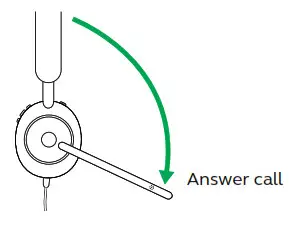

6.3 Answer call using the microphone boom-arm
An incoming call can be answered by moving the microphone boom-arm down, close to your mouth. This feature is on by default, and can be disabled using Jabra Direct.
6.4 Sidetone
Sidetone enables you to better hear your own voice when you are on a call.
Sidetone settings can be configured using Jabra Direct.
6.5 Voice guidance
Voice guidance are announcements that will guide you through set up, or will give you headset status updates (e.g. mute status).
| Right | Calls and music | |
 | Turn Voice guidance on/off | Press and hold (5 sec) the Mute button and the Volume up button until you hear an announcement |
Alternatively, use Jabra Direct to turn Voice guidance on or off.
6.6 Multiple call handling
The headset can accept and handle multiple calls at the same time.
| Right | Calls and music | |
 | End current call and answer incoming call | Press the Multifunction button |
| Put current call on hold and answer incoming call | Hold (2 secs) the Multi-function button | |
| Switch between held call and active call | Hold (2 secs) the Multi-function button | |
| Activate Cortana | Hold (2 secs) the Microsoft Teams button* | |
| Reject incoming call, when on a call | Double-press the Multi-function button | |
Software and firmware
7.1 Jabra Direct
Jabra Direct is computer software designed to support, manage and enable optimal functionality for Jabra devices.
Download the latest free version from jabra.com/direct
7.2 Update firmware
Firmware updates improve performance or add new functionality to Jabra devices.
1. Connect the Jabra Evolve2 40 to a computer.
2. Use Jabra Direct to check for the latest firmware updates.
Support
8.1 FAQ
View the FAQs on Jabra.com/help/evolve2-40.
8.2 How to care for your headset
- Always store the headset in the supplied pouch.
- Avoid storage at extreme temperatures (above 40°C/113°F or below -40°C/-40°F).
- Do not expose the headset to rain or other liquids.
Jabra Direct - Engineered to optimize and personalize your headset
Declarations of Conformity
