B099GMT4JJ 1080P MDVR Blackbox 4 Camera
User Guide
MDVR Blackbox 4 Camera
- Specifications
- Accessories

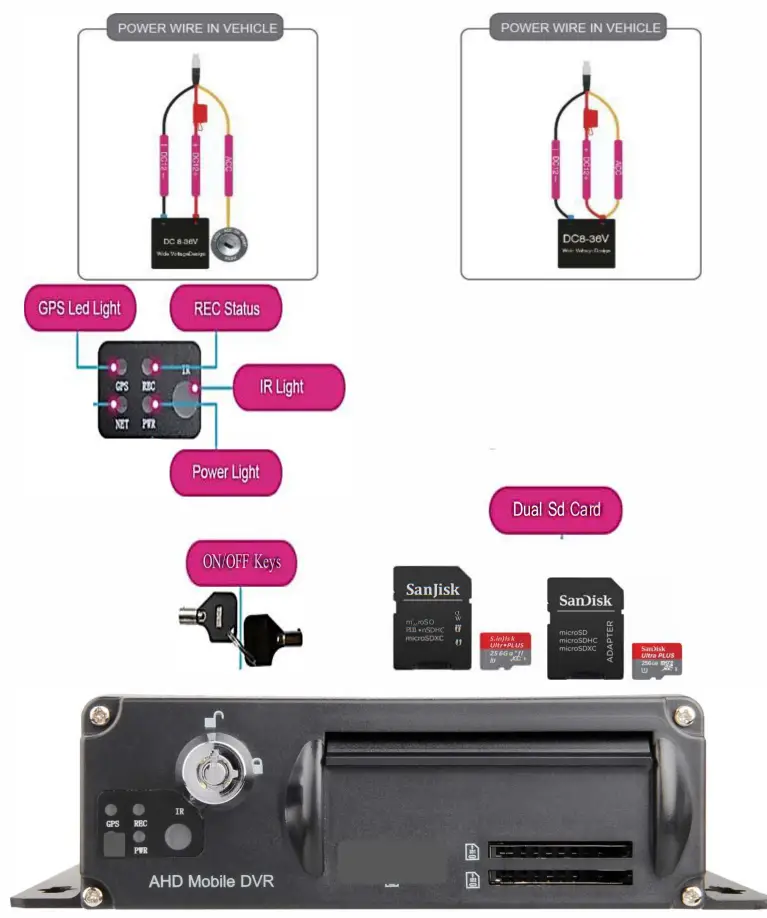

- Power Connection

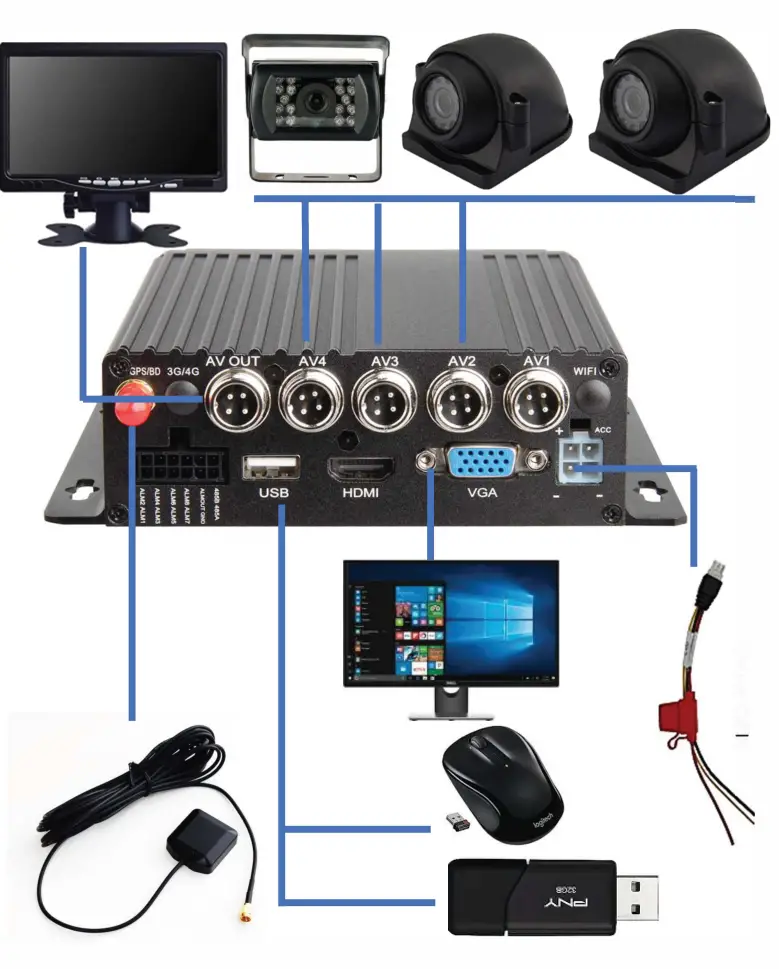

- MDVR Installation Guide
- Control Bar Introduction
- Playback Introduction
- AVI BackUP Introduction
- Motion Detection
- DST Time Setup 10.Record Setup
Specification
| Items | Parameter | Performance |
| System | Chipset | Hi3520DV300 |
| System | Linux | |
| Language | Chinese/English/Russia etc | |
| Interface | Visual GUI, Support Mouse | |
| Account Management | Admin/Sub-User management | |
| Record | Video Standard | PAL/NTSC |
| Video Input | 4-CH AHD Input | |
| Resolution | 1080N/720P | |
| Video Connection | 1-CH CVBS + 1-CH VGA Connection | |
| Image Quality | 0-7 levels adjustable (0 is the best) | |
| Recording Mode | Boot up/Manual/Schedule/Alarm Record | |
| Motion detection | Support | |
| Audio | Audio Input | 4-CH Audio input |
| Audio recording | Real-time audio and video sounds | |
| Audio | G.726 | |
| Audio Output | 1-CH Audio Output | |
| Playback | Mode | Playback by Time/File/Channel/Event |
| Playback Channel | 4-CH Local Playback | |
| Interface | USB Port | 1-CH USB 2.0 For Mouse or Upgrade 2-CH RS232 & 2-CH RS485 |
| I/O Alarm Input | 4-CH | |
| I/O Alarm Output | 4-CH | |
| Function | GPS | Time-stamped |
| WIFI Network | Optional | |
| RJ45 Internet Network | Standard | |
| Others | Pre-Recording | 0-15s |
| Post-Recording | 15s-300s | |
| G-sensor | Support | |
| Upgrade Mode | Local Upgrade by USB/SD card | |
| Storage | 2x 256GB SD Card | |
| Voltage Input | DC8-36V | |
| Temperature | -20℃ – +70℃ | |
| Dimension | 188mm*148mm*60mm | |
| Weight | 2.35KG |
Username: Admin
Password: 2020
