SPECIFICATIONS

This series supports 4CH 8MP/6MP/5MP/4MP/3MP/1080P/ 1280×1024/960P/720P high definition IP video input, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. This series integrates with 4 PoE network ports and supports 4CH IPC direct connection to NVR, simultaneous 4CH playback and 4K ultra high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

Support 4CH 8MP/6MP/5MP/4MP/3MP/1080P/1280x 1024/960P/720P/ 960H/DI/CIF IP video input
Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual/ timed/ motion/ sensor/ POS / Al recording
Playback : 4CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc. Support. POS information overlay on live view and playback
Express and flexible backup via USS, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DONS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
4 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported.
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS

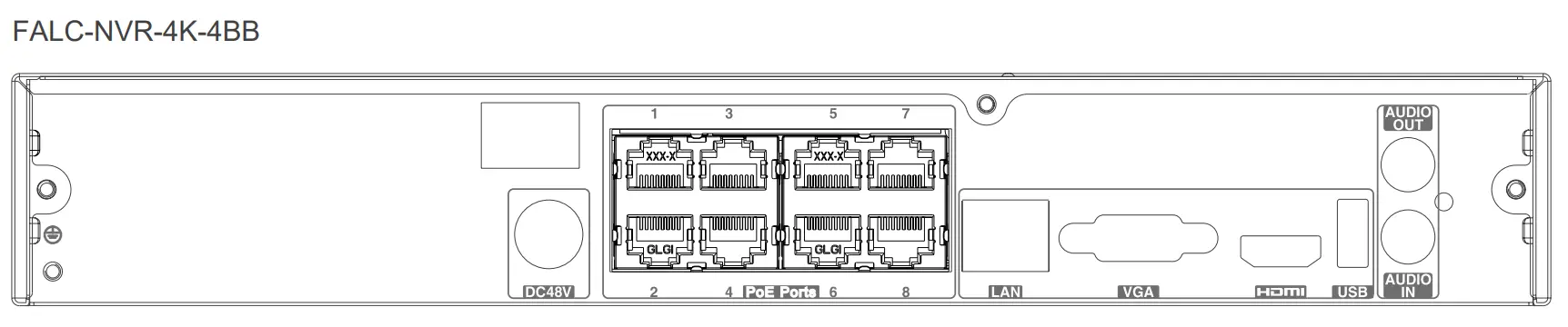

DIAGRAMS

Model		FALC-NVR-4K-4BB
System	OS	Embedded Linux
Video	Network Input	4 CH IPC input
	Network Input Resolution	8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF
	Output	HDMI × 1 : 3840 × 2160 /1920 × 1080 / 1280× 1024/ 1024 × 768 VGA : 1920 × 1080/ 1280 × 1024/ 1024 × 768
	Compression	Standard H.265 / H.264
Audio	Network Input	4 CH IPC audio input
	2-way Audio	RCA × 1
	Local Output	RCA × 1
	Compression	G.711(U/A)
Record	Record Stream	Dual stream recording
	Resolution	8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF
	Frame Rate	NTSC:30fps; PAL:25fps
Playback	Simultaneous Playback	Max. 4 CH
	Search	Time slice / time / event / tag / smart search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
	Function	Play, pause, FF, FB, digital zoom, etc.
Decoding Capability	Live View/ Playback	1CH 8MP; 4CH 1080P
Alarm	Mode	Manual, sensor, motion, exception, smart events
	Input	Supports IPC alarm input
	Output	Supports IPC alarm output
	Triggering	Record, snap, preset, e-mail, etc.
Network	Interface	RJ 45 × 1 (10/100/1000Mbps)
	Protocol	TCP / IP, PPPoE,DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc.
	Incoming/ Outgoing Bandwidth	40/40 (Mbps)
	Client Connection	Max. 10 users access

Mobile Device	OS	iOS, Andriod
Storage	HDD Interface	SATA3.0 × 1, max 8T
Backup	Local Backup	U disk, USB mobile HDD
Backup	Network Backup	Yes
Port	USB	USB 2.0 × 2
Port	Remote Controller	Optional
PoE	PoE Ports	100M RJ45 × 4
	Standards	IEEE802.3af
	Output Power	Unlimited
Others	Power Supply	DC 48V/1.25A
	Consumption	≤ 10W ( without HDD )

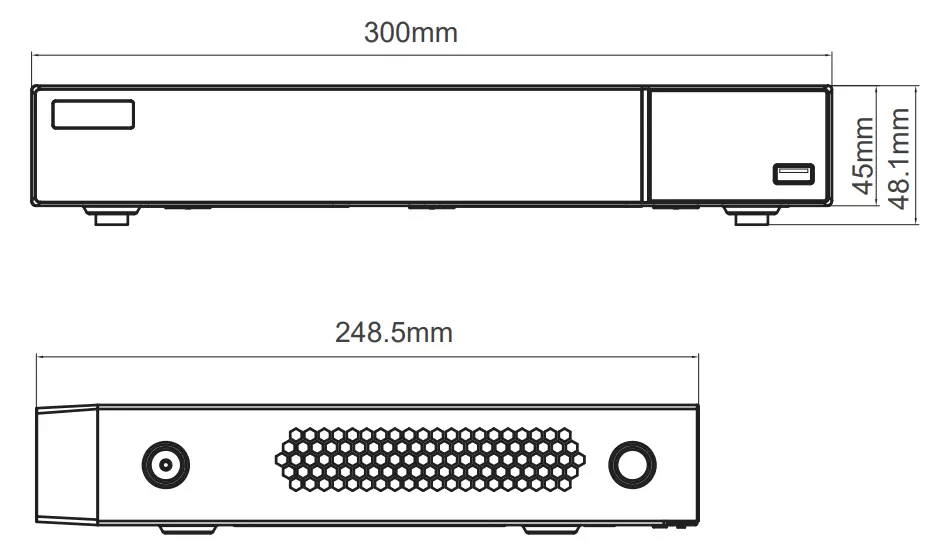

	Dimensions (mm)	300 × 249 × 45( W × D × H )
	Working Environment	-10～50 °C, 10% ～ 90% humidity
	Certificate	CE, FCC
	Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
