Lite series
DHI-NVR2104HS-P-4KS2
DHI-NVR2104HS-P-4KS2

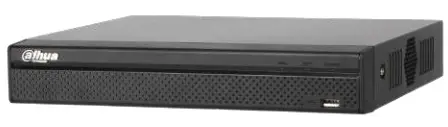

4 Channel Compact 1U 1HDD 4PoE Lite 4K H.265 Network Video Recorder
Owner’s Manual
Series Overview
Dahua NVR2000-4KS2 is capable of transmitting 8MP image. It helps to save up to 50% HDD and storage space with its H.265 decoding technology compared with H.264.
Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as home safety, grocery, warehouse, education, and financial institutions.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.
Functions
SMD Plus by Camera
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
4K Resolution
4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.
Smart Codec
With advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. ANR (Automatic Network Replenishment Technology) Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to device and then recorded in it.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access back-end devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere.
Technical Specification
System
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
Audio and Video
| IP Camera Input | 4 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
Display
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 |
| VGA: 1920×1080, 1280×1024, 1280×720 | |
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps |
| Multi-screen Display | 1/4 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
Recording
| Compression | Smart H.265+/H.265/Smart H.264+/H.264 |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc. |
| Record Rate | 80Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS) |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Video Detection and Alarm
| Trigger Events | Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), and Tampering |
| Alarm input | N/A |
| Relay Output | N/A |
Playback and Backup
| Sync Playback | 1/4 |
| Search Mode | Time /Date, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
Third-party Support
| Third-party Support | Onvif, RTSP |
Network
| Interface | 1 RJ-45 port (10/100Mbps) |
| PoE | 4 ports (IEEE802.3at/af) |
| Network Function | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP,DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
| Optical Fiber Interface | N/A |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
Storage
| Internal HDD | 1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| HDD Mode | Single |
| eSATA | N/A |
Auxiliary Interface
| USB | 2 ports (1 Rear USB2.0, 1 Front USB2.0) |
| RS232 | N/A |
| RS485 | N/A |
Electrical
| Power Supply | Single, DC48V/1.25A |
| Power Consumption | NVR: <5.3W (without HDD) |
| PoE: Max 25.5w for single port, 50w in total |
Environmental
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 86–106kpa |
| Storage Conditions | 0°C to +40°C (+32°F to +104°F), 30–85% RH |
Construction
| Dimensions(W×D×H) | Compact 1U, 260 mm × 224.9 mm × 47.6 mm (10.2″ × 8.9″ × 1.9″) |
| Net Weight | 0.8 kg (1.76 lb) (without HDD) |
| Gross Weight | 1.6 kg (3.53 lb) (without HDD) |
Certifications
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL60950-1 |
Ordering Information
| Type | Part Number | Description |
| 4 Channel NVR | DHI-NVR2104HS-P-4KS2 | 4 Channel Compact 1U 4PoE Lite 4K H.265 Network Video Recorder |
| Accessories | N/A | N/A |

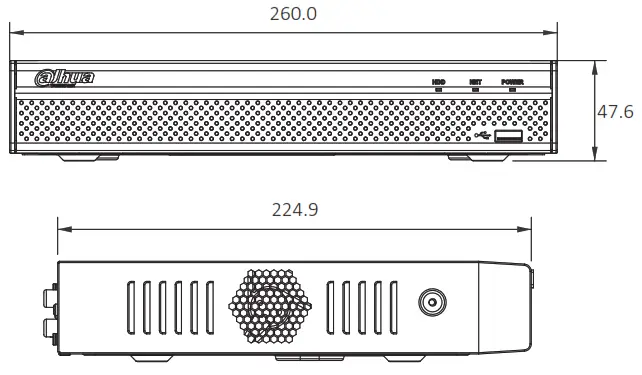

Dimensions (mm)

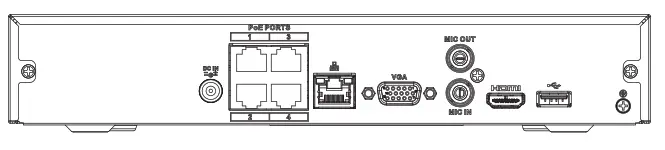

Rear Panel
www.dahuasecurity.com
Rev 001.001
© 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
