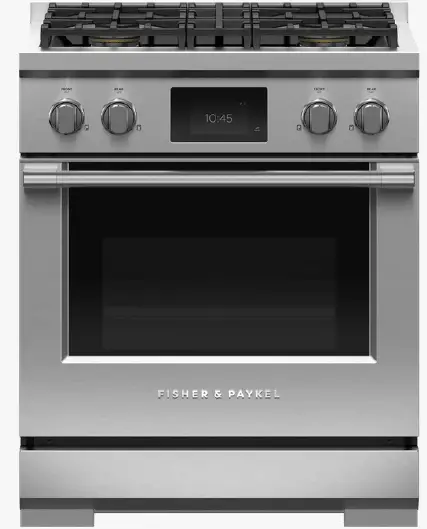

FISHER PAYKEL RDV3-304-L 30 Inch 4 Burners Dual Fuel Range
Get the best of gas and convection technology in this striking range with intuitive touchscreen and specialized cooking functions.
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- Top burner heat of 19,000 BTU, for seriously fast boiling
- 4 cu ft total oven capacity
- Beautiful LED halo-illuminated dials provide information at a glance
DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
Generous capacity
Featuring a generous total capacity of 4 cu ft, with enough room to fit a 26 lb turkey, or to cook several dishes at once.
Cooking flexibility
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Cooktop power
Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Easy to clean
The oven features a self-cleaning function and self-clean proof side racks, which don’t need to be removed when using this function.
SPECIFICATIONS
Accessories
| Adjustable feet covers | • |
| Branded coin end cap | • |
| Square handle option | AH-R30 |
Burner ratings
| Maximum burner power | 19000 BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front left | 19000BTU |
| Power front right | 15000BTU |
| Total cooktop power | 60000 BTU |
Capacity
| Shelf positions | 5 |
Cleaning
| Easy clean porcelain basepan | • |
| Pyrolytic self-clean | • |
Controls
| Dial with illuminated halo | • |
| Electric circuit | 4 wire |
| High resolution display | • |
| Metal illuminated dials | • |
| Multi-language interface | • |
| Sabbath mode | • |
Gas Requirements
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (LPG) | 11″ to 14″ W.C |
Oven Features
| Broil pan | • |
| Concealed element | • |
| Electronic oven control | • |
| Food probe Titanium coated, illuminated | • • |
Oven functions
| Air fry | • |
| Bake | • |
| Classic bake | • |
| Clean | • |
| Convection Broil | • |
| Convection bake | • |
| Number of functions | 15 |
| Pastry bake | • |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Slow cook | • |
| True convection | • |
| Warm | • |
Oven performance
| Bake power | 3500W |
| Broil | 4000 BTU |
| Main oven – True convection | 2500W |
Power requirements
| Amperage | 30A |
| Rated current | 30A |
| Supply frequency | 60Hz |
Product dimensions
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
Rangetop features
| Sealed Dual Flow Burners™ | 4 |
| Vent trim included | • |
Recommended Back Guards Ventilation
| Combustible situation | BGRV3-3030H |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional |
Safety
| ADA compliant | • |
| Full extension telescopic | • |
| SKU | 81901 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
