Date: 15.11.2022 >
QUICK REFERENCE GUIDE > RDV3-366-N

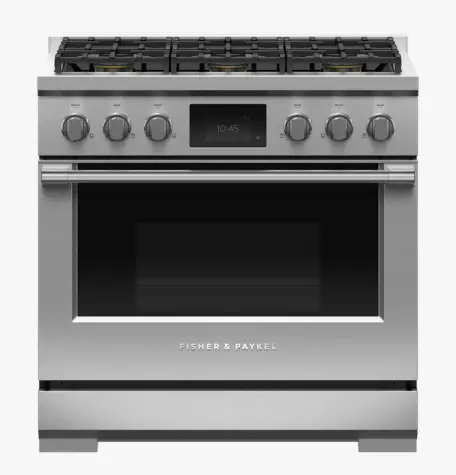

Dual Fuel Range, 36″, 6 Burners, Self-cleaning
Series 9 | Professional
Stainless Steel | Natural gas
Get the best of gas and convection technology in this striking range with intuitive touchscreen and specialized cooking functions.
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- 4.8 cu ft total oven capacity
- Beautiful LED halo-illuminated dials provide information at a glance

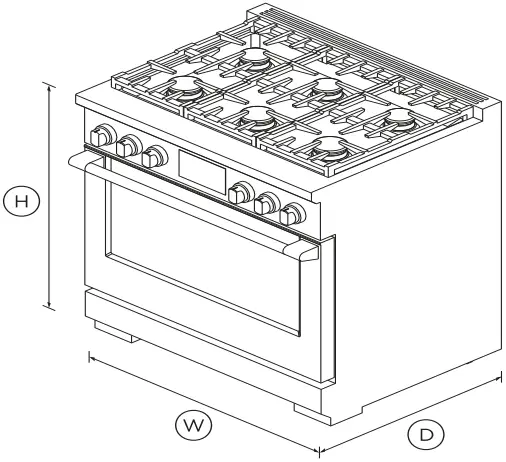

DIMENSIONS
Height 35 3/4 – 36 3/4″
Width 35 7/8″
Depth 29 1/8″
FEATURES & BENEFITS
COOK WITH CONFIDENCE
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
GENEROUS CAPACITY
Featuring a large 4.8 cu ft total capacity convection oven, with enough room to fit a 32 lb turkey and full-size baking sheets.
COOKING FLEXIBILITY
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
COOKTOP POWER
Sealed dual flow burners deliver cooktop power up to 23,500 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
DESIGN QUALITY
This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
EASY TO CLEAN
The oven features a self-cleaning function and self-clean proof side racks, which don’t need to be removed when using this function.
SPECIFICATIONS
Accessories
Adjustable feet covers •
Branded coin end cap •
Square handle option AH-R36
Burner ratings
Maximum burner power 23500 BTU
Power back centre 18500BTU
Power back left 18500BTU
Power back right 18500BTU
Power front centre 18500BTU
Power front left 23500BTU
Power front right 23500BTU
Total cooktop power 121000 BTU
Capacity
Shelf positions 5
Cleaning
Easy clean porcelain basepan •
Pyrolytic self-clean •
Controls
Dial with illuminated halo •
Electric circuit 4 wire
High resolution display •
Metal illuminated dials •
Multi-language interface •
Precise cooking with food •
Recipe and food based •
Sabbath mode •
Tilting touch screen interface •
Wi-Fi connectivity •
Gas Requirements
Fitting and pipe ½ NPT, min. ⅝”
flex line
Supply Pressure (natural gas) 6″ to 9″ W.C
Oven features
Concealed element •
Electronic oven control •
Food probe •
Full extension telescopic •
Internal light •
Large broil pan •
Self-clean proof side racks •
Titanium coated, illuminated •
Oven functions
Air fry •
Bake •
Classic bake •
Clean •
Convection Broil •
Convection bake •
Dehydrate •
Maxi Broil •
Number of functions 15
Pastry bake •
Pizza bake •
Rapid proof •
Roast •
Slow cook •
True convection •
Warm •
Oven performance
Bake power 4600W
Broil 4000 BTU
Main oven – True convection 2500W
Power requirements
Amperage 30A
Rated current 30A
Supply frequency 60Hz
Product dimensions
Depth 29 1/8″
Height 35 3/4 – 36 3/4″
Width 35 7/8″
Rangetop features
Sealed Dual Flow Burners™ 6
Sealed range top •
Vent trim included •
Recommended Back Guards Ventilation
Combustible situation BGRV3-3036H
Non combustible situation BGRV2-3036 / BGRV2-1236
Recommended hood HCB36-6_N (36″” Professional
Safety
ADA compliant •
Full extension telescopic •
SKU 81898
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
