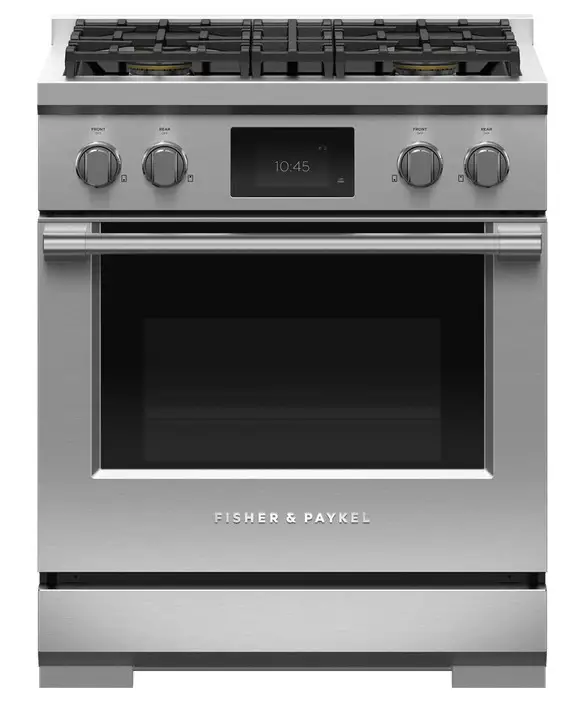

RDV3-304-N 30 Inch 4 Burners Dual Fuel Range
User Guide
Get the best of gas and convection technology in this striking range with an intuitive touchscreen and specialized cooking functions.
- Guided cooking using your touchscreen makes it simple to cook by food, function, or recipe.
- Top burner heat of 22,500 BTU, for seriously fast boiling 4 cu ft total oven capacity
- Beautiful LED halo-illuminated dials provide information at a glance

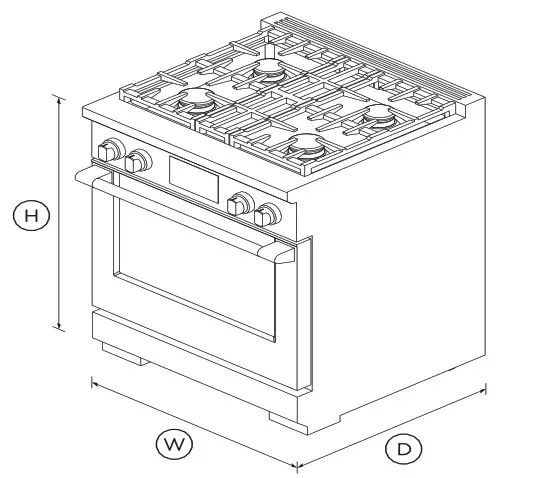

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
Generous capacity
Featuring a generous total capacity of 4 cu ft, with enough room to fit a 26 lb turkey, or to cook several dishes at once.
Cooking flexibility
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions has been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Cooktop power
Sealed dual-flow burners deliver cooktop power up to 22,500 BTU for seriously fast boiling, and precise 140°F full surface, low-temperature cooking with the gentlest of flames
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast iron trivets, and beautifully weighted, halo-illuminated dials. Each cavity features incandescent lights and full-extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Easy to clean
The oven features a self-cleaning function and self-clean-proof side racks, which don’t need to be removed when using this function.
SPECIFICATIONS
| Accessories | |
| Square handle option | AH-R30 |
| Capacity | |
| Shelf positions | 5 |
| Total capacity | 4cu ft |
| Usable capacity | 3.3cu ft |
| Cleaning | |
| Dishwasher proof trivets | • |
| Pyrolytic self-clean | • |
| Controls | |
| Dial with an illuminated halo | • |
| Electric circuit | 4 wire |
| High-resolution display | • |
| Metal illuminated dials | • |
| Multi-language interface | • |
| Precise cooking with food | • |
| Recipe and food-based | • |
| Sabbath mode | • |
| Tilting touch screen interface | • |
| Wifi connectivity | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (natural gas) | 6″ to 9″ W.C |
| Installation Dimensions | |
| Height (excluding vent trim) | 35 3/4 – 36 3/4″ |
| Oven Features | |
| Broil pan | • |
| Concealed element | • |
| Electronic oven control | • |
| Food probe | • |
| Full extension telescopic | • |
| Internal light | • |
| Self-clean-proof side racks | • |
| Titanium-coated, illuminated | • |
| Oven functions | |
| Air fry | • |
| Bake | • |
| Classic bake | • |
| Clean | • |
| Convection Broil | • |
| Convection bake | • |
| Number of functions | 15 |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Slow cook | • |
| True convection | • |
| Warm | • |
| Oven performance | |
| Bake | 3500 BTU |
| Bake power | 3500 |
| Main oven – True convection | 2500W |
| Power requirements | |
| Amperage | 30A |
| Rated current | 30A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
| Rangetop features | |
| Sealed Dual Flow Burners™ | 4 |
| Vent trim included | • |
| Rangetop Performance | |
| Power back left | 18500 BTU |
| Power back right | 18500 BTU |
| Power front right | 18500 BTU |
| Recommended Back Guards’ Ventilation | |
| Combustible situation | BGRV3-3030H |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional |
| Safety | |
| ADA compliant | • |
| Full extension telescopic | • |
| SKU | 81900 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
