Fisher Paykel Rf170adx4 N 32 Inch Freestanding French Door Refrigerator Freezer User Guide

Fisher Paykel Rf170adx4 N 32 Inch Freestanding French Door Refrigerator Freezer User Guide

FISHER PAYKEL RF170ADX4 N 32 Inch Freestanding French Door Refrigerator Freezer logo

FISHER PAYKEL RF170ADX4 N 32 Inch Freestanding French Door Refrigerator Freezer

FISHER PAYKEL RF170ADX4 N 32 Inch Freestanding French Door Refrigerator Freezer product

Designed for those who need plenty of flexible space for their cold and frozen food storage, with a stylish stainless steel finish.

  • ActiveSmart™ helps keep food fresher for longer
  • Bottom freezer drawer
  • Brushed metal handles

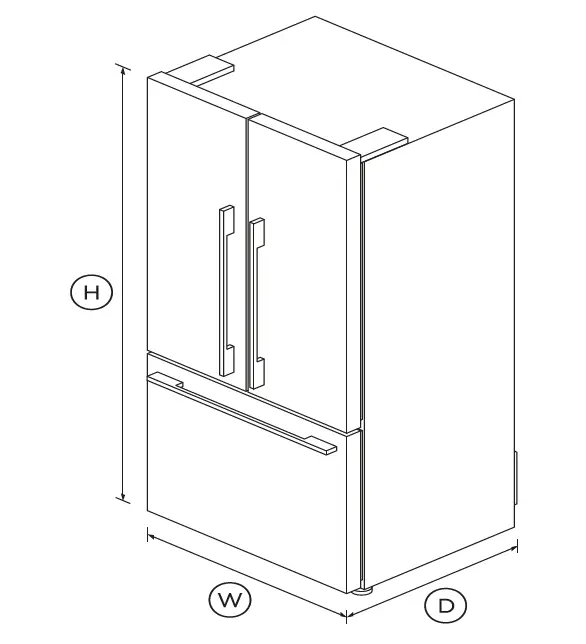

DIMENSIONS

Height67 3/4″
Width31 1/8″
Depth27 3/8″

FISHER PAYKEL RF170ADX4 N 32 Inch Freestanding French Door Refrigerator Freezer fig 1

FEATURES & BENEFITS

ActiveSmart™ Foodcare
ActiveSmart™ technology understands that the refrigerator door is the most opened in the house. It constantly adjust temperature, airflow and humidity, maintaining an optimum environment and helping keep food fresher for longer.

Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.

Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.

Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.

Complementary Design
With their premium handle styling and stainless steel finish, our refrigerators are designed to match the rest of Fisher & Paykel’s kitchen appliance family.

SPECIFICATIONS

Accessories

Contemporary round handle25376

Capacity

Volume freezer4.8cu ft
Volume refrigerator12.1cu ft

Consumption

Energy usage501kWh/year

Features

Adjustable door shelves6
Adjustable glass shelves3
Covered door shelves2
Door alarm
Fruit and vegetable bins2
SmartTouch control panel
Stackable bottle holders4

Freezer Features

Bottle chill
Fast freeze
Ice trays1

Performance

ActiveSmart™ Foodcare
Adaptive defrost
Frost free freezer
Humidity control system
Sabbath mode

Product dimensions

Depth27 3/8″
Height67 3/4″
Minimum air clearance – at rear1 3/16″
Minimum air clearance – each1 3/16″
Width31 1/8″

Warranty

Parts and labor2 years
Sealed system parts and laboradditional 3 years
SKU26283

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
