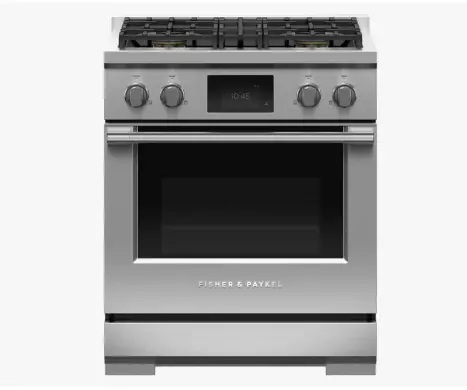

FISHER PAYKEL RDV3304L 4 Burners Dual Fuel Range

Get the best of gas and convection technology in this striking range with intuitive touchscreen and specialized cooking functions.

Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
Top burner heat of 19,000 BTU, for seriously fast boiling 4 cu ft total oven capacity
Beautiful LED halo-illuminated dials provide information at a glance

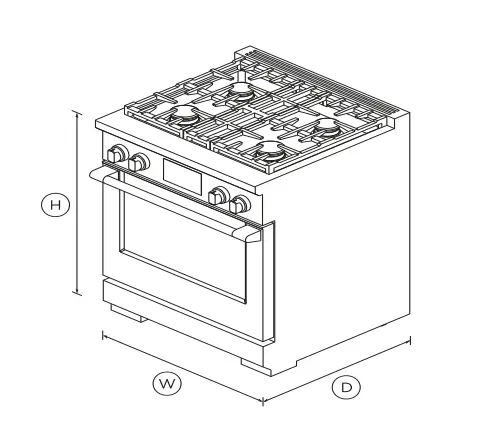

DIMENSIONS

Height	35 3/4 – 36 3/4″
Width	29 7/8″
Depth	29 1/8″

FEATURES & BENEFITS

Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.

Generous capacity
Featuring a generous total capacity of 4 cu ft, with enough room to fit a 26 lb turkey, or to cook several dishes at once.

Cooking flexibility
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.

Cooktop power
Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.

Design quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.

Easy to clean
The oven features a self-cleaning function and self-clean proof side racks, which don’t need to be removed when using this function.

SPECIFICATIONS

Accessories

Adjustable feet covers	•
Branded coin end cap	•
Square handle option	AH-R30

Capacity

Shelf positions

Cleaning

Pyrolytic self-clean

•

Controls

Dial with illuminated halo	•
Electric circuit		4 wire
High resolution display		•
Metal illuminated dials		•
Multi-language interface		•
Sabbath mode		•

Gas Requirements

Fitting and pipe	½ NPT, min. ⅝” flex line
Supply Pressure (LPG)	11″ to 14″ W.C

Oven Features

Broil pan	•
Concealed element	•
Electronic oven control	•
Food probe	•
Full extension telescopic	•
Internal light	•
Titanium coated, illuminated	•

Oven functions

Air fry
•
Bake
•
Classic bake
•
Clean
•
Convection Broil
•
Convection bake
•
Number of functions
15
Pizza bake
•
Rapid proof
•
Roast
•
Slow cook
•
True convection
•
Warm
•

Oven performance

Bake power	3500W
Broil	4000W
Main oven – True convection	2500W

Power requirements

Amperage	30A
Rated current	30A
Supply frequency	60Hz

Product dimensions

Depth	29 1/8″
Height	35 3/4 – 36 3/4″
Width	29 7/8″

Rangetop features

Sealed Dual Flow Burners™	4
Vent trim included	•

Rangetop Performance

Power back left
13000 BTU
Power back right
13000 BTU
Power front right
15000 BTU

Recommended Back Guards Ventilation

Combustible situation	BGRV3-3030H
Non combustible situation	BGRV2-3030 / BGRV2-1230
Recommended hood	HCB30-6_N (Professional

Safety

ADA compliant	•
Full extension telescopic	•

SKU

81901

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

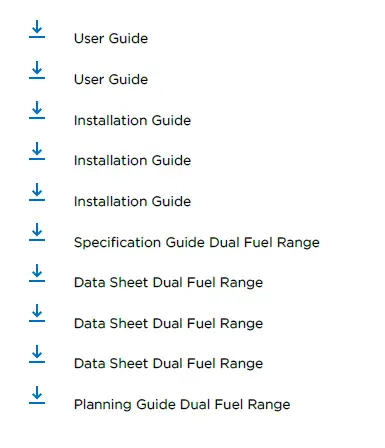

Other product downloads available at fisherpaykel.com
