QUICK REFERENCE GUIDE > RDV2-304-L_N
Dual Fuel Range, 30″, 4
Burners
Series 9 | Professional
Stainless Steel | LPG
RDV2-304-L_N Dual Fuel Range Burners
Make a statement in your kitchen with this Professional style range for powerful gas and convection cooking.
- Top burner heat of 19,000 BTU, for seriously fast boiling
- Convection oven with 4 cu ft total capacity
- Non-tip full-extension shelves for safe removal of hot dishes

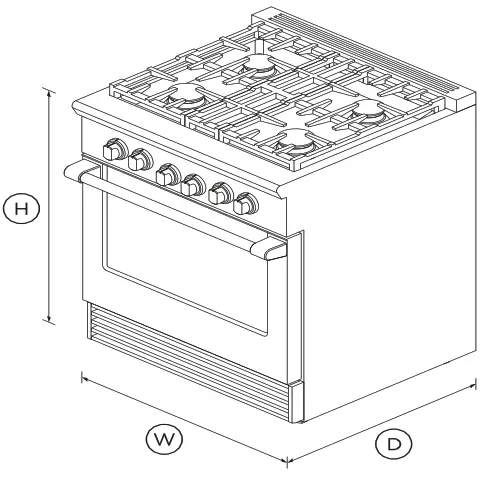

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
COOKTOP POWER
Sealed Dual Flow Burners™ deliver cooktop power up to 22,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
CONSISTENT BROILING
The Dual Fuel Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.
EASY TO CLEAN
The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
INSTANT VISIBILITY
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
COOKING FLEXIBILITY
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
SPECIFICATIONS
| Accessories (sold separately) | |
| Square handle option | AH-R30 |
| Burner ratings | |
| Maximum burner power | 19000 BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front left | 19000BTU |
| Power front right | 15000BTU |
| Total cooktop power | 60000 BTU |
| Capacity | |
| Shelf positions | 5 |
| Total capacity (main oven) | 4L |
| Cleaning | |
| Pyrolytic self-clean | • |
| Controls | |
| Electric circuit | 4 wire |
| Metal illuminated dials | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (LPG) | 11″ to 14″ W.C |
| Oven features | |
| Auto re-ignition system | • |
| Broil pan | • |
| Concealed element | • |
| Electronic oven control | • |
| Internal light | • |
| True convection | • |
| Oven functions | |
| Bake | • |
| Broil | • |
| Clean | • |
| Convection Broil | • |
| Convection bake | • |
| Number of functions | 6 |
| True convection | • |
| Oven performance | |
| Bake power | 3500 |
| Main oven – True convection | 2500W |
| Power requirements | |
| Rated current | 30A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
| Ridgetop features | |
| Sealed range top | • |
| Vent trim included | • |
| Safety | |
| Full extension telescopic | • |
| SKU | 71373 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
