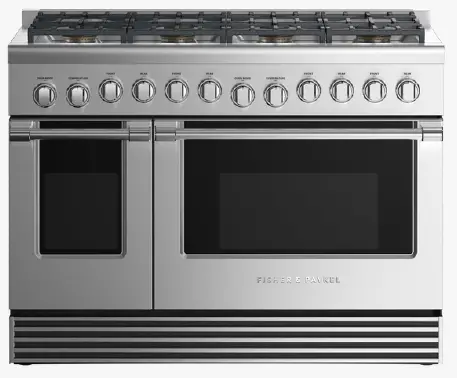

FISHER PAYKEL RDV2-488-N_N 48 Inch Dual Fuel Range 8 Burners
A striking addition to your kitchen, with eight high powered gas burners and two ovens with a combined capacity of 6.9 cu ft.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes

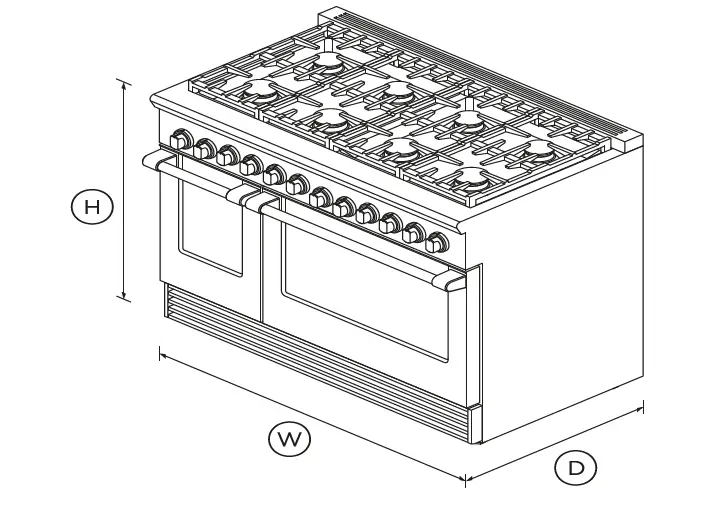

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
COOKTOP POWER
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
CONSISTENT BROILING
The Dual Fuel Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.
EASY TO CLEAN
The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
INSTANT VISIBILITY
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
COOKING FLEXIBILITY
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
SPECIFICATIONS
Accessories
| Square handle option | AH-R48 |
Burner ratings
| Maximum burner power | 23500 BTU |
| Power back centre | 18500BTU |
| Power back centre (2) | 18500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front centre | 18500BTU |
| Power front centre (2) | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 23500BTU |
| Total cooktop power | 158000 BTU |
Capacity
| Shelf positions | 5 |
| Shelf positions | 5 |
| Shelf positions | 5 |
Cleaning
| Pyrolytic self-clean | • |
Controls
| Electric circuit | 4 wire |
| Metal illuminated dials | • |
Gas Requirements
| Fitting and pipe | ½ NPT, min. ⅝” � flex line |
| Supply Pressure (natural gas) | 6″ to 9″ W.C |
Oven performance
| Bake power | 4600 |
| Broil | 3600W |
| Main oven – True convection | 2500W |
Power requirements
| Rated current | 50A |
| Supply frequency | 60Hz |
Product dimensions
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
Rangetop features
| Sealed Dual Flow Burners™ | 8 |
| Sealed range top | • |
| Vent trim included | • |
Safety
| Full extension telescopic | • |
Secondary oven features
| Broil | • |
| Concealed element | • |
| Electronic oven control | • |
| Internal light | • |
Secondary oven functions
| Bake | • |
| Number of secondary oven | 3 |
| Proof | • |
| SKU | 71366 |
Other product downloads available at fisherpaykel.com
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
