Dometic Portico Air 180 S Side Wing Canopy Instruction Manual

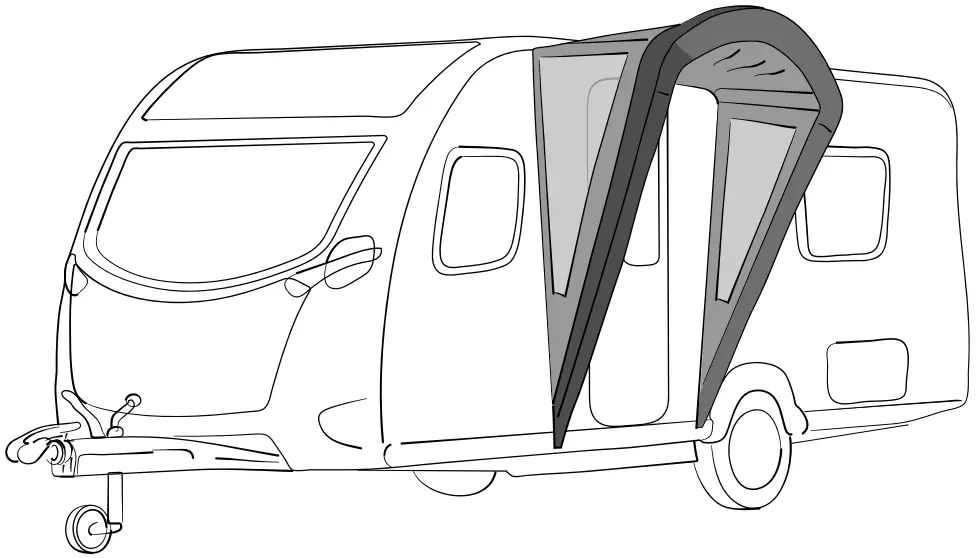

DOMETIC Portico AIR 180 S Side Wing Canopy

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com, dometic.com.

Explanation of symbols

	WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
	CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
	NOTICE! Indicates a situation that, if not avoided, can result in property damage.
	NOTE Supplementary information for operating the product.

General safety instructions

WARNING!
Failure to obey these warnings could result in death or serious injury.
Fire hazard

• Ensure you know the fire precaution arrangements on the site.
• Do not cook inside the canopy or use open flames.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.
Risk of injury

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.
• Do not allow children to play around the canopy and ensure that suitable protective footwear is worn. Guy lines are a trip hazard and pegs can be sharp.
• Cleaning and user maintenance may not be carried out by unsupervised children.
• Keep passage ways clear.

Scope of delivery

Accessories

Intended use

This canopy is suitable for:

• Light to moderate weather
• Touring

This canopy is not suitable for:

• Very strong winds or snowfall
• Seasonal pitch or commercial use

This product is only suitable for the intended purpose and application in accordance with these instructions.
This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• ncorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

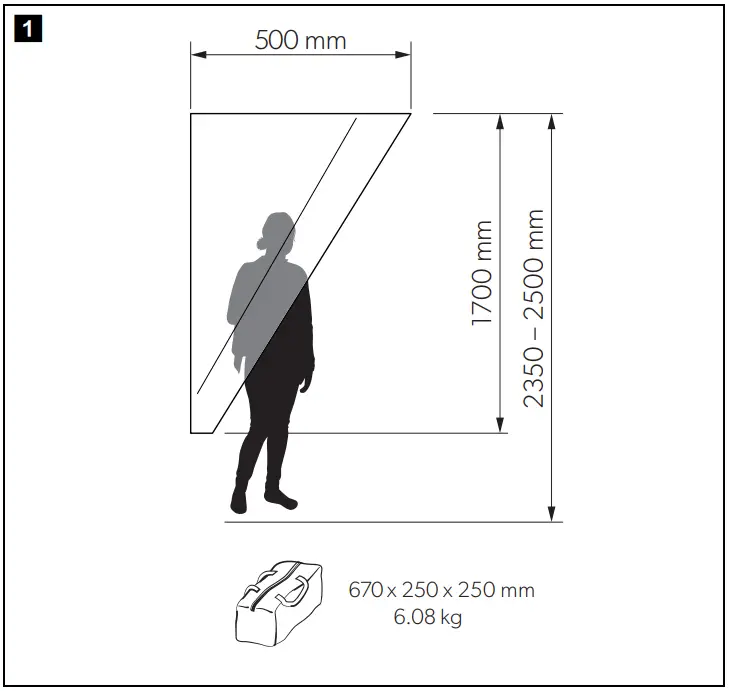

Using the canopy

CAUTION! Risk of injury and material damage Never open the zipper on the protective sleeve while an air pole is inflated. This will result in the air pole bursting.

Before first use

Familiarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete.

Choosing a site

Choose a flat site that is protected from wind:

1. Choose a shaded site to avoid UV degradation of the fabric. 2
2. Avoid pitching under trees as falling branches, resin, etc. can damage the product.

Setting up the canopy

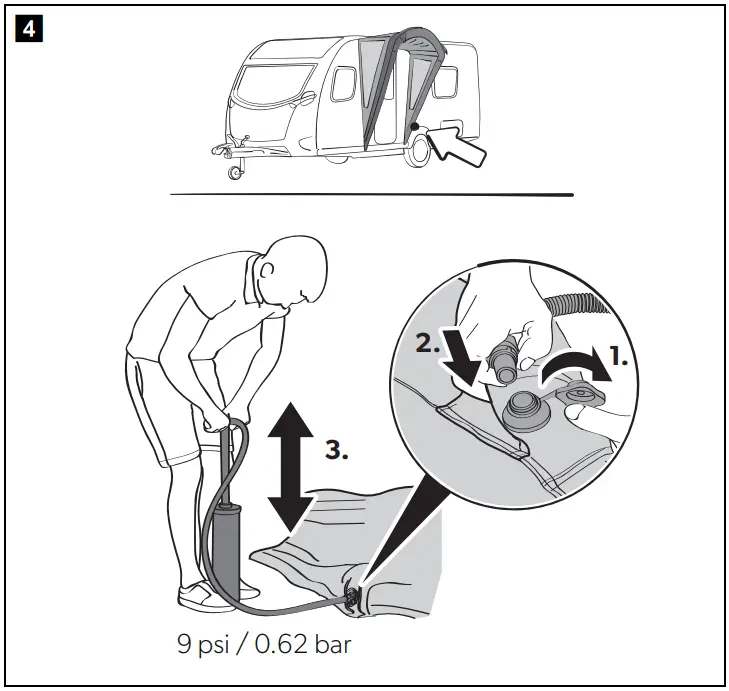

CAUTION! Risk of injury and material damage Do not use any type of compressor designed to inflate car tires. Only inflate the air poles into the green zone of the pressure gauge of the supplied hand pump (9 psi/0.62 bar).

NOTICE! Material damage Do not open or close the zippers by force. Use graphite to lubricate the zipper when it is stuck.

NOTE The canopy comes with heavy duty pegs. These will be suitable for many sites but for some types of ground special pegs will be needed. Ask your dealer. Drive the pegs at a 45° angle away from the canopy into the ground. Peg each guy line in-line with the seam it starts from.

Keep the following tips in mind while setting up the canopy:

• The figures provide a general overview of the set-up. The actual set-up will vary slightly based on the model of canopy.
• Get help. The set-up is easier with more people.
• Peg the guy lines so that the canopy is under tension without distorting the shape.
• Check the guy lines from time to time to ensure adequate tension, if necessary use the runners to adjust.

Set up the canopy as follows:

1. To protect the canopy from dirt and damage, lay down a groundsheet or footprint before unpacking.
2. Unpack the canopy.
3. Separate and identify the different components.

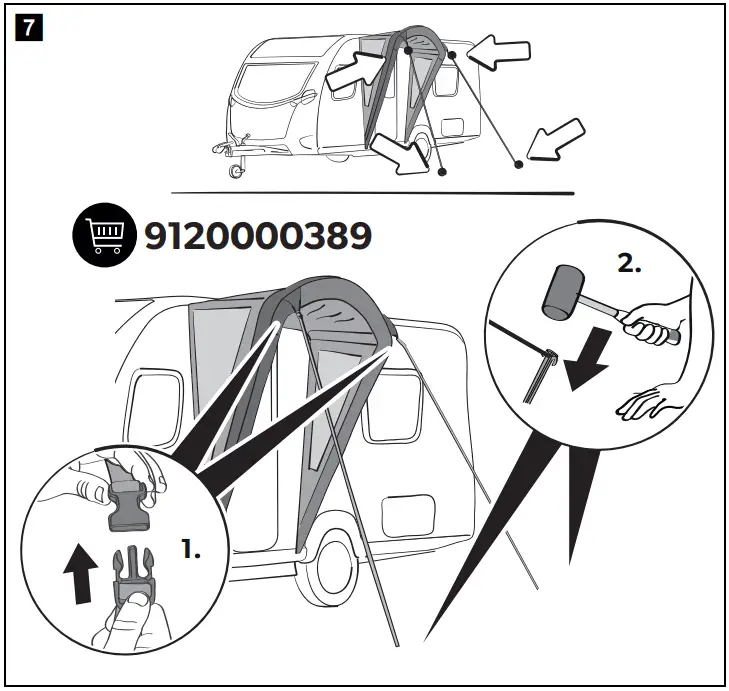

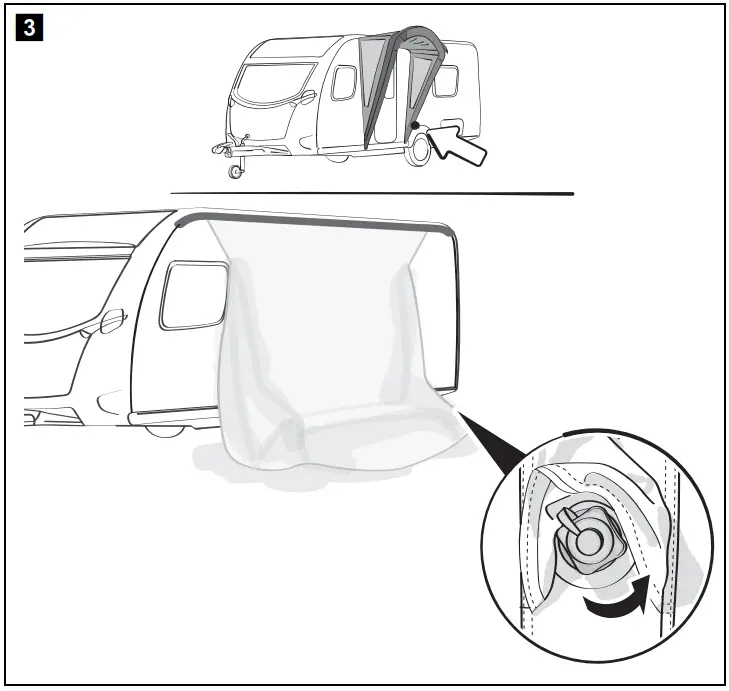

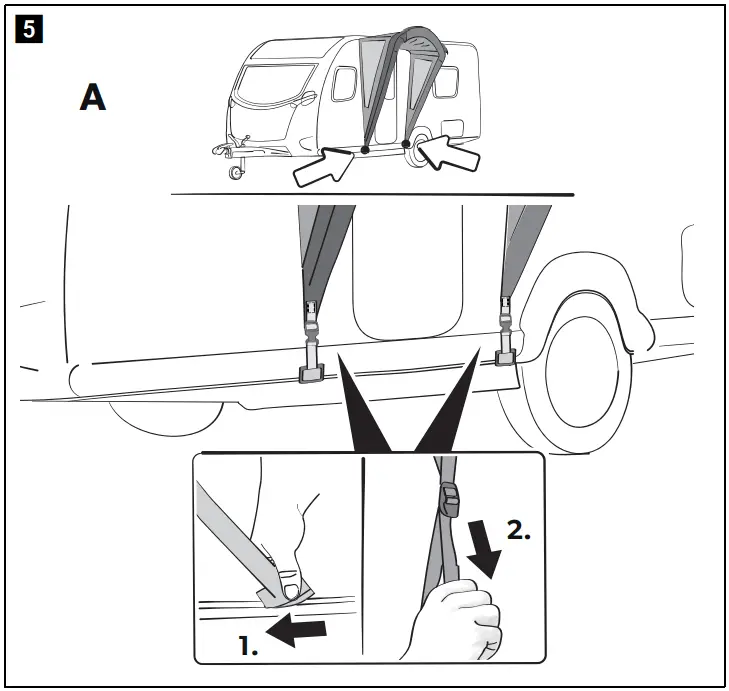

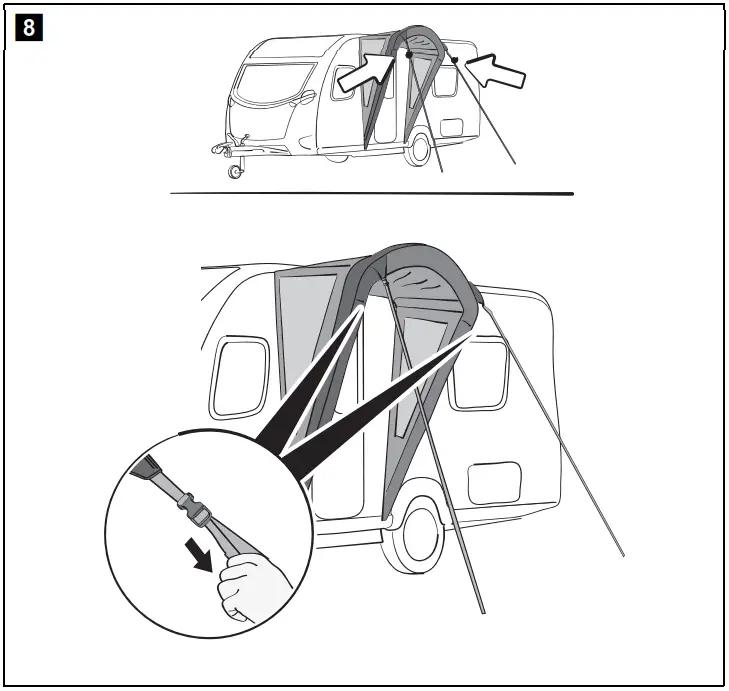

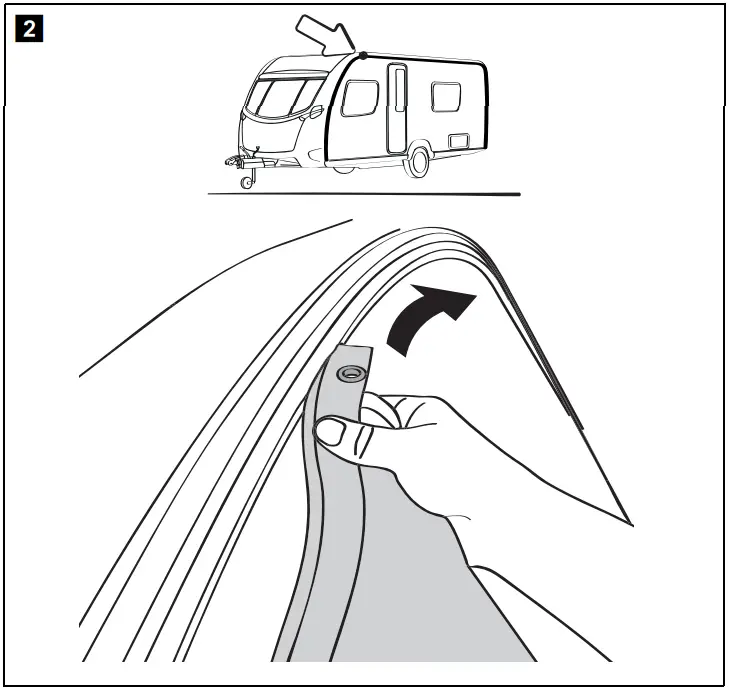

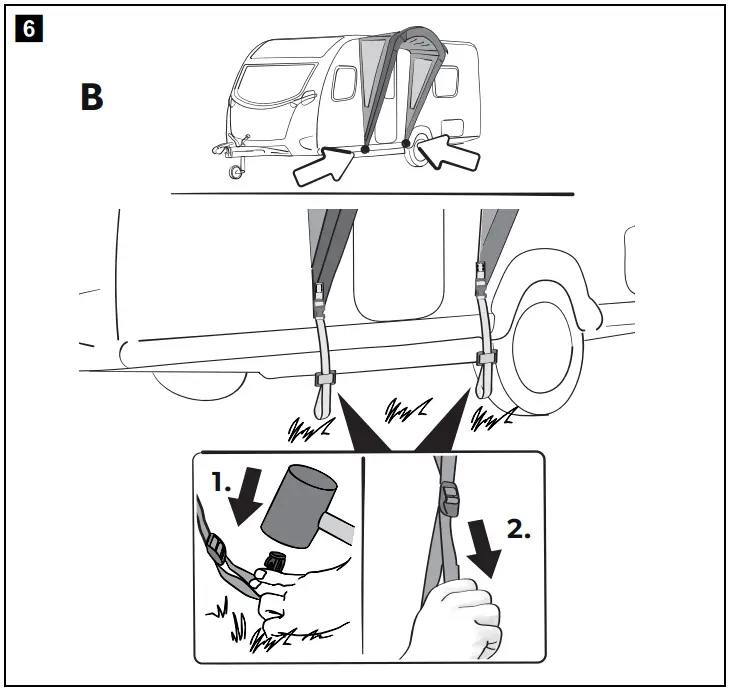

4. Proceed as shown to set up the canopy (fig.2 to fig.9).









Dismantling the canopy

NOTICE! Damage hazard Do not use force when dismantling the canopy. Otherwise you might damage any material.

1. Remove any dirt on the outside.
2. Remove all pegs.
3. Remove all lines and straps.
4. Open the valves on each pole.
5. Wait until most of the air has been expelled.
6. Unzip the canopy.
7. Fold/roll the canopy towards the valves to expel more air.
8. When deflated, roll the canopy to fit into the carry bag.
9. Ensure that all parts are clean before packing them into the carry bag.
10. If the canopy is wet or damp, dry fully as soon as possible.

Storing the canopy

NOTE Fully set up the canopy for cleaning. Choose a sunny day for cleaning to ensure the material will dry thoroughly.

1. Clean the canopy.
2. Air fully and ensure the canopy is totally dry before packing away.
3. Store in a well ventilated dry place.

Cleaning and maintenance

NOTICE! Damage hazard Do not use sharp or hard objects or cleaning agents for cleaning. Do not use alcohol based materials, chemicals, soap and detergents for cleaning. Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material.

1. If necessary, clean the product with clean water and a soft brush.
2. Apply impregnation against water and UV radiation before each trip.

Condensation

All canopies suffer from internal condensation if one or more of the following conditions apply:

• High air humidity
• High ground moistur
• A drop in temperature

Severe condensation can run down the inside of the roof and drip off ties, tapes and other internal fittings and can be mistaken for leaking.

• Increase ventilation by opening doors and/or windows.
• Ensure that the material is not permanently damp. If necessary, dry it completely to avoid mold growth.

Troubleshooting

NOTE During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process. A fully equipped spare parts kit should include: – Waterproofer – Repair tape and repair solution – Silicone spray for the zippers – Spare pegs

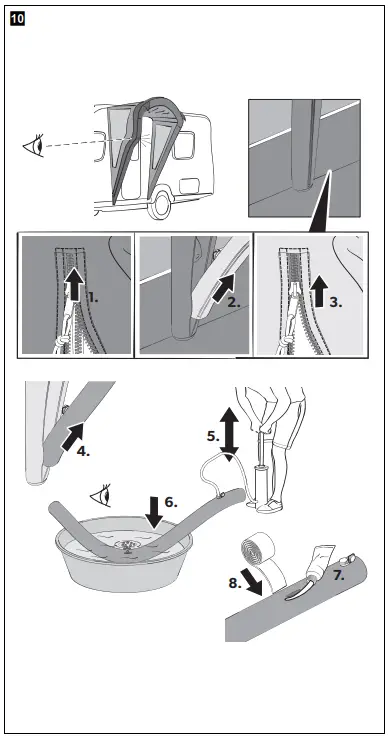

Repairing a puncture in the air pole

If the air pole loses air, proceed as follows:

1. Unzip the outer sleeve holding the air pole.
2. If installed, close isolation valves.
3. Remove the air pole.
4. Deflate the air pole.
5. Unzip the protective sleeve to expose the inflatable tube.
6. Blow some air into the inflatable tube.
7. Submerge the tube in water.
8. Locate the puncture.
9. Use repair tape and repair solution to seal the hole.
10. Zip the inflatable tube back into the protective sleeve.
11. Zip the air pole back into the outer sleeve.

• Also observe the information given in fig.10, page 4.


Disposal

• Place the packaging material in the appropriate recycling waste bins wherever possible.
• Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer’s branch in your country (see dometic.com/dealer).
For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing dat
• A reason for the claim or description of the fault

Note that self-repair or non-professional repair can have safety consequences and might void the warranty.

The warranty covers manufacturing defects, materials and parts. The warranty does not cover fading of the cover and wear and tear due to UV radiation, misuse, accidental damage, storm damage, or permanent, semi-permanent or commercial use. It does not cover any resulting damage. Please contact your dealer for claims. This does not affect your statutory rights.
