DOMETIC Club Deluxe AIR Pro DA Awning Tent

Introduction

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com, dometic.com.

Explanation of symbols

	DANGER! Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
	WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
	CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
	NOTICE! Indicates a situation that, if not avoided, can result in property damage.
	NOTE Supplementary information for operating the product.

Safety instructions

DANGER! Failure to obey this instruction will cause death or serious injury. Hazard of carbon monoxide poisoning Never use a fuel-burning appliance such as barbecues or gas heaters inside the awning tent. The burning process produces carbon monoxide which accumulates inside the awning tent as there is no flue.

WARNING! Failure to obey these warnings could result in death or serious injury. Fire hazard Ensure you know the fire precaution arrangements on the site. Do not cook inside the awning tent or use open flames. Beware of suffocation Ensure ventilation openings are open all the time to avoid suffocation.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of injury This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety. Do not allow children to play around the awning tent and ensure that suitable protective footwear is worn. Guy lines are a trip hazard and pegs can be sharp. Cleaning and user maintenance may not be carried out by unsupervised children. Keep passage ways clear.

Scope of delivery

Accessories (optional)

Intended use

This awning tent is suitable for:

• Campervans
• Light to moderate weather
• Touring
• This awning tent is not suitable for:
• Very strong winds or snowfall
• Seasonal pitch or commercial use

This product is only suitable for the intended purpose and application in accordance with these instructions.
This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dome tic reserves the right to change product appearance and product specifications.

Using the awning tent

CAUTION! Risk of injury and material damage Never open the zipper on the protective sleeve while an air pole is inflated. This will result in the air pole bursting.

Before first use

Familiarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete.

Choosing a site

Choose a flat site that is protected from wind:

1. If necessary, use a windbreak.
2. Choose a shaded site to avoid UV degradation of the fabric
3. Avoid pitching under trees as falling branches, resin, etc. can damage the product.
4. Clear the site of sharp stones and debris to avoid damaging the groundsheet.
5. Set up the product with the doors facing away from the wind.

Setting up the awning tent

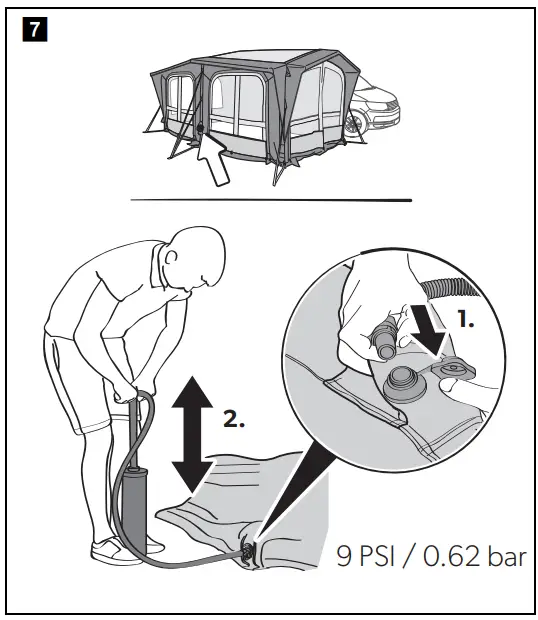

CAUTION! Risk of injury and material damage Do not use any type of compressor designed to inflate car tires. Only inflate the air poles into the green zone of the pressure gauge of the supplied hand pump (9 psi/0.62 bar).

NOTICE! Material damage Do not open or close the zippers by force. If a wind-out awning is used to attach the awning tent, support the wind-out awning while working to avoid putting too much stress on it. After attaching the awning tent, rewind the wind-out awning fully back into its housing.

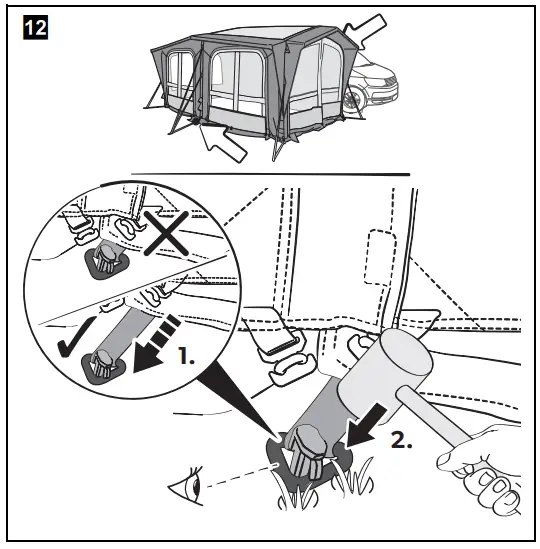

NOTE The awning tent comes with heavy duty pegs. These will be suitable for many sites but for some types of ground special pegs will be needed. Ask your dealer. Drive the pegs at a 45° angle away from the awning tent into the ground Peg each guy line in-line with the seam it starts from.

Keep the following tips in mind while setting up the awning tent:

• The figures provide a general overview of the set-up. The actual set-up will vary slightly based on the model of awning tent.
• Get help. The set-up is easier with more people.
• After standing the awning tent upright, check the corner pegs and repeg if necessary. The groundsheet on the inside should be taut and in a rectangular shape.
• Peg the guy lines so that the awning tent is under tension without distorting the shape.
• If available, attach the storm straps.
• Check the guy lines from time to time to ensure adequate tension, if necessary use the runners to adjust.

Set up the awning tent as follows:

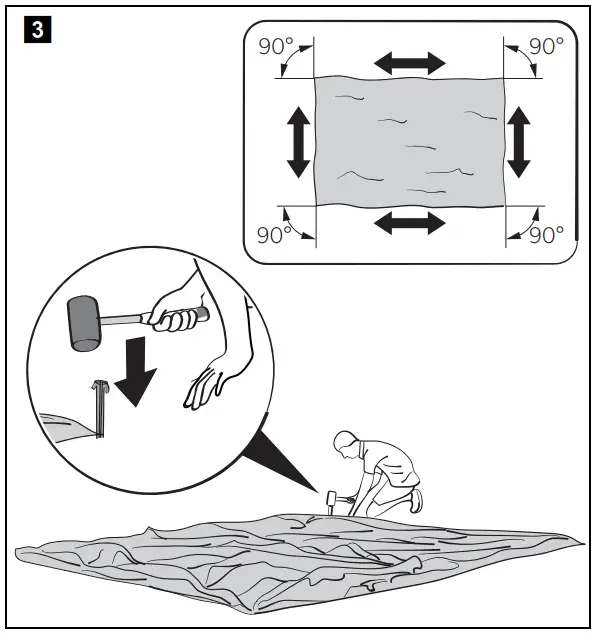

1. To protect the awning tent from dirt and damage, lay down a groundsheet or footprint before unpacking.
2. Unpack the awning tent.
3. Separate and identify the different components.

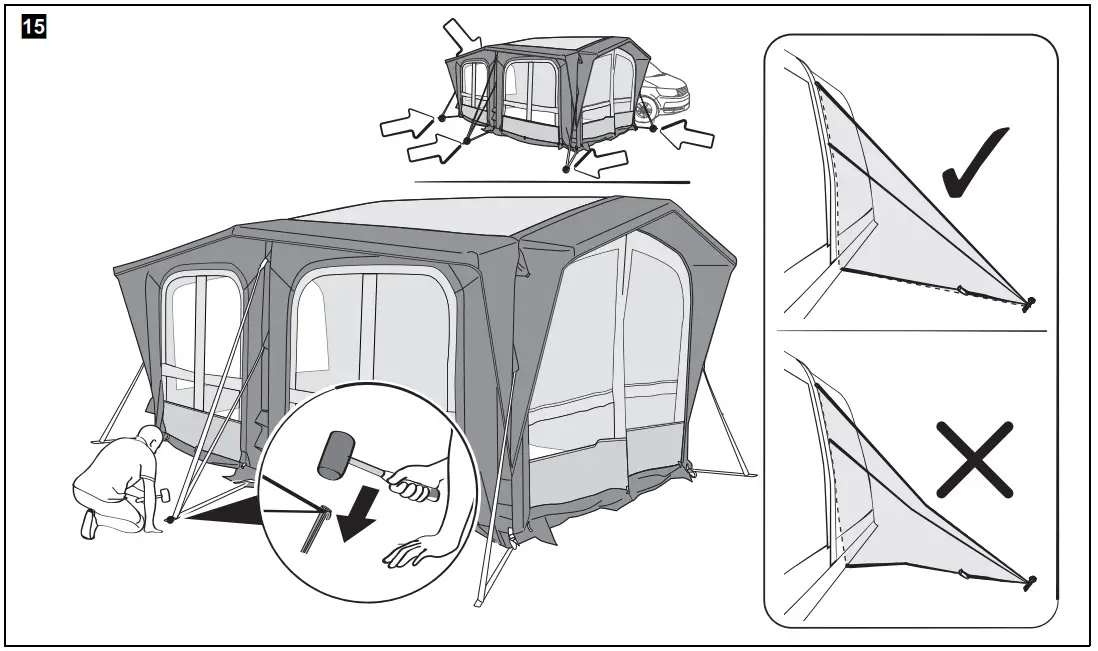

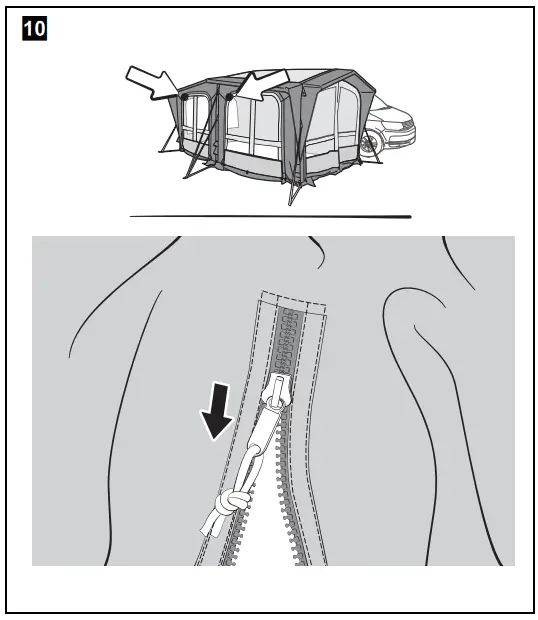

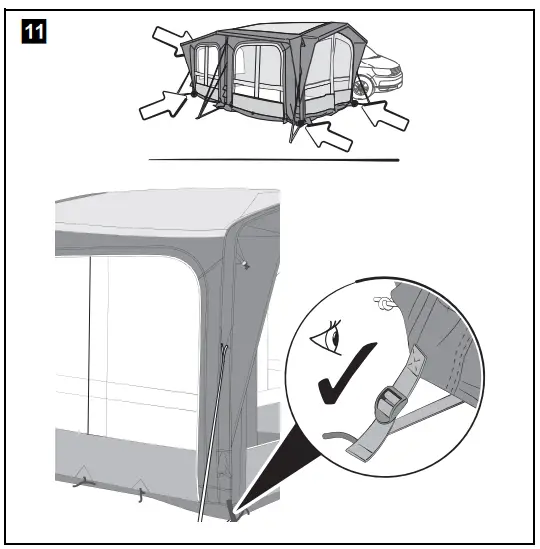

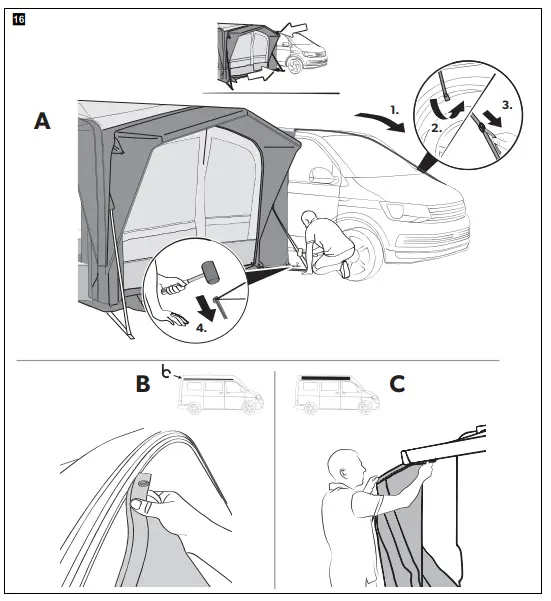

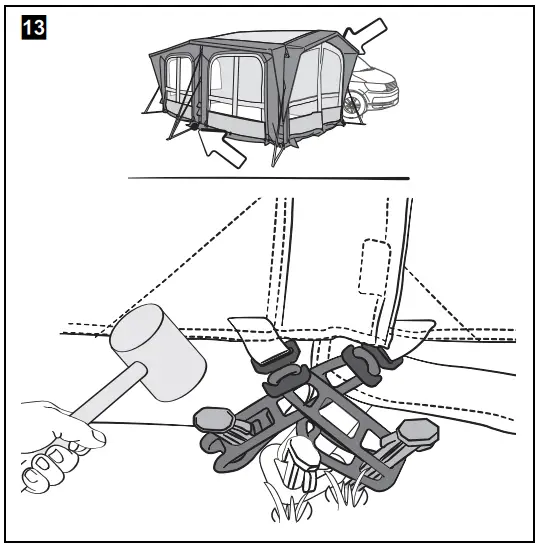

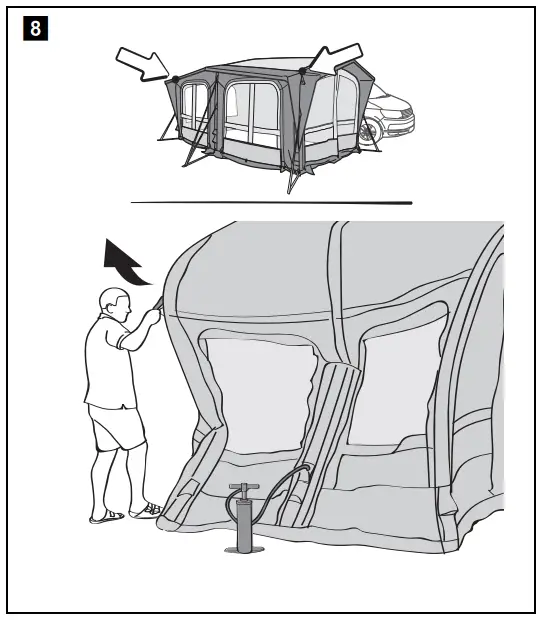

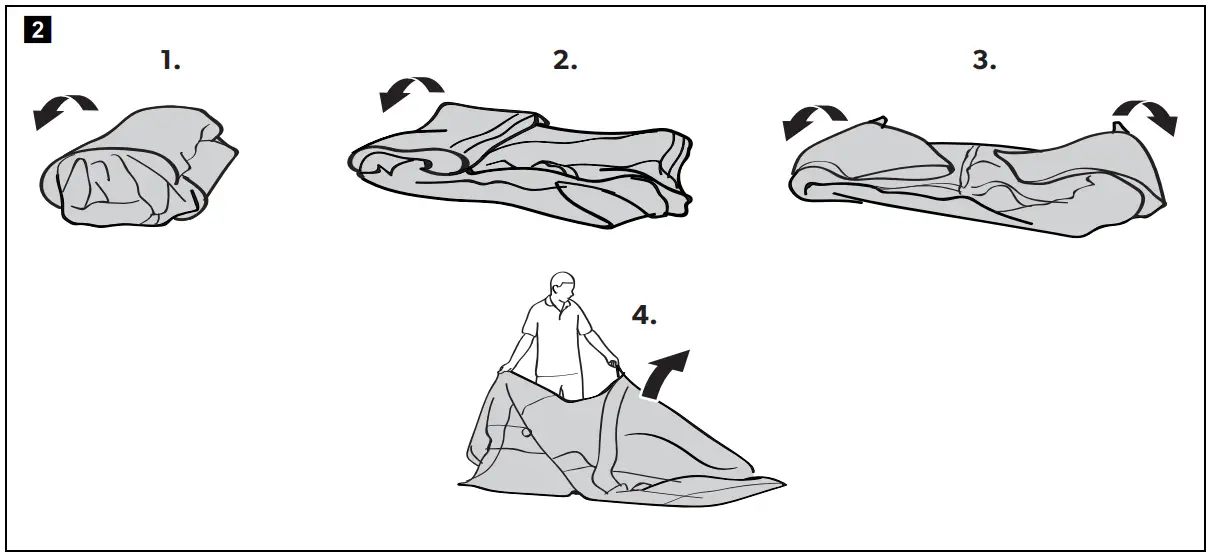

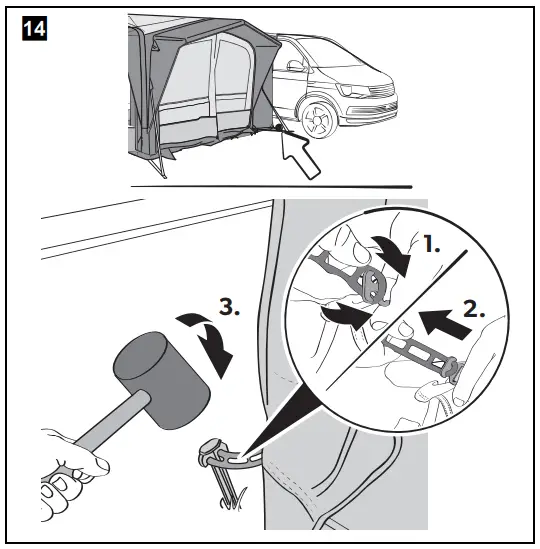

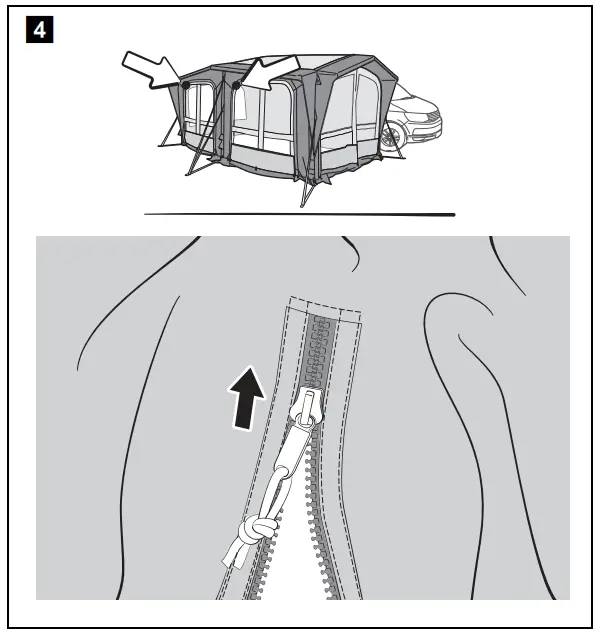

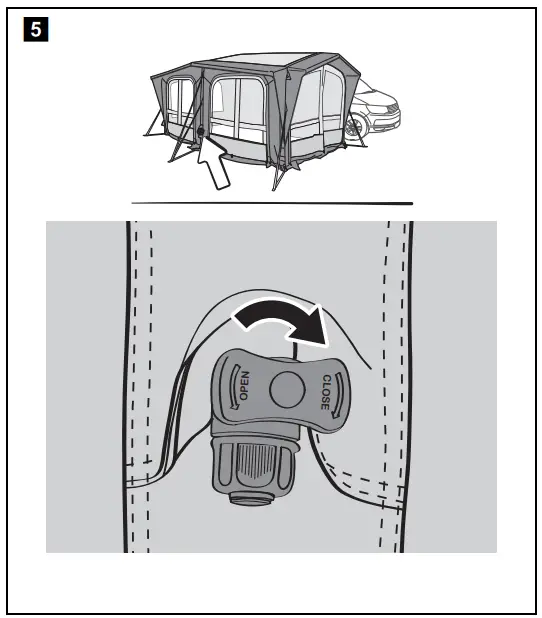

4. Proceed as shown to set up the awning tent (fig.2, page 3 to fig.f, page 6).

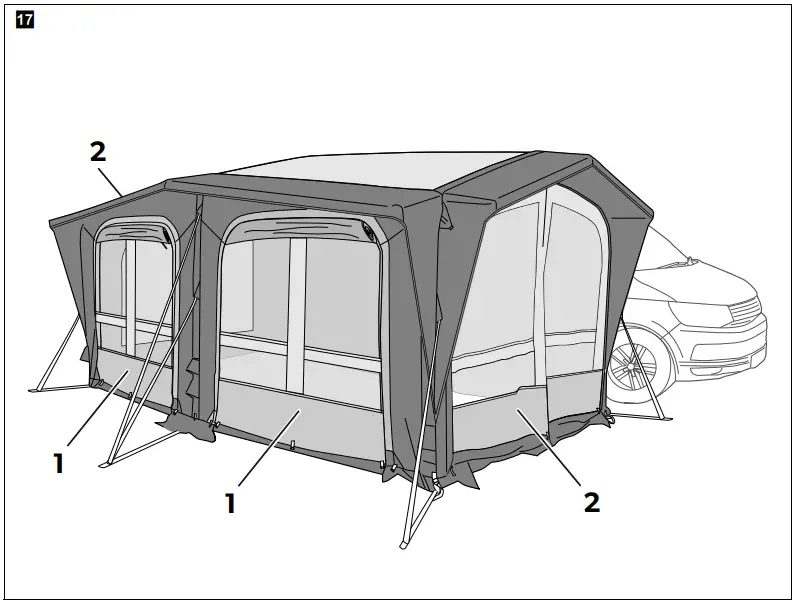

NOTICE! The panels should be installed in the following positions: The panels with the roll-up PVC outside blinds should be installed on the long side of the awning (fig.g, page 7, 1). The single layer panels should be installed on the short side of the awning (fig.g, page 7, 2).

Dismantling the awning tent

NOTICE! Damage hazard Do not use force when dismantling the awning tent. Otherwise you might damage any material.

1. Remove any dirt on the outside.
2. Close all window blinds or remove curtains.
3. Close all doors and openings.
4. Remove all lines and straps.
5. Remove all pegs between the corner pegs.

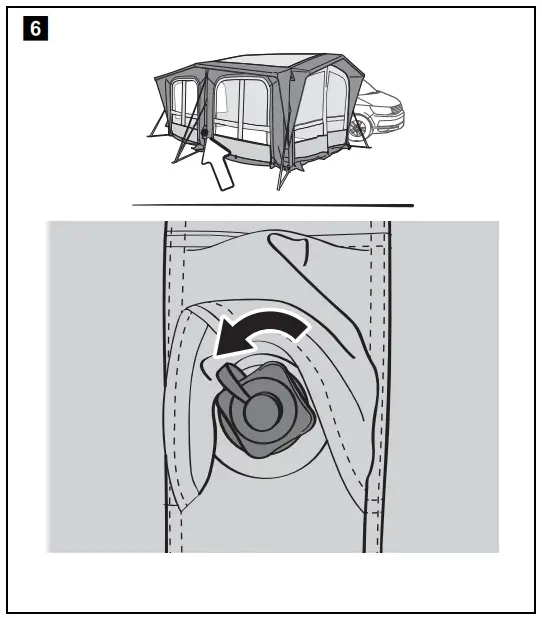

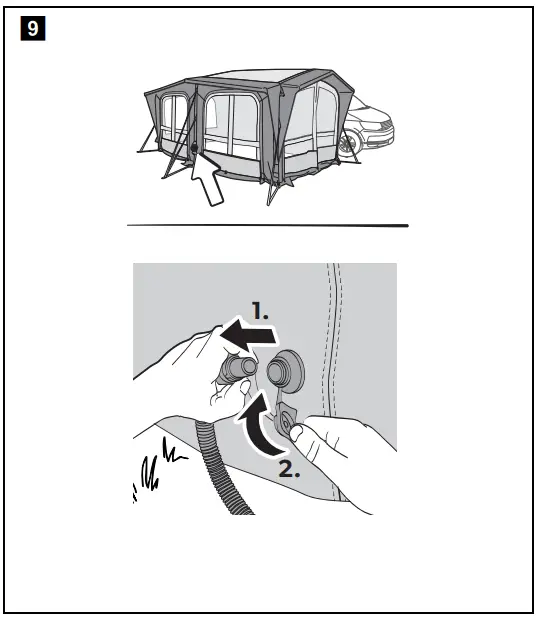

6. Open the valves on each tube.
7. Wait until most of the air has been expelled.
8. Remove the four corner pegs.
9. Remove from awning channel on van.
10. Fold/roll the awning tent towards the valves to expel more air.
11. When deflated, roll the awning tent to fit into the carry bag.
12. Ensure that all parts are clean before packing them into the carry bag.
13. If the awning tent is wet or damp, dry fully as soon as possible.

Cleaning and maintenance

NOTICE! Damage hazard Do not use sharp or hard objects or cleaning agents for cleaning. Do not use alcohol based materials, chemicals, soap and detergents for cleaning. Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material.

1. If necessary, clean the product with clean water and a soft brush.
2. Apply impregnation against water and UV radiation before each trip

Storing the awning tent

NOTE Fully set up the awning tent for cleaning. Choose a sunny day for cleaning to ensure the material will dry thoroughly.

1. Clean the awning tent.
2. Air fully and ensure the awning tent is totally dry before packing away.
3. Store in a well ventilated dry place..

Troubleshooting

NOTE During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process. A fully equipped spare parts kit should include: Waterproofer Repair tape and repair solution Silicone spray for the zippers Spare pegs

Condensation

All awning tents suffer from internal condensation if one or more of the following conditions apply:

• High air humidity
• High ground moisture
• A drop in temperature

Severe condensation can run down the inside of the roof and drip off ties, tapes and other internal fittings and can be mistaken for leaking.

• Increase ventilation by opening doors and/or windows.
• Install a waterproof groundsheet.

Repairing a puncture in the air pole

If the air pole loses air, proceed as follows:

1. Unzip the outer sleeve holding the air pole.
2. If installed, close isolation valves.
3. Remove the air pole.
4. Deflate the air pole.
5. Unzip the protective sleeve to expose the inflatable tube.
6. Blow some air into the inflatable tube.
7. Submerge the tube in water.
8. Locate the puncture.
9. Use repair tape and repair solution to seal the hole.
10. Zip the inflatable tube back into the protective sleeve.
11. Zip the air pole back into the outer sleeve.

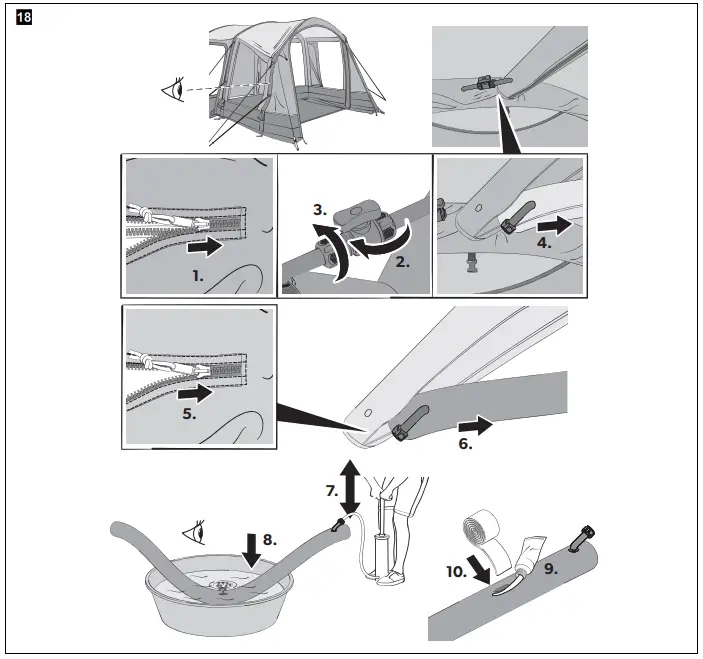

12. Refer to the illustrated steps to repair a puncture (fig.h, page 7).

Disposal

• Place the packaging material in the appropriate recycling waste bins wherever possible.
• Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer’s branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault

Note that self-repair or non-professional repair can have safety consequences and might void the warranty.

Technical data

Customer Support

dometic.com
YOUR LOCAL DEALER
dometic.com/dealer
YOUR LOCAL SUPPORT
dometic.com/contact
YOUR LOCAL SALES OFFICE
dometic.com/sales-offices
