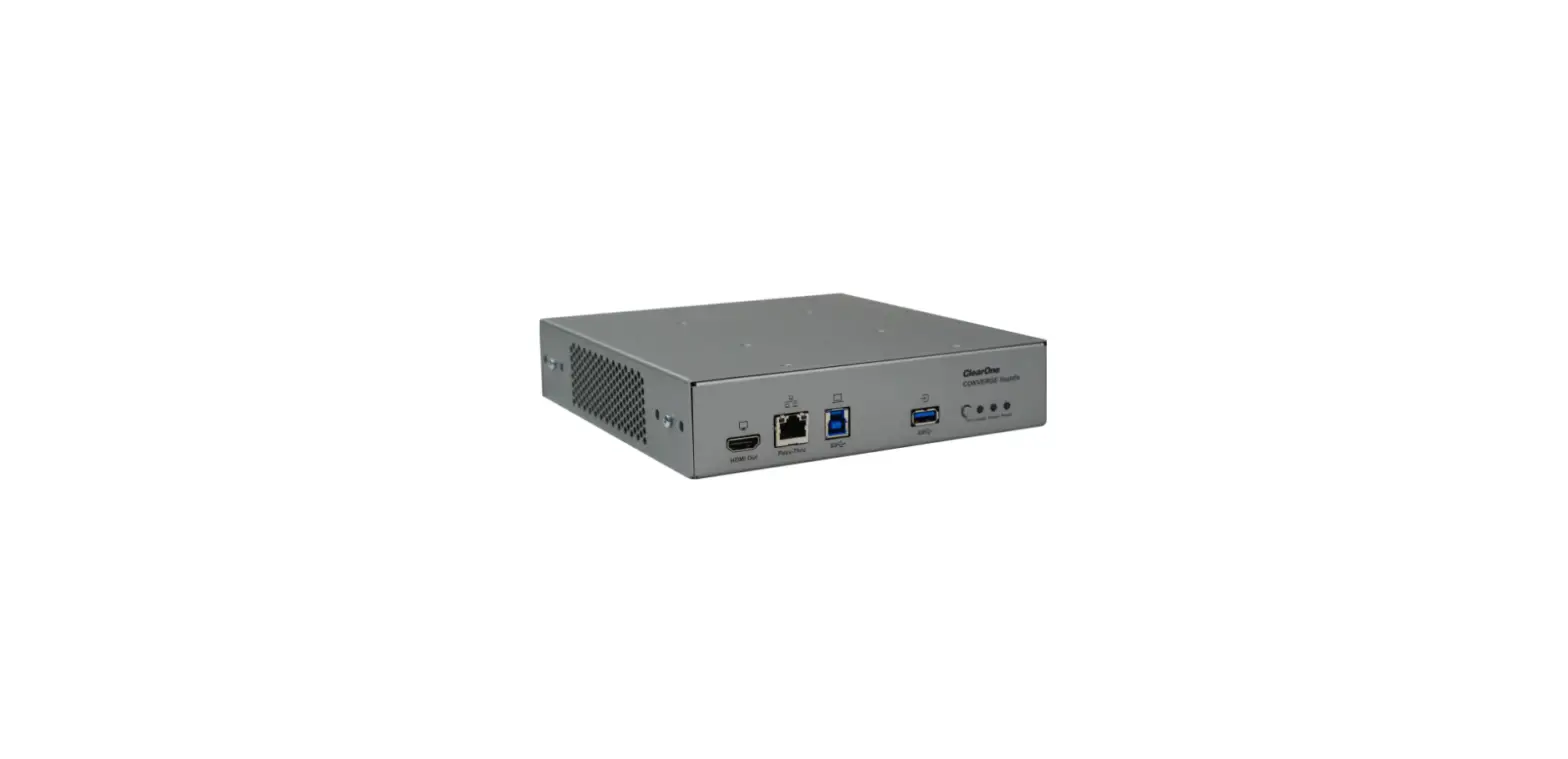

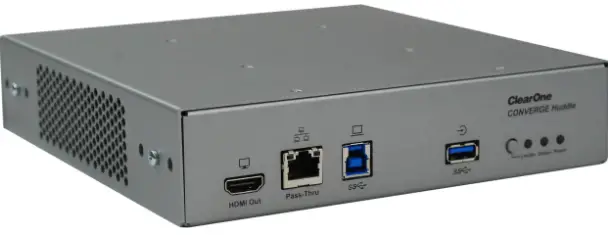

ClearOne Converge Huddle AV Conferencing DSP Mixer
Room Application
Web AV Conferencing
Included Interfaces
BYOD PC Video Conferencing, Bluetooth
Primary Equipment
- Huddle
- BMA CT Beamforming Mic Array
- Bluetooth Expander
Software/Firmware revisions utilized
- Console AI Version: 7.5.4.1
- Huddle DSP Version: 8.4.3.0
- BMA-CTH Version: 1.0118
Room Illustrations
Room Description
Small meeting space for up to 6 people with all the connectivity needs for a modern conference room.

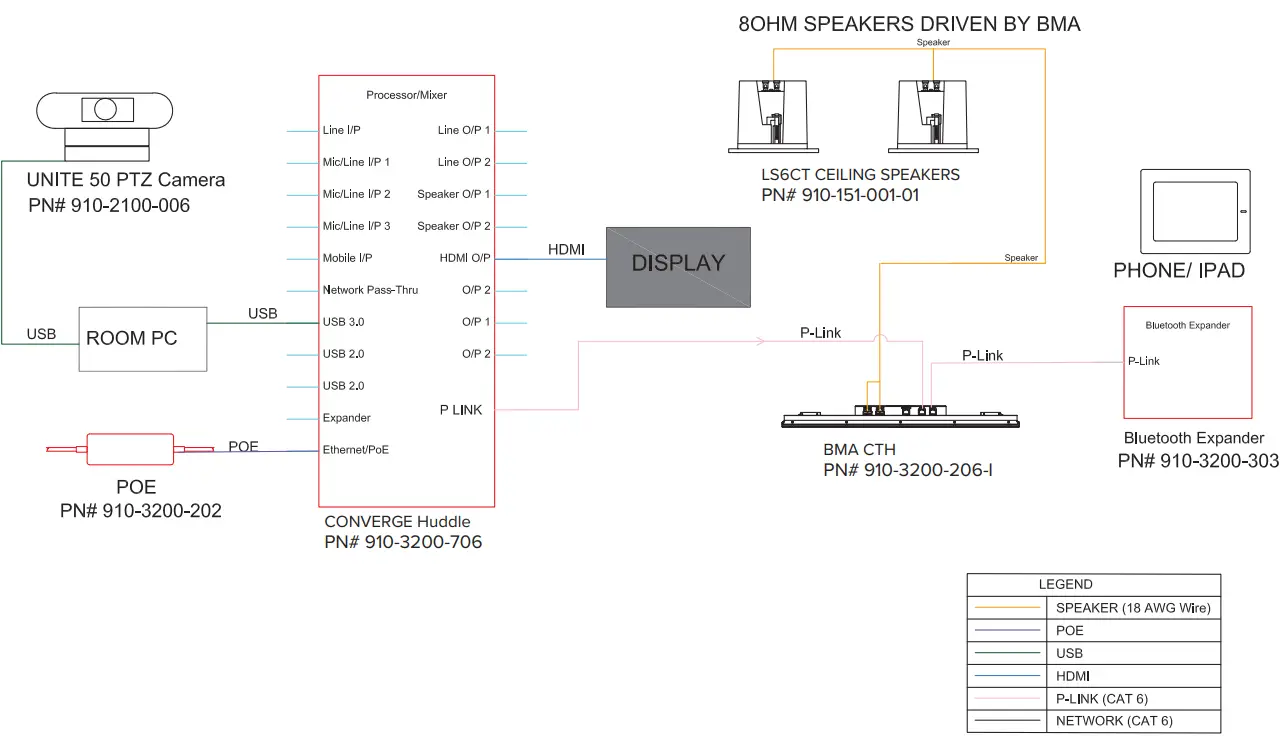

Wiring Diagram
NOTE: ANY INDIVIDUAL P-LINK MUST NOT EXCEED 61 METRES IN LENGHT
Equipment list
| Qty | Part Number | Product Name | Description |
| 1 | 930-3200-206-I | COLLABORATE® Versa PRO CT | Includes CONVERGE Huddle CTH, BMT CTH 600 mm, COLLABORATE Space Pro 10, and one SIP/H.32 gateway for 90 days. |
| 1 | 910-3200-202 | 36W PoE+ power supply kit for BMA | Includes 1 x 36 Watt PoE+ Injector, 2 x 7.6m CAT6 cables |
| 1 | 910-3200-303 | CONVERGE® Bluetooth Expander | Includes Bluetooth Expander Wall Panel, Trim Plate, Low Voltage 1-Gang Wall Bracket, NFC Button |
| 1 | 910-2100-006 | UNITE® 50 4K ePTZ Camera | 4K 30 fps, USB, e-PTZ with UVC Protocol, 120° ultra wide-angle |
| Ceiling Speakers | Includes 2 x LS6CT ceiling speakers with 8 ohm and 70V/100V transformer taps and ceiling tile bridges. |

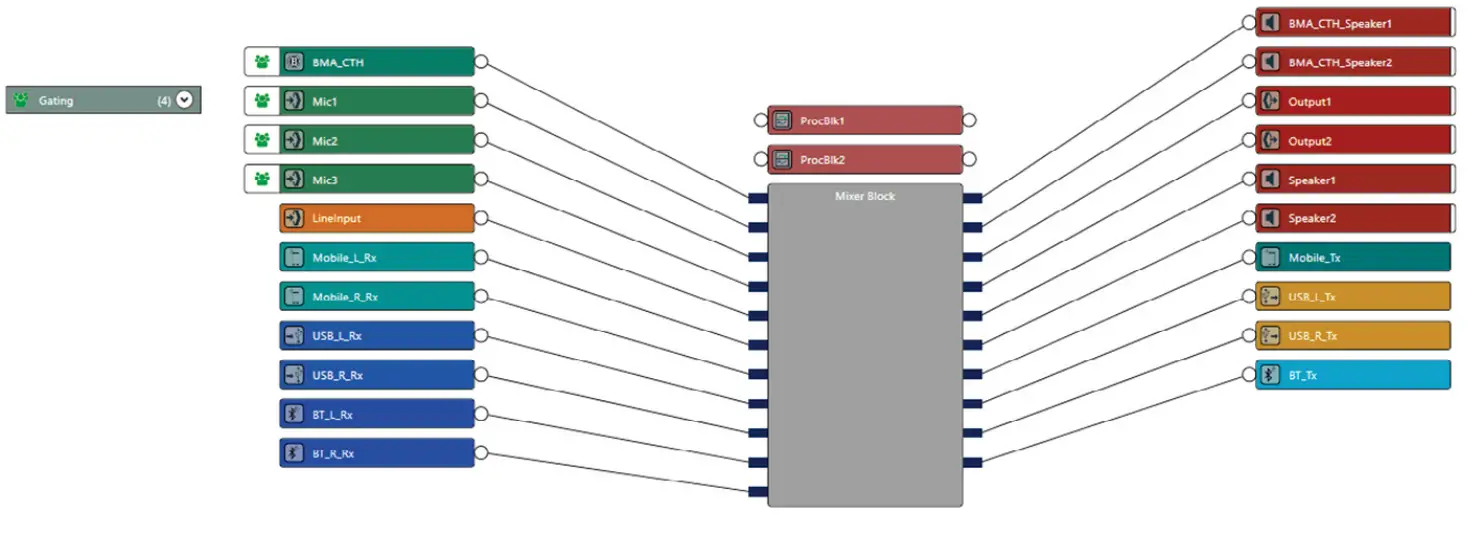

FlowView™ Diagram
