ClearOne 910-3200-008 Flex Room Advanced Multi Channel Mic Audio Mixer
Room Application
- Flexible Seating, Media Content
- Sharing, Video and Teleconferencing
Included Interfaces
- VoIP, Analog Telco,
- Wireless Media Sharing
Primary Equipment
- Converge Pro 2 48VT
- BMA 360 Microphones
- LS6CT Speakers

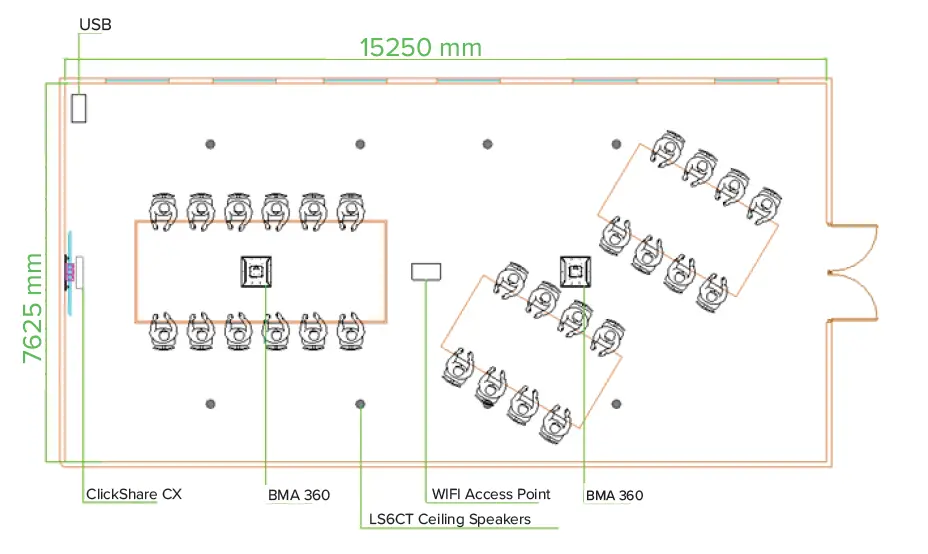

Room Illustrations
Room Description
Large open plan room with mobile seating and tables. Great space for having general meetings and sharing content with a focus on wireless, hands free operation.

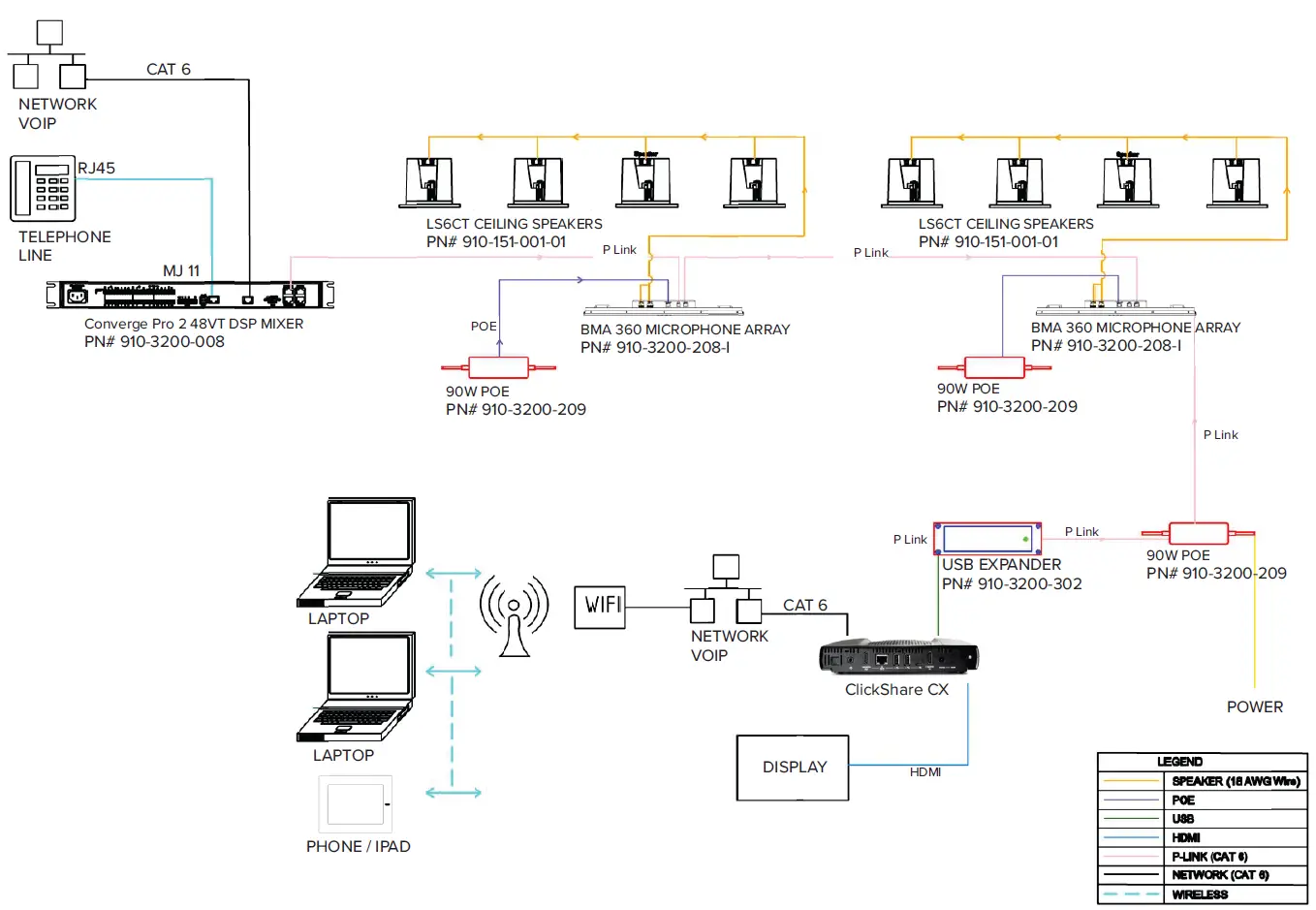

Wiring Diagram
NOTE: ANY INDIVIDUAL P-LINK MUST NOT EXCEED 61 METRES IN LENGHT
Equipment list
| Qty | Part Number | Product Name | Description |
| 1 | 910-3200-008 | CONVERGE Pro 2 48VT | DSP Mixer with 4 Mic/Line AEC Inputs, 8 Mic/ Line Outputs, USB Audio, VoIP, Telephone Interface, 2 x 10 Watt Power Amplifier |
| 2 | 910-3200-209 | 90W PoE++ power supply kit for BMA | Includes 1 x 90 Watt PoE++ Injector, 2 x 7.6m CAT6 cables |
| 1 | 910-3200-202 | 36W PoE+ power supply kit for BMA | Includes 1 x 36 Watt PoE+ Injector, 2 x 7.6m |
| BMA 360 600 mm | BMA with 4 x 15 Watt Power Amplifiers. PoE Injector and CAT6 cables not included. | ||
| USB Expander for CONVERGE Pro 2 | |||
| Ceiling Speakers | Includes 2 x LS6CT ceiling speakers with 8 ohm and 70V/100V transformer taps and ceiling tile bridges. | ||
FlowView™ Diagram
Included Macros
- Microphone_Mute : Mutes both room BMA 360 Microphones.
- Microphone_Unmute : Unmutes both room BMA 360 Microphones.
- Room_SPKR_Mute : Mutes all room speaker channels.
- Room_SPKR_Unmute : Unmutes all room speaker channels.
- Room_VOL_DN : Decreases the room speaker volume by 3 dB per execution.
- Room_VOL_UP : Increases the room speaker volume by 3 dB per execution.
Macros can be executed via Telnet or serial communications. Refer to the Converge Pro 2 Serial Command Reference Manual for details.
SALES AND INQUIRIES
Headquarters
Unit 3, 58 Waterway Drive Coomera, QLD, 4209, Aus tralia
Phone
- Main: +61 7 5561 7530
- Sales [email protected]
- Tech Support [email protected]
Other product names may be registered trademarks of their respective owners who do not necessarily endorse ClearOne or ClearOne’s products. All rights reserved. Information in this document subject to change without notice. © 2022 ClearOne.
