Skytec Stm-3020b 6-channel Dj Mixer User Manual

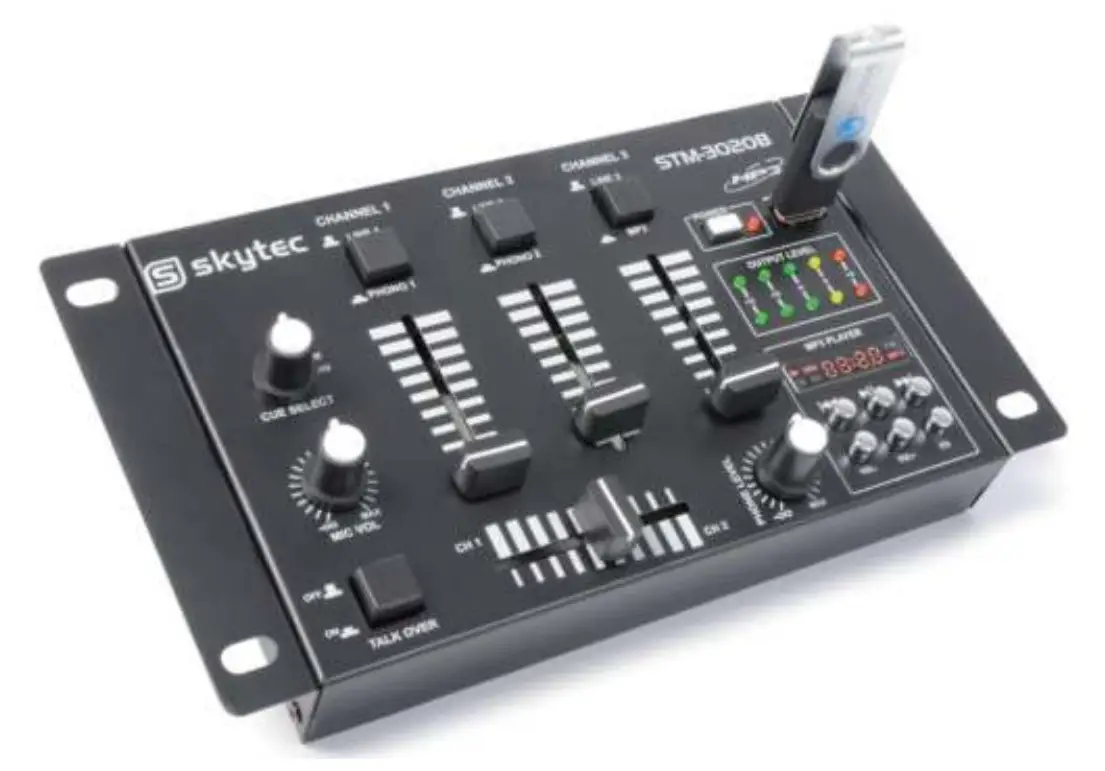

skytec STM-3020B 6-Channel DJ Mixer

Dear Customer,

We like to congratulate you on the purchase of the DJ mixer
You have chosen a product which combines deliberate technical features with an appealing design.
Please read this manual conscientiously and carry out the given instructions before and while you are using your new device.

Safety Precaution

Read all documentations carefully before operating the equipment. Retain this manual for future reference.
Follow all instructions printed on unit for proper operation.

	Do not open cover (or back cover) to reduce the risk of electrics shock or fire. There are no user serviceable parts inside. Refer to Servicing to qualified service personnel.
	This symbol is used to alert the operator to the presence of important Operating instructions and precautions detailed in the documentation manual.
	This symbol is used to warn operators that uninsulated dangerous voltages are Present within the products enclosure that may pose a risk of electric shock. Warning: To avoid fire or risk of electric shock, do not expose this unit to rain or moisture.

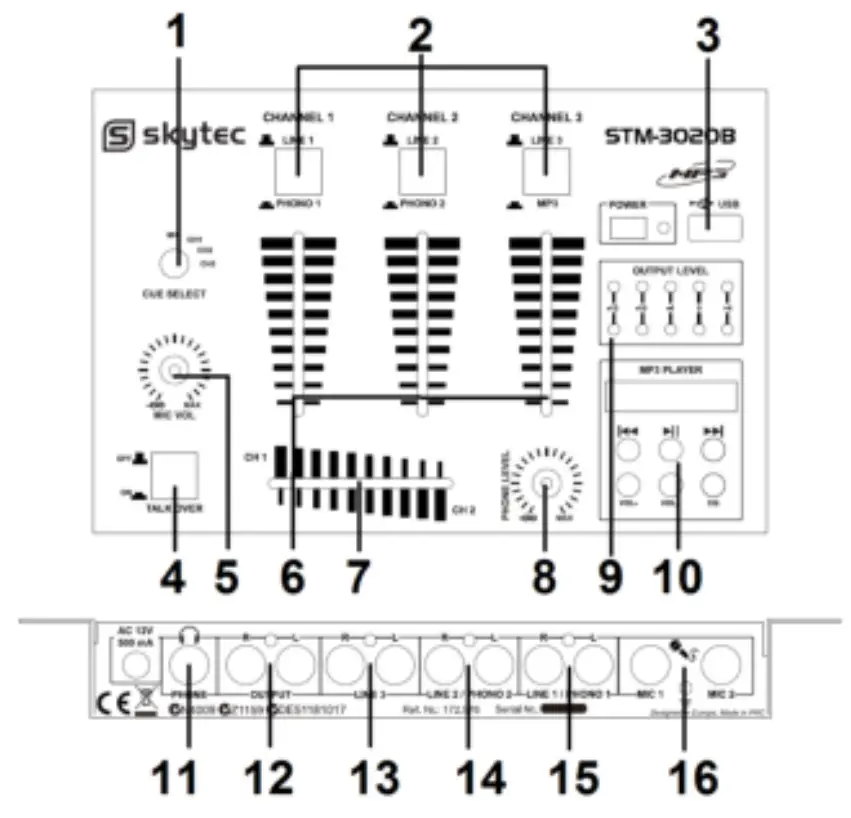

LAYOUT

1. CHANNEL CUE SELECTOR SWITCH
   The button allows you to choose which channel you wish to monitor in your headphones by pressing the buttons down
2. LINE / USB-PHONE INPUT SELECTOR
3. USB INPUT
4. TALKOVER SWITCH
5. MIC VOLUME:
   Volume control of the microphone
6. CHANNEL VOLUME FADER
   Channel fader will allow you to adjust the volume for that particular Channel selected
7. CROSS-FADER:
   Slide for step less cross-fading from one to another assigned channel.
8. PHONO LEVEL
9. OUTPUT METER
   VU-meter with LED as indicators for the strength of the output signal
10. MP3 PLAYER
    Selects the previous track or volume decreasing. Insert your USB flash drive into this slot. The unit will only read .mp3 file formats from the USB flash drive.
11. PHONO OUTPUT
12. -15 LINE / PHONO INPUTS
    16. MICORPHONE INPUT CONNECTOR
    To insert your microphone

Declaration of Conformity

Manufacturer	TRONIOS BV Bedrijvenpark Twente 415 7602 KM – ALMELO +31(0)546589299 +31(0)546589298 The Netherlands
Product number	172.976
Product Description	STM-3020B 4 Ch USB/SD mixer
Trade Name	SKYTEC
Regulatory Requirement:	EN 61558 EN 55013 EN 55020 EN 61000-3-2/-3-3
The product meets the requirements stated in the above mentioned Standards. This certificate does not cover the aspects that may be relevant such as performance and fitness for purpose.
Name	B. Kosters Controller regulations
Signature

www.tronios.com
Copyright © 2013 by TRONIOS the Netherlands
