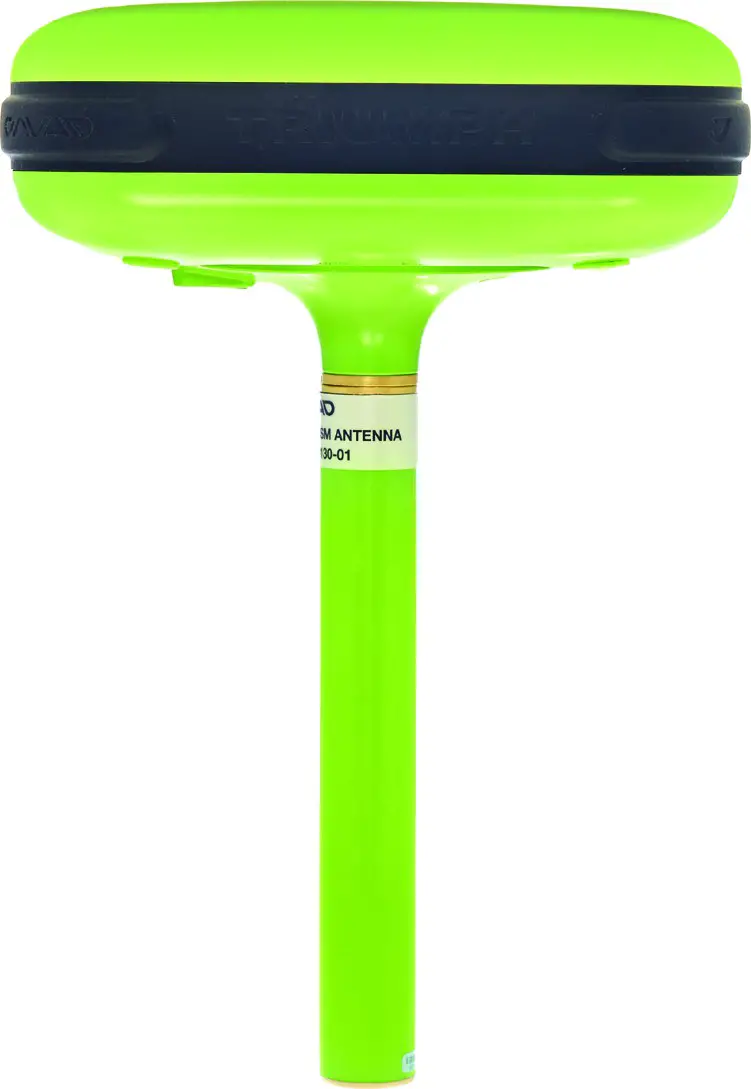

TRIUMPH-1M
GNSS RECEIVER
Quick Start Guide
VERSION 1.0
LAST REVISED MAY 30, 2019
All contents in this manual are copyrighted by JAVAD GNSS.
All rights reserved. The information contained herein may not be used, accessed, copied, stored, displayed, sold, modified, published, or distributed, or otherwise reproduced without the express wrote consent from JAVAD GNSS.
Accessories
 |  |  |  |

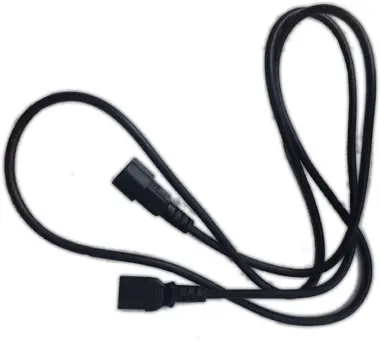

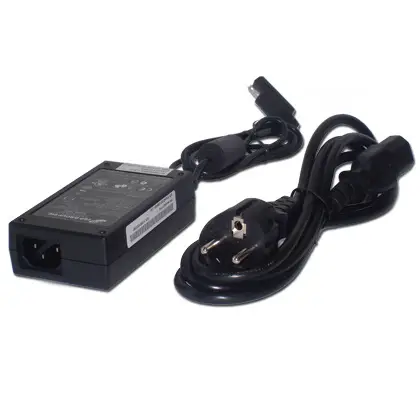

| Power Cable, ODU5/SAE (0.3m/ 0.98 ft) p/n 14-578101-01 | SAE-to-SAE cable extension (1.8 m/6 ft) p/n 14-578102-01 | Accessory Ext. Power Supply/Charger 60W C14/SAE p/n 22-570101-02 | AC Power Cable, 3c, C13/C14, SVT (1.8 m/6 ft) p/n 14-578153-01 |
 | |  |  |

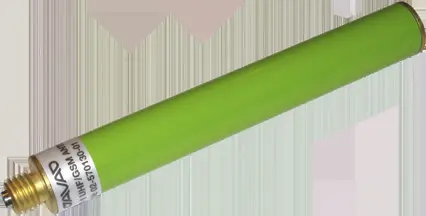

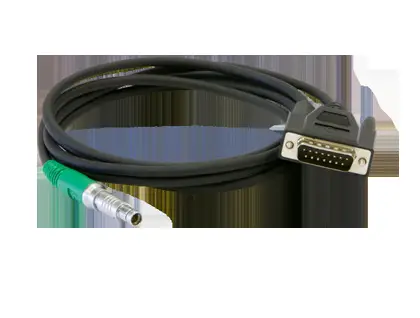

| Data-Ser Cable, ODU-7/DB9 (1.8 m/6 ft) p/n 14-578103-01 | USB Cable to ODU-5 (1.8 m/6 ft) p/n 14-578104-01 | Tweezers Straight Spade Tip, Smooth, 4-1/2inch, SS p/n 34-000004-01 | UHF/GSM Antenna p/n 02-570130-03 |

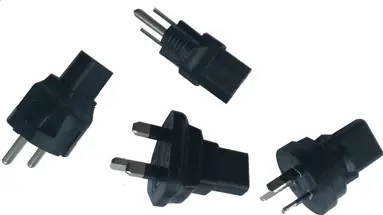

AC Power Adapter, 3c,
C13/ NEMA 5-15P
p/n 23-590029-xx
Features
Communication with TRIUMPH-1M is easy. In addition to two serial ports (A and B) and a USB, TRIUMPH-1M also has Ethernet connectivity.

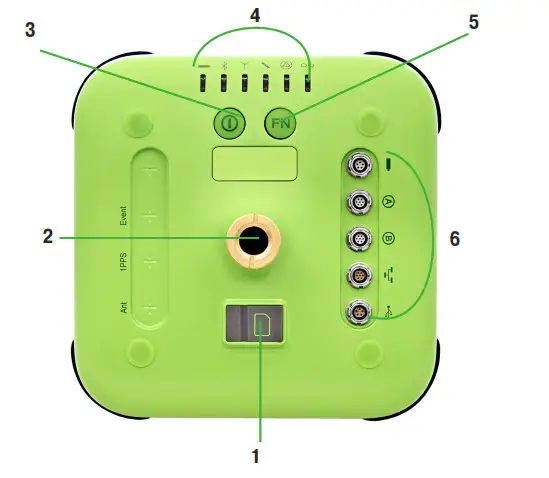

| 1. SIM-card slot 2. Mounting 3. On/Off button | 4. LEDs 5. FN button 6. Connectors |
- All dimensions are in mm
- * Reference dimension
- ARP – Antenna Reference Point
SHMP – Slant Height Measurement Point
NOM – North Orientation Mark
Specifications
LED INDICATION
| Function | Green | Yellow | Red | OFF |
| BATTERY’ | Full | Half | Almost Empty | OFF/No power |
| BLUETOOTH | Connected | Searching | No connection | Not Active |
| MODEM | Connected | Marginal Connectivity | No connection | Not Active |
| SATELLITES’ | 8 or more | 5 to 7 | Less than 5 | No Satellite |
| POSITION | Fixed/Diff/ OK (Base) | Float/No-Diff | No Position | Receiver OFF |
| RECORDING’ | Recording | Less than 10 min memory left | Memory Full | Not Active |
- LED solid according to the battery means the receiver is ON without external power. Blinking every 1 sec according to the battery means external power is connected.
- an Effective number of satellites are the total number of satellites tracked minus the number of non-GPS systems tracked. For example, if 8 GPS and 5 GLONASS are tracked the effective number of satellites is 12.
- RECORDING LED blinks on each recording.

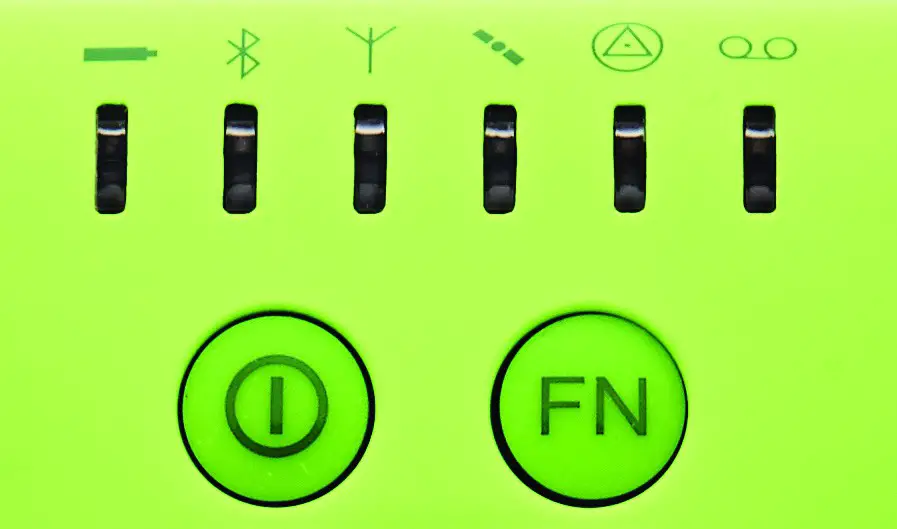

MIN PAD AND PORTS
TRIUMPH-1M is very simple to operate. Turn it on and six green lights, one after the other, glow to tell you that all is going well.
The ON/OFF button turns the receiver on and off.
FN button starts/stops data recording. Holding both FN and ON/OFF buttons down for more than 30 seconds will reset the receiver. Holding FN down while turning receiver ON us- ing ON/OFF button (or after resetting receiver) until four LEDs start to blink yellow and then release FN button while four LEDs still blink yellow will bring the receiver to its initial factory- default state (i.e., will clear NVRAM).

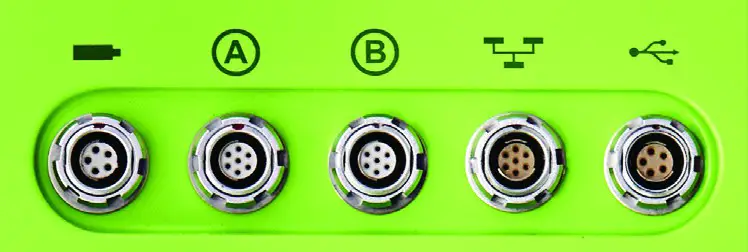

Power – used to connect the receiver to an external power source.
Serial – used for communication between the receiver and an external device.
Ethernet – used to connect the receiver to local network.
USB – used for high-speed data transfer and communication between the receiver and an external device.
PHYSICAL SPECIFICATIONS
| Dimensions | 7 x 3.78 x 7 in (178 x 96 x 178 mm) |
| Weight | 3.75 lbs (1.7 kg)/4.02 lbs (1.82 kg) with modem antenna |
ENVIRONMENTAL SPECIFICATIONS
| Enclosure | Molded magnesium alloy and plastic, waterproof IP67 |
| Operating /Storage Temperature | -30° C to +55° / -20° C to +45° C |
For complete technical specifications, please refer to the TRIUMPH-1M Data Sheet available from www.javad.com.
Battery information
NOTE: Risk of explosion if battery is replaced by an incorrect type. Dispose of used battery according to the instructions.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS
CAUTION: Never attempt to open the casing of the detachable batteries! Lithium-Ion batteries can be dangerous if mishandled!
CAUTION: Do not incinerate or heat battery pack above 212 degrees Fahrenheit (100 degrees Celsius). Excessive heat can cause serious damage and possible explosion.
CAUTION: The batteries (or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
CHARGE THE BATTERY
Before beginning to work, fully charge the batteries for maximum operating time. An approximately 6-hour charge cycle will fully charge the batteries; the batteries will charge simultaneously. The batteries can not be overcharged.

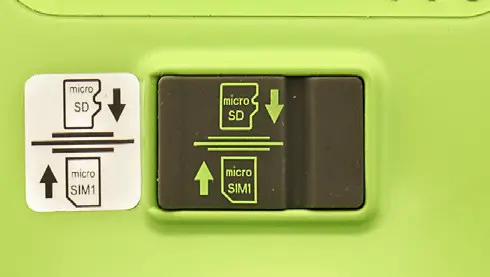

Inserting a SIM/ memory card
NOTE: Before inserting (or removing) a SIM/memory card from the slot, ensure that the receiver is off.
CAUTION: Do not insert the SIM/memory card upside down or back to front. Inserting the card incorrectly could damage the receiver and/or the memory card.
- Open the SIM/memory card slot cover.
- Slide the SIM/memory card into the card slot until it clicks into the locked position.
- Close the SIM/memory card slot cover.
