HINTON

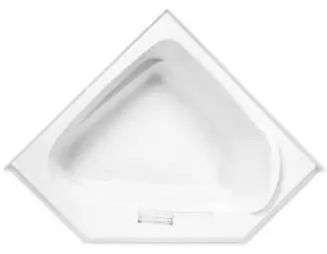

60” x 60” Skirted Acrylic Tub
Model Number: 6060HT064
Drop-in Soaker in White
Features
- Constructed of high-gloss durable acrylic
- Textured slip resistant bottom
- Deep bathing well
- Pre-leveled base for easy installation
- Transitional / Modern design
- Limited lifetime warranty
- Made in the USA
*Dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Technical Information
- Weight: 145 lbs.
- Water Depth to Overflow: 16 1/4”
- Water Capacity: 90 gal.
- Sump Dimension: 48” x 35 1/2”
Electrical Requirements (if ordered)
- LM305 Heater: 12.5 Amps (Dedicated GFCI)
- LM301 Radiant Heat: 1.2 Amps
- LM522 Mood Light: 0.6 Amps
- LM525 Lights & Music: 1 Amps

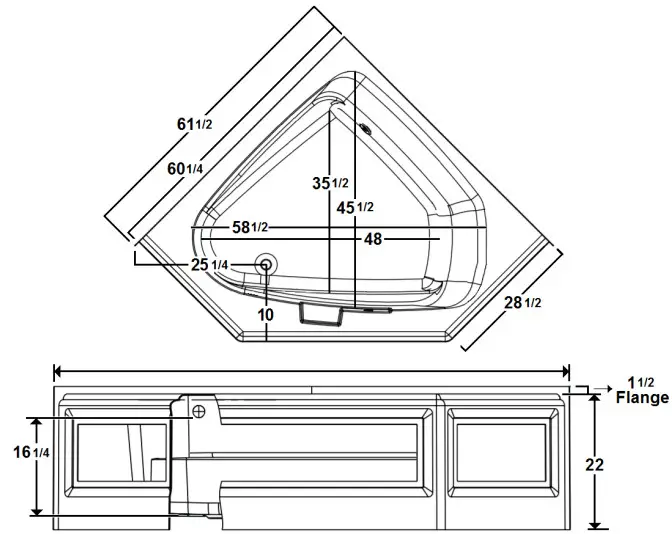

*Cut-Out Dimensions: Use the outer dimensions shown above and come in 1” on all sides.
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM301 Radiant Heat LM305 Inline Heater | LM522 Chromatherapy LM525 Music, Lights, Vibe |
Accessories
| TRIM KITS LM101 Chrome LM102 Brushed Nickel LM103 Bronze LM104 Polished Brass | CABLE OPERATED DRAINS LM200 Chrome LM201 Brushed Nickel LM202 Bronze LM203 Polished Brass LM210 White LM211 Biscuit | 8” GRAB BARS LM230 White LM231 Biscuit |
Design / Construction
LM542 Plastic Flange
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
