PH86347 Plugin Photo Motion Sensor
Instructions
Plugin Photo/Motion Sensor
Order Code: PH86347
Description

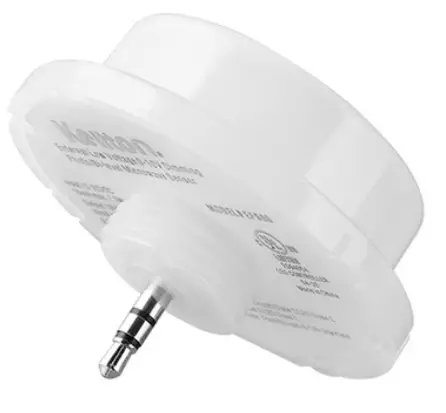

The Plug-and-Play microwave motion sensor is field installable and does not require any wiring. The sensor simply screws into a socket provided on several Venture Lighting
fixtures as a standard feature. The wide range of sensor settings are adjusted via the handheld remote (AC86350). The many combinations of settings will easily cover most control schemes and needs.
Benefits / Features
- Can be mounted as high as 40ft
- Plug-and-Play with no wiring
- Easily reduce energy consumption with high end trim and dimming
- Turns lights off when they are not needed
- Microwave technology reduces the interference from obstructions in the detection range
- Easily expand control system after original installation
- Enable daylight harvesting with Lux setting adjustment
Warranty
For warranty information refer to: www.venturelighting.com/resources/warranties
Physical Characteristics
| Length | 1.74” (44.3 mm) |
| Diameter 2.17” | 2.17” |
| Operating Temperature Range | -30°F to ~ +131°F (-30°C to ~ +55°C) |
| Mounting Height | 40ft / 12.2m Max |
| Detection Range | 100ft / 30.5m Max |
Electrical Characteristics
| Input Voltage | 12V DC |
| Power Consumption | 0.1W |
| Mode Setting | A, B, C, D, E |
| Dimming Level Setting | 10%/20%/30%/50%/60%/70%/80%/100% |
| Delay Time Setting | 10s/1min/5min/10min/30min |
Regulatory Qualifications
cULus
IP65 Rated for outdoor fixtures.
Default Settings
Trim Level: 100%
Sensitivity: High
Hold Time: 5 min.
F Mode Daylight Harvesting: Disabled
Standby Dim: 50%
Standby Time: 30 min
Photocell: Disabled
Accessories

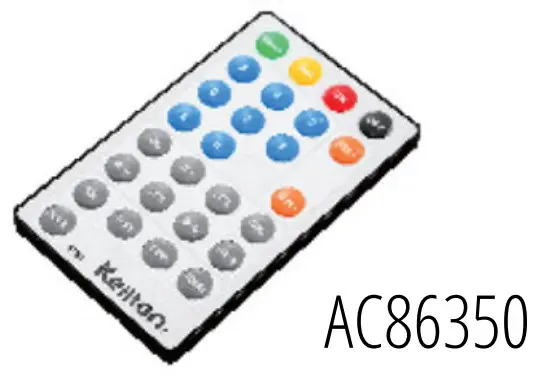

AC86350 Sensor Handheld Programmer

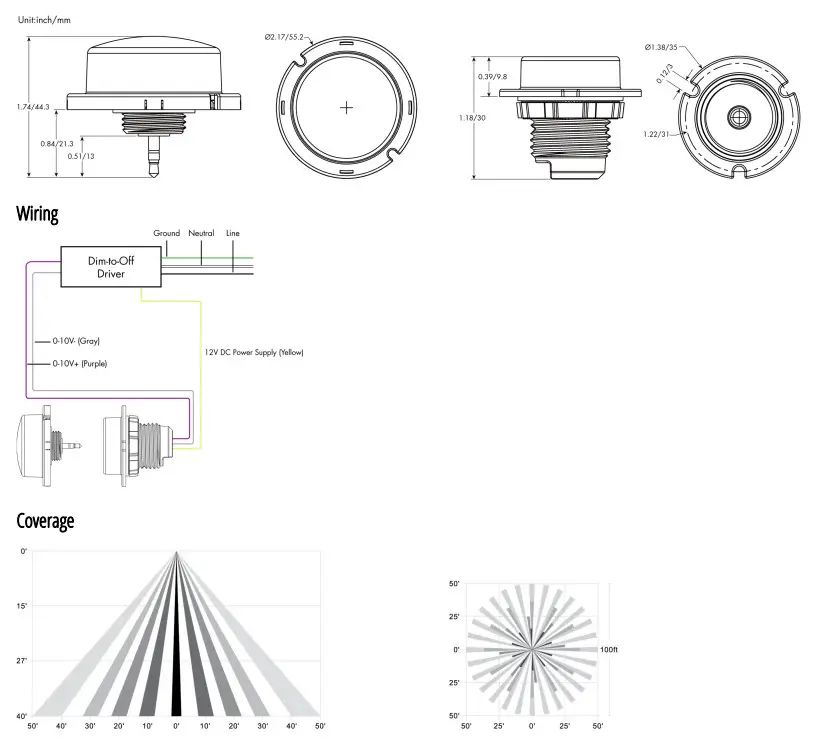

Dimensions
