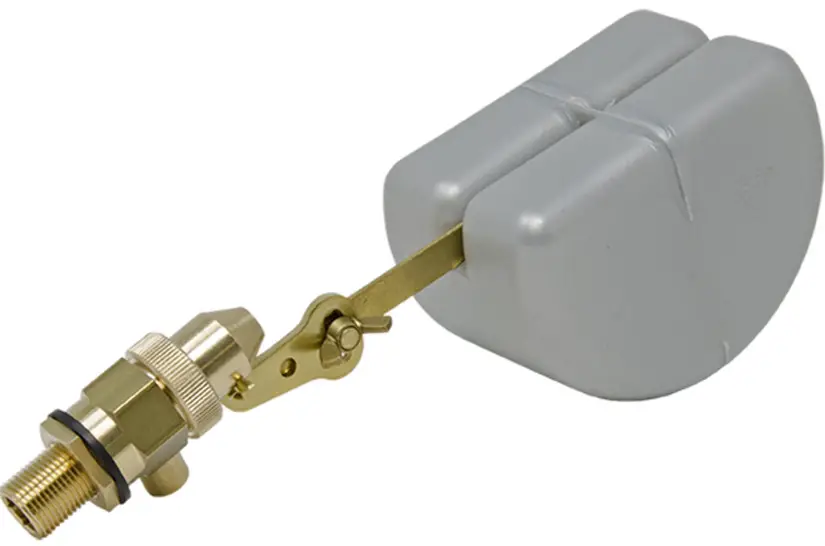

GENERAL PUMP YFLOATVALVE Brass Float Valve
SPECIFICATIONS
| Part Number | YFLOATVALVE |
| Max Volume | 7 GPM |
| Max Pressure | 140 PSI |
| Max Temp | 140º F |
| Inlet Port Size | 3/8-19 BSPP-M |
| Dimensions | 11.4” x 4.1” x 2.8” |
| Weight | .6 lbs |
| Material | Brass, Plastic, Buna-N |

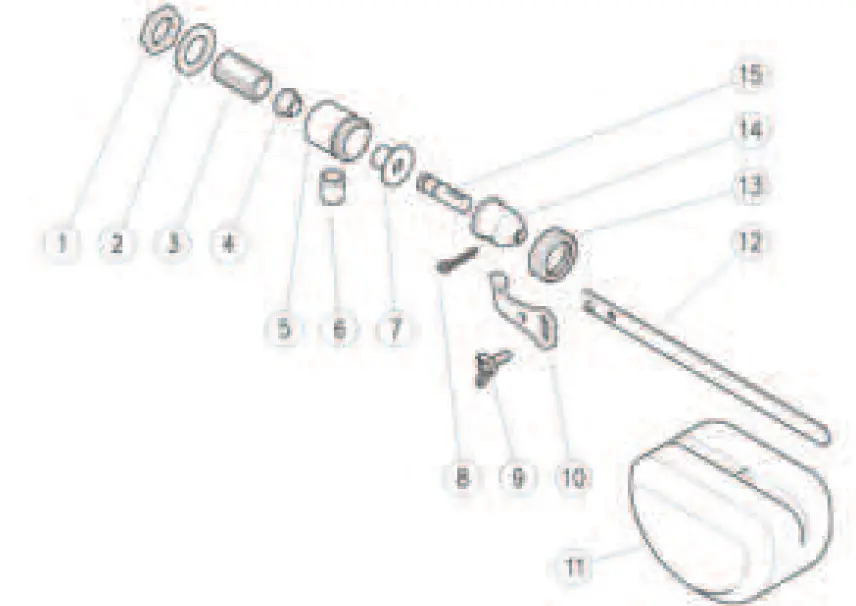

PARTS LIST
| No. | Part No. | Description | Qty. |
| 1 | Y29017131 | Nut, 3/8” F BSP, Brass | 1 |
| 2 | Y29017681 | Front Seal, 17 x 28 x 2 mm | 1 |
| 3 | Y29017236 | Coupling, 3/8” M BSP, Brass | 1 |
| 4* | Y29016584 | Seat | 1 |
| 5 | Y29016131 | Housing, M24 x 1.5M-3/8” F, Brass | 1 |
| 6 | Y29016236 | Drain Tube, Brass | 1 |
| 7* | Y29016681 | Front Gasket | 1 |
| 8 | Y11054901 | Cotter Pin, 3 x 20 mm | 1 |
| No. | Part No. | Description | Qty. |
| 9 | Y12015005 | Wing Nut, M5 x 10, Brass | 1 |
| 10 | Y29016835 | Transmission Plate, Brass | 1 |
| 11 | Y29019184 | Float Valve | 1 |
| 12 | Y29019031 | Rod | 1 |
| 13 | Y29016336 | Hand Nut, M24 x 1.5 F, Brass | 1 |
| 14 | Y29016931 | Cover, Brass | 1 |
| 15* | Y29016484 | Piston | 1 |
| * | YKITFLT | Repair Kit | 1 |
